LED COB 18-chip 3x6 panel + W5W, C5W, T4W adapters

LED panel COB 18-chip 3x6 + adapters W5W, C5W and T4W FREE

Panel Thanks to the attached adapters can be used interchangeable for the bulb:

• w5w / w10w
• C5W / C10W
• t4w

Technical Specification:

• type LED: cob
• Number of LEDs: 1
• Quantity Chip: 18
• power voltage: 12v
• light beam power: 270 lm
• light color: xenon white, ~ 6000k

Dimensions:

• length: 28 mm
• width: 17 mm
• depth: 4 mm

LED panel COB ideally suited for mounting in, among others Places such as:

• upper backlight
• backlight of the luggage surface
• lower door backlight
• yacht lighting
• registration switches

• The panel has a double-sided tape, thanks to which this is a 'Plug & AMP; PLAY' device. Just glue the panel in the chosen place and connect to a 12V> voltage source

The set includes:

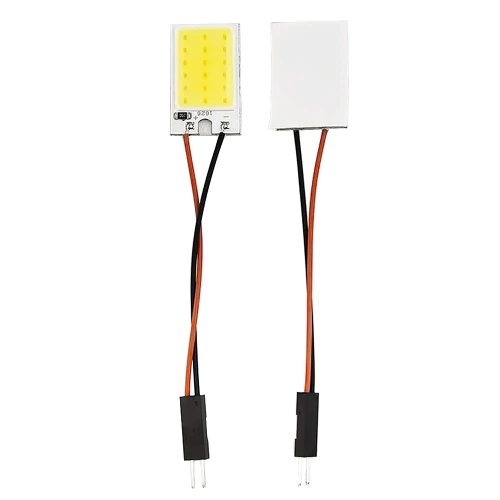

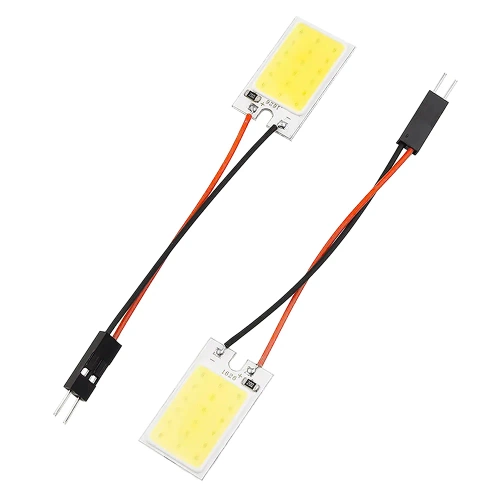

• 1x LED panel COB 18-chip 3x6 with two-sided tape 3M

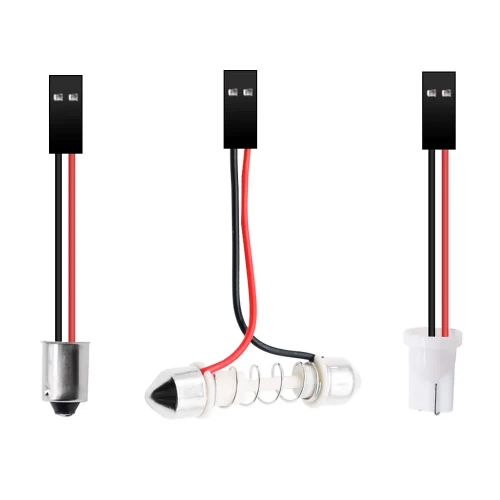

• 1x C5W adapter
• 1x Adapter W5W
• 1x T4W adapter

LED Chip-on-Board (COB)

In SMD technique, it is possible to implement flat modules with a fairly wide angle of light distribution. The chip-on-board is the most dynamically developing LED technology that allows you to make extremely flat elements (2 mm) with very high density (up to 70 chips / cm2). This innovative method allows for a small surface of one module to obtain a high-density light stream, especially compared to the output diodes in which the maximum packing density is 4 diodes / cm2. COB technology allows you to obtain different distribution angles depending on the media material used. The biggest advantage of the COB diode is to generate a light stream with very high power. LED cob light sources are characterized by: highest reliability, high resistance to voltage fluctuations and impact current, uniform color temperature and fully liquid light. A semiconductor imposed by COB technology makes the luminous stream not point. Subsequent works on the development of COB give the basics to believe that it will soon become a key innovation in the development of LED lighting.
