Kit lenses with adapters and grille S-MAX

set of lenses with adapters and S-MAX masks

A set of lenses for professional translating lamps for lenses. The presented set of bexnon lenses for self-assembly allows you to make the so-called Retrofit. It is an ideal solution for people with lamps made in reflector technology (non-lens) that want to enjoy the advantages of xenon light without blinding other road users.

lens assembly is possible in factory lamps equipped with a bulb H7 or H4 and does not require cut or gluing, it is fully reversible. In order to implement the Retrofit, the lamp should be undressed / Die. Then place the lens module from the reflector side and with the attached adapters are protected in the headlight slot. Included rubber gaskets and securing rings probably assemble the lens in the headlight. Then simply re-assemble / glue the lamp. Thanks to placing the lens in the original slot, a serial method for adjusting the lamps is saved, and the lens itself is properly leveled.

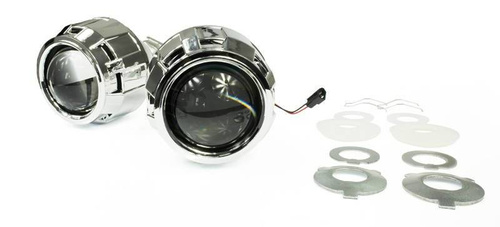

What will be in the shipment?

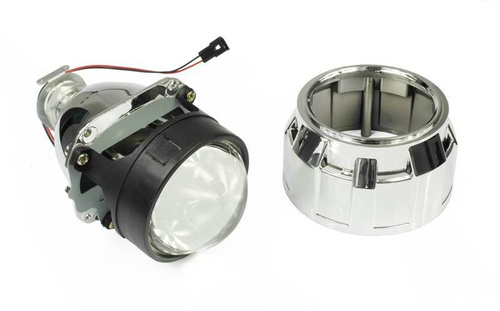

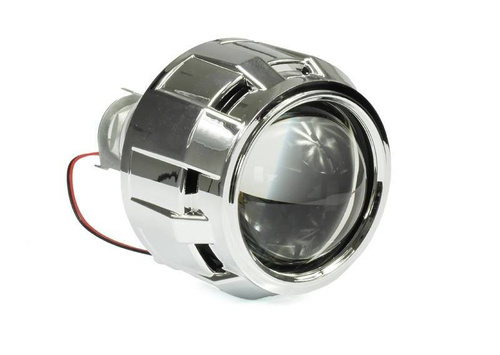

• 2 bixenon lenses (with a rotating electromagnet controlled) using commonly available filaments H1
• 2 adapters for mounting decorative covers
• 2 decorative shields (so-called masks, noble)
• mounting elements (rubber and rings allowing for seating in the lamp)
• Adapters for mounting in H7 or H4 (/ span>)>

advantages of our lens sets:

• High quality of opaTual elements
• simple assembly
• use of popular filament
• compact dimensions of the lens module allowing for assembly even in small headlamps (eg motorcycle)
• excellent light distribution
• light cutting line - shadow as in factory xenon headlights - no blinding other drivers
• built-in electromagnet controlling the change of beating lights on the road
• possibility of choosing aesthetic shield practically for any type of lamp
