reversing camera with LED and IR diodes

• automatic camera start after turning on the backwear
• camera inclination angle
• can be connected to any screen or monitor using a RCA video cable

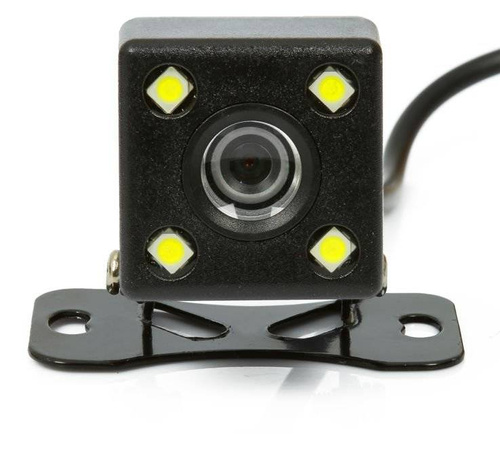

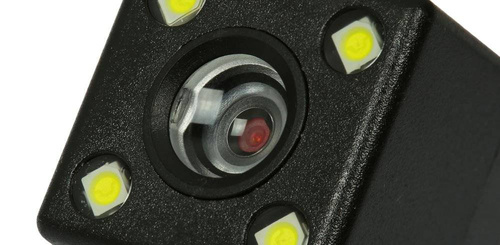

The camera is equipped with 4 Night Vision LEDs that provide good visibility at night.

• automatic camera switching on when you start the reverse gear.
• fits any monitor with Video RCA input.

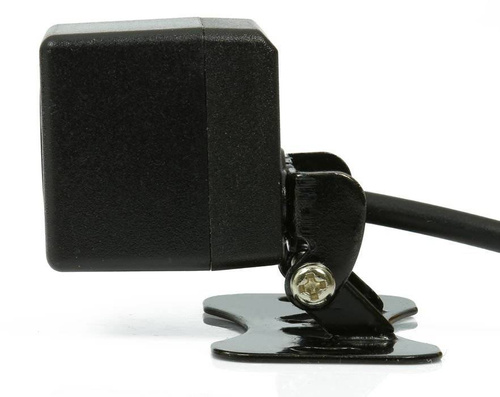

• The camera is turning vertically. The lens is made in anti-fog technology
• image from the camera has intuitive auxiliary lines facilitating parking
• the camera is waterproof and shockproof - IP68

Specification:

• camera parameters: vertical adjustment 45 degrees, 170 degree viewing angle
• Facilities of cameras: auxiliary lines, 4 LEDs Night Vision, lens made in anti-fog technology
• resolution: 648x488
• Image transducer: 1/4 "CMOS color
• Working temperature: from -40 to + 70 ℃
• dimensions (without handle): 23 mm x 23 mm
• 8-15V power
• water resistance: IP68
• power consumption: max 150 mA
• length of the power cable: 1m
• cable length to the monitor: 6m
• color: black

The set includes:

• HD Night Vision camera
• RCA cable (6 meters) and power cable
• box

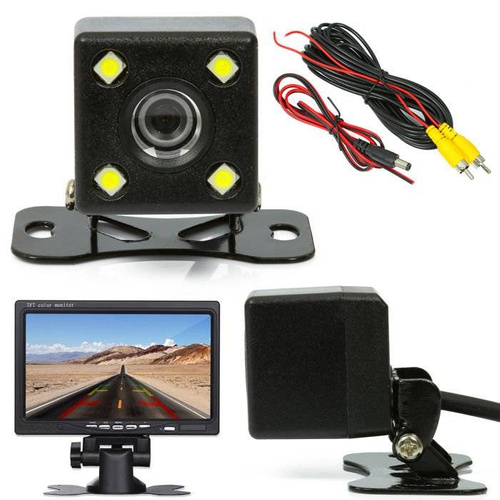

There is no display in the set. The photo is tasked to show the operation of the auxiliary lines.
