H4 LED set ZES Zdatt | 100W 12000 lm | DAY NIGHT
- LED type: Lumiled ™ 100w (12,000 lumens / bulb)
- Light color ~ 6000K (pure white)
- Power: 50W / bulb
Set of passing lights or road LED H4 100W | Innovative flexible system of heat draining strips second generation zes diodes CAN-bus | 12000 LM
Due to the very high light-effectiveness of the LED H4 ZE 12000 LM set, we recommend using as:
- light bulbs passing (short) and traffic lights (long)
Technical Specification:
- model: low beam and road light H4 ZES 100W 12000 LM
- Number of LED bulbs: 2
- Number of LEDs: 8 / bulb
- LEDs: luxeon zes 2-gen
- Total power consumption: 100w
- supply voltage: 12v - 24v
- light color: snow-covered 6000k
- replacement for bulbs: H4, HS1, diofeling
Light bulbs have built-in CAN-BUS filters, so that they should not cause errors on the on-board computer.
Eliminating a permanent, large heat sink for flexible, thermocycling strips allowed to reduce the height of the bulb from the flange (fixing) to the wire to 30 mm

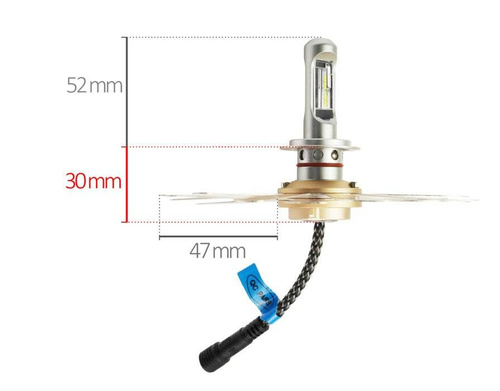

other dimensions of the bulb:
- height from fixing to the top of the bulb: 52 mm
- total height: 82 mm
- peak diameter of the bulb: 15.7 mm
- strap length: 47 mm

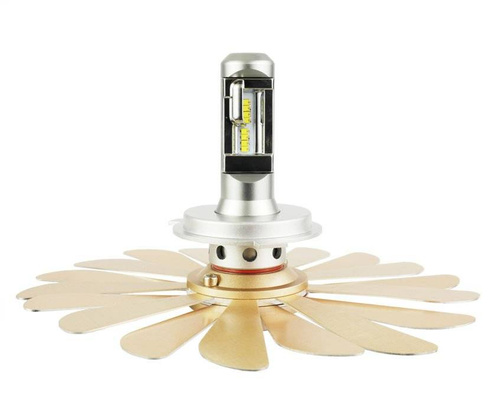

innovative cooling system LED bulb H4 ZES 12000 LM:
cooling systems many available models of bulb replacements H4 use the heat sink placed behind the bulb flange, which size often prevents the sealing cover on the car lamp housing, and at the same time disqualifies the assembly LED bulbs in a car lamp.

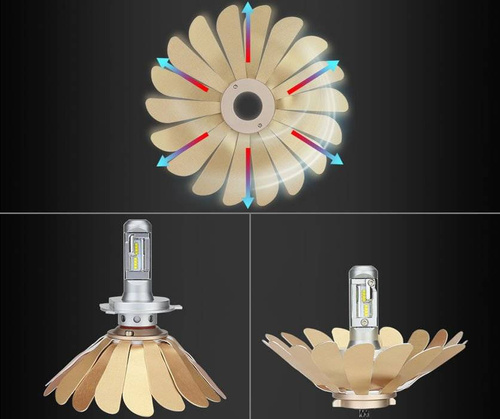

Our innovative cooling system is based on the use of flexible strips made of the highest quality flexible aluminum that can be freely formed inside the car lamp housing.

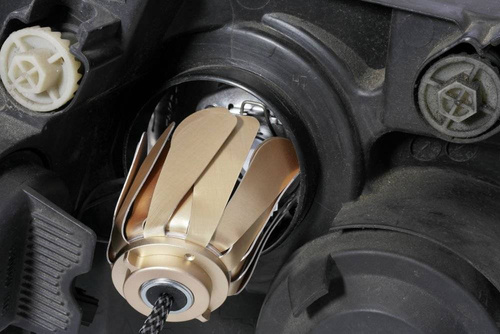

Stripes can be successfully arranged around the outer side of the reflector or car lens, or bend to the opposite to the bulb attachment if the lamp housing is enough space.
LED bulbs H4 ZES 12000 LM are equipped with a ball mechanism that blocks the bulb collar in a given setting, as a result, which can be fully Adjust the Angle of Lightback coming from the Diode for a reflector. In addition, a removable collar facilitates assembly bulbs in lamps to which access is difficult.
one bulb LED H4 ZES 50W is equipped with 8 LED ZES . When driving on passing traffic lights (short), 4 diodes are located closer to the bulb. Thanks to the use of a counter-sensitive beam of light from these diodes, it will only be directed to the upper sectors of the reflector, which will result in concentration of light beam on the road, below the light bulbs.
4 Other LEDs are responsible for the main vehicle lighting while driving on road traffic lights (long). In this case, the light beam is not limited by the shields, and both upper and lower sectors of the reflector will be used to light the area before the vehicle.

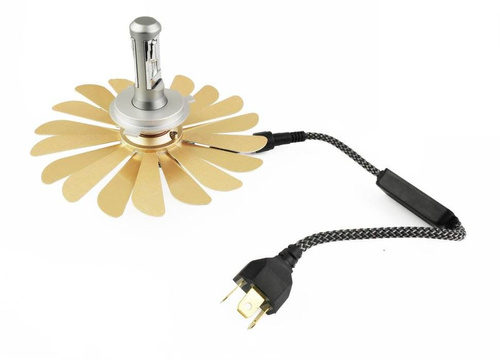

The set includes:
- two bulbs led h4 zes , each after 50w / 6000lm
- cooling strips with rings
- two CAN-bus filters
- Manual - Installation and operating instructions
- packaging (ideal for gift)
- Warranty: 12 months
- receipt or VAT invoice (on request)
