set of low-beam or road LED H4 CSP lights | CSP Diode - Chip Scale Package | 8000 LM

Due to the high efficiency of LED diodes in this set, we recommend it as:

• bulbs beating lights (short)
• Road light bulbs (long)

technical specification:

• model: low beating light H4 CSP 50W 8000LM
• Number of LED bulbs: 2
• number of LED diodes: 6 / bulb
• light intensity: 8000 lm
• total current consumption: 2x 25w
• closure resistance: ip67
• power voltage: 12v - 24v
• light color: white, slightly blue 6500k
• bulbs replacement: H1
• certification ce, rohs

Bulbs have built-in CAN-bus filters , so that they should not cause errors on the on-board computer. It happens, however, that in cars with an extensive electronics, despite the built-in filters, the error appears after installing LED bulbs. For the correct operation of the bulbs, the installation of additional, external LED filters with holders for bulbs H1 will be required. We recommend buying a set with LED filters.

minimized diodes and excellent dimensions of dimensions of LED CSP bulbs provide almost design light layout even in a muster lamp! suitable focus of light beam is very important, Because:

• light bulbs do not blind drivers running from opposite
• 100% power of the bulb is moved to the road in front of the vehicle, not on the roadside, directly in front of the mask or over the road tiled
• there is no need to re-adjust the heat and / or road bulbs
• we do not have to be afraid of a vehicle review

photo 3. for comparison We present a light pole from other popular LED bulbs using chip-on-board "COB technology ", assumed to the lamp without lens projectors.

Application In light bulbs, the COB diode with a large surface makes the light in the reflector lamps significantly dispersed. As a result, this large part of the light generated by COB falls above the reference limit of cut-off, and at the point of maximum light intensity, the normal fiber bulb has more efficiency.

Due to the very high efficiency of the light bulb set can be used as a replacement for passing lights or / and roads. offered LED bulb set H1 CSP lamps significantly Improves the visibility of objects located in front of the car, and the visibility of the car by other road users.

The intensity of the light is incomparably larger compared to standard, factory-mounted Bulbs H1, and the white color light gives the lamps a modern look.

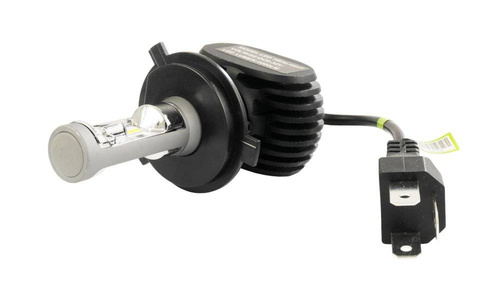

LED bulbs H1 CSP are equipped with collar locking elements in the most advantageous effect on the light effect. In addition, a removable flange facilitates the installation light bulbs in the lamps to which access is difficult.

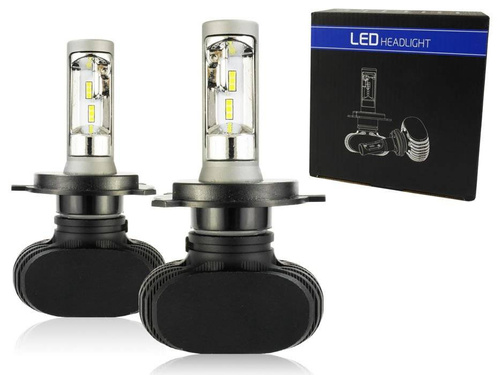

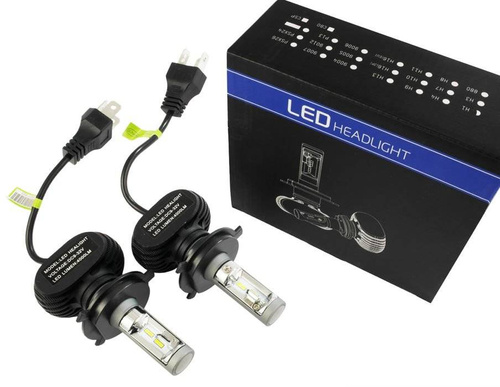

The set includes:

• two H1 LED CSP bulbs, each after 4000 lm
• Manual - Installation and operating instructions
• packaging (ideal for gift)

abbreviated installation instructions LED bulb H1:

Step 1-2 : Determine the tin that secures the bulb in the H1 socket and remove the old bulb.

Step 3 : Remove the adapter from LED bulb H1. Put it in place of the bulb, and then push the mounting tin.

Step 4 : Slide the glow into a fastened adapter. We connect the H1 ankle bulb. The bulb power cord together with the H1 cube is best placed on the interior of the lamp, between the housing and the reflector. The bulb can be rotated by 360 ° to find the appropriate light incidence angle to the illuminated area before the vehicle.

step 5 : on the casing we assume a cover protecting the interior of the lamp against moisture.
