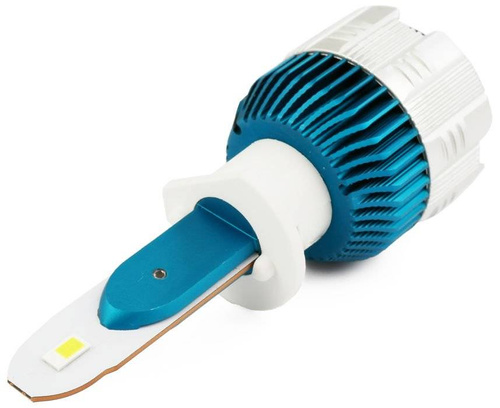

A set of LED bulbs H1 56W Mi2 FLIP CSP
- LED type: CSP
- Power: 56W
- Light color ~ 6500K (pure white)
Set of low-beam or road LED H1 MI2 lights | Ultrappli CSP LEDs
Due to the high efficiency of LED CSP LEDs, we recommend using light bulbs as low beam and / or road lights in lamps:
- reflectors

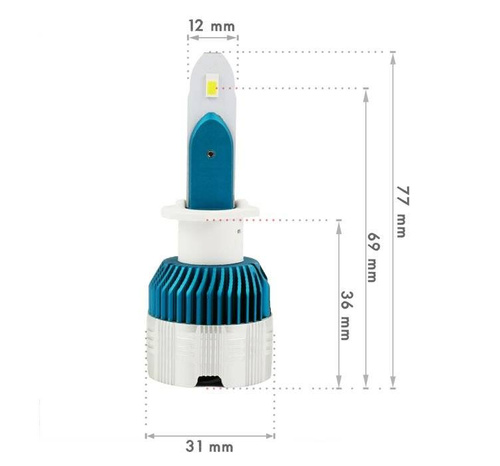

minimized diodes and excellent dimensions of dimensions of LED slim lights ensure almost design layout of light even in a muster lamp! suitable focus of light beam is very important because:
- light bulbs do not blind drivers running from opposite the
- 100% power bulb is transferred to the road before the vehicle, not on the roadside, directly in front of the mask or above the road tiled
- there is no need to re-adjust the heat and / or road light bulbs
- We do not have to be afraid of a vehicle review

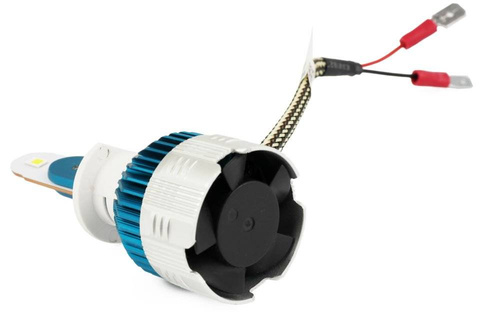

Active cooling consists in reducing the air temperature height with fan . The advantage of this solution is much higher cooling efficiency than in the case of passive cooling (without a fan).
bulb housing led mi2 is made of high quality, strong aluminum thermocoll ( aviation aluminum 6063 )
Technical Specification:
- model: passing lights / road LED H1 Mi2
- Number of LED bulbs: 2
- Number of LEDs: 2 / bulb
- LED technology: csp
- power set: 56w
- Zad resistance: IP20
- current: 2,2a at 12V
- power voltage: 12v
- light color: snow-covered 6500k
- certificate: CE, compliance with ROHS
- Cooling: Active
- Luminance: Accurate description below in Effectiveness of bulbs

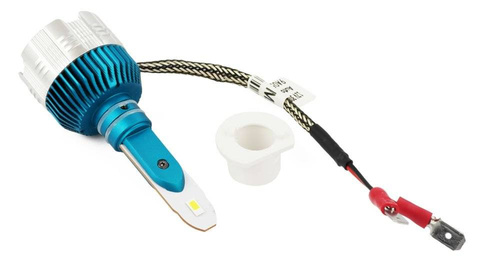

LED bulbs H1 MI2 are equipped with a rotating bulb flange, as a result of which you can in adjust the angle of lighting Emitted by the Diode for the Reflector. In addition, a removable collar facilitates the assembly light bulbs in the lamps to which access is difficult.
Effectiveness of H1 Mi2 bulbs:
left page: ordinary bulb.
right page: LED bulb H1 Mi2
Comparing the effectiveness of H1 LED MI2 bulbs and a regular bulb used in car headlights, we used the same lens settings, the same voltage (14V) and the same reflector lamp (Fiat Punto II, left side, without lens).
above: Performance of bulbs in theory (Ulbrichta sphere).
difference in the amount of light LED bulbs H1 Mi2 and ordinary fiber bulbs are significant, because the LED mi2 emits up to four times more light than an ordinary light bulb. The results are given in Lumen (LM).
above: color light bulbs.
LED H1 MI2 set emits a color light - 6500k - snow white.
above: Verification of light cutting lines / shadow.
Light bulbs Thanks to the source of light with a minimalist design emit very focused light beam, unlike most LED bulbs on the market. cut-off line is clear , light pole precise fill area before the lamp below the eyes of the drivers from the opposite direction.
above: efficiency of light bulbs in practice.
in a practical test that takes into account the irregularity of the car lamp reflector, LED bulb H1 Mi2 reached a fantastic 1674 Lux score. This means that the beam of light emits almost three times more light than a beam of light of a regular, fiber bulb. The results are given in Lux (LUX).
Test summary
A beam of light from LED bulbs H1 Mi2 is characterized by exemplary light cutting, high luminance and strong, white color light even in the reflective lamp. A large intensity of controlled light pole causes it at present one of the most interesting positions on the LED lighting market.
Note: LED bulbs performance is carried out by us on a random selected bulb from the batch. Any measuring devices, a traditional reflector lamp with adjustable 3-30V power and tested LED bulbs are available in our Point Warsaw. We cordially invite everyone who before buying would like to carry out the LED bulb performance test yourself.

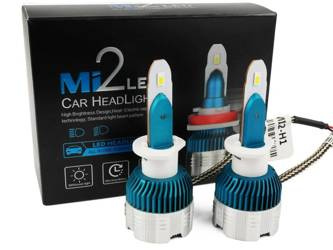

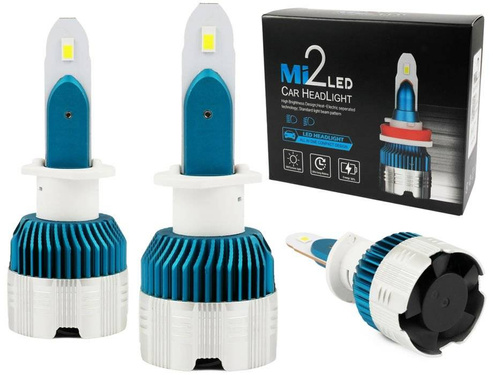

The set includes:
- two LED bulbs H1 MI2 CSP
- illustrated assembly instructions
- packaging (ideal for gift)
abbreviated installation instructions LED bulbs:
Step 1-2 : Determine the tin that secures the bulb in the slot and remove the old bulb.
Step 3 : Remove the adapter from the LED bulb. Put it in place of the bulb and then fasten the mounting tin.
Step 4 : Slide the junger in a fastened adapter. We connect an ankle bulb. Bulb power cord together with the dice best placed on the interior of the lamp, between the housing and the reflector. The bulb can be rotated by 360 ° to find a suitable light incidence angle to the illuminated area before the vehicle.
step 5 : We put on the casing to protect the inside of the lamp from moisture.
Despite a small amount of space in the tested lamp (Fiat Punto II), after the LED mounting it was possible to clamp the shield and at the same time sealing the interior of the lamp. Before buying, we recommend verifying whether a space between the bulb flange and the cover is available in the target lamp. In our lamp, the distance between the bulb and the edge of the housing to which the cover is inserted 32 mm.
