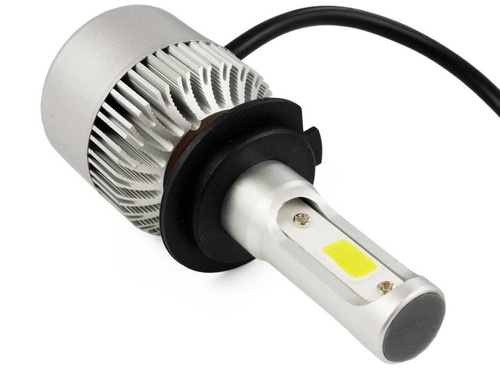

LED bulbs H7 S2 16000 LM 72W 12V-24V CAN Bus

set of LED bulbs for lighting / road lights

Due to the high efficiency of LED diodes in this set, we recommend it as:

• bulbs beating lights (short)
• Road light bulbs (long)

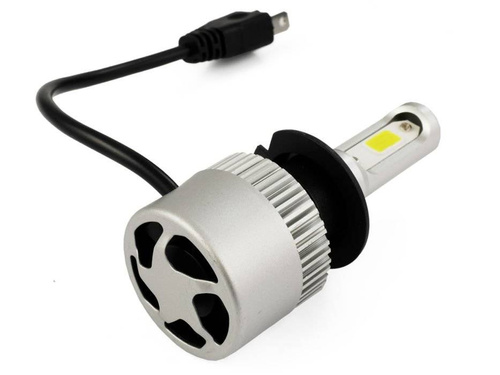

Active cooling consists in reducing the air temperature height with fan . The advantage of this solution is much higher cooling efficiency than in the case of passive cooling (without a fan).

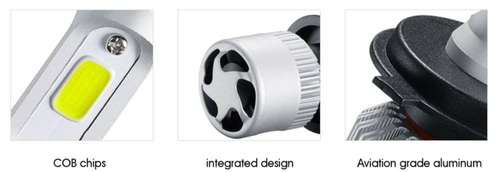

bulb housing LED S2 is made of high quality, strong thermal aluminum ( aviation aluminum 6063 )

technical specification:

• model: set of LED bulbs H7 S2 72W COB 16000LM
• Number of LED bulbs: 2
• number of LED diodes: 2 / bulb
• light intensity: 16000 lm
• total current consumption: 2x 36w
• closure resistance: ip67
• power voltage: 12v - 24v
• light color: snow-covered 6500k
• replacement of bulbs: H7, H7R, H7M
• certification ce, rohs

Light bulbs have built-in CAN-bus filters , so that they will not cause errors on the on-board computer.

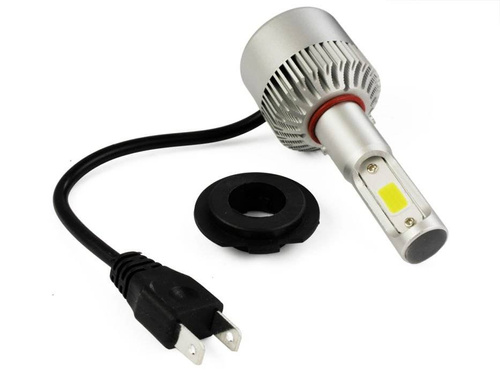

LED bulbs H7 S2 are equipped with a removable bulb flange, which significantly facilitates the assembly light bulbs in the lamps to which Access is difficult.

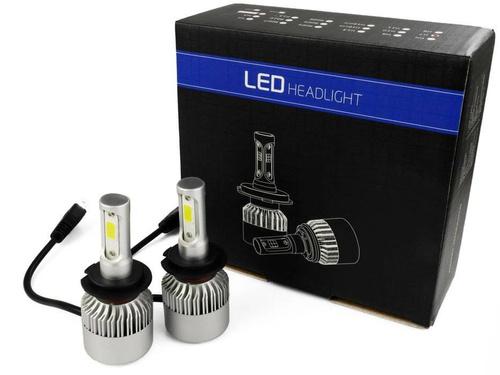

The set includes:

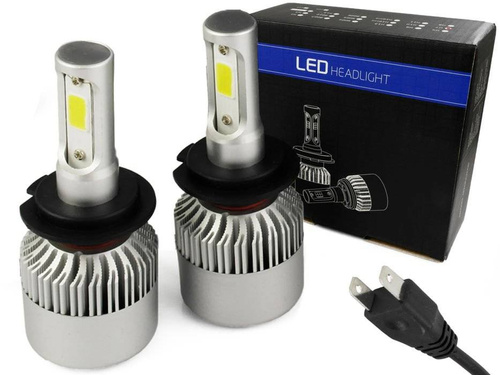

• two LED bulbs H7 S2

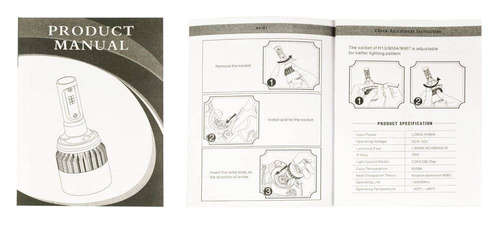

• Picture assembly instructions
• packaging (ideal for gift)

abbreviated installation instructions for H7 LED bulb:

Step 1-2 : Determine the tin that secures the bulb in the H7 slot and remove the old bulb.

Step 3 : Remove the adapter from the H7 LED bulb. Put it in place of the bulb, and then push the mounting tin.

Step 4 : Slide the glow into a fastened adapter. We connect the H7 ankle bulb. The bulb power cord together with the H7 cube is best placed in the interior of the lamp between the housing and the reflector. The bulb can be rotated by 360 ° to find the appropriate light incidence angle to the illuminated area before the vehicle.

step 5 : on the casing we assume a cover protecting the interior of the lamp against moisture.
