LS8010 | Dedicated rear view camera for Ford Focus MK3

Dedicated rear view camera suitable for Ford
replacement for the factory tailgate handle, retrofitted with a modern reversing camera
The brilliant high definition image combined with the wide viewing angle avoids the problem of lack of visibility to the rear of the car by assisting in reversing and parking. The applied lines effectively support and assist during maneuvers, contributing to the reduction of the number of undesirable events such as collisions, scratches, etc.

Cutting the green wire allows you to turn off the auxiliary lines.

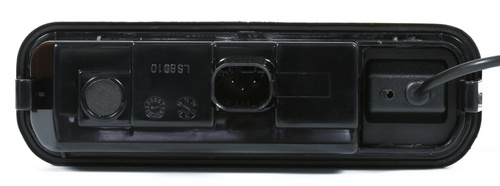

A dedicated camera is mounted in place of the tailgate handle, making it look like it was installed at the factory. It is waterproof and shockproof, and its simple and modest design looks neat and does not attract attention. The built-in microswitch replaces the factory one, allowing for trouble-free opening of the trunk.

Thanks to the use of a modern SONY sensor, the camera provides high image quality, even after dark.

The camera fits:
Ford Focus MK3 (2011 - 2018)
ATTENTION! To avoid error, please check and compare the license plate lamp on your car before purchasing to make sure the fixture is the one you need. There may be different variants of parts on selected models. We make every effort to ensure that the description and photos are 100% consistent.

Specification:
Protection degree: IP68
Lens viewing angle: 170 °
Dimensions: 133mm x 42mm
Working temperature: -40 to 80 ° C
Signal format: NTSC
Sensor: 1/4 "CCD SONY
Cable length: 6m
Voltage: 12V

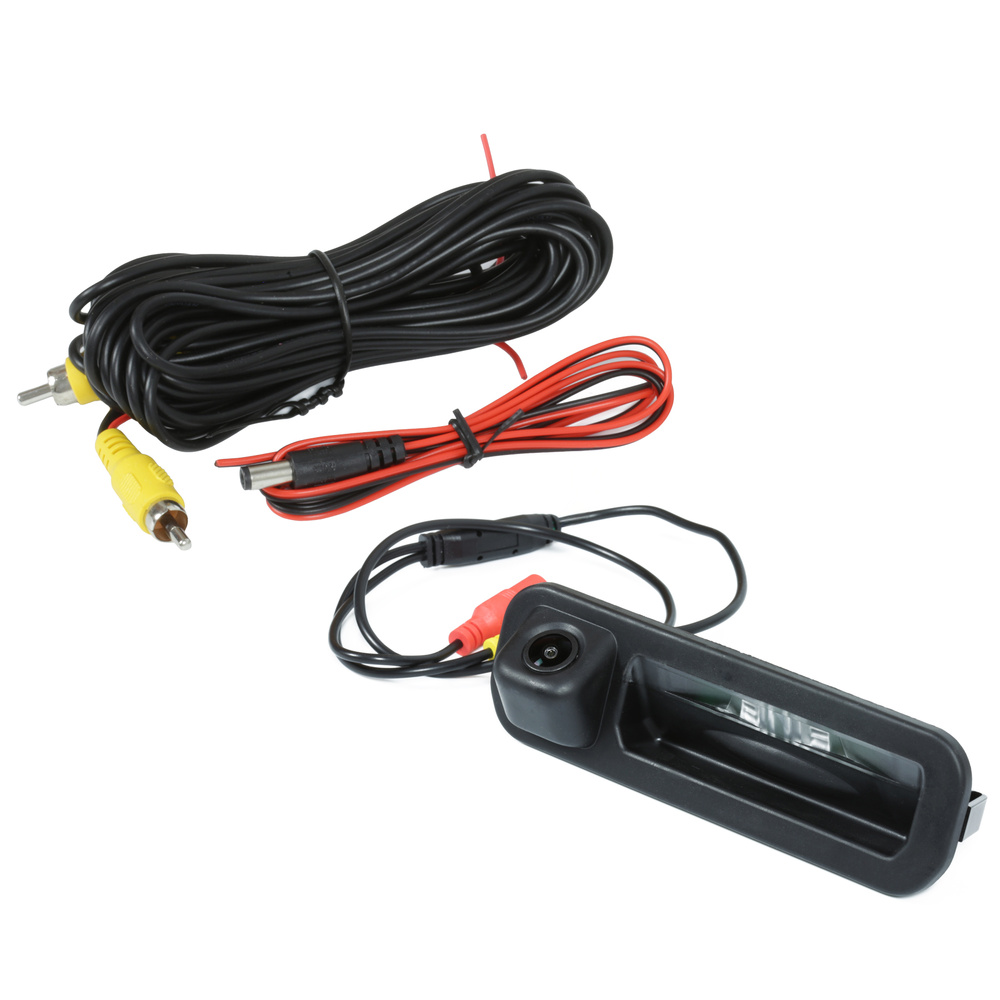

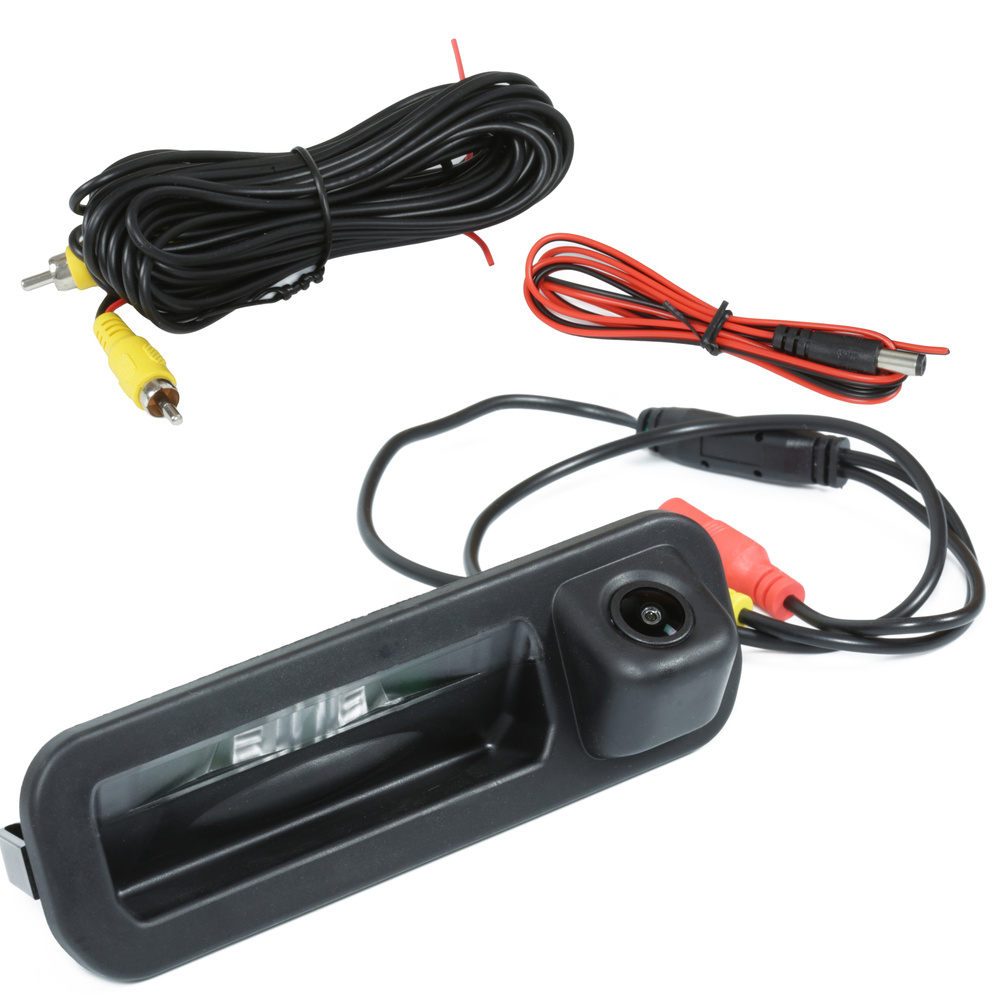

The kit includes:
Dedicated rear view camera 1 pc
Power cable with a length of 1m
6m video cable
Quick Installation Guide
Box
