Universal reversing camera with 18 IR diodes with an anti-cruded shield

to the camera has a longer, 10 meter video cable

• automatic camera start after switching on the reverse gear
• can be connected to any screen or monitor using a RCA video cable

Rearview mirror with a built-in LCD TFT monitor 4.3 "

• the ability to connect two transmitters using RCA (CINCH) - eg backing cameras, DVD player, etc.
• The mirror image starts automatically after throwing backwardness

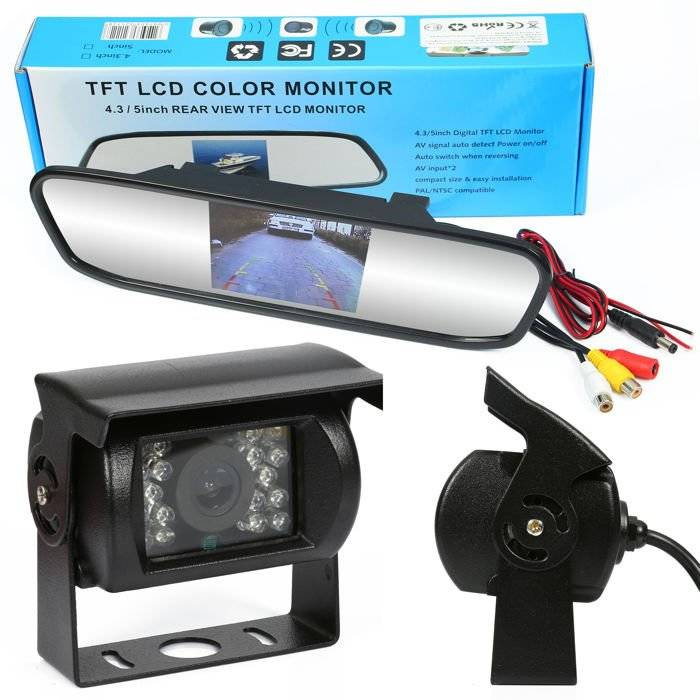

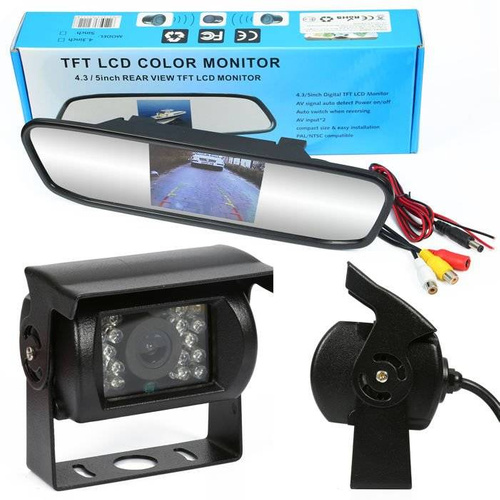

The set includes:

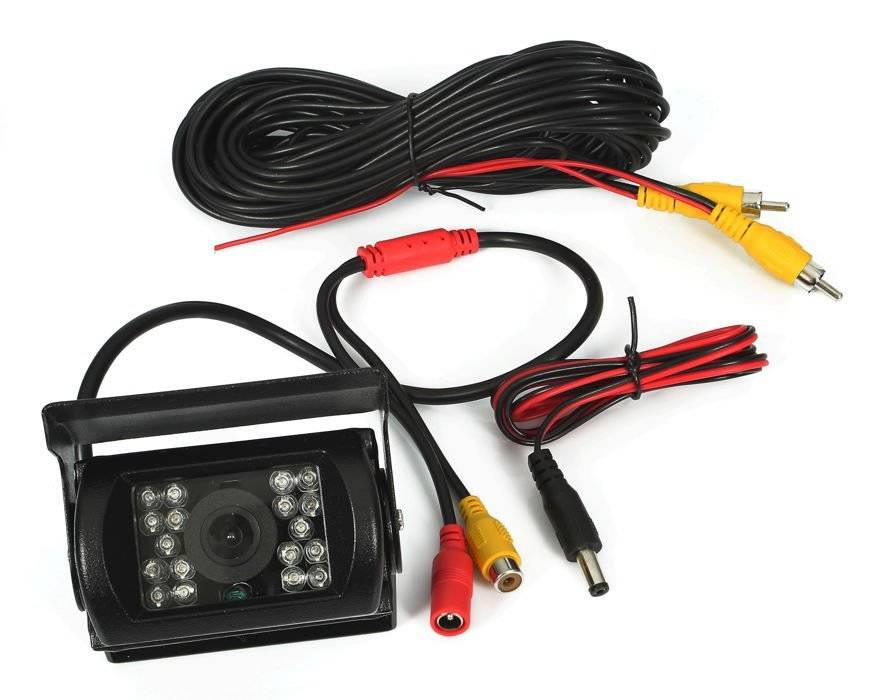

• 12V-24V camera with 18 IR diodes and anti-dirt shield

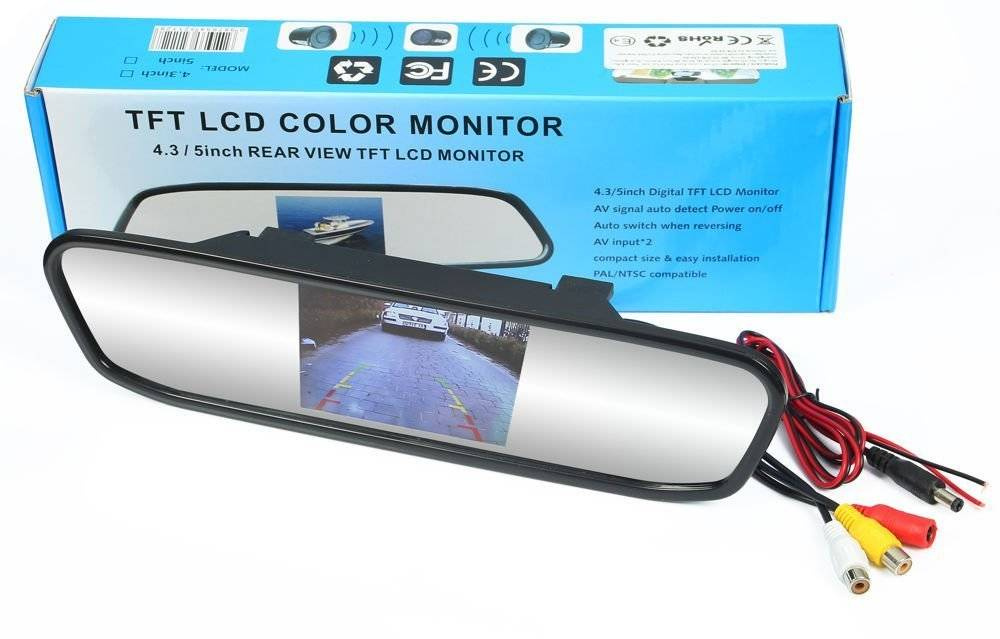

• rearview mirror with a built-in LCD TFT monitor 4.3 "with 2 RCA inputs

• RCA cable to connect the camera with a monitor (6 meters)

• 2 power cables - to the camera and for monitor

• aesthetic packaging, connection instructions

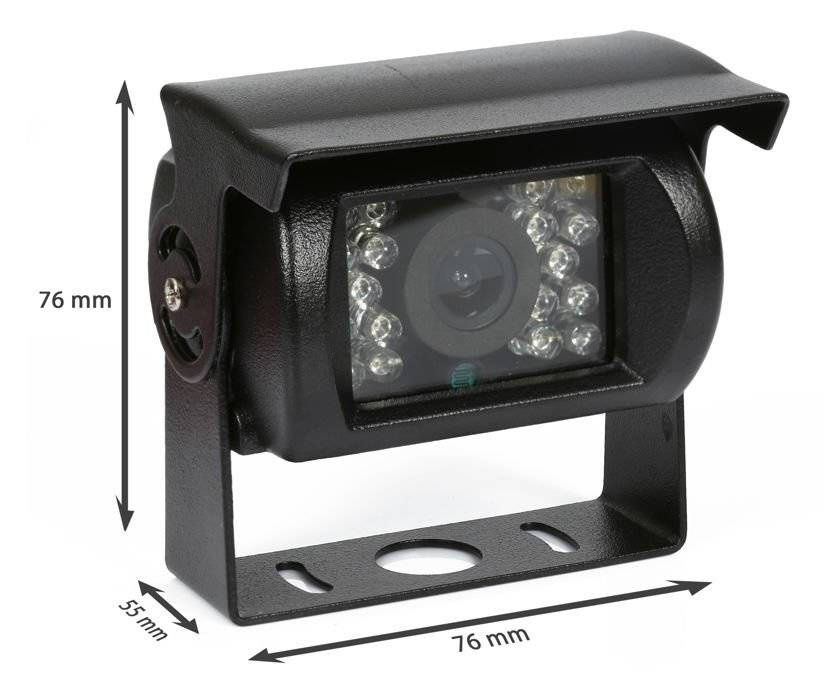

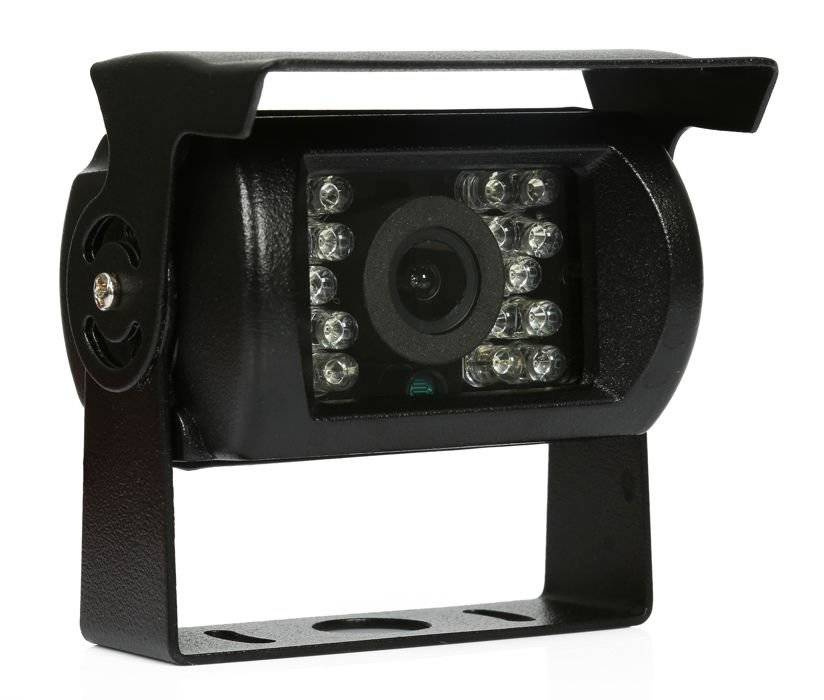

The camera is equipped with 18 IR diodes that provide good visibility at night.

• Automatic camera activation takes place when the reverse gear is started.
• fits any monitor with RCA video input.

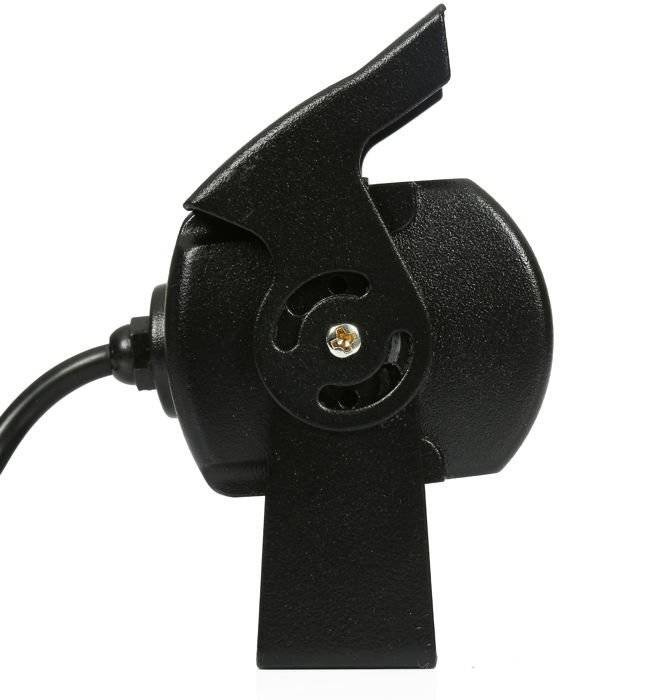

• The camera is turning vertically. The lens is made in Anti-Fog technology
• Image from the camera has intuitive auxiliary lines to facilitate parking
• The camera is waterproof and shockproof - IP68

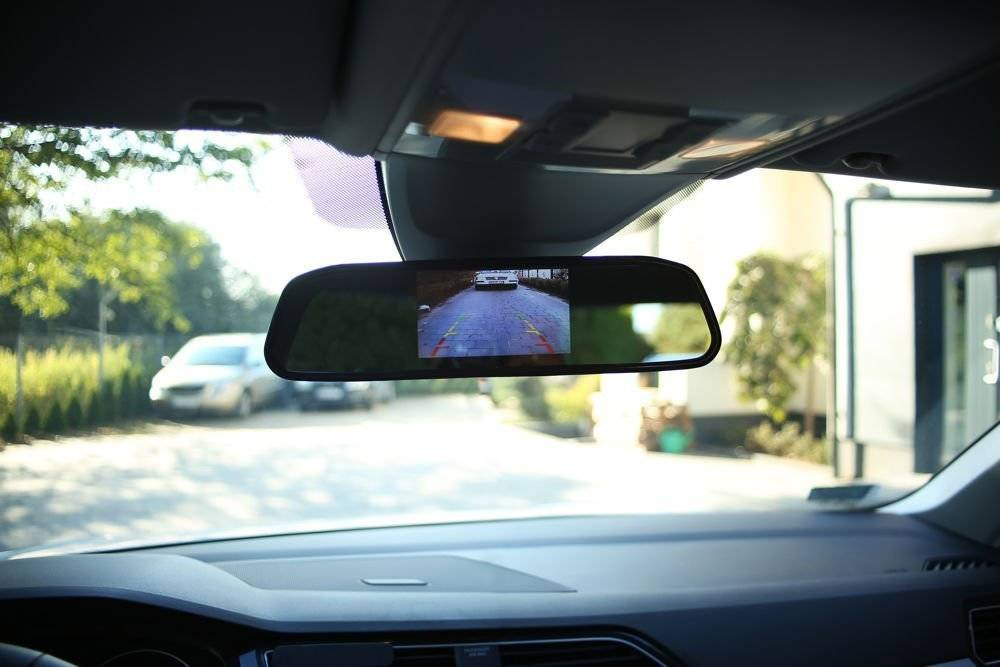

Note: The above photos have been made by us and present real operation of the mirror with the monitor.

• advantage of the TFT matrix is very good visibility of objects on the screen even in a very sharp sun.

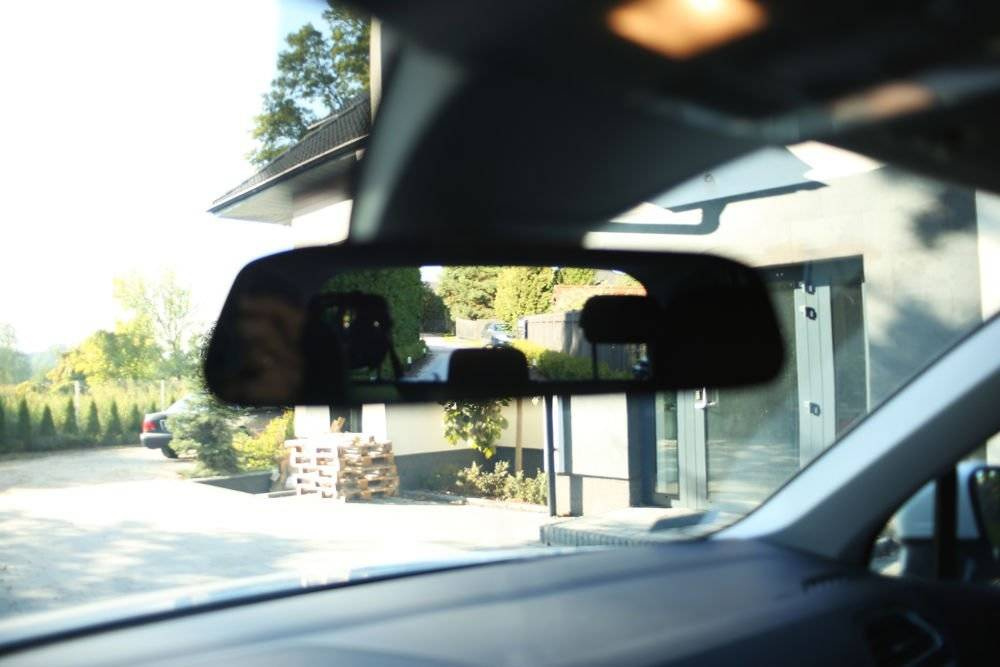

• in the absence of a signal from the backing camera on a mirror. You can not see the outline of the built-in screen

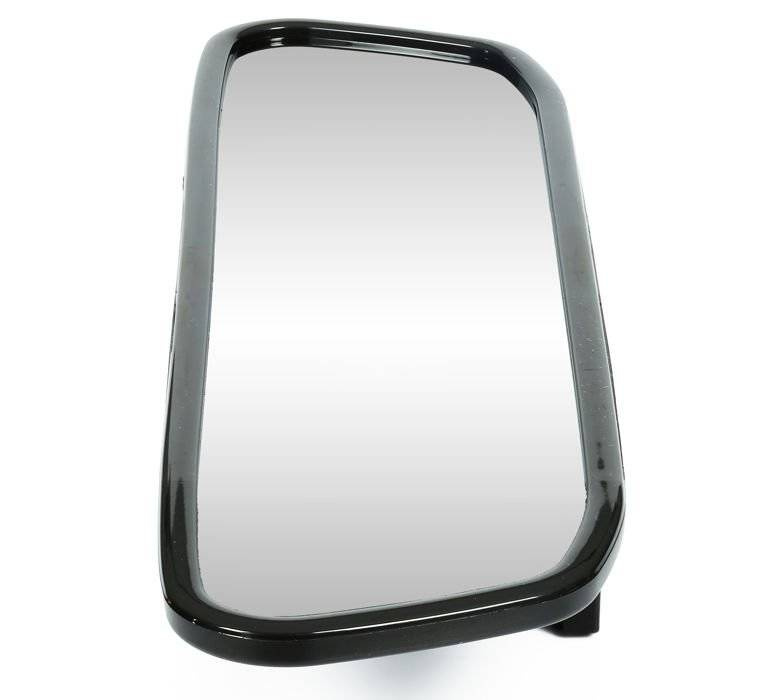

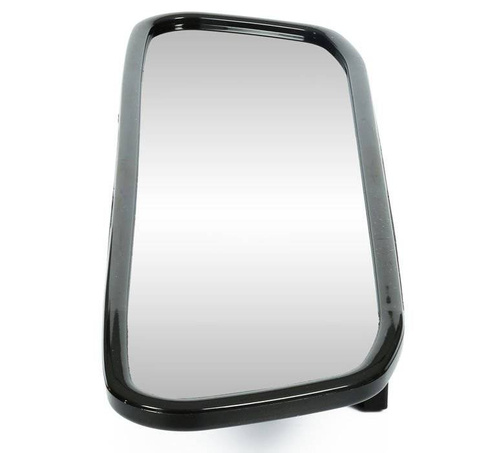

The device looks like aesthetic, traditional reverse mirror, and has a smooth reflective coating.

The mirror housing is made of durable plastic.

• fits each of each image transmitter with RCA (CINCH) input
• Monitor works with intuitive auxiliaries emitted by reversing cameras

Specification of Kmaers:

• Facilities of cameras: auxiliary lines, 18 IR diodes, lens made in anti-Fog technology
• resolution: 648x488
• image transducer: 1/4 "CMOS color
• Working temperature: from -40 to + 70 ℃
• 12V - 24V power supply
• water resistance: IP68
• power consumption: max 150 mA
• length of the power cable: 1m
• Cable length to the monitor: 10m
• color: black

The camera's power is connected by means of an attached cable for any module in the electrical installation of the car that receives the power after being thrown back. The cameras are most commonly connected to the light bulb.

Monitor specification in the mirror:

• diagonal: 4.3 "
• Effective number of pixels: 640x480
• Image format: 16: 9
• Working temperature: -20 ° C ~ 60 ° C
• Number of video inputs: Two
• Video input: RCA (CINCH)
• input signal: composite video
• power supply: 12V

Mirror dimensions:

• mirror width at the widest place: 280 mm
• mirror width in the narrowest place: 250 mm
• mirror height: 75 mm
• Spacing of fastening brackets: 135 mm
• Recommended height of the standard car mirror on which you can install this mirror with a monitor: from 50 mm to 78 mm

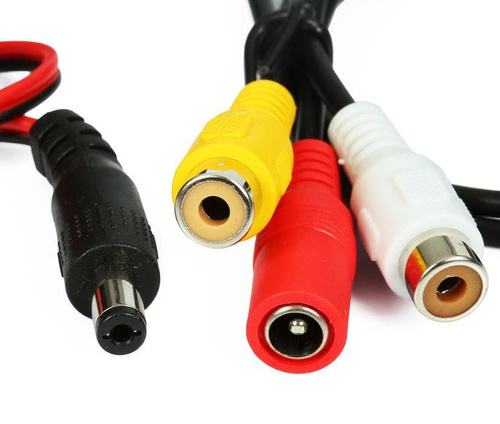

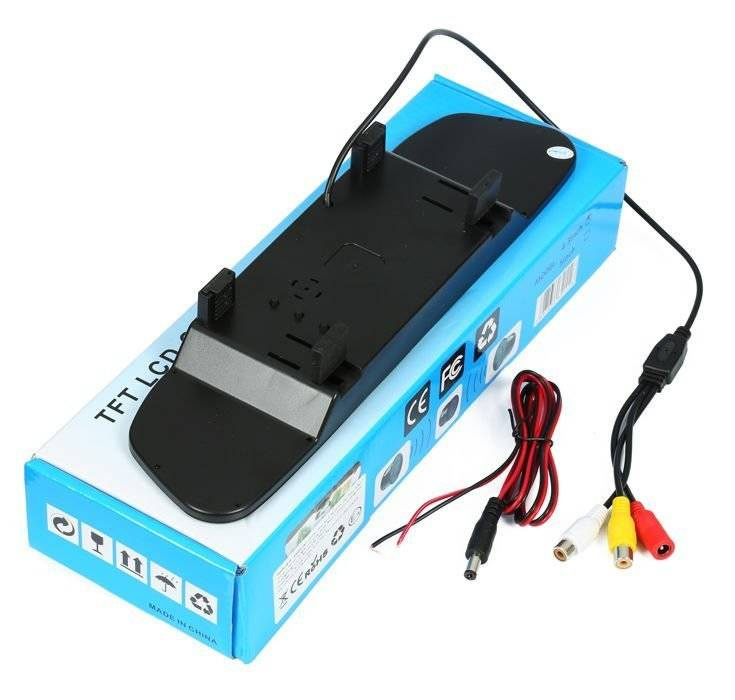

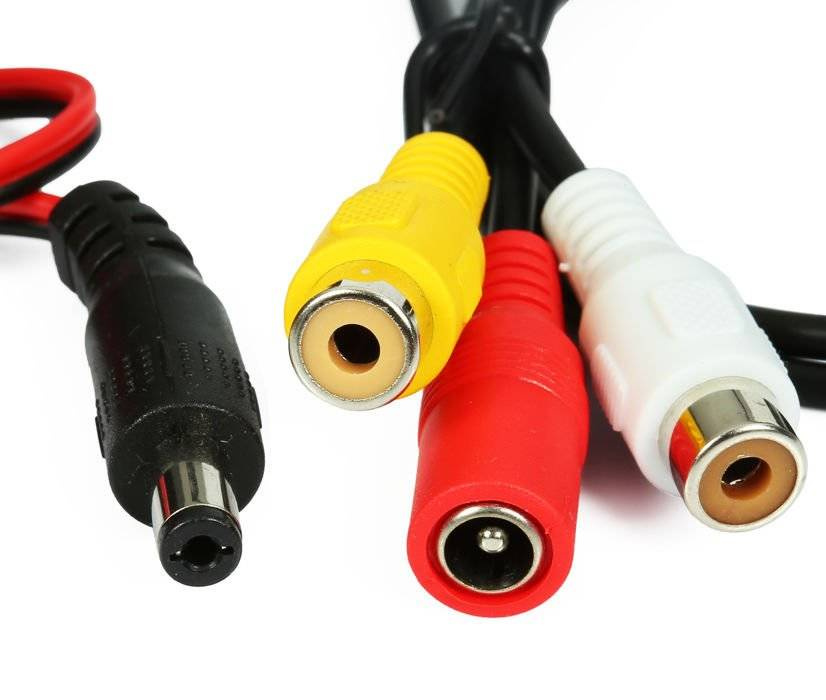

The monitor's power is connected using the supplied cable for any voltage source from the car installation. It is recommended to connect the plus "after ignition", as the monitor in the standby state takes a small current. At the monitor there are two female RCA (CINCH) sockets to which we connect the video signal.
