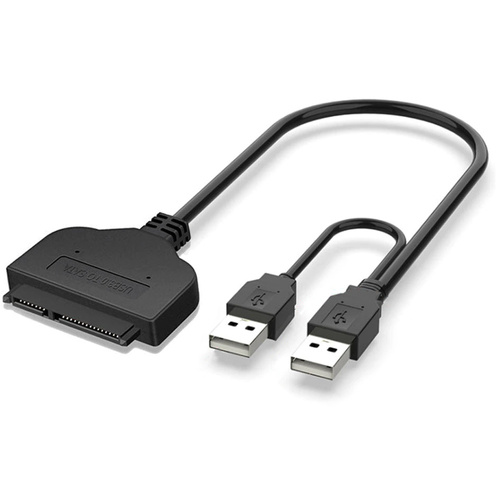

SATA08 | USB 2.0 - SATA adapter with an additional plug for 2.5 "SSD / HDD

External SATA to USB adapter

The small module is  an ideal solution  in situations when there is a need to copy data from one disk to another.

When there is no possibility of mounting the disk inside a desktop computer or laptop, the adapter will allow  you to  easily  and  conveniently  connect  2.5 "  HDD  and  SSD  disks using the USB 2.0 port.

Your device will be especially helpful when you move your operating system or back up your files.

USB 2.0 Hi-Speed

Backward compatibility of USB allows the connection of this plug also to newer standards of this interface, and the maximum bandwidth of 480 Mb / s is sufficient for basic applications.

The adapter works on the Plug & Play principle and supports Hot Plug / Swap, which allows you to connect and disconnect drives while the computer is powered on. It is 100% compatible with USB Bulk-Only mode.

The device is compatible with all operating systems.

Support for 2.5 "drives

The device is designed for  2.5 " drives , which include both fast, solid-  state SSDs,  currently the most popular standard among mass storage devices, and smaller magnetic  HDD drives  for laptops.

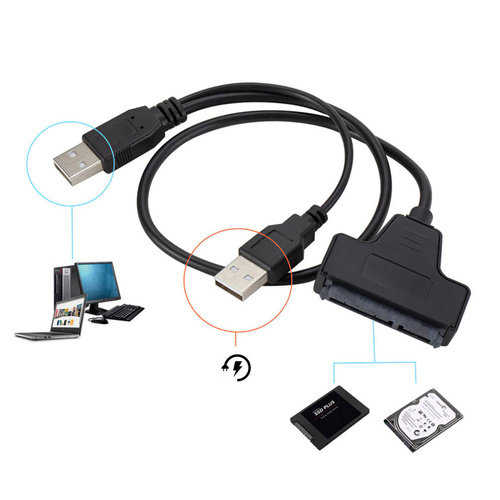

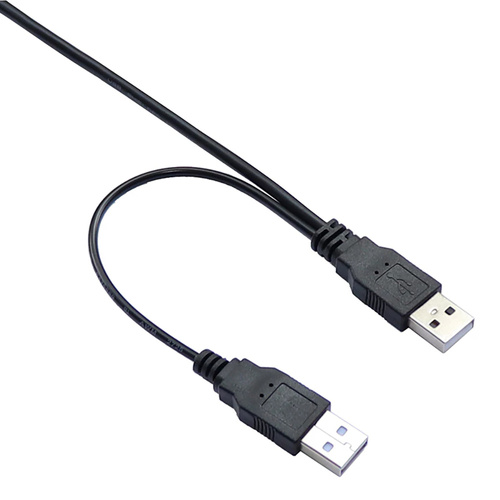

Due to the low current transmitted through the USB 2.0 connector, the adapter is equipped with an additional plug, which should also be connected to the computer or to the mains charger.

ATTENTION!

The adapter  does not work  with 3.5 "SATA drives and CD-ROM / DVD drives, which need 12 V power supply. This is due to the higher power demand of these devices.

Specification

• Compatible with USB 2.0 and USB 1.1
• 2.5 '' HDD / SSD support
• Transmission speed: up to 480 Mbps
• Plug&Play
• Hot Swap / Plug support
• Compatible with Windows / Linux / MacOs
• Operation LEDs
• Cable length: 40 cm
