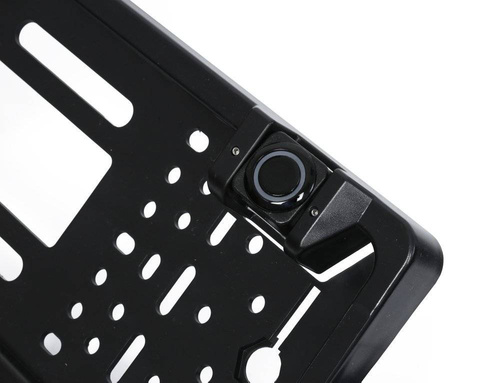

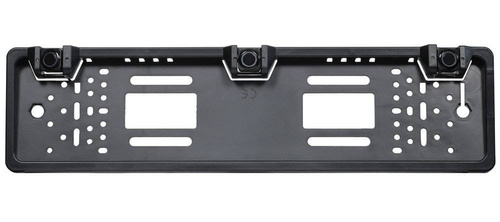

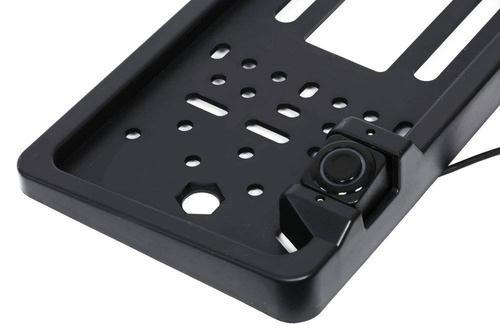

ADP-808-3 | Parking sensors in the license plate frame with a buzzer acoustic signal
- Easy installation without having drilling holes in the bumper as with conventional sensors
- Precise distance measurement from obstacles

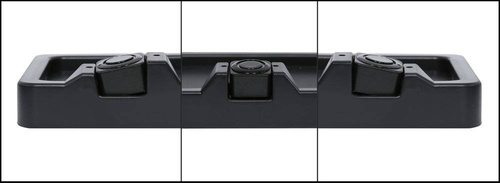

- Adjustable sensor measuring angle allows the frame to be installed in unusual registration plate cavities
retraction sensor system with a buzzer in a license plate frame
system is equipped with a buzzer (buzzer) that emits a repetitive signal with increasing frequency together with approaching an obstacle.
- easy installation without having drilling holes in the bumper as with conventional sensors
- precise measurement distance from an obstacle in the range of 1.5M - & gt; 0.01m
- adjustable angle sensor measurement allows you to assemble the frame also in unusual wardrobes
- resistance to weather conditions ip68
universal ultrasonic, 3-sensor parking sensors are equipped with buzzer that emits an audible signal, increasing your Sound frequency with reducing distance from obstacles.
sensors are automatically switched on after throwing backward run.

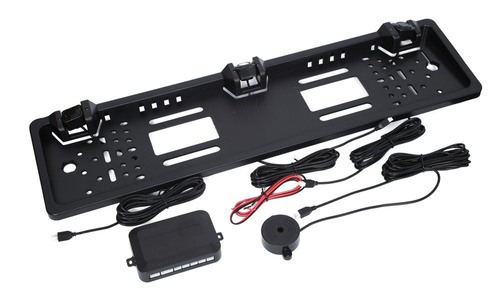

The set includes:
- 3 ultrasonic sensors in a selected color integrated with a plate frame
- buzzer - audible signaler
- central module - sensor controller
- matched fragments of a self-adhesive double-sided tape - to a buzzer and a central module.
- instructions for connecting a kit
- box ideal for gift
technical specification:
- power supply: 12V (10,5V-16V)
- IP68 - water resistance and protection against dust, sand and dust
- power consumption: & lt; 4w
- power current: 40-300ma
- Buzzer dimensions: 42 mm (diameter) x 17 mm (height)
- device operating temperature: from -40 ° C to + 80 ° C
- Ultrasonic frequency Sensors: 40 kHz
- sensor cable length: 2.4 m
- length of the power cord: 70 cm
Parking Assistance System
Contains 3 ultrasonic sensors from sound System Signaling obstacles / strong>
Perfect operation in all conditions
falling rain does not affect the operation of the device , while sensors have a water resistance class , which causes you Perfectly protected against getting water , dust and any pollutants inside the device.
Safety thanks to precision
sensors calibrated are so that precise detected even smallest obstacles , such as parking pillars, urban barriers, high curbs, etc.
intuitive audio signal
Distance from obstacles modulates signal frequency as an obstacle approach. This will allow the driver to react at a suitable moment.
