4 reversing sensors with LED display and built-in buzzer

Universal ultrasonic, 4-sensor parking sensors equipped with LED display with built-in buzzer who emits an audible signal that increases its sound frequency along with a distance of distance from the obstacle.

Sensors start automatically after throwing backward run.

Sensors can be mounted in the back bumper and the front.

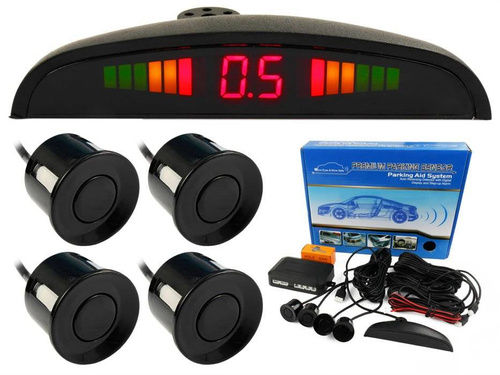

components include:

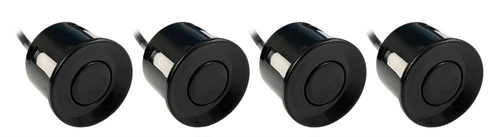

• 4 ultrasonic sensors

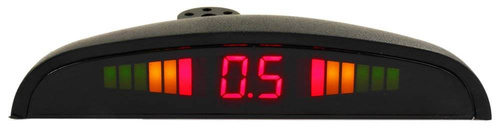

• LED display with built-in constructed buzzer (acoustic signal)

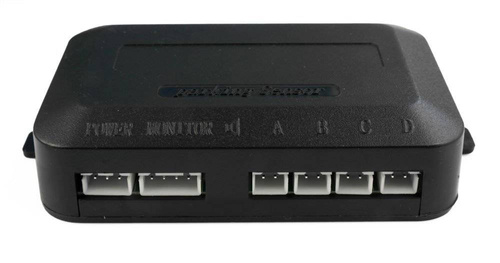

• central module - sensor controller
• 22 mm hole
• two matching fragments of a self-adhesive double-sided tape - to set a display and a central module
• instructions for connecting a kit
• Perfect box for a gift

technical specification:

• power supply: 12V (10,5V-16V)
• power consumption: & lt; 4w
• power current: 40-300mA
• device operating temperature: from -40 ° C to + 80 ° C
• Display operating temperature: from -20 ° C to + 60 ° C
• ultrasonic frequency sensors: 40 kHz
• Sensors diameter: 22 mm
• sensor cable length: 2.4 m
• LED Display Length: 5 M
• length of the power cord: 70 cm

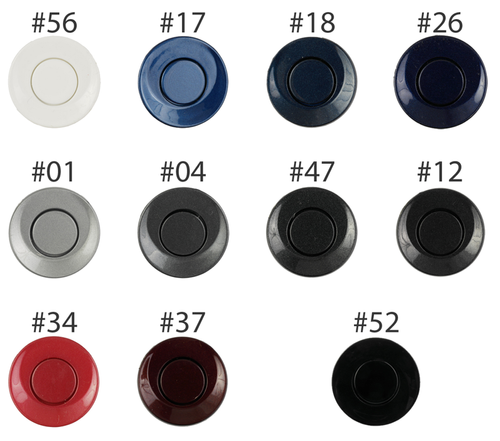

choose color sensors for body color!

If you have not found an interesting color here, we remind you about the possibility of varnishing sensors for any color!

parking assistance system

Contains 4 ultrasonic sensors with audio and visual system signaling obstacles

perfect operation in all conditions

Falling rain does not affect the operation of the device , while the sensors have a IP69 water resistance class , which causes you Perfectly protected against getting water , dust and any pollutants inside the device.

Safety thanks to precision

sensors calibrated are so that precise detected even smallest obstacles , such as parking pillars, urban barriers, high curbs, etc.

intuitive audio signal

distance from an obstacle indicated on the display changes automatically every 10 cm , and a beep thanks to the increasing frequency As the obstacle approaches, it will allow the driver to react at the right moment.
