COB DRL 90mm | COB LED light daytime running O-90

LED LED DRL COB 2x 4W Round

Lamps are equipped with modern, very strong LED Chip-on-Board.

Technical Specification:

• type LED: chip-on-board, cob
• Number of LEDs: 2
• light beam power: 600 lm
• power consumption: 8w / set
• power supply: 12v or 24v when connecting.
• certificates: ce, rohs
• light color: ~ 6000k - xenon white

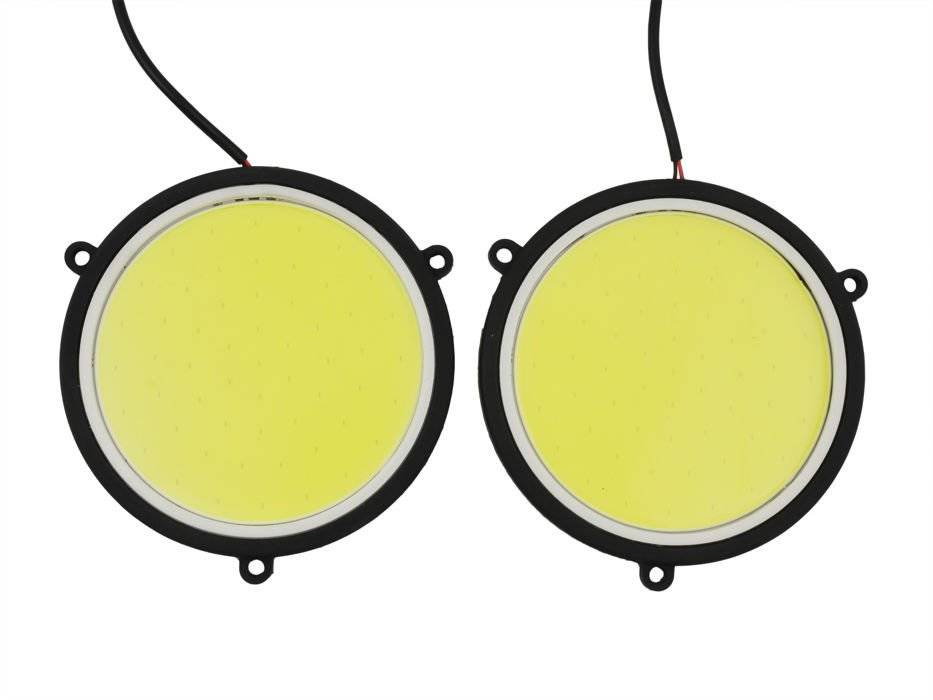

Bulb dimensions:

• diameter - 90 mm
• thickness - 8 mm

characteristics LED COB (chip on board)

In SMD technique, it is possible to implement flat modules with a fairly wide angle of light distribution. The chip-on-board is the most dynamically developing LED technology that allows you to make extremely flat elements (2 mm) with very high density (up to 70 chips / cm2). This innovative method allows for a small surface of one module to obtain a high-density light stream, especially compared to the output diodes in which the maximum packing density is 4 diodes / cm2. COB technology allows you to obtain different distribution angles depending on the media material used.

The biggest advantage of the COB diode is to generate a light stream with a very high power.

LED COB light sources are characterized by: highest reliability, high resistance to voltage fluctuations and impact current, uniform color temperature and fully liquid light. A semiconductor imposed by COB technology makes the luminous stream not point. Subsequent works on the development of COB give the basics to believe that it will soon become a key innovation in the development of LED lighting.

if you would like LED DRL lights:

• turned on after starting the car
• turned off automatically after starting the passing lights

We suggest connecting LED lights along with the module automaton . The module is available in our offer.

Lights available in this offer do not have road approval.

What will be in the shipment?

• two LED lamps DRL COB

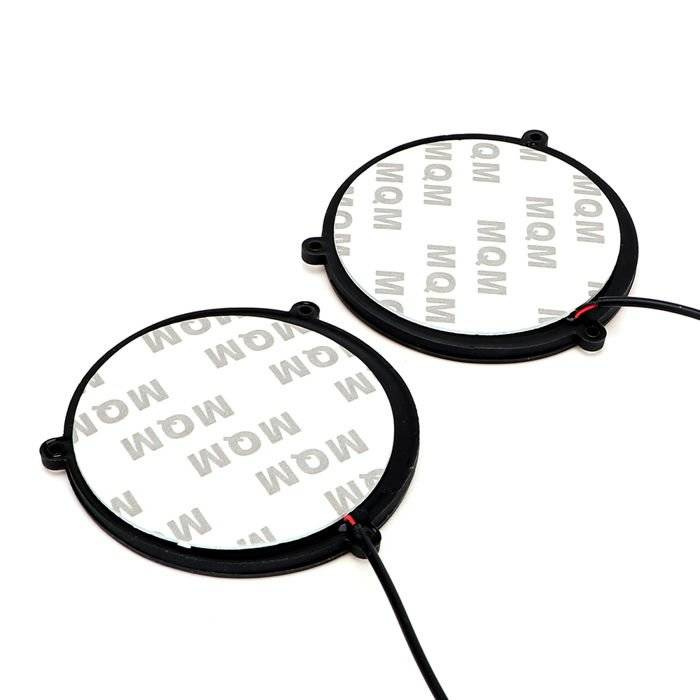

• Double-sided tape for mounting lights
• packaging
