2in1 | PZ704 PZ470 | Set - 18IR 12-24V reversing camera with foldable 4.3 "LCD TFT monitor
- - Automatic camera activation when reversing
- - Ability to connect to any screen or monitor
- - Good visibility at night thanks to 18 IR diodes
In a set

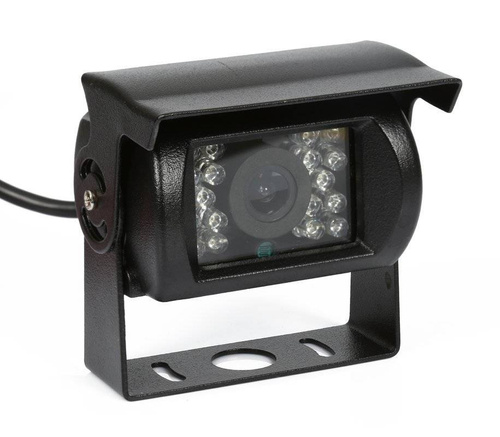

Universal reversing camera with 18 IR LEDs and an anti-pollution cover
The camera comes with a 10 meter long VIDEO cable
- automatic activation of the camera when reverse gear is engaged
- the ability to connect to any screen or monitor using a VIDEO RCA cable
4.3 "widescreen TFT LCD monitor with 2 AV inputs
- possibility of simultaneous connection of two transmitters via RCA (Cinch) - e.g. rear view camera and DVD player, two rear view cameras, etc.
- the screen slides out after pressing the button on the housing
- starts automatically

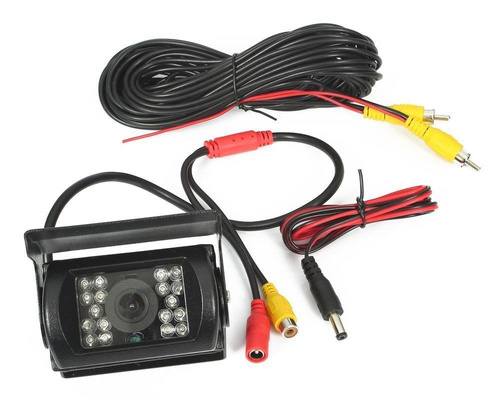

The kit includes:
- 12V-24V camera with 18 IR LEDs and dust cover

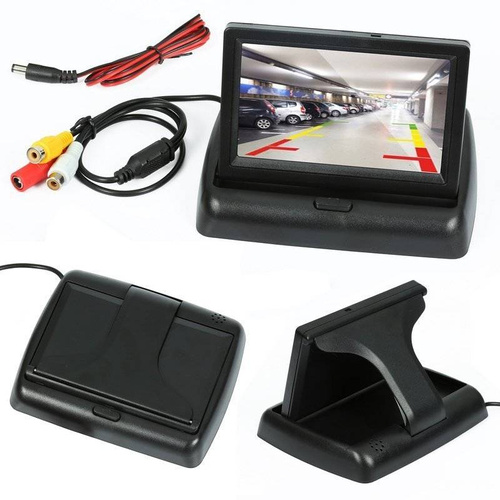

- 4,3 "widescreen foldable monitor with 2 AV inputs (RCA, Cinch)
- RCA cable to connect the camera to the monitor (6 meters)
- 2 power cables - for the camera and the monitor
- Aesthetic packaging, connection instructions

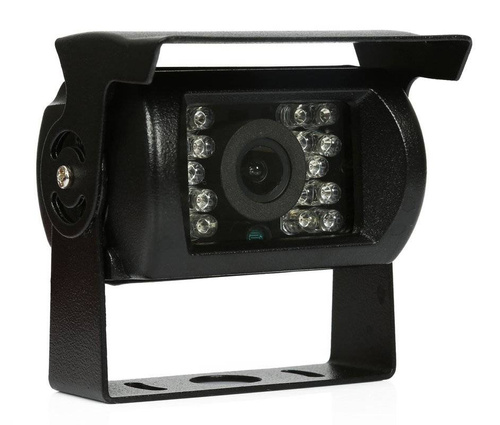

The camera is equipped with 18 IR LEDs ensuring good visibility at night.
- The camera is automatically activated when reverse gear is engaged.
- Suitable for any monitor with RCA video input.

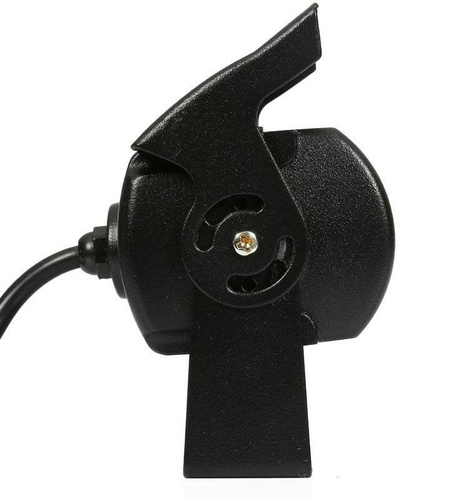

- The camera rotates vertically. The lens is made in the Anti-Fog technology
- The camera image has intuitive guidelines for easy parking
- The camera is waterproof and shockproof - IP68

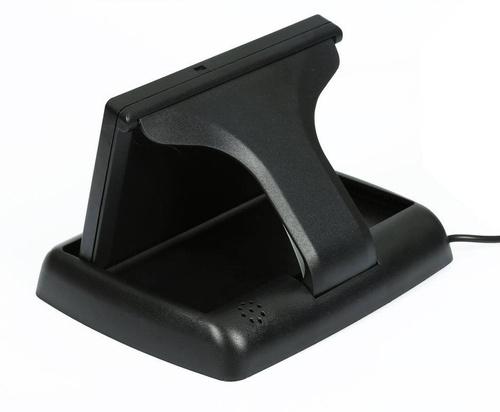

The widescreen, foldable 4.3 "monitor is equipped with a TFT LCD matrix
The advantage of the TFT matrix is very good visibility of objects on the screen, even in very bright sunlight.
The housing of the monitor is made of high-quality plastic, and the modern, foldable screen is very aesthetic.
- Compatible with any image transmitter with RCA (Cinch) output
- The monitor works with intuitive guidelines emitted by the rear view cameras

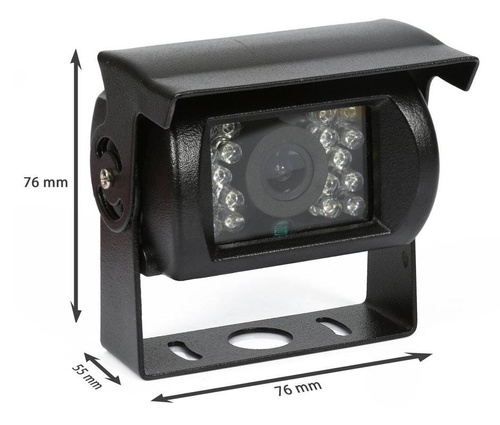

Camera Specs:
- Camera amenities: Guide lines, 18 IR diodes, lens made in Anti-FOG technology
- Resolution: 648x488
- Image sensor: 1/4 "Color CMOS
- Working temperature: -40 to + 70 ℃
- Power supply 12V - 24V
- Waterproof: IP68
- Current consumption: max 150 mA
- Power cable length: 1m
- Monitor cable length: 10m
- Black colour
The camera's power supply is connected via the attached cable to any module in the car's electrical system that receives power after shifting the reverse gear. Cameras are most often connected to the rear light bulb.
Technical specification of the monitor:
- Diagonal: 4.3 "
- System: PAL
- Effective Pixels: 480 x 272
- Picture format: 16: 9
- Working temperature: -20 ° C ~ 60 ° C
- Number of VIDEO inputs: two
- VIDEO input: RCA (Cinch)
- Input signal: Composite video
- Power supply: 12V
- Screen dimensions: Width 95 mm, Height 55 mm
- Base dimensions: 112mm x 135mm
- Height dimension: Closed - 27mm, Open - 90mm
- Display with housing: 113mm x 76mm
The monitor power supply is connected via the attached cable to any voltage source from the car installation. It is recommended to connect the positive "after ignition", because the monitor consumes a small current in standby mode. There are two female RCA (cinch) sockets next to the monitor, to which we connect the VIDEO signal.
