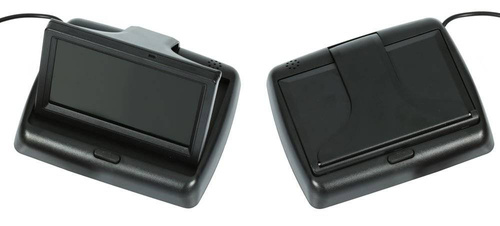

PZ704 | Widescreen, foldable 4.3 "TFT LCD monitor
- - Possibility to connect two transmitters using RCA (Cinch)
- - Excellent visibility of objects on the screen even in very bright sunlight
- - Aesthetic foldable screen and high quality housing construction
4,3 "widescreen TFT LCD monitor
- possibility of connecting two transmitters via RCA (Cinch) - e.g. rear view camera, DVD player, etc.
- the screen slides out after pressing the button on the housing
- the monitor starts up automatically
The advantage of the TFT matrix is very good visibility of objects on the screen, even in very bright sunlight.
The housing of the monitor is made of high-quality plastic, and the foldable screen is very aesthetic.
- Works with any image transmitter with RCA (Cinch) input
- The monitor works with intuitive guidelines emitted by the rear view cameras
Specification:
- Diagonal: 4.3 "
- System: PAL
- Effective pixels: 480 x 272
- Picture format: 16: 9
- Working temperature: -20 ° C ~ 60 ° C
- Number of VIDEO inputs: two
- VIDEO input: RCA (Cinch)
- Input signal: Composite video
- Power supply: 12V
- Screen dimensions: Width 95 mm, Height 55 mm
- Base dimensions: 112mm x 135mm
- Height dimension: Closed - 27mm, Open - 90mm
- Display with housing: 113mm x 76mm
The kit includes:
- 4.3 "TFT LCD monitor with 2 RCA outputs
- Power cord
- Box

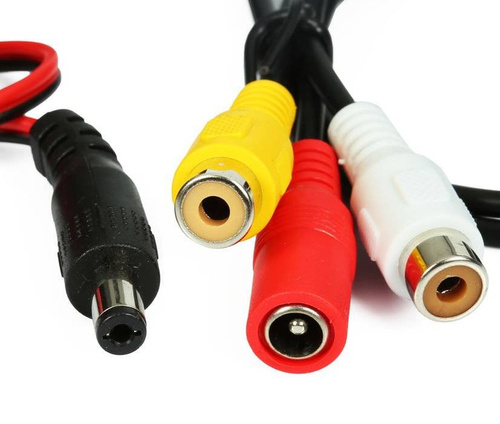

The monitor power supply is connected via the attached cable to any voltage source from the car installation. It is recommended to connect the positive "after ignition", because the monitor consumes a small current in standby mode. There are two female RCA (cinch) sockets next to the monitor, to which we connect the VIDEO signal.
