universal reversing camera with 18 IR diodes with an anti-crushing shield

for the camera is connected longer, 10 meter video cable

• automatic camera start after turning on the backwear
• Possibility to connect to any screen or monitor using the RCA video cable

Panoramic Monitor 4.3 "LCD TFT with 2 AV inputs

• the ability to connect two transmitters by simply using RCA (CINCH) - eg back-up and DVD player, two reversing cameras, etc.
• screen slides down after pressing the button on the housing
• automatically starts

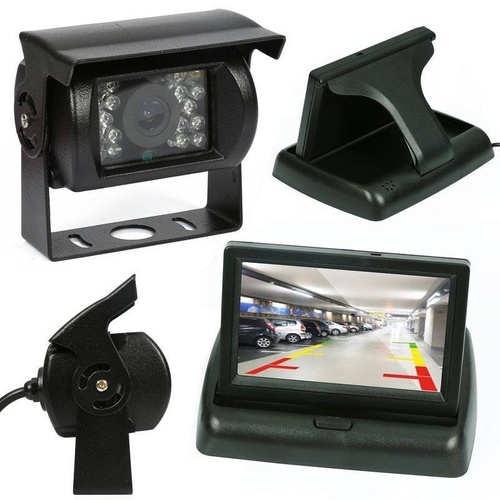

The set includes:

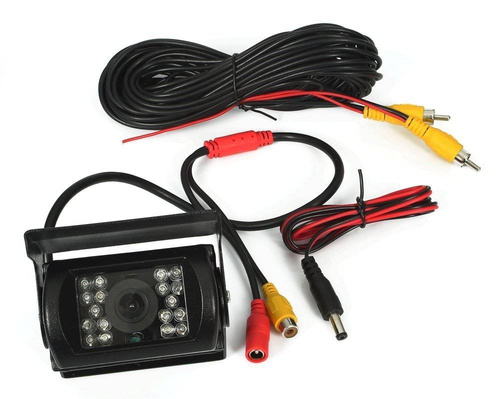

• 12V-24V camera with 18 IR diodes and anti-dirt shield

• panoramic, folding monitor 4.3 "with 2 AV inputs (RCA, CINCH)

• RCA cable to connect the camera with a monitor (6 meters)

• 2 power cables - for cameras and for monitor

• aesthetic packaging, connection instructions

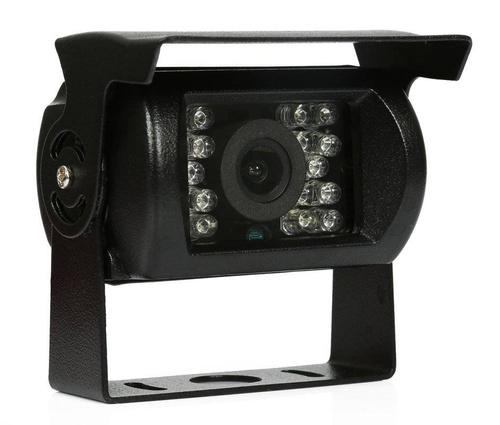

camera is equipped with 18 IR diodes that provide good visibility at night.

• automatic camera switching on when you start the reverse gear.
• fits any monitor with Video RCA input.

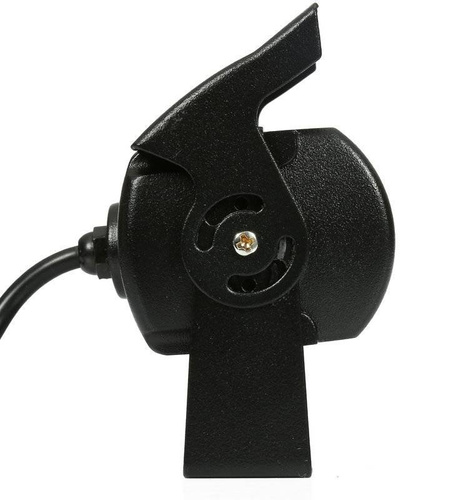

• The camera is turning vertically. The lens is made in anti-fog technology
• camera image has intuitive auxiliary lines facilitating parking
• the camera is waterproof and shockproof - IP68

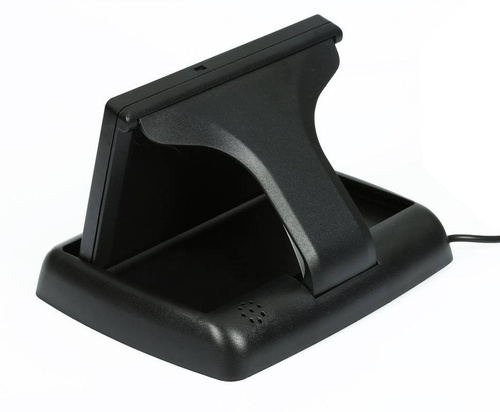

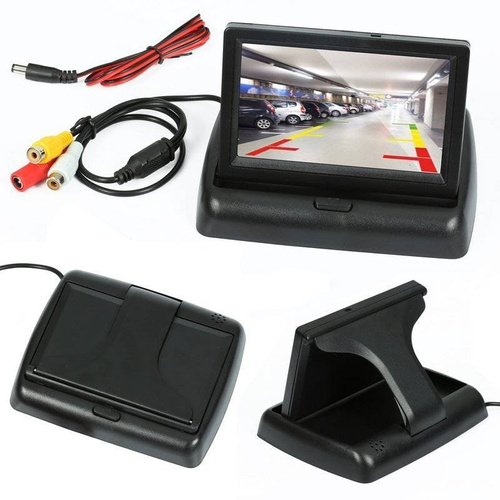

Panoramic, folding monitor 4.3 "is equipped with a TFT LCD matrix

The advantage of the TFT matrix is ​​very good visibility of objects on the screen even in a very sharp sun.

monitor housing is made of high quality plastic, and a modern, folding screen is very aesthetic.

• fits each of each image transmitter with RCA output (CINCH)
• Monitor works with intuitive auxiliaries emitted by reversing cameras

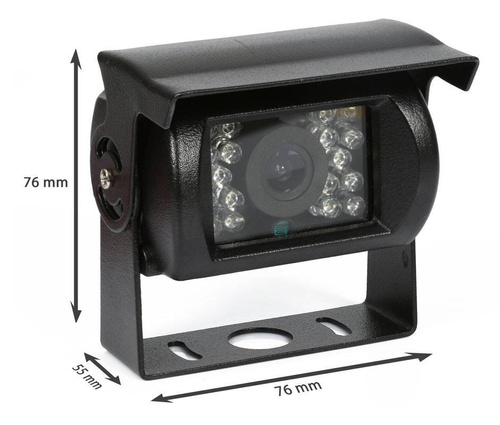

camera specification:

• Facilities of cameras: auxiliary lines, 18 IR diodes, lens made in anti-fog technology
• resolution: 648x488
• Image transducer: 1/4 "CMOS color
• working temperature: from -40 to + 70 ℃
• 12v - 24V power supply
• water resistance: IP68
• power consumption: max 150 mA
• length of the power cable: 1m
• cable length for monitor: 10m
• color: black

The camera's power is connected using the supplied cable for any module in the electrical installation of the car that receives the power after being thrown back. The cameras are most commonly connected to the lighting light bulb.

monitor technical specification:

• diagonal: 4.3 "
• System: PAL
• Effective number of pixels: 480 x 272
• picture format: 16: 9
• Working temperature: -20 ° C ~ 60 ° C
• number of video inputs: two
• Video input: RCA (CINCH)
• input signal: composite video
• power supply: 12v
• screen dimensions: width 95 mm, 55 mm height
• base dimensions: 112mm x 135mm
• dimension per height: closed - 27mm, open - 90mm
• Display with housing: 113mm x 76mm

The monitor's power is connected using the supplied cable for any voltage source from the car installation. It is recommended to connect the plus "after ignition", as the monitor in the standby state takes a small current. At the monitor there are two female RCA (CINCH) sockets to which we connect the video signal.
