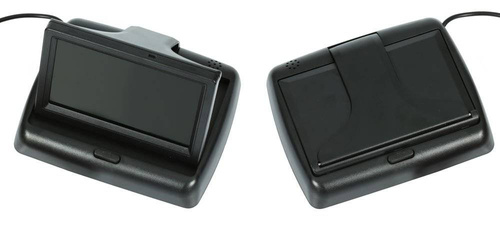

Panoramic TFT LCD monitor 4.3 "

• the ability to connect two transmitters using RCA (CINCH) - eg backing cameras, DVD player, etc.

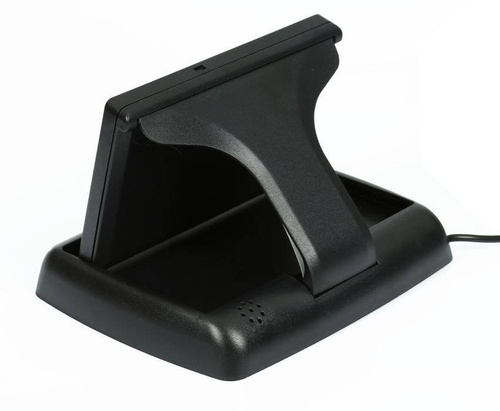

• screen slides down after pressing the button on the housing
• Monitor automatically starts

The advantage of the TFT matrix is ​​very good visibility of objects on the screen even in a very sharp sun.

monitor housing is made of high quality plastic, and the folding screen is very aesthetic.

• fits each of each image transmitter with RCA (CINCH) input
• Monitor works with intuitive auxiliary lines emitted by reversing cameras

Specification:

• diagonal: 4.3 "
• System: PAL
• Effective number of pixels: 480 x 272
• Image format: 16: 9
• operating temperature: -20 ° C ~ 60 ° C
• number of video inputs: two
• Video input: RCA (CINCH)
• input signal: composite video
• power supply: 12v
• Screen dimensions: width 95 mm, height 55 mm
• Basic dimensions: 112mm x 135mm
• dimension to altitude: closed - 27mm, open - 90mm
• Display with housing: 113mm x 76mm

The set includes:

• tft LCD 4,3 "monitor with 2 RCA outputs
• power cord
• box

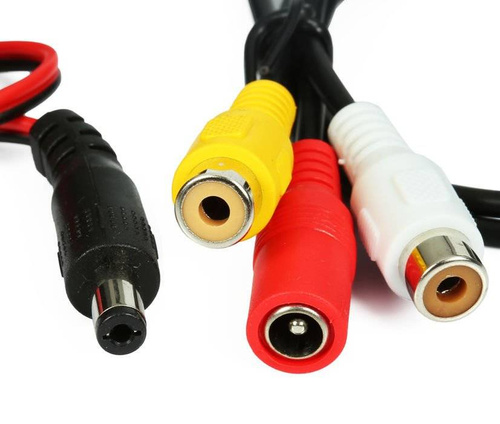

The monitor's power is connected using the supplied cable for any voltage source from the car installation. It is recommended to connect the plus "after ignition", as the monitor in the standby state takes a small current. At the monitor there are two female RCA (CINCH) sockets to which we connect the video signal.
