Universal reversing camera with 18 IR diodes with 12V - 24V anti-crushing cover

to the camera is attached to a longer, 10 meter video cable

• automatic camera start after switching on the reverse gear
• can be connected to any screen or monitor using a RCA video cable

Panoramic LCD Monitor TFT 7 "12V - 24V with remote control

• the ability to connect two transmitters using RCA (CINCH) - eg backing cameras, DVD player, etc.
• set contains a 2-DIN frame
• Monitor starts automatically when the reverse gear is being thrown

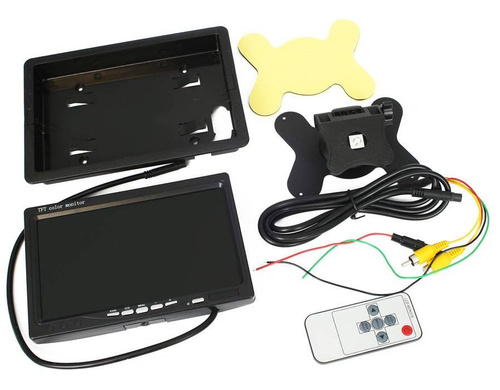

The set includes:

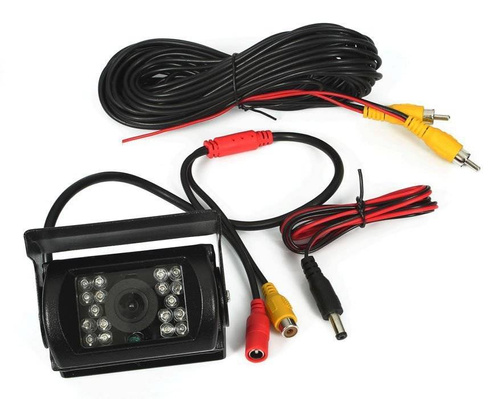

• 12V-24V reversing camera with 18 IR diodes and anti-dirt shield

• Panoramic LCD Monitor TFT 7 "12V - 24V with remote control

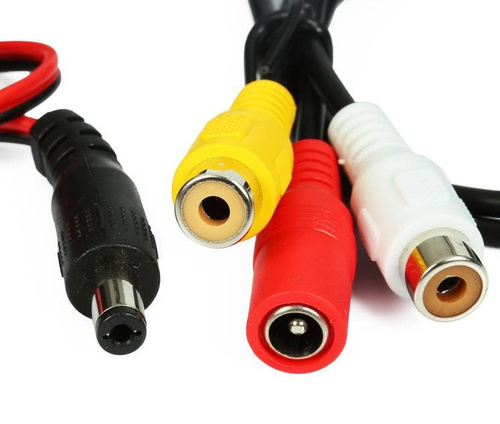

• RCA cable to connect the camera with a monitor (10 meters)

• double-sided tape for loading the monitor stand

• power cables

• aesthetic packaging, connection instructions

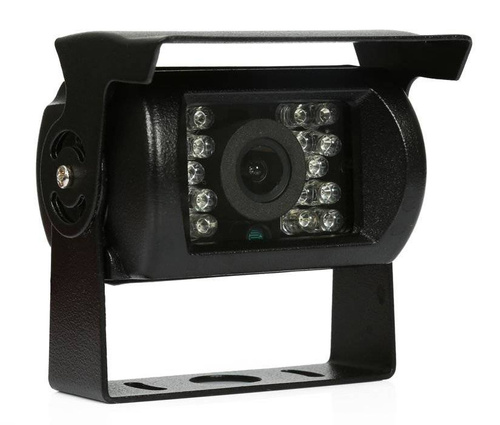

The camera is equipped with 18 IR diodes that provide good visibility at night.

• Automatic camera activation takes place when the reverse gear is started.
• fits any monitor with RCA video input.

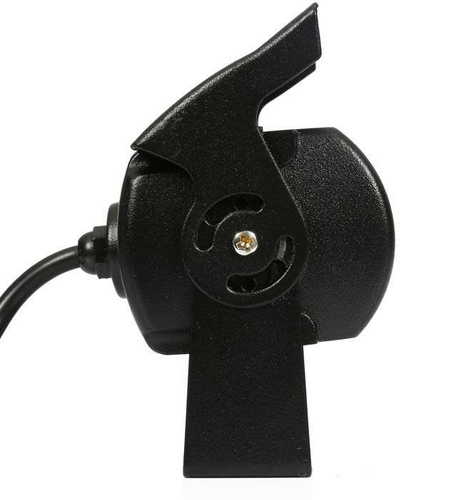

• The camera is turning vertically. The lens is made in Anti-Fog technology

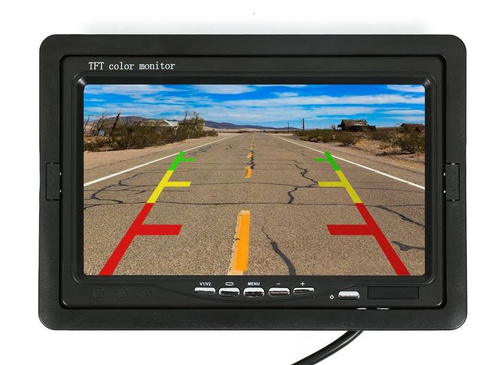

• Image from the camera has intuitive auxiliary lines to facilitate parking
• The camera is waterproof and shockproof - IP68

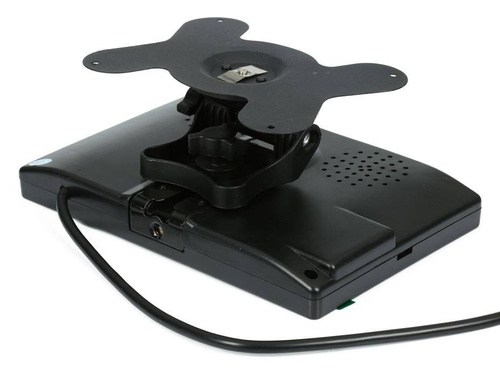

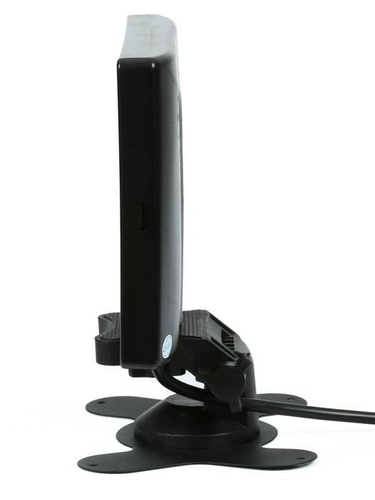

Monitor contains a fastening that allows the monitor to be installed in parallel or perpendicular to the base, and has a vertical adjustment.

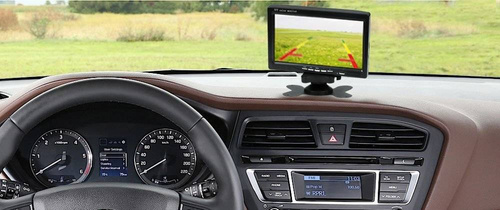

In addition, the set includes a 2-DIN frame , thanks to which the monitor can be mounted permanently in the car cockpit / truck

advantage of the TFT matrix is very good visibility objects on the screen even in a very sharp sun.

monitor housing is made of high quality plastic and the screen has the option of adjusting vertically

• fits each of each image transmitter with RCA (CINCH) input
• Monitor works with intuitive auxiliaries emitted by reversing cameras

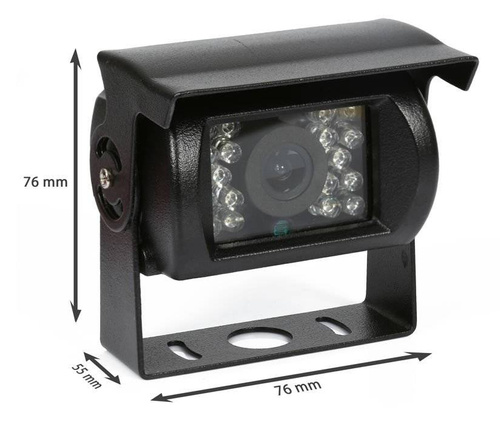

Camera Specification:

• Facilities of cameras: auxiliary lines, 18 IR diodes, lens made in anti-Fog technology
• resolution: 648x488
• image transducer: 1/4 "CMOS color
• Working temperature: from -40 to + 70 ℃
• 12V - 24V power supply
• water resistance: IP68
• power consumption: max 150 mA
• length of the power cable: 1m
• Cable length to the monitor: 10m
• color: black

The camera's power is connected by means of an attached cable for any module in the electrical installation of the car that receives the power after being thrown back. The cameras are most commonly connected to the light bulb.

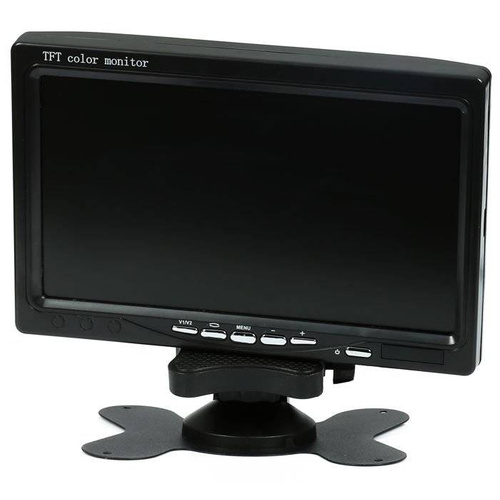

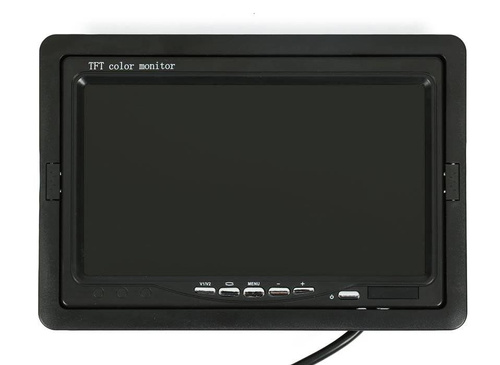

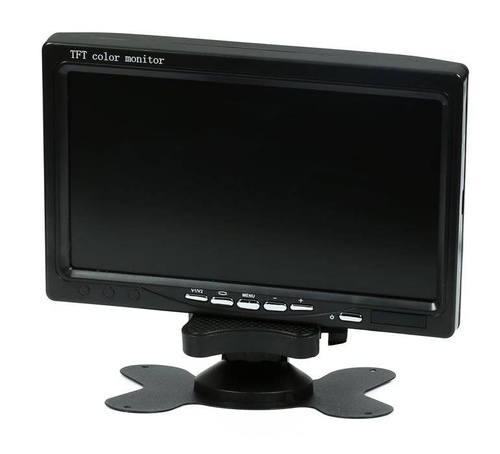

Monitor Specification:

• diagonal: 7 "
• system: PAL / NTSC
• Effective number of pixels: 480 x 272
• Image format: 16: 9
• Working temperature: -20 ° C ~ 60 ° C
• Number of video inputs: Two
• Video input: RCA (CINCH)
• input signal: composite video
• power supply: 12V / 24V
• Display dimensions: 170 mm width, height 114 mm, depth 21 mm
• Case dimensions: 91 mm x 119 mm x height 45 mm

The monitor's power is connected using the supplied cable for any voltage source from the car installation. It is recommended to connect the plus "after ignition", as the monitor in the standby state takes a small current. At the monitor there are two female RCA (CINCH) sockets to which we connect the video signal.

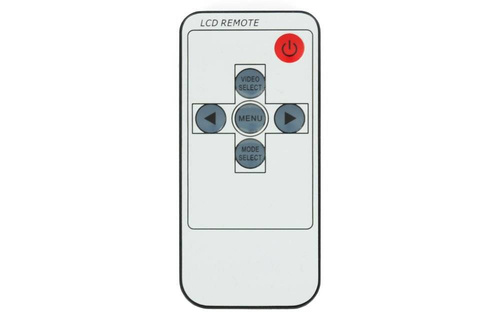

Monitor can be remotely controlled by a dedicated remote control!
