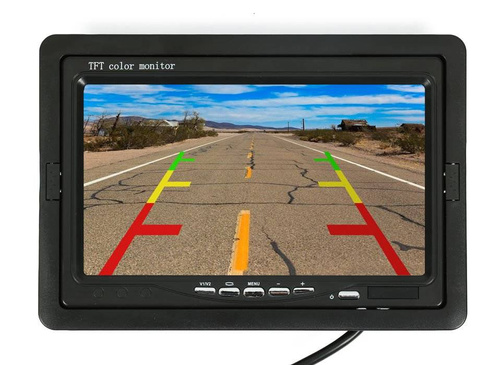

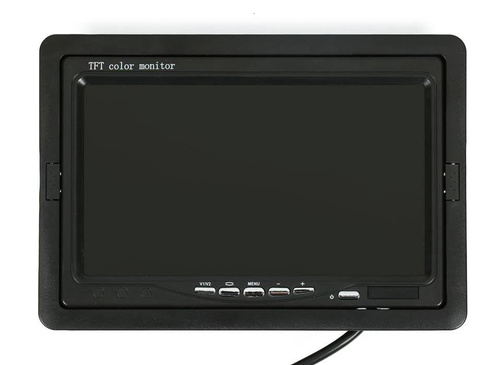

Panoramic LCD Monitor TFT 7 "12V - 24V with remote control

• the ability to connect two transmitters using RCA (CINCH) - eg backing cameras, DVD player, etc.
• set contains a 2-DIN frame
• Monitor starts automatically when the reverse gear is being thrown

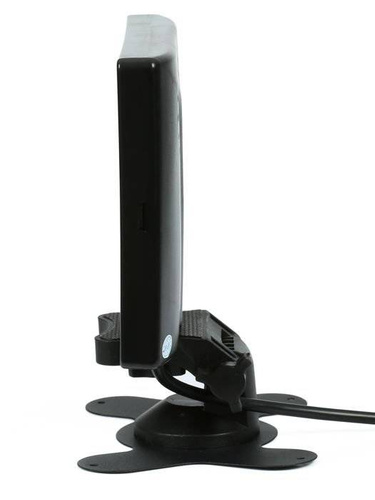

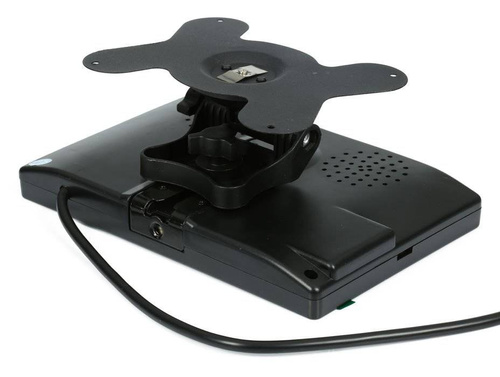

Monitor contains a fastening that allows the monitor to be installed in parallel or perpendicular to the base, and has a vertical adjustment.

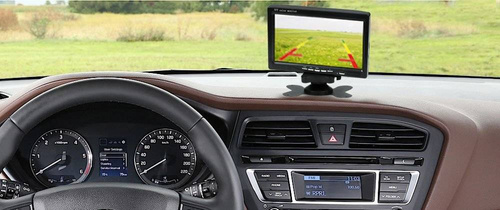

In addition, the kit includes 2-DIN frame , thanks to which the monitor can be fixed permanently in the car cockpit / truck

advantage of TFT matrix is very good visibility objects on the screen even in A very sharp sun.

monitor housing is made of high quality plastic and the screen has the option of adjusting vertically

• fits each of each image transmitter with RCA (CINCH) input
• Monitor works with intuitive auxiliaries emitted by reversing cameras

Specification:

• diagonal: 7 "
• system: PAL / NTSC
• Effective number of pixels: 480 x 272
• Image format: 16: 9
• Working temperature: -20 ° C ~ 60 ° C
• Number of video inputs: Two
• Video input: RCA (CINCH)
• input signal: composite video
• power supply: 12V / 24V
• Display dimensions: 170 mm width, height 114 mm, depth 21 mm
• Case dimensions: 91 mm x 119 mm x height 45 mm

The set includes:

• Monitor TFT LCD 7 "with 2 RCA outputs
• 2-DIN frame

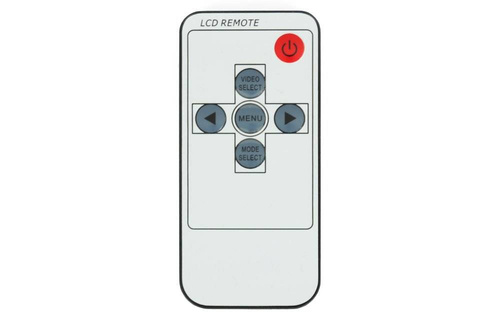

• remote control for remote monitor
• power cord

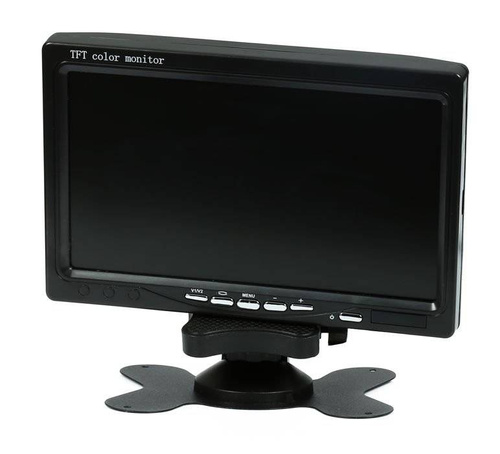

• Monitor stand
• box

The monitor's power is connected using the supplied cable for any voltage source from the car installation. It is recommended to connect the plus "after ignition", as the monitor in the standby state takes a small current. At the monitor there are two female RCA (CINCH) sockets to which we connect the video signal.
