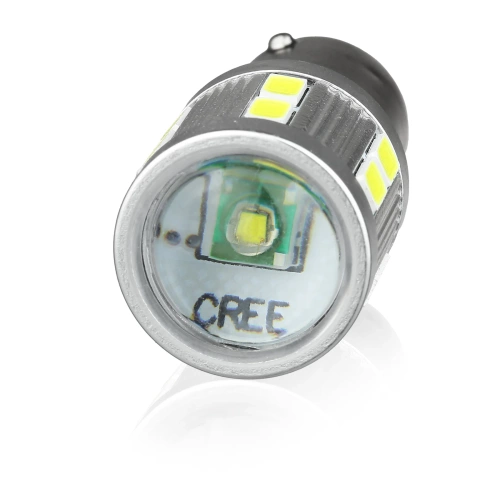

Car LED bulb BA15S 16 SMD 5630 lens
- - High power and low energy consumption
- - Long lifespan of LED bulbs
- - Wide selection of colors and mounting options
Car LED bulb BA15S 16 SMD 5630 with lens
Mounting Type: P21W / PY21W
Technical Specifications:
- LED type: SMD 5630
- Number of LEDs: 16
- Power consumption: 0.2W / diode
- Supply voltage: 12V
- Light intensity: 500 lm
- Certificates: CE, RoHS
- CAN-BUS: Not
Bulb dimensions:
- Shaft diameter: 15 mm
- Bulb length: 40 mm
Our assortment includes several color variants of the so-called bulbs. "large plinth" P21W, Py21W and P21 / 5W - white cold and warm, red, orange and green.
Let us remind you that:
1. Light bulb P21W has symmetrical pins in the handle. Other markings of this mount: BA15S, R5W, R10W. P21W / R5W is often found in daytime running lamps (VW group) and in rear lamps (position, reversing, turn signals, etc.).
2. Light bulb PY21W has asymmetrical pins in the handle. Other markings of this mount: Bau15s. Orange Py21W is often found in directional lights.
3. Light bulb P21 / 5W it is a two-filament bulb. Functions simultaneously as a STOP light bulb and a position light bulb or daytime / parking light. Other markings: Bay15d
This bulb uses modern LED 5630 diodes, which, despite their small size, are characterized by high power and low energy consumption.
