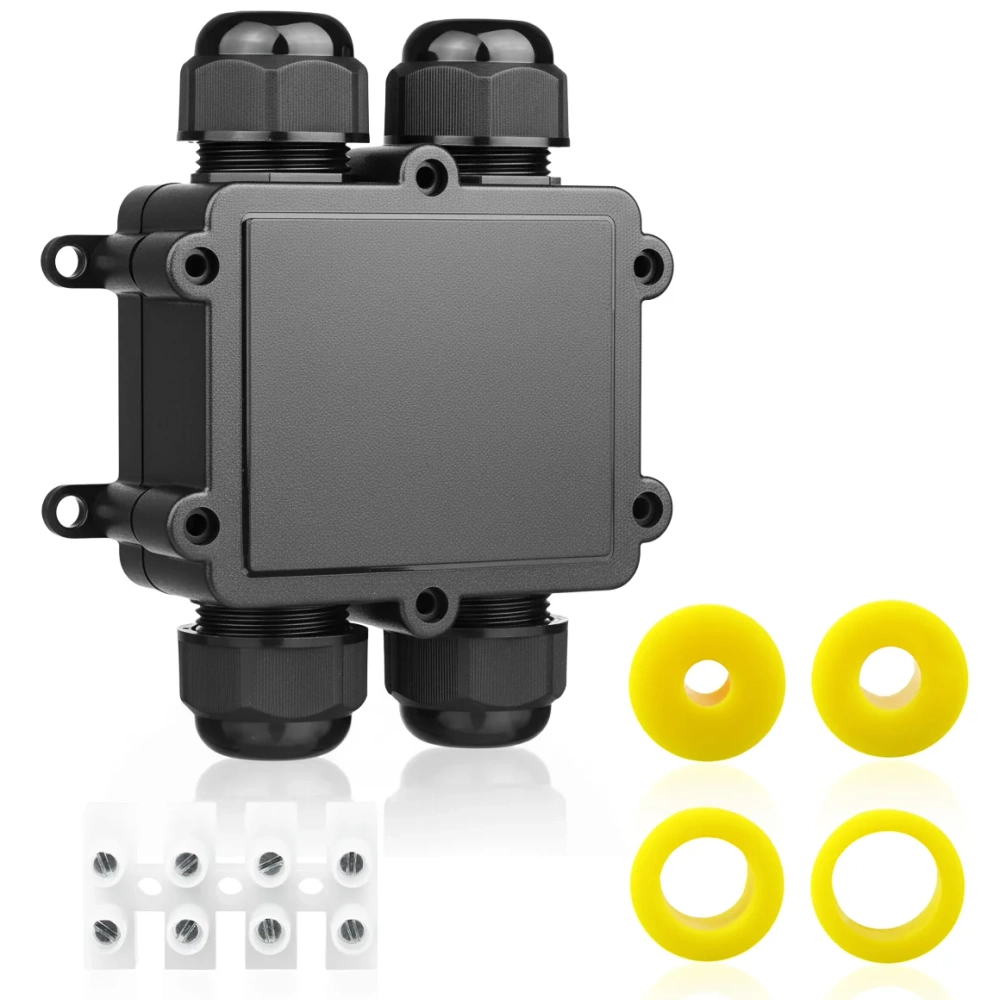

Waterproof Cable Junction Box IP68 4-way | Electrical Connector 450 V 24 A for 3–14 mm Cables | M686-H

Four-pole terminal • 4-pin electrical connector • 0.5 mm² - 2.5 mm² • 24 A • 450 V • IP68 • Ø 3-6 mm or Ø 4-8 mm or Ø 8-12 mm or Ø 10-14 mm

Hermetic cable junction box with an IP68 protection rating offers a universal and reliable solution for connecting, branching, and protecting electrical wires in areas exposed to moisture, dust, and changing environmental conditions.

Designed for outdoor use, underground installation, and even for situations where temporary immersion in water may occur, it provides lasting protection for connections in home, garden, and industrial installations.

The connector is suitable for:

• industrial installations,
• power systems,
• garden setups,
• outdoor LED lighting systems,
• water pumps,
• gate automation,
• CCTV systems,
• signaling,
• marine industry.

• IP68 protection level – fully resistant to water, dust, and dirt; the box remains sealed even after prolonged submersion.

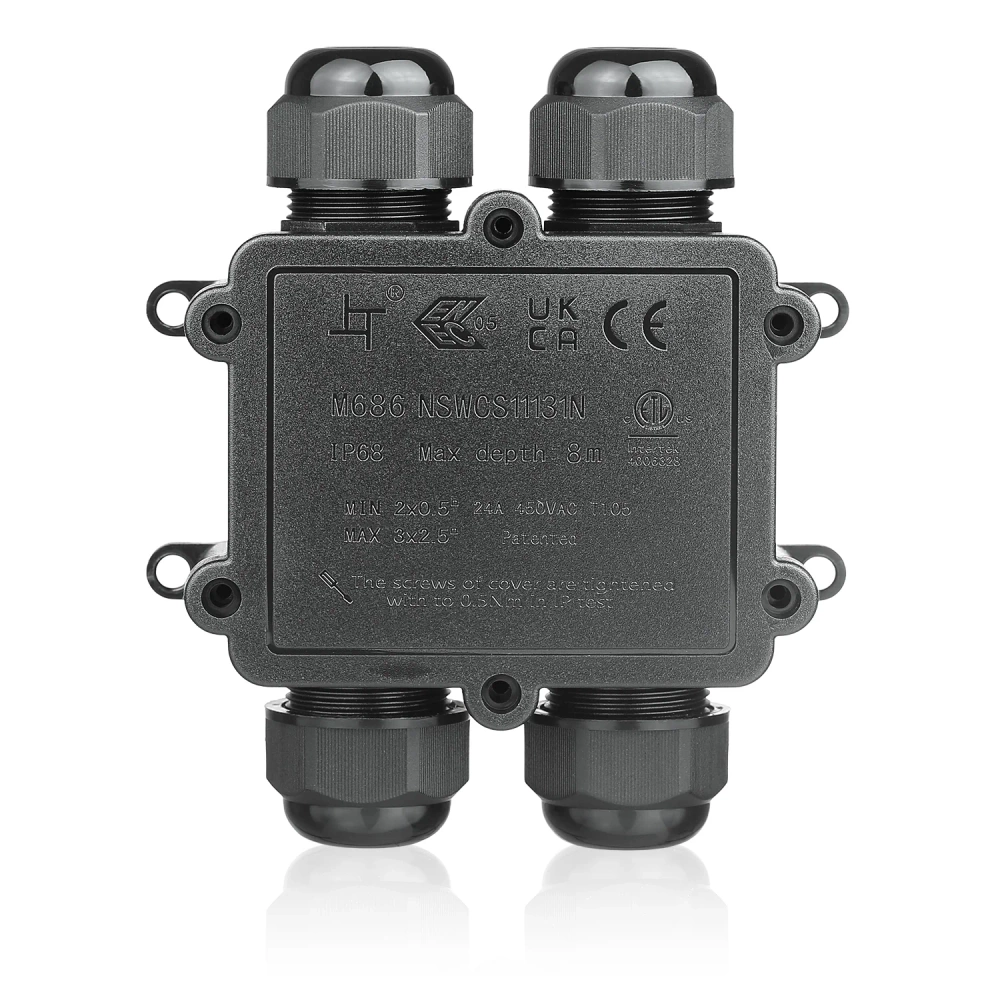

• Mounting screws placed outside the casing – an innovative design that eliminates the risk of water leaking into the connection chamber via the screw heads.
• High-quality materials: housing made of polycarbonate (PC) or PA66 polyamide, resistant to UV, impact, flame, and chemicals.
• Flame retardant UL94 V2 and resistant to sunlight and material aging.
• Operating temperature range from -40°C to +105°C.
• Handles voltages up to 450 V AC and currents up to 24 A.

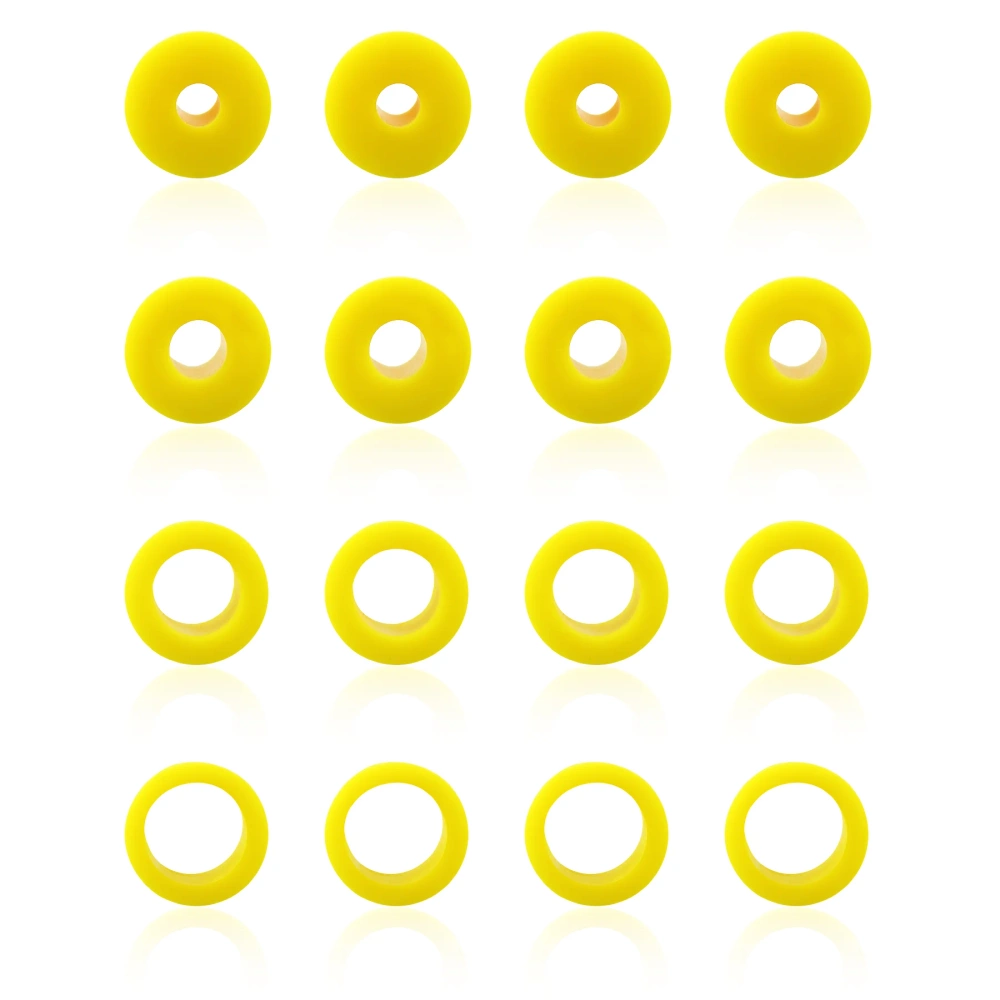

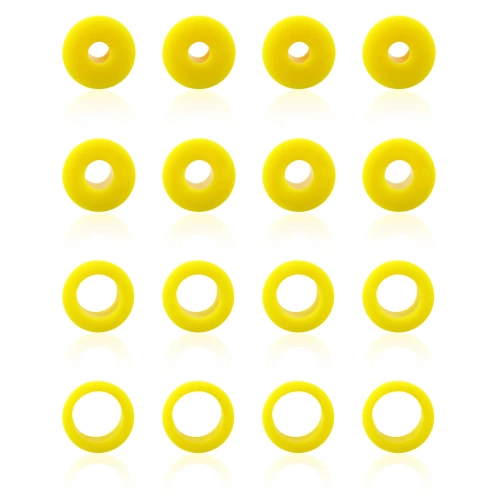

• Interchangeable cable glands and sets of rubber sealing rings suited to different cable diameters.

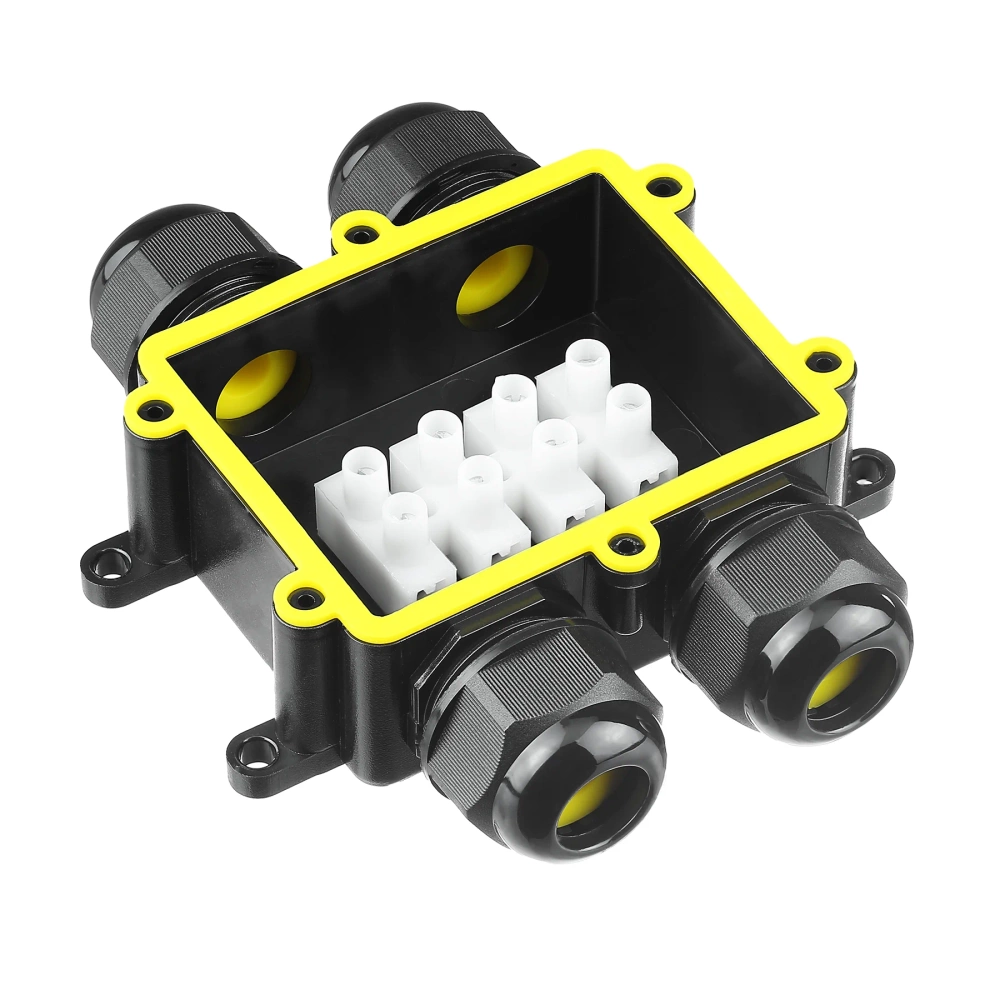

• Increased internal space due to external mounting and a carefully designed casing geometry.
• Simple, fast installation without special tools – only a screwdriver is needed.

Application

IP68 hermetic boxes are intended for:

• lighting installations (garden, facade, street, park),
• gate automation and security systems,
• connections for pump, sensor, and garden device power cables,
• CCTV systems, illuminated signs, and LED boards,
• power distribution in industrial constructions and outdoor energy connections.

Specification

• Model: M686-H
• Protection rating: IP68
• Housing material: PA66 / PC, UV and fire resistant
• Flammability class: UL94 V2
• Cable diameter range: 3 - 6 mm, 4 – 8 mm, 8 - 12 mm, or 10 - 14 mm
• Operating temperature: -40°C to +105°C
• Rated voltage: up to 450 V AC
• Rated current: up to 24 A
• Color: black

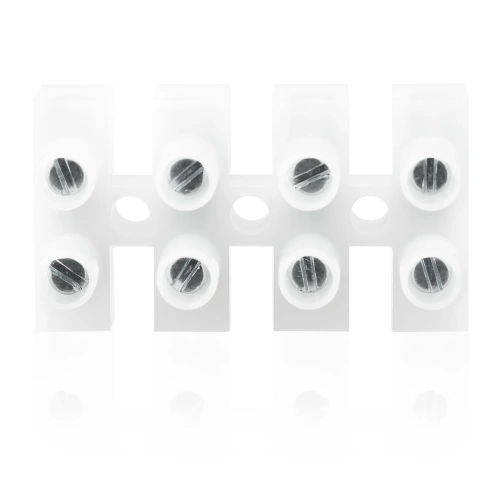

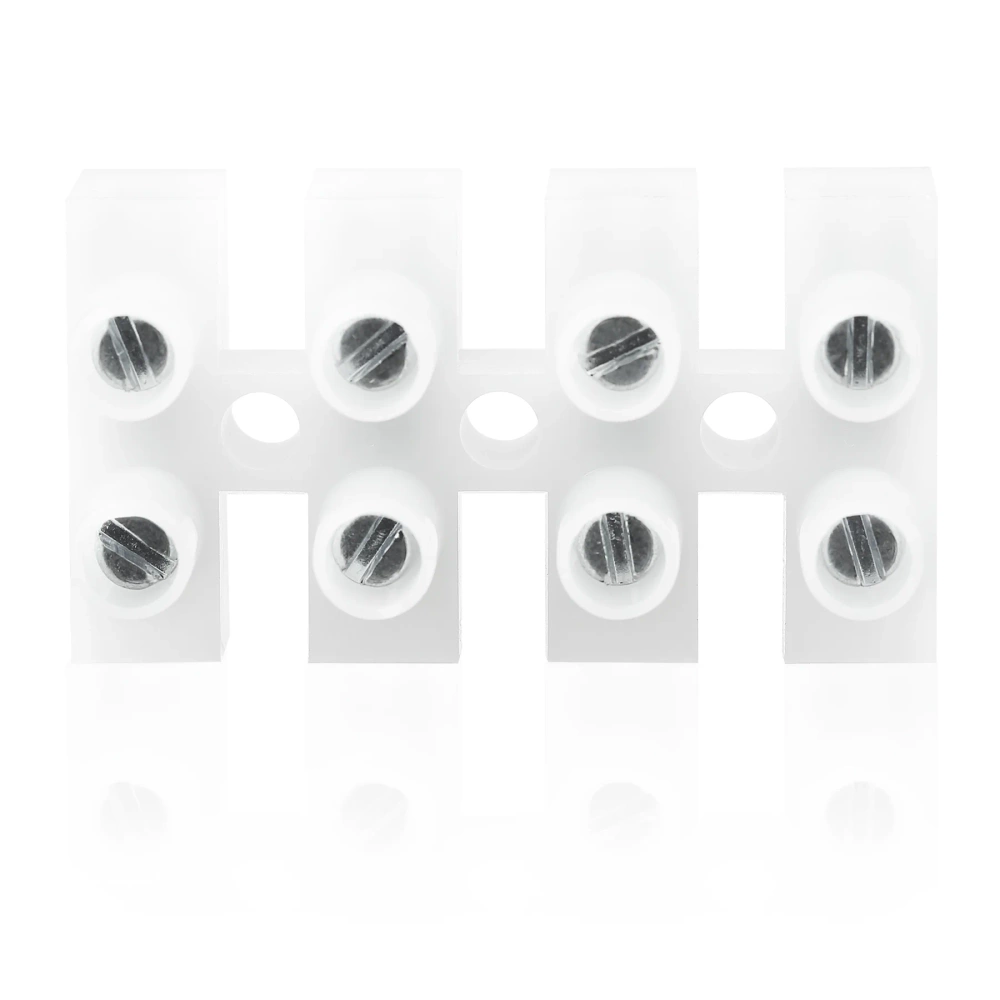

• Connection type: screw
• Number of connection poles: 4
• Internal box dimensions: 5.6 x 6.9 cm
• Certificates: ENEC, CE, UKCA, ETL, NSW, ROHS
