Waterproof cable junction box IP68 | 5-pin U-type connector 450 V 32 A for 4–14 mm cables | M685-UA
- - Waterproof and dustproof for outdoor and underground use
- - Quick, tool-free installation and removal
- - Resistant to UV, impact, fire, and chemicals
- - Secure, reliable connection in harsh environments
U Shape • 5-pin screw connection • 0.5 mm² - 4 mm² • 32 A • 450 V • IP68 • Ø 4-8 mm or Ø 8-12 mm or Ø 10-14 mm
Hermetic IP68 cable joint is a reliable and versatile solution for safely joining, branching, and extending electrical wires in environments that require high sealing performance.
Designed for use in above-ground and underground installations, as well as in high-humidity environments. Ensures durability and stability of connections even in extreme weather conditions.
The connector is used in:
- industrial installations,
- power systems,
- garden wiring,
- outdoor LED lighting systems,
- water pumps,
- gate automation,
- CCTV systems,
- signaling,
- marine industry.
- IP68 rating provides complete water and dust protection, even during prolonged submersion.
- Compatible with cables of various diameters.
- Housing made from PA66 polyamide and polycarbonate, resistant to UV, impacts, fire, and chemicals.
- Wide operating temperature range – from -40°C to +105°C (temporarily up to +120°C).
- Suitable for voltages up to 450 V AC and currents up to 32 A.

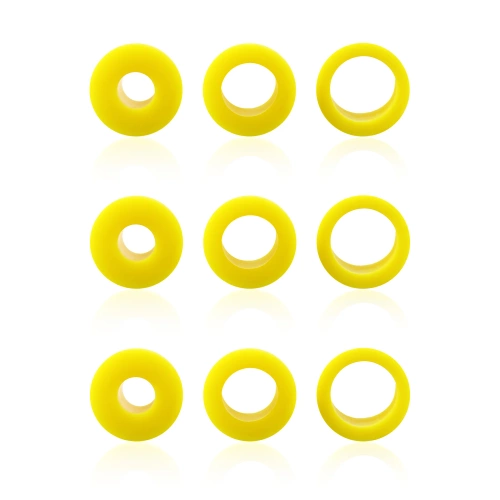

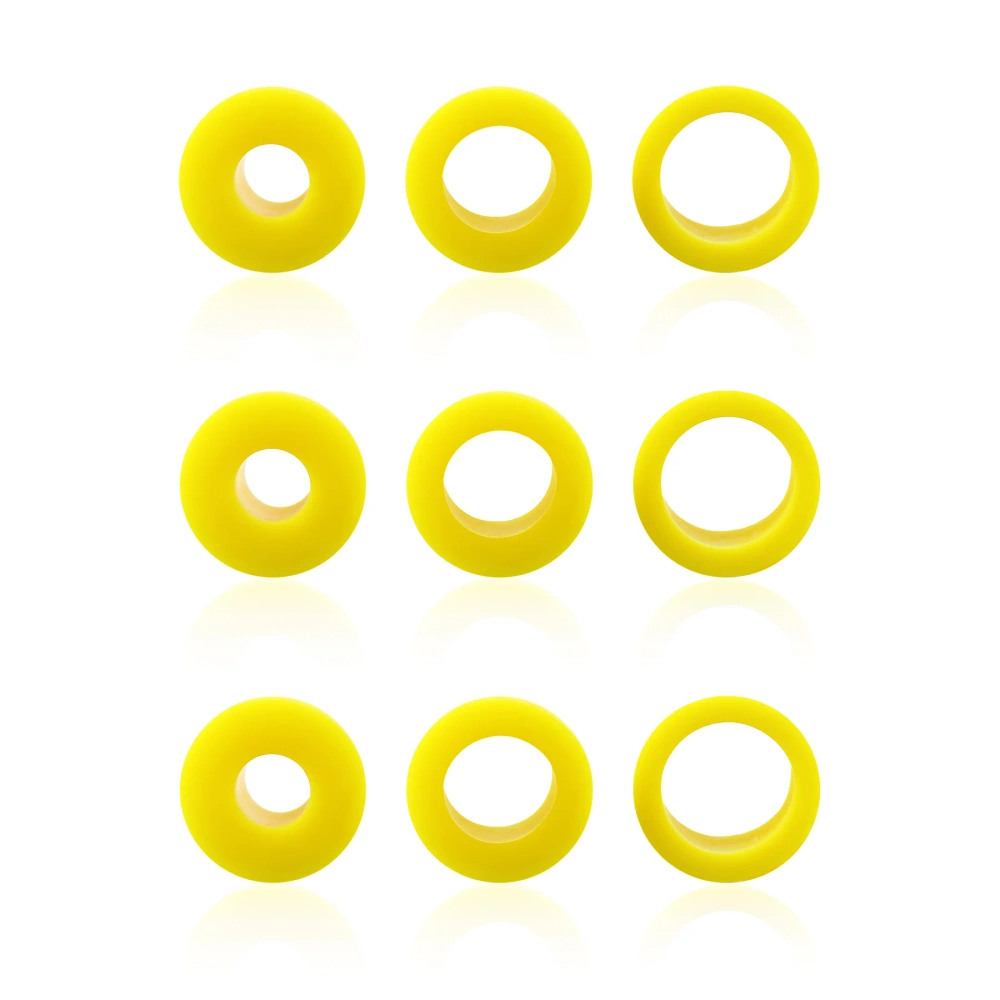

- Built-in silicone seals and glands ensure maximum tightness and protect against corrosion and moisture condensation.

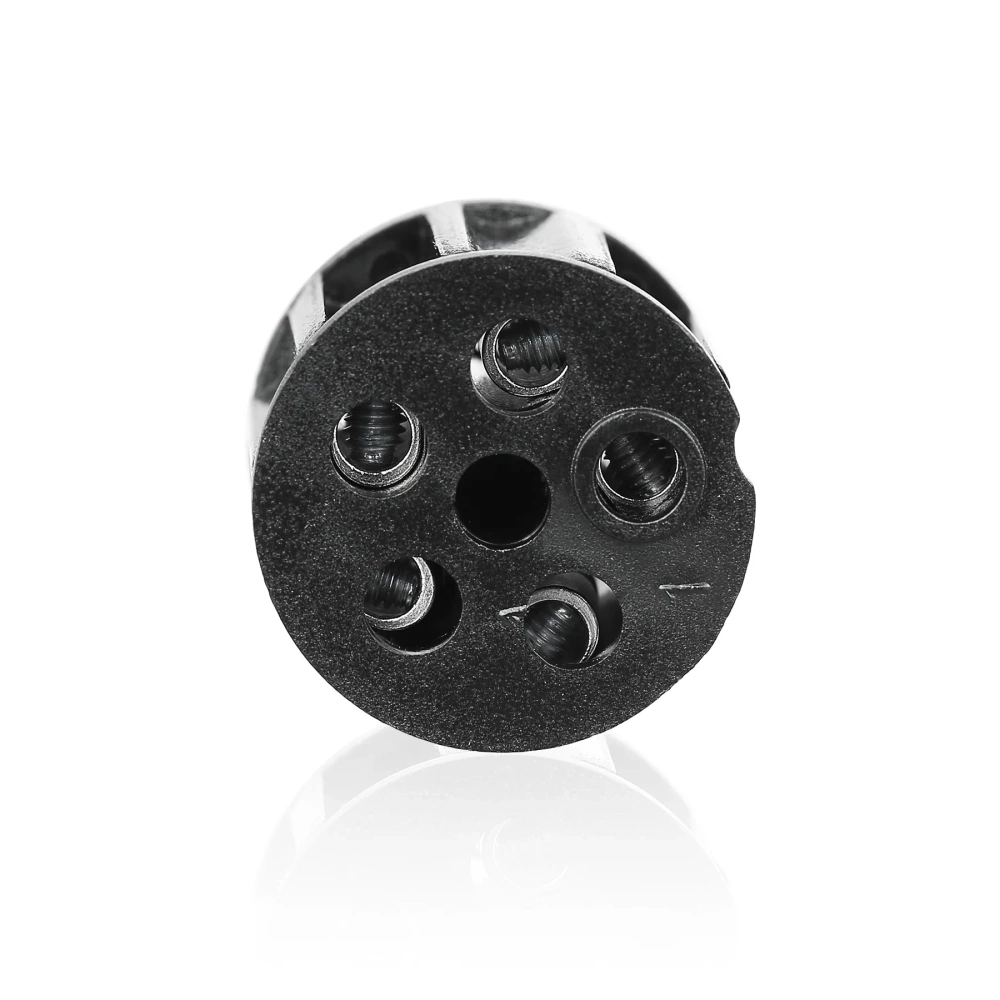

- Screw connection – no soldering required.
- Design allows for quick installation and removal without the need for specialized tools.
Application
The joint is intended for connecting wires in:
- garden, facade, and street lighting,
- pumps, fountains, pools, and garden ponds,
- automation and monitoring systems,
- industrial machines and controllers,
- above-ground and underground connections in construction and power systems.
Specification
- Model: M685-UA
- Protection rating: IP68
- Temperature range: T105 -40°C ~ +105°C
- Rated voltage: up to 450 V AC
- Rated current: up to 32 A
- Material: PA66 / PC, UV and fire resistant
- Connection type: screw
- Cable diameter range: 4 - 8 mm, 8 - 12 mm, or 10 - 14 mm
- Housing color: black / yellow seals
- Dimensions: 11.5 x 6.5 x 3.3 cm
- Certificates: ENEC, CE, CB, UKCA, NSW, ETL, ROHS
