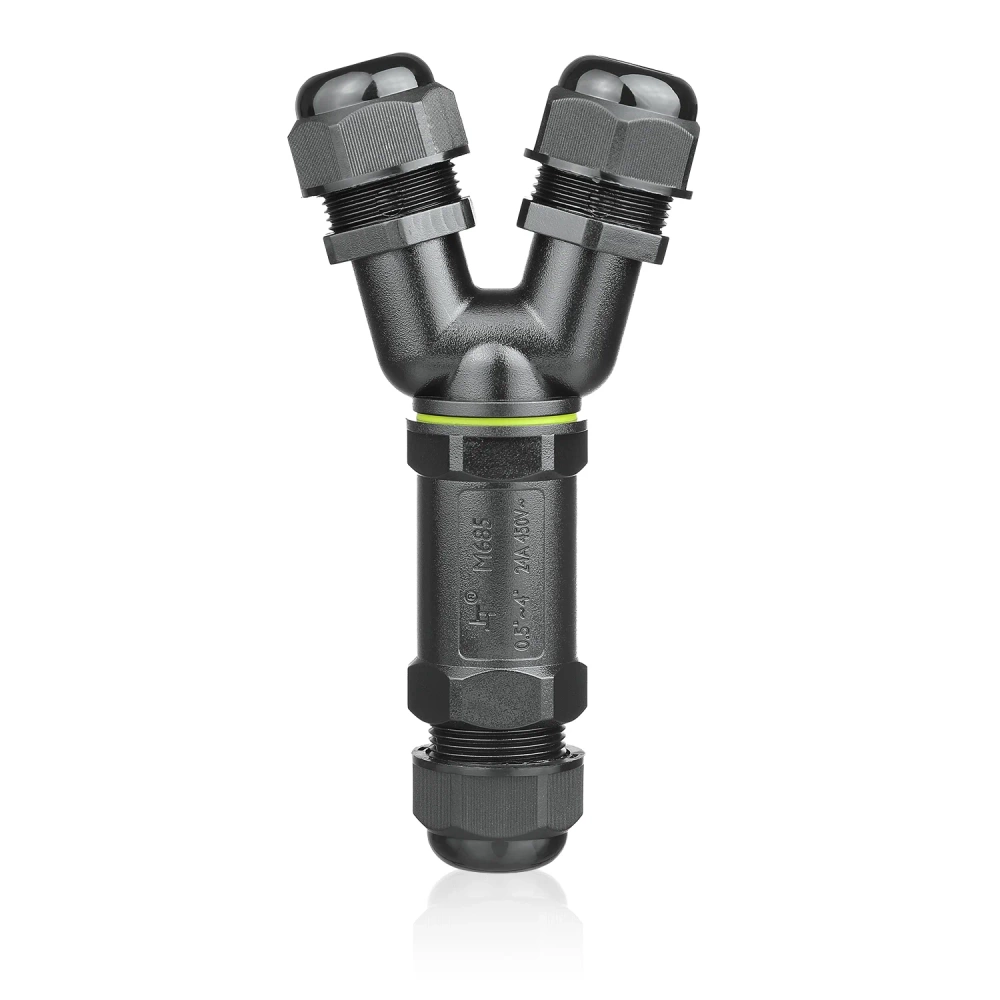

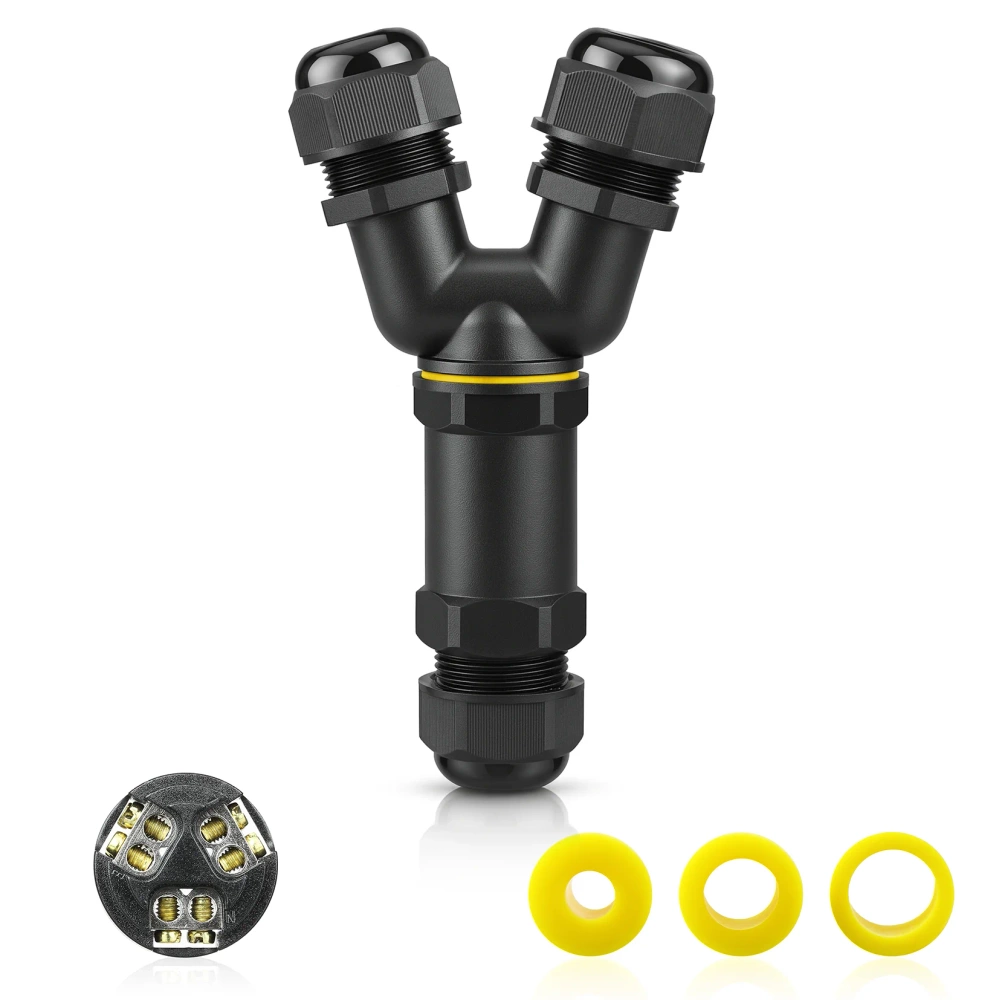

Waterproof Cable Junction Box IP68 | Y-Shaped Connector 2×3-pin 450 V 32 A for 4–14 mm Cables | M685-YA

Y Shape • 2x 3-pin screw connection • 0.5 mm² - 4 mm² • 32 A • 450 V • IP68 • Ø 4-8 mm or Ø 8-12 mm or Ø 10-14 mm

IP68 hermetic cable joint is a reliable and versatile solution for safely connecting, branching, and extending electrical wires where high tightness is required.

Designed for use in above-ground, underground, and high-humidity environments. It ensures a durable and stable connection even under extreme weather conditions.

This connector is suitable for:

• industrial installations,
• power systems,
• garden installations,
• outdoor LED lighting systems,
• water pumps,
• gate automation,
• CCTV systems,
• signaling,
• marine industry.

• IP68 protection rating ensures complete water and dust resistance, even during prolonged submersion.
• Compatible with cables of various diameters.
• Housing made from polyamide PA66 and polycarbonate, resistant to UV, impact, fire, and chemicals.
• Wide operating temperature range – from -40°C to +105°C (temporarily up to +120°C).
• Can operate with voltage up to 450 V AC and current up to 32 A.

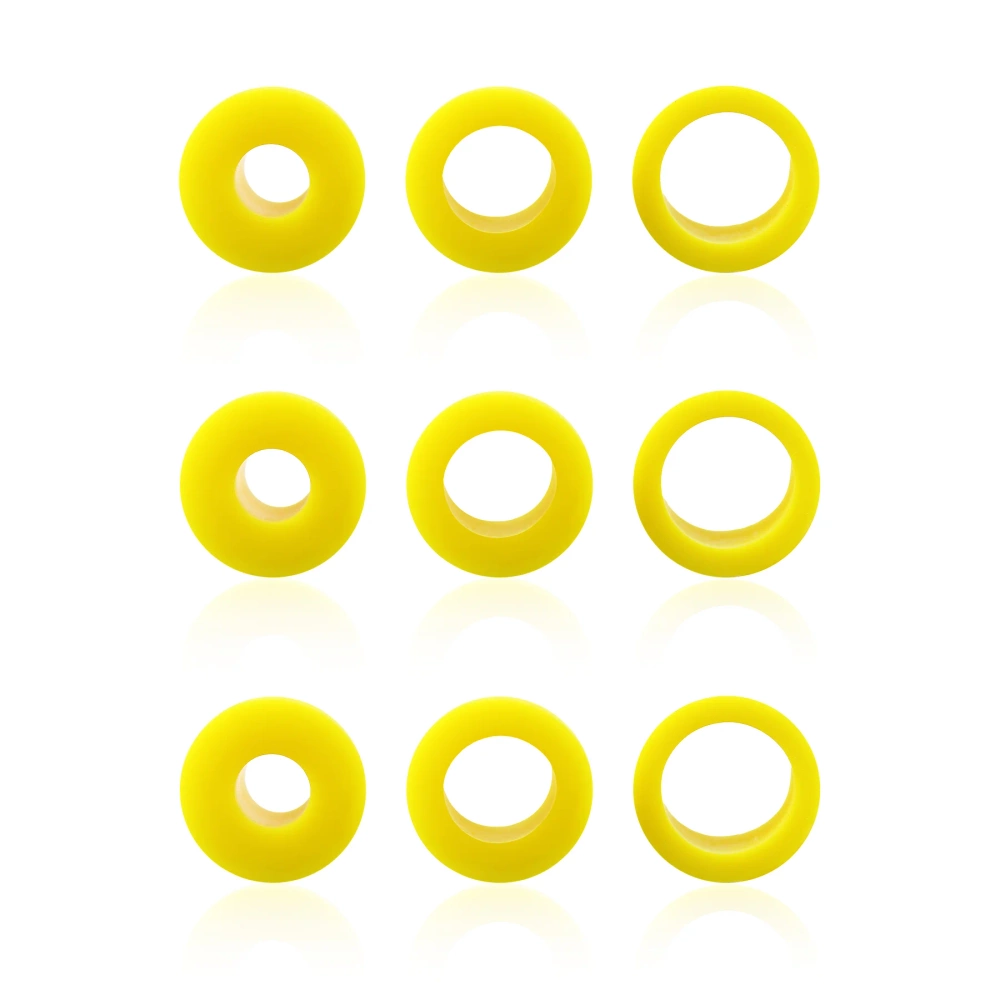

• Built-in silicone seals and glands provide maximum tightness and protect against corrosion and moisture condensation.

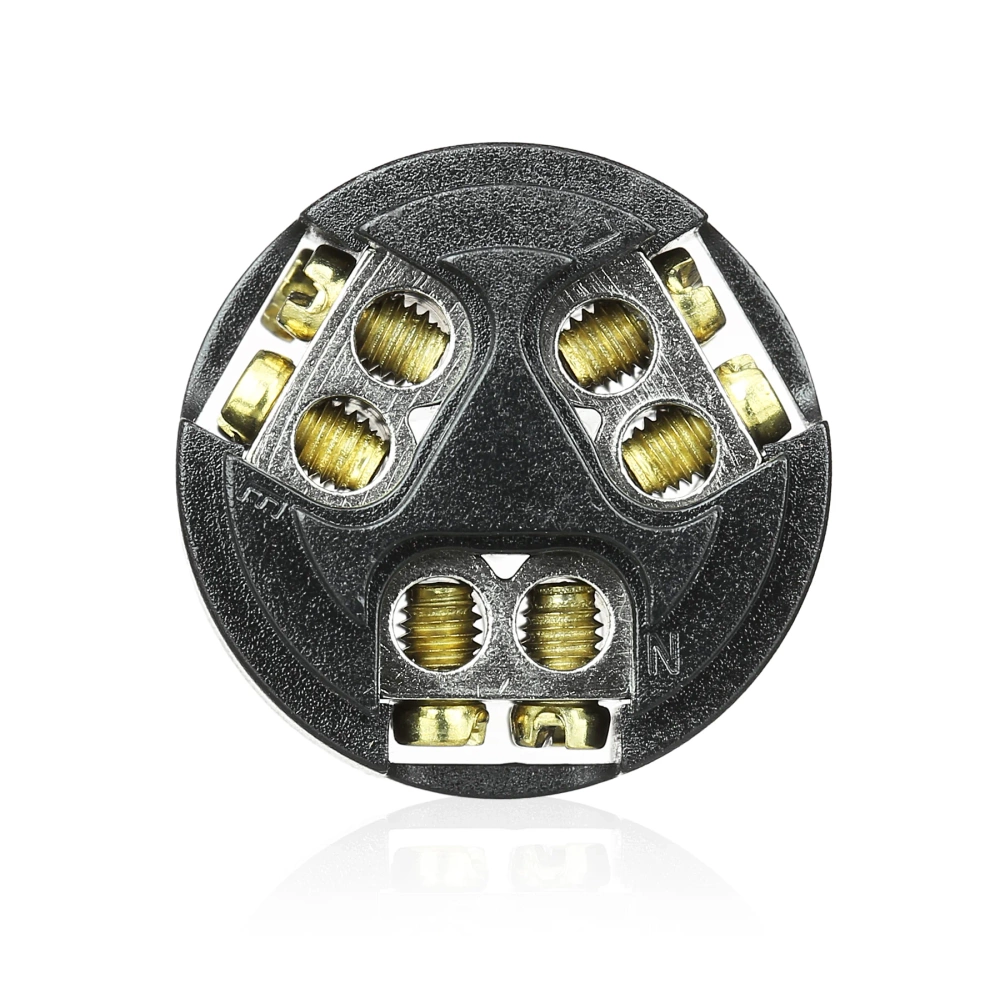

• Screw connection – no soldering required.
• The design allows for quick assembly and disassembly without special tools.

Applications

The joint is intended for connecting wires in installations such as:

• garden, facade, and street lighting,
• pumps, fountains, pools, and ponds,
• automation and monitoring systems,
• industrial machines and controllers,
• above-ground and underground connections in construction and power supply.

Specification

• Model: M685-YA
• Protection rating: IP68
• Temperature range: T105 -40°C ~ +105°C
• Rated voltage: up to 450 V AC
• Rated current: up to 32 A
• Material: PA66 / PC, UV and fire resistant
• Connection type: screw
• Cable diameter range: 4 - 8 mm, 8 - 12 mm or 10 - 14 mm
• Housing color: black / yellow seals
• Dimensions: 14.5 x 7.5 x 3.3 cm
• Certificates: ENEC, CE, CB, UKCA, NSW, ETL, ROHS
