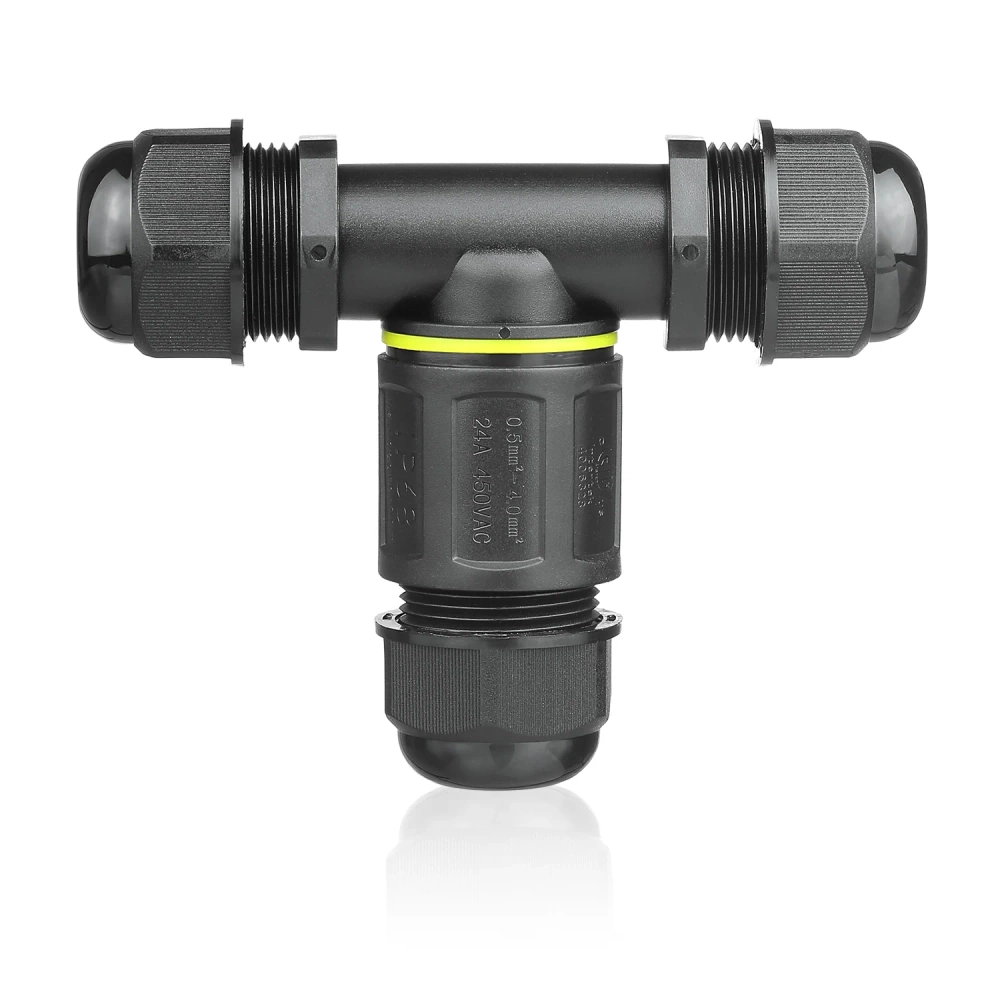

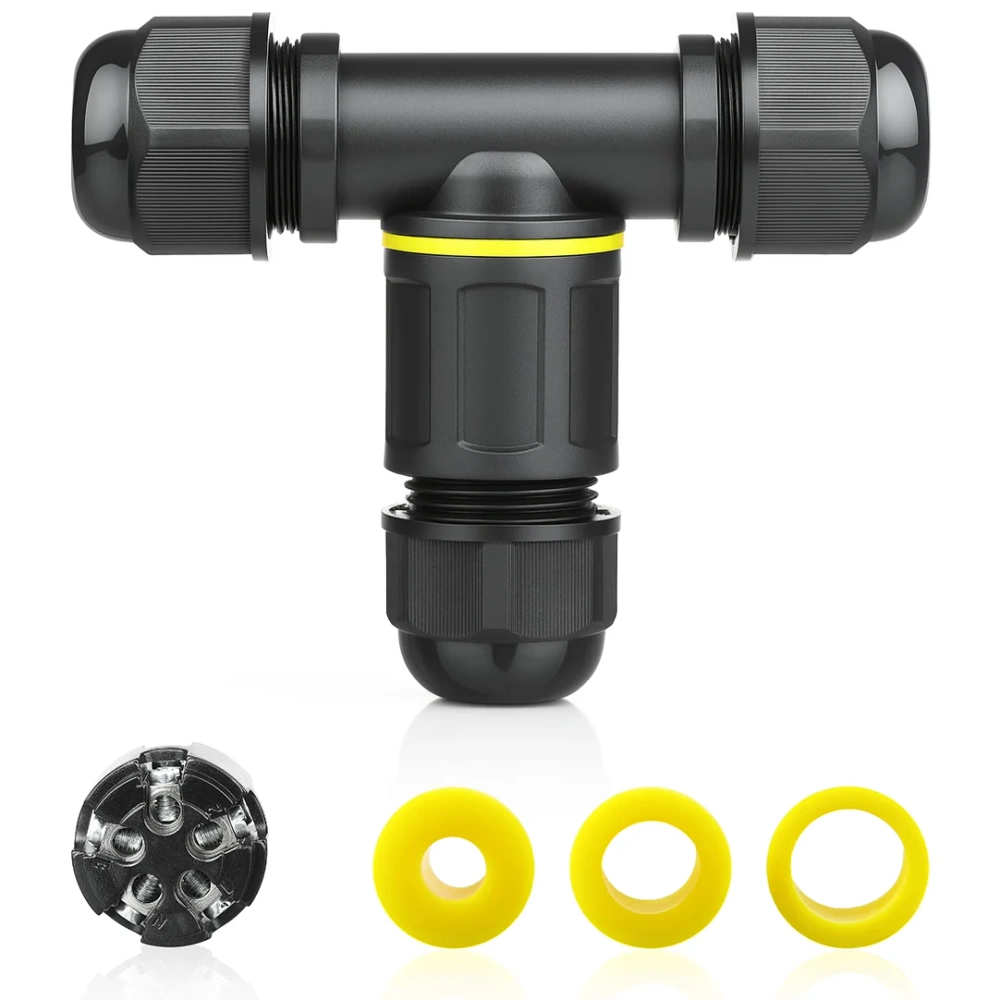

Waterproof Cable Junction Box IP68 | T-Connector 5-pin 450 V 32 A for 4–14 mm Cables | M685-T1
- - Waterproof, dustproof seal for demanding environments
- - Quick, tool-free installation and removal
- - Reliable for outdoor, underground, or industrial use
- - UV, impact, and chemical resistant materials
T-shape • 5-pin screw connection • 0.5 mm² - 4 mm² • 32 A • 450 V • IP68 • Ø 4-8 mm or Ø 8-12 mm or Ø 10-14 mm
Hermetic cable joint IP68 offers a reliable and versatile solution for safe connecting, branching, and extending electrical wires in situations that demand high sealing performance.
Designed for use in both above-ground and underground installations, as well as in high-humidity environments. It ensures durability and stable connections even in extreme weather conditions.
The connector is suitable for:
- industrial installations,
- power systems,
- garden setups,
- outdoor LED lighting systems,
- water pumps,
- gate automation,
- CCTV systems,
- signaling,
- marine industry.
- IP68 protection rating ensures complete water and dust resistance, even during prolonged submersion.
- Compatible with cables of various diameters.
- Housing made of PA66 polyamide and polycarbonate, resistant to UV, impact, fire, and chemicals.
- Wide operating temperature range – from -40°C to +105°C (up to +120°C for short periods).
- Suitable for use with voltages up to 450 V AC and currents up to 32 A.

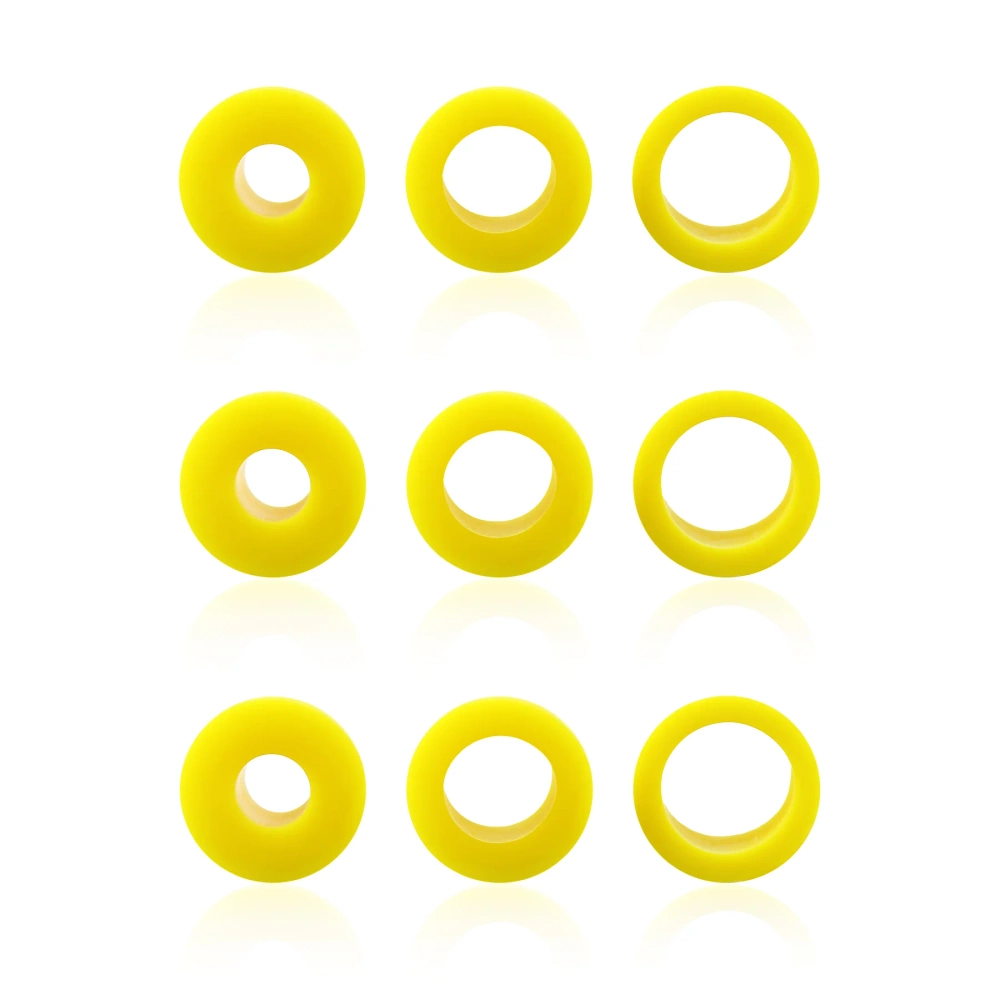

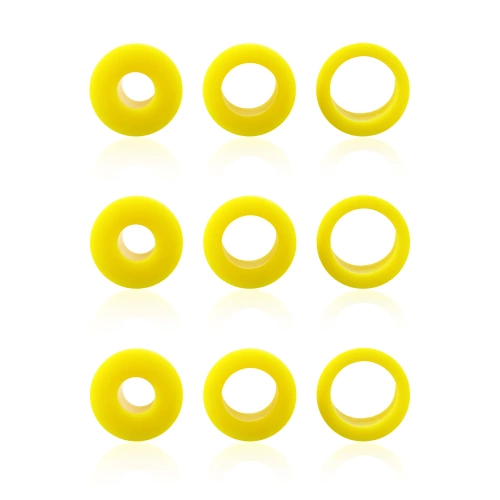

- Built-in silicone seals and glands provide maximum tightness and protect against corrosion and moisture condensation.

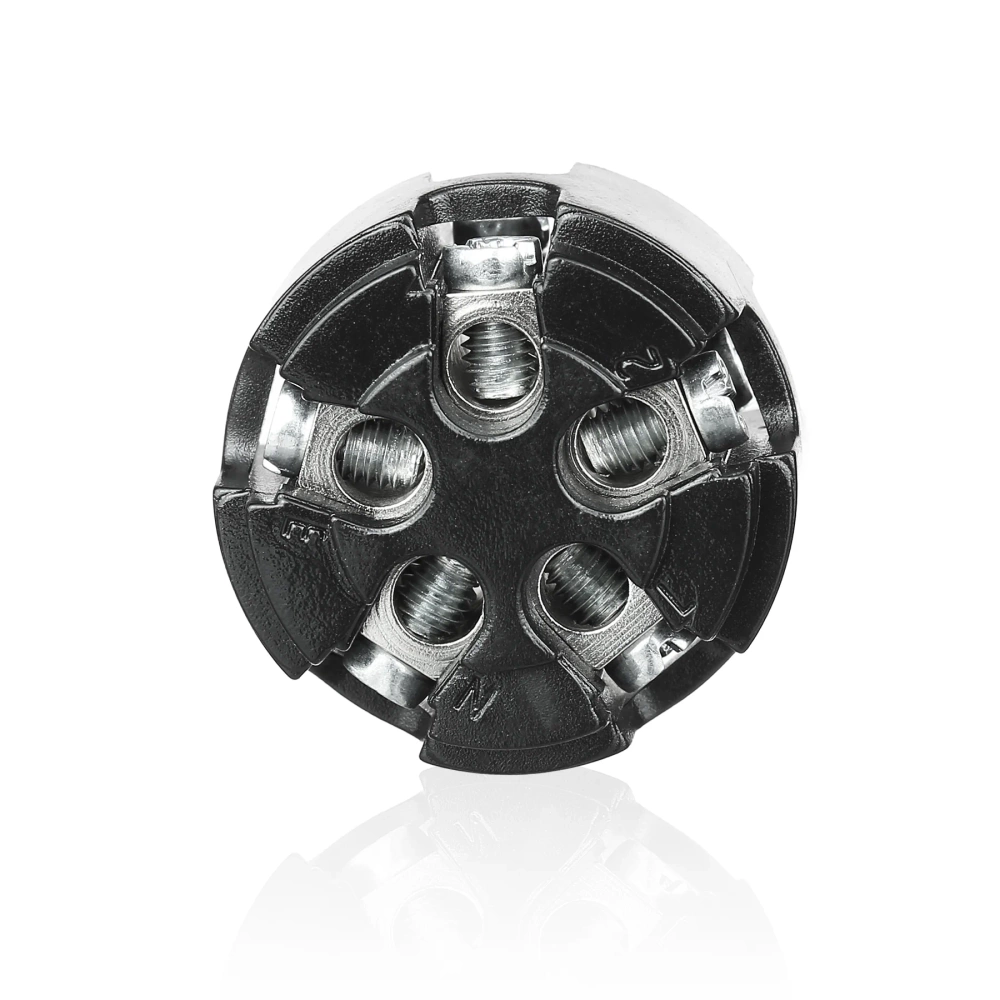

- Screw connection – no soldering required.
- Design enables quick installation and removal without special tools.
Application
This joint is designed for connecting wires in:
- garden, facade, and street lighting,
- pumps, fountains, pools, and ponds,
- automation and monitoring systems,
- industrial machines and controllers,
- above-ground and underground connections in construction and power engineering.
Specification
- Model: M685-T1
- Protection rating: IP68
- Temperature range: T105 -40°C ~ +105°C
- Rated voltage: up to 450 V AC
- Rated current: up to 32 A
- Material: PA66 / PC, UV and fire resistant
- Connection type: screw
- Cable diameter range: 4 - 8 mm, 8 - 12 mm, or 10 - 14 mm
- Housing color: black / yellow seals
- Dimensions: 10.2 x 8.2 x 3.1 cm
- Certifications: ENEC, CE, CB, UKCA, NSW, ETL, ROHS
