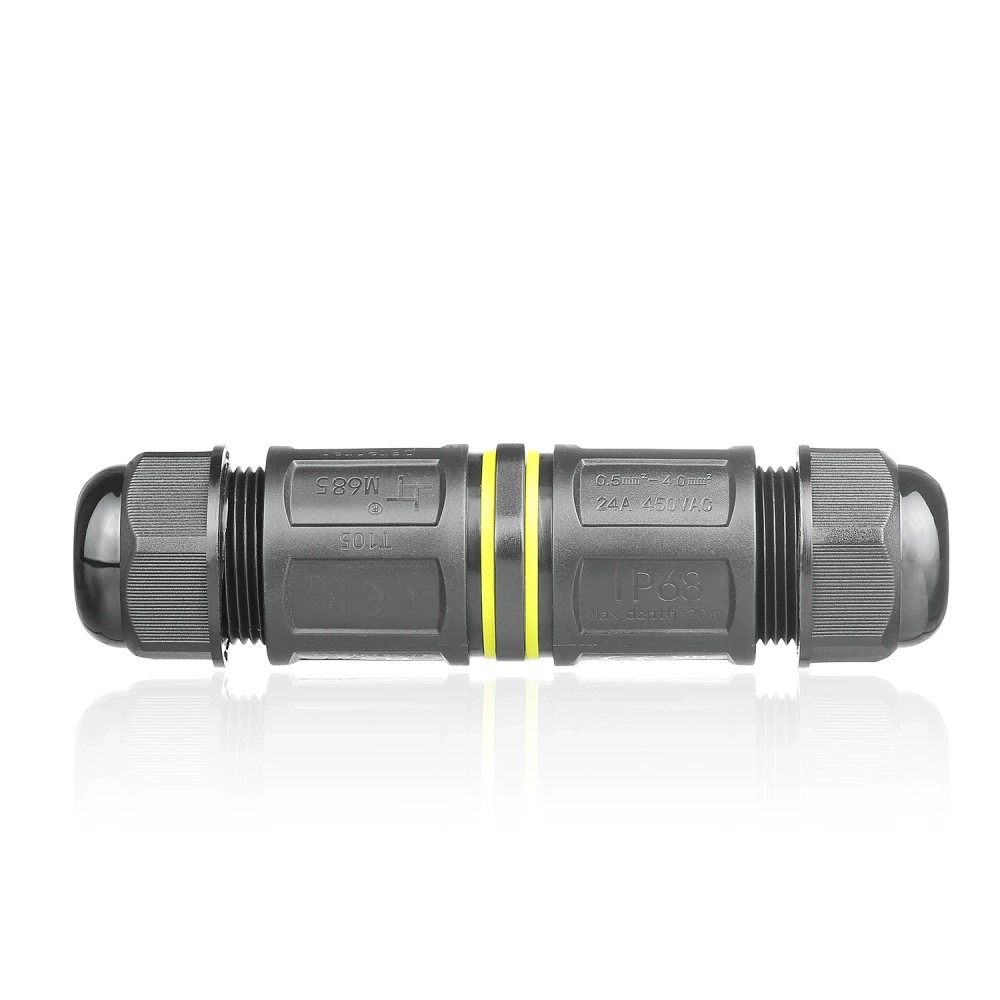

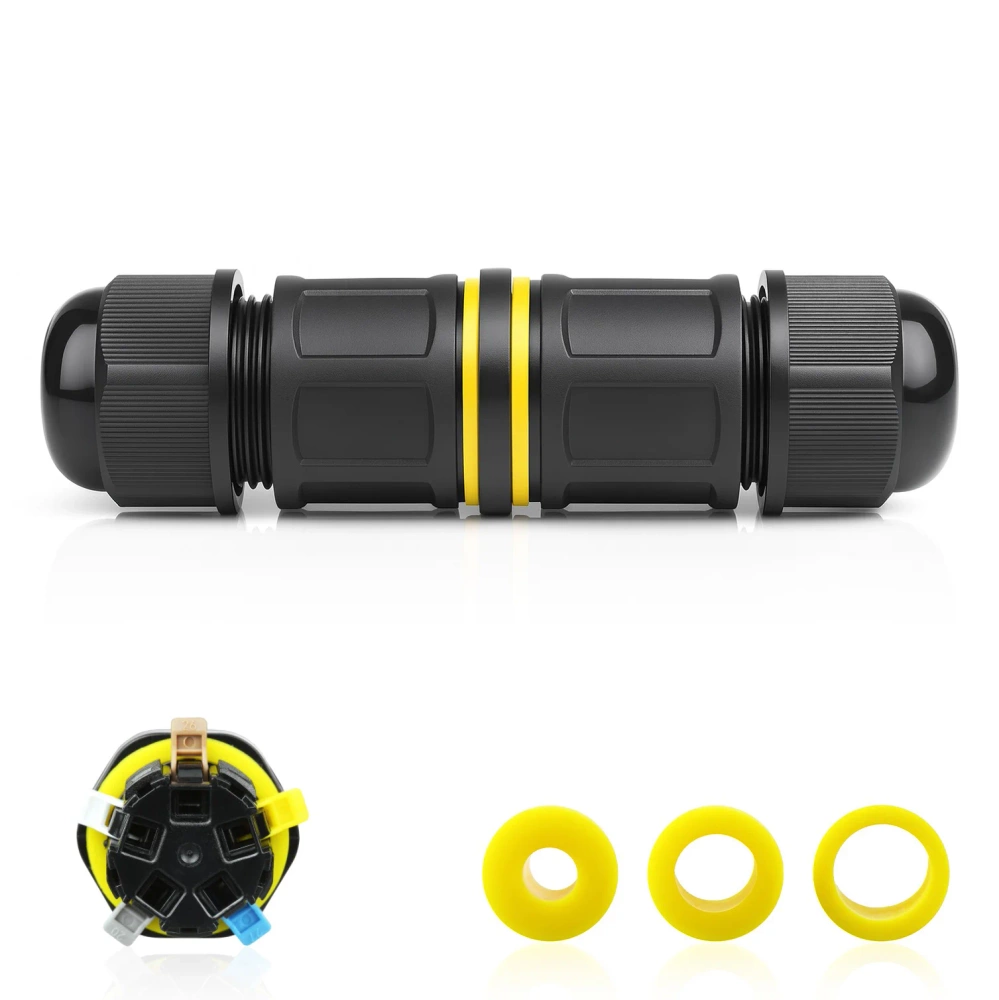

Waterproof cable junction box IP68 | 5-pin self-locking connector 450 V 32 A for 4–14 mm cables | M685-B
- - Waterproof and dustproof for harsh outdoor environments
- - Tool-free, quick connection for fast installation
- - Reliable sealing prevents moisture and corrosion
- - UV and impact resistant housing
- - Suitable for cables of various diameters
self-locking 5-pin connector • 0.5 mm² - 4 mm² • 32 A • 450 V • IP68 • Ø 4-8 mm or Ø 8-12 mm or Ø 10-14 mm
Hermetic IP68 cable joint is a reliable and versatile solution for safely connecting, branching, and extending electrical wires in environments that require high sealing performance.
Designed for use in both above-ground and underground installations, as well as in areas with increased humidity. It ensures durability and stable connections, even in extreme weather conditions.
The connector is used in:
- industrial installations,
- power systems,
- garden installations,
- outdoor LED lighting systems,
- water pumps,
- gate automation,
- CCTV systems,
- signaling,
- marine industry.
- IP68 protection rating provides complete water and dust resistance, even during prolonged submersion.
- Compatible with cables of various diameters.
- Housing made of PA66 polyamide and UV-resistant polycarbonate, resistant to impacts, fire, and chemicals.
- Wide operating temperature range – from -40°C to +105°C (up to +120°C for short periods).
- Operates at voltages up to 450 V AC and currents up to 32 A.

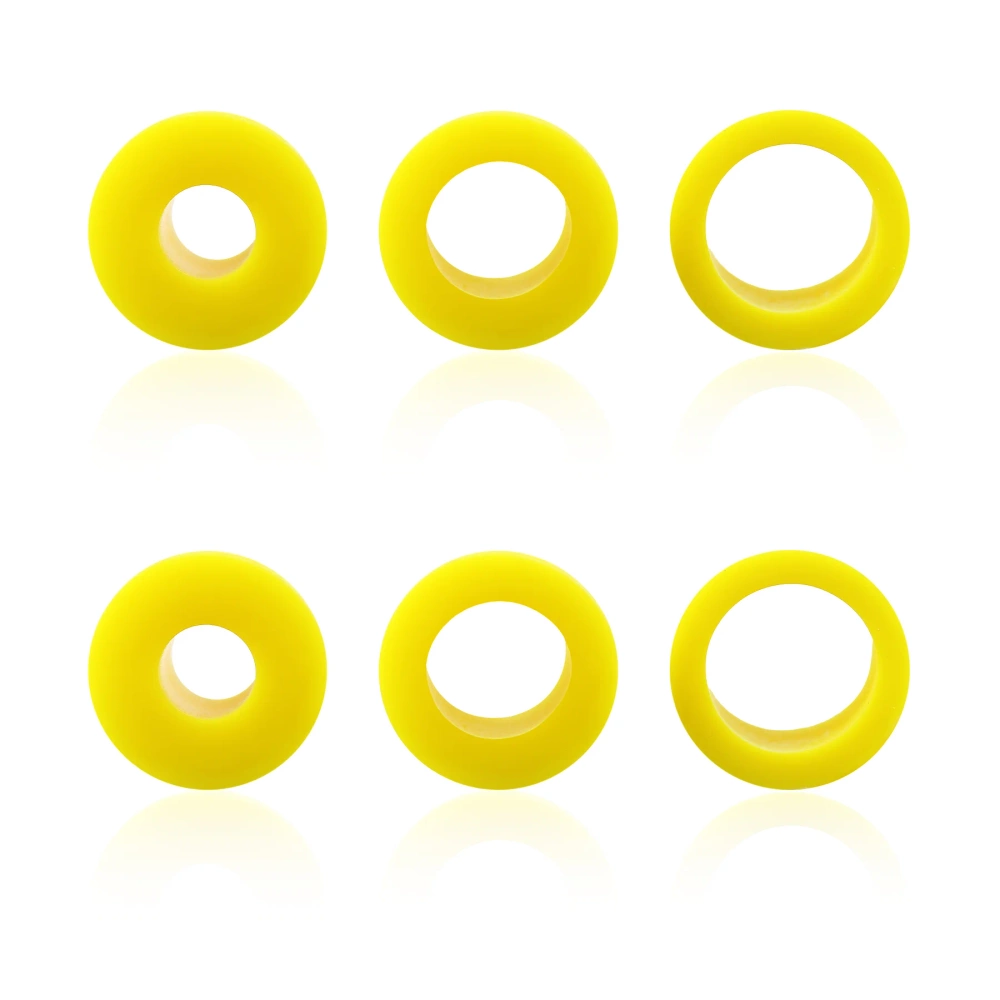

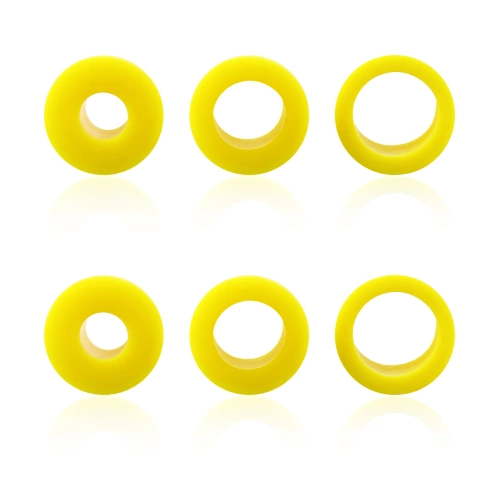

- Built-in silicone seals and glands provide high sealing and protect against corrosion and moisture condensation.

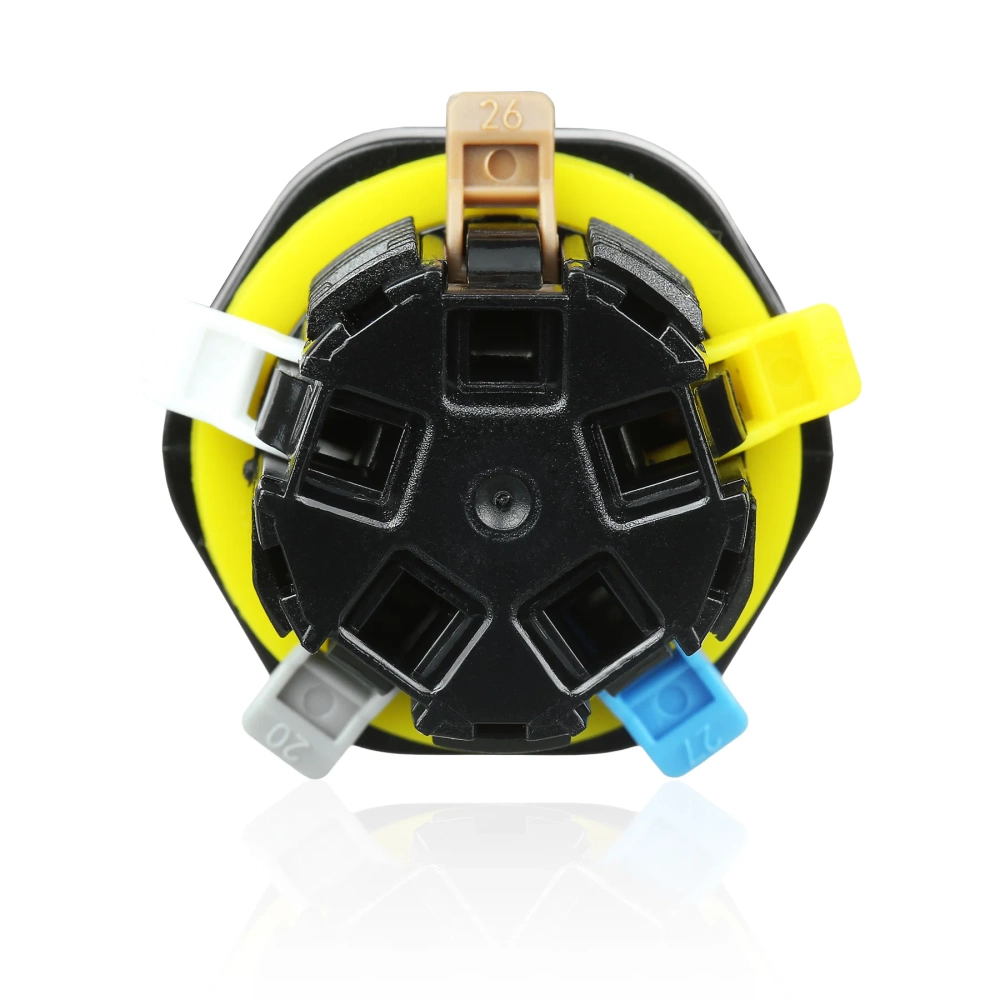

- Self-locking connection – no soldering required.
- Design allows for quick installation and removal without special tools.
Application
The joint is intended for connecting wires in:
- garden, facade, and street lighting,
- pumps, fountains, pools, and ponds,
- automation and monitoring systems,
- industrial machines and controllers,
- above-ground and underground connections in construction and power engineering.
Specification
- Model: M685-B
- Protection rating: IP68
- Temperature range: T105 -40°C ~ +105°C
- Rated voltage: up to 450 V AC
- Rated current: up to 32 A
- Material: PA66 / PC, UV- and fire-resistant
- Connection type: self-locking
- Cable diameter range: 4 - 8 mm, 8 - 12 mm, or 10 - 14 mm
- Housing color: black / yellow seals
- Dimensions: 11.7 x 3.1 cm
- Certificates: ENEC, CE, CB, UKCA, NSW, ETL, ROHS
