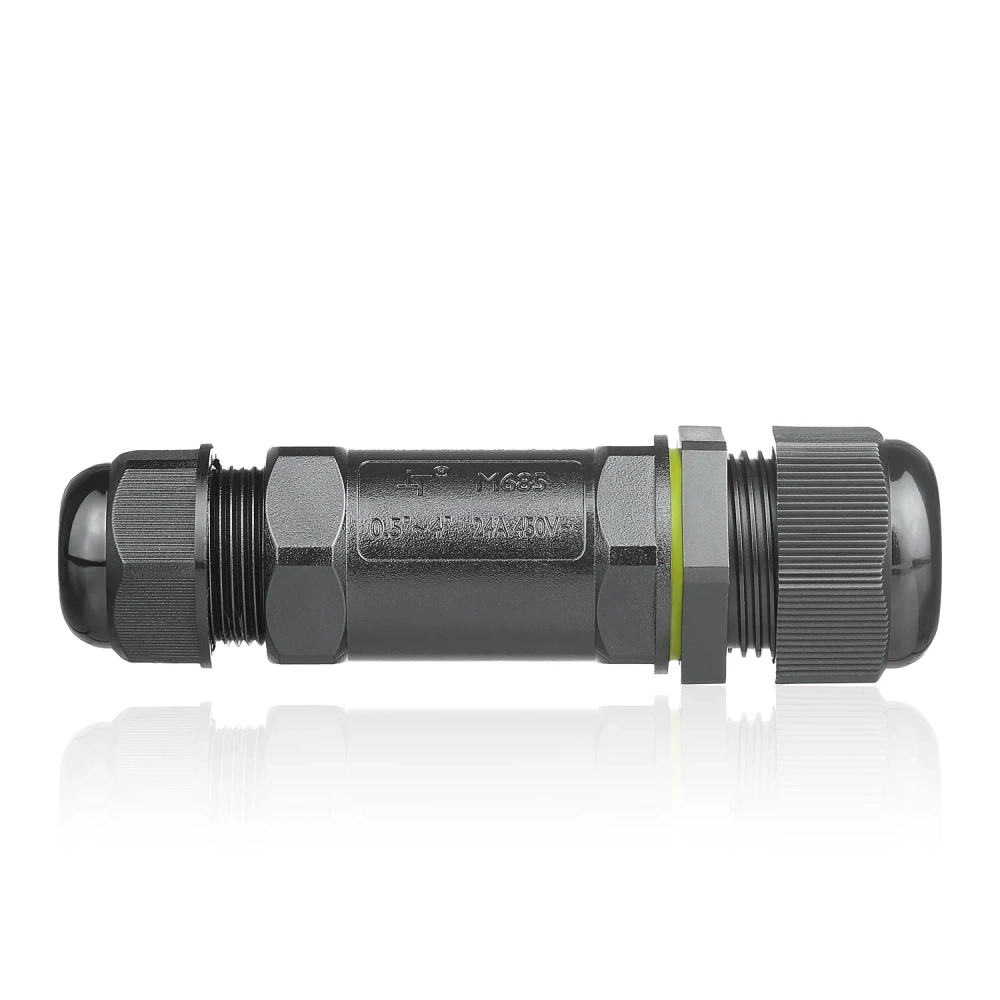

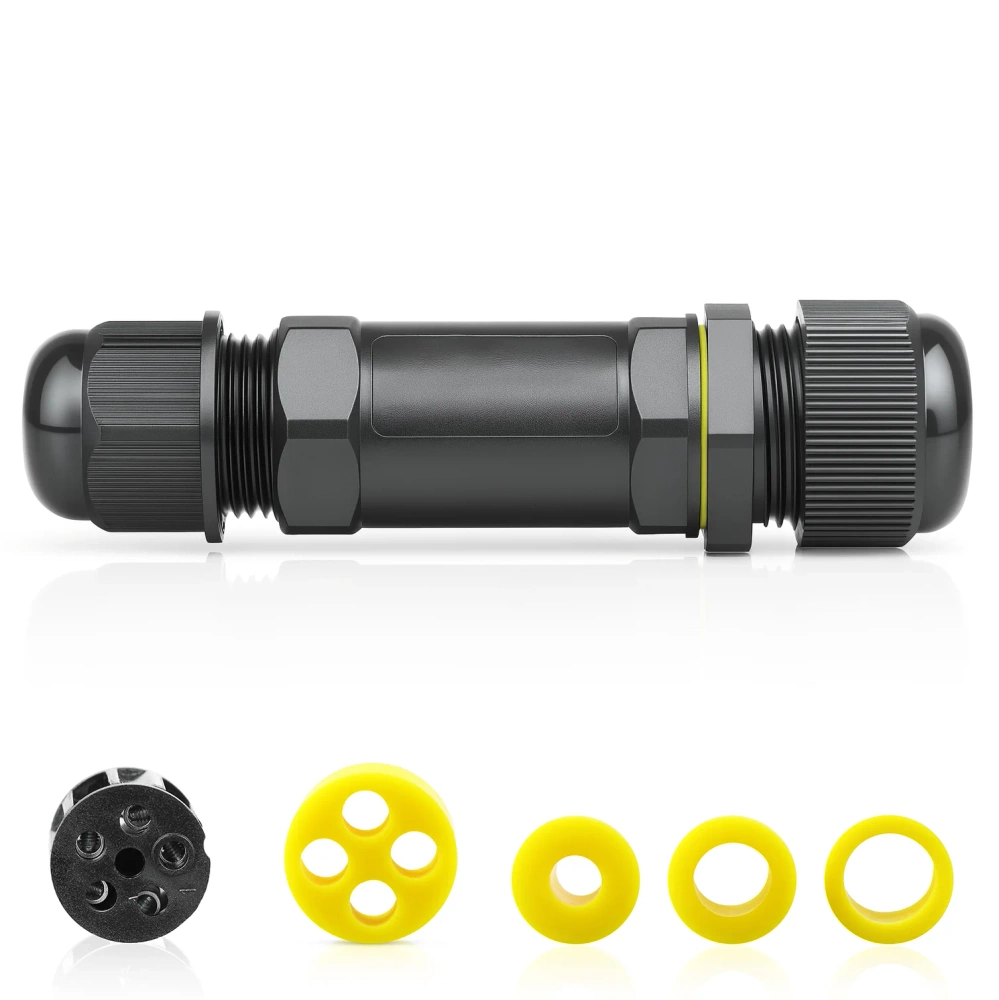

Waterproof cable junction box IP68 | 5-pin screw connector 1→4, 450 V 32 A for 4–14 mm and 3–7 mm cables | M685-1in4out

screw connection 5 pin • 0.5 mm² - 4 mm² • 32 A • 450 V • IP68 • Ø 4-8 mm or Ø 8-12 mm or Ø 10-14 mm

Hermetic cable joint IP68 is a reliable and versatile solution for safely connecting, branching and extending electrical wires where high tightness is required.

Designed for use in both above-ground and underground installations, as well as in environments with increased humidity. It provides durability and stability of the connection even in extreme weather conditions.

This connector is suitable for:

• industrial installations,
• energy systems,
• garden installations,
• outdoor LED lighting systems,
• water pumps,
• gate automation,
• CCTV systems,
• signaling,
• marine industry.

• IP68 protection rating ensures full water and dust resistance, even during prolonged submersion.
• Compatible with cables of various diameters.
• Housing made of PA66 polyamide and UV-resistant polycarbonate, impact, fire, and chemical resistant.
• Wide operating temperature range – from -40°C to +105°C (up to +120°C for short periods).
• Can operate at up to 450 V AC and 32 A.

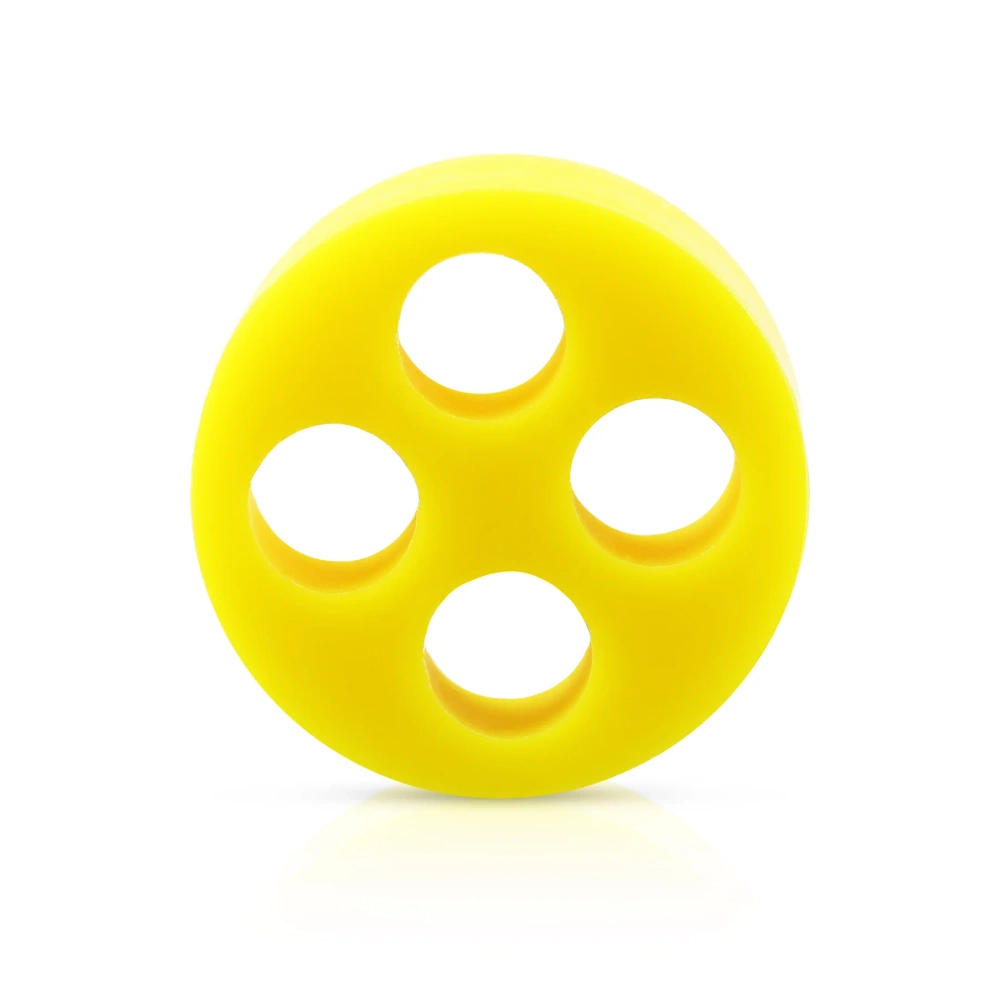

• Built-in silicone seals and glands provide maximum tightness and protect against corrosion and moisture condensation.

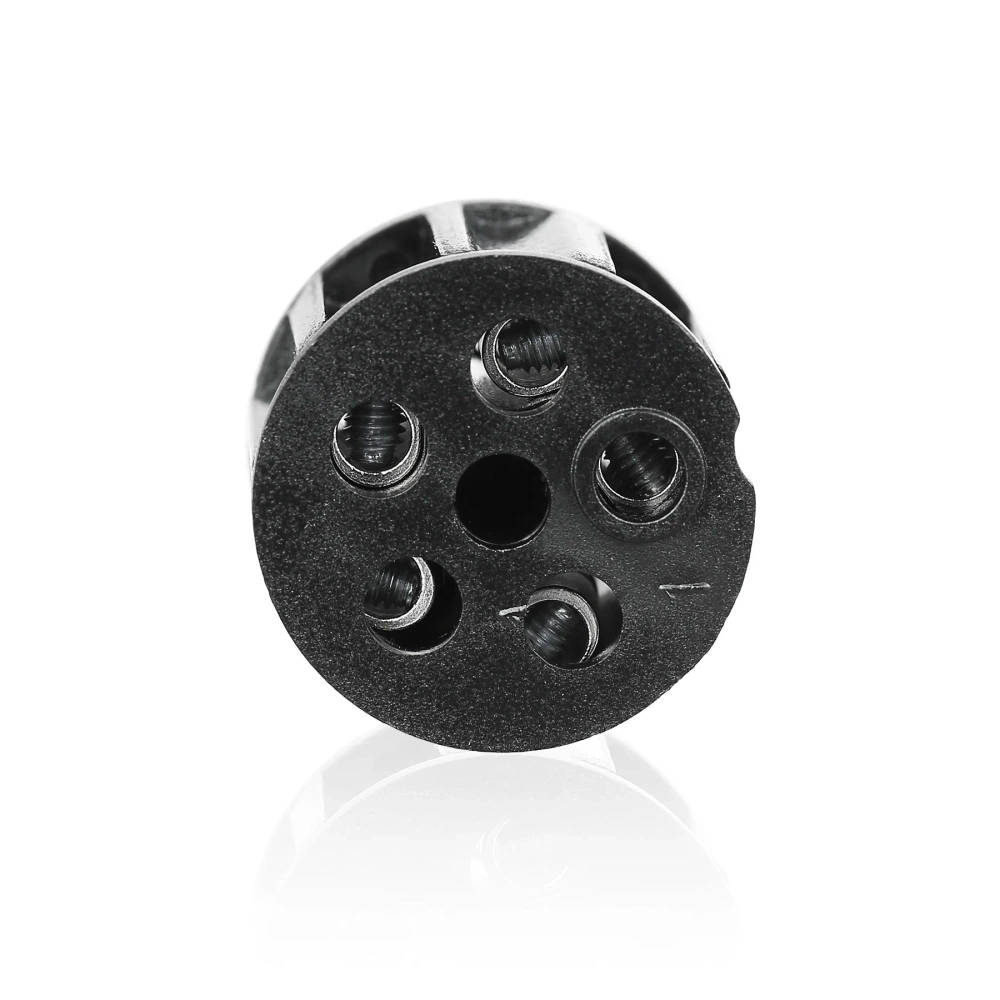

• Screw connection – no soldering required.
• Design makes quick installation and removal easy, without specialized tools.

Application

The joint is intended for connecting wires in installations such as:

• garden, facade, and street lighting,
• pumps, fountains, swimming pools, and ponds,
• automation and monitoring systems,
• industrial machines and controllers,
• above-ground and underground connections in construction and energy sectors.

Specification

• Model: M685-1in4out
• Protection rating: IP68
• Temperature range: T105 -40°C ~ +105°C
• Rated voltage: up to 450 V AC
• Rated current: up to 32 A
• Material: PA66 / PC, UV and fire resistant
• Connection type: screw

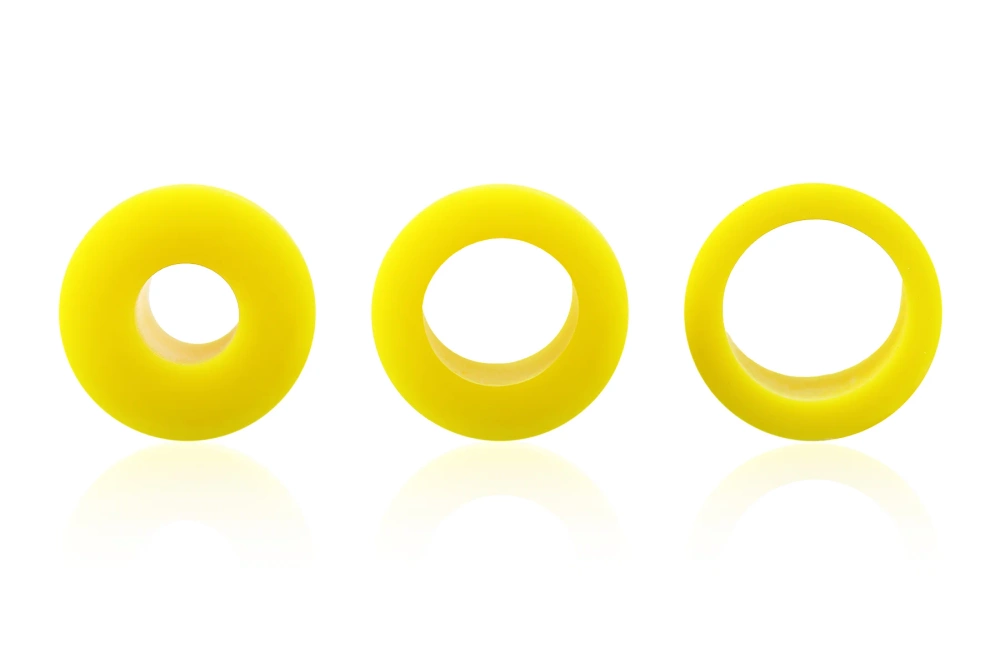

• Cable diameter range: input: 4 - 8 mm, 8 - 12 mm or 10 - 14 mm; output: 4x 3 - 7 mm
• Housing color: black / yellow seals
• Dimensions: 11.7 x 3.7 cm
• Certificates: ENEC, CE, CB, UKCA, NSW, ETL, ROHS
