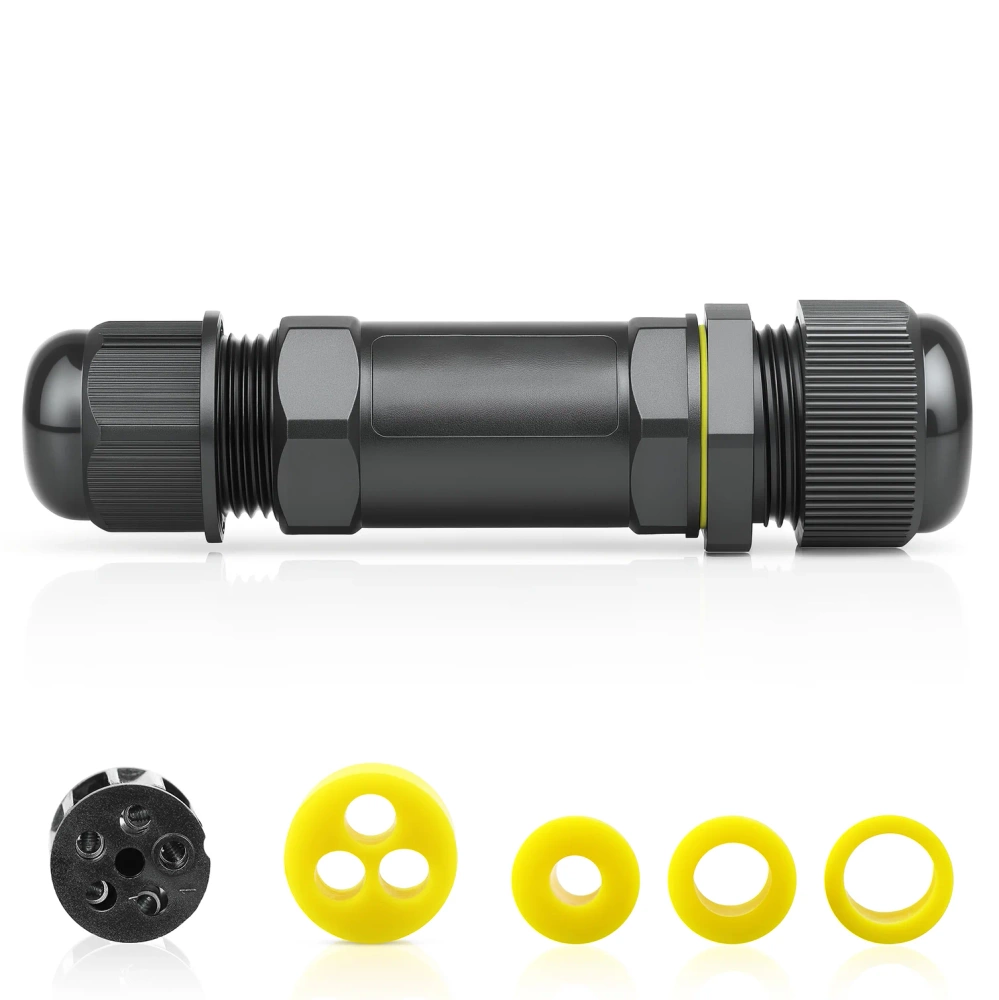

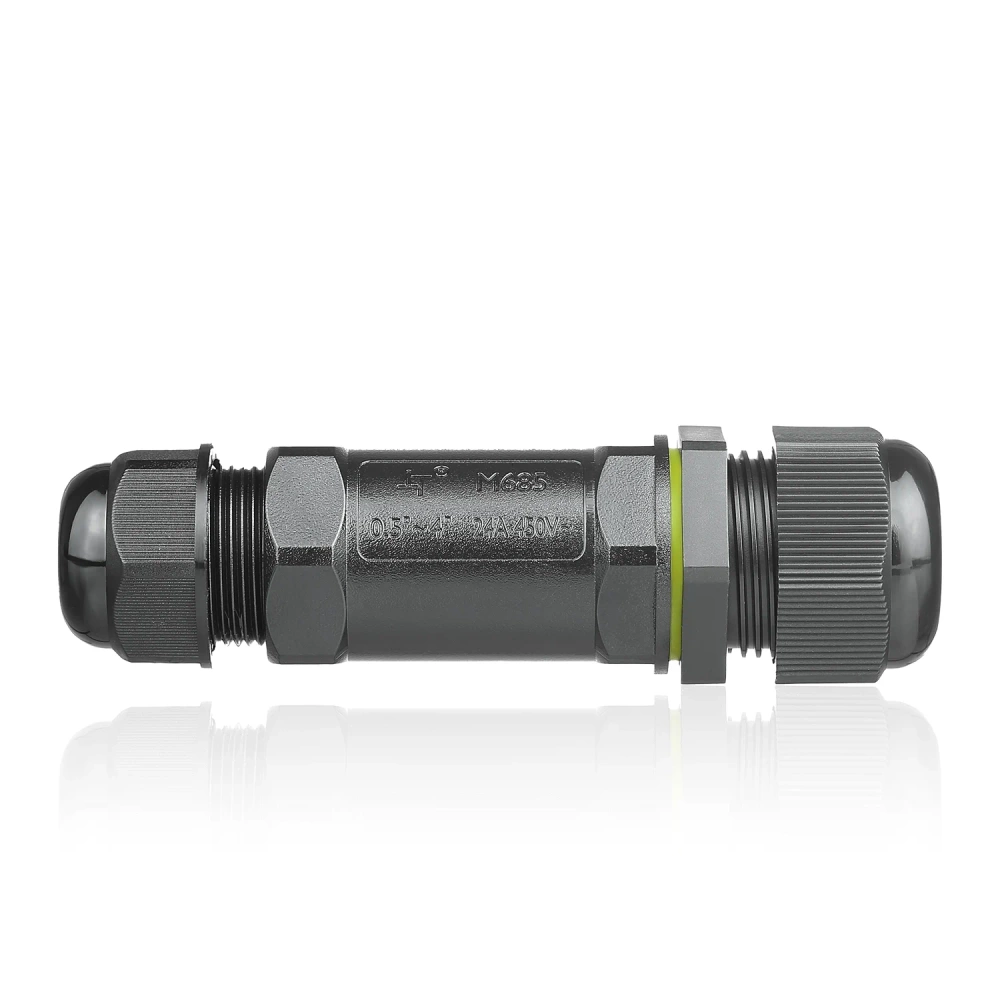

Waterproof cable junction box IP68 | 5-pin screw connector 450 V 32 A for cables 4–14 mm / outputs 3–7 mm | M685-1in3out
- - Fully waterproof and dustproof for outdoor and underground use
- - Quick installation without special tools or soldering
- - Durable, UV and impact resistant housing
- - Suitable for lighting, pumps, automation
- - Protects connections from moisture and

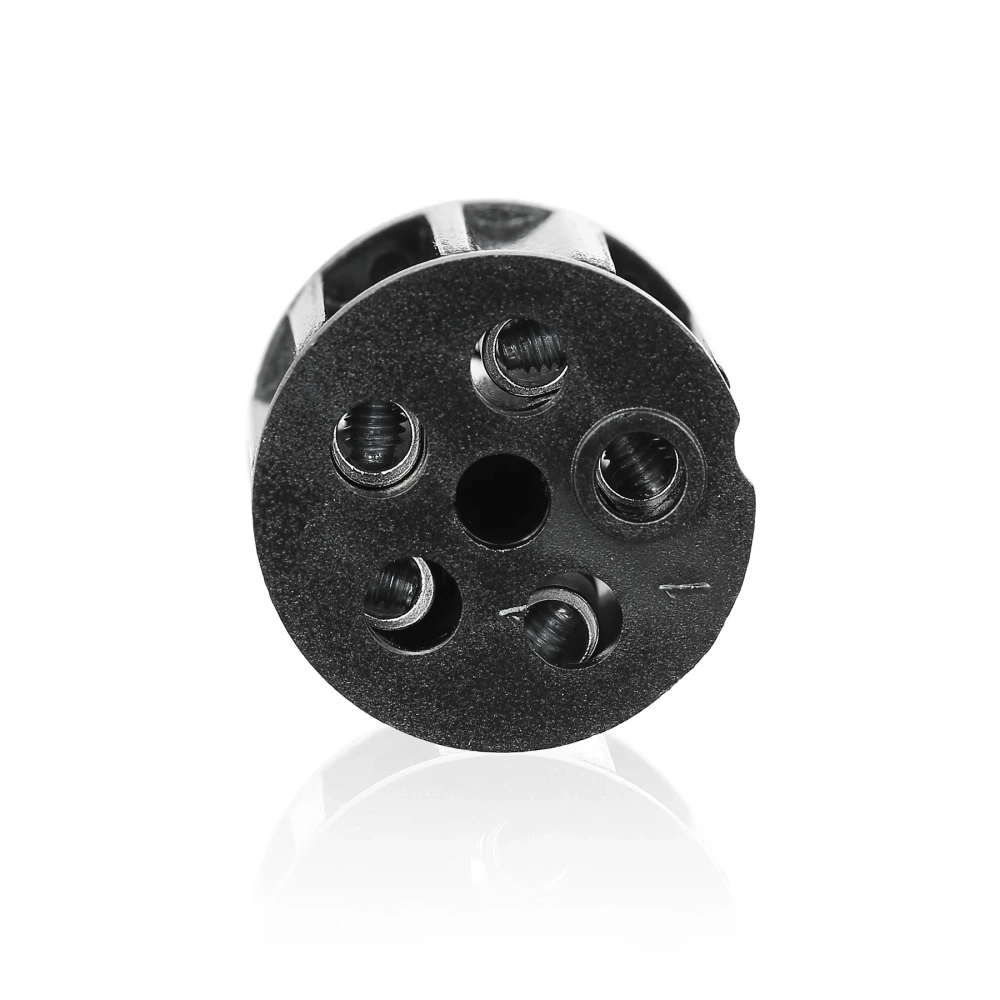

screw-type connector 5 pin • 0.5 mm² - 4 mm² • 32 A • 450 V • IP68 • Ø 4-8 mm or Ø 8-12 mm or Ø 10-14 mm
IP68 hermetic cable joint is a reliable and versatile solution for safely connecting, branching, and extending electrical wires in environments that require high sealing performance.
Designed for use in both above-ground and underground installations, as well as in high-humidity environments. Ensures durable and stable connections, even in extreme weather conditions.
This connector is suitable for:
- industrial installations
- power systems
- garden applications
- outdoor LED lighting systems
- water pumps
- gate automation
- CCTV systems
- signaling
- marine industry
- IP68 protection rating for complete water and dust resistance, even during prolonged submersion
- Compatible with cables of various diameters
- Housing made from PA66 polyamide and polycarbonate, UV-resistant, impact-resistant, fire-resistant, and resistant to chemicals
- Wide operating temperature range – from -40°C to +105°C (temporarily up to +120°C)
- Suitable for operation at up to 450 V AC and 32 A

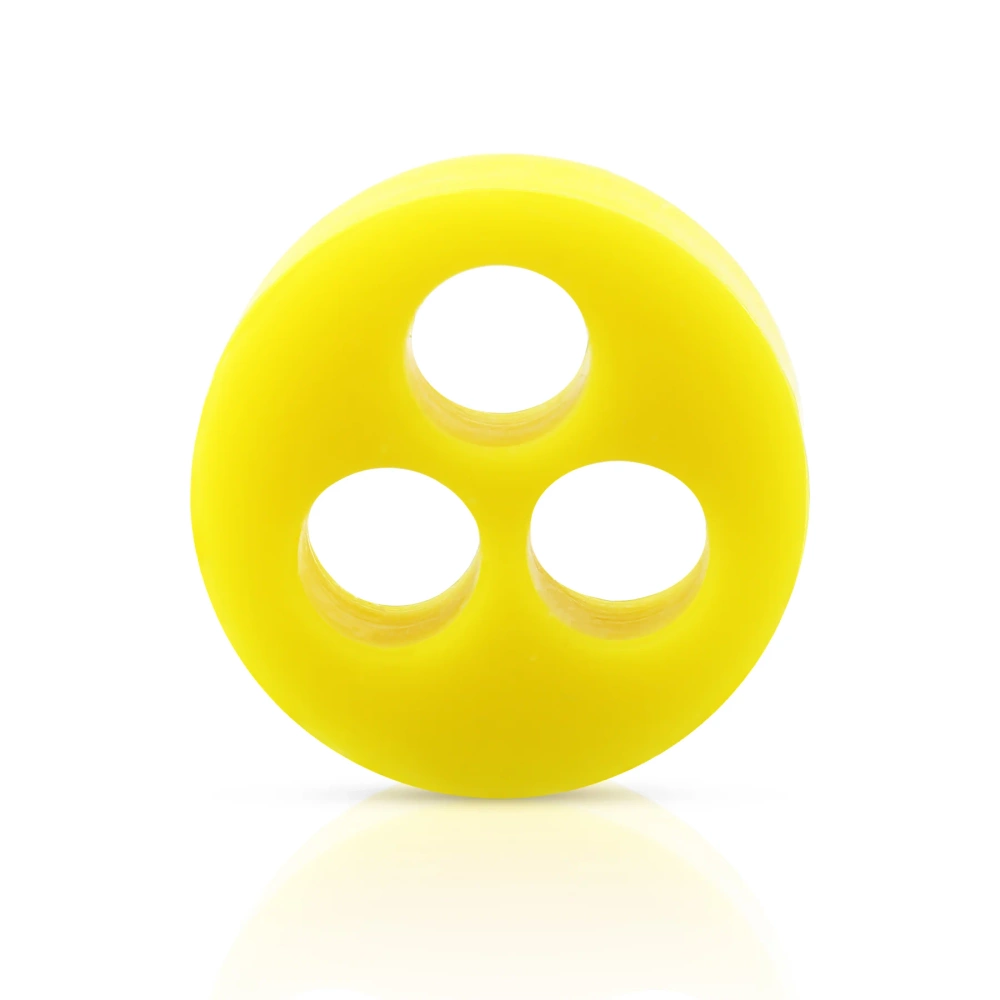

- Integrated silicone seals and glands for maximum tightness and protection against corrosion and moisture condensation
- Screw connection – no soldering required
- Design allows for quick installation and removal without the need for specialized tools
Applications
This joint is designed for connecting wires in:
- garden, façade, and street lighting
- pumps, fountains, pools, and garden ponds
- automation and monitoring systems
- industrial machinery and controllers
- above-ground and underground connections in construction and power engineering
Specification
- Model: M685-1in3out
- Protection rating: IP68
- Temperature range: T105 -40°C ~ +105°C
- Rated voltage: up to 450 V AC
- Rated current: up to 32 A
- Material: PA66 / PC, UV and fire resistant
- Connection type: screw-type

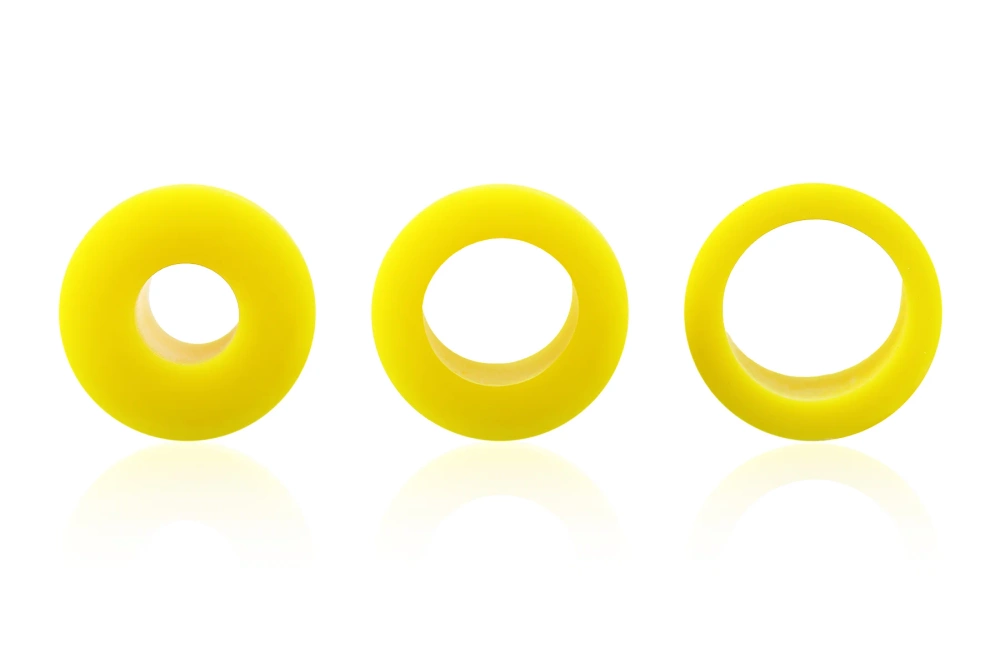

- Cable diameter range: input: 4 - 8 mm, 8 - 12 mm, or 10 - 14 mm; output: 3x 3 - 7 mm
- Housing color: black / yellow seals
- Dimensions: 11.7 x 3.7 cm
- Certificates: ENEC, CE, CB, UKCA, NSW, ETL, ROHS
