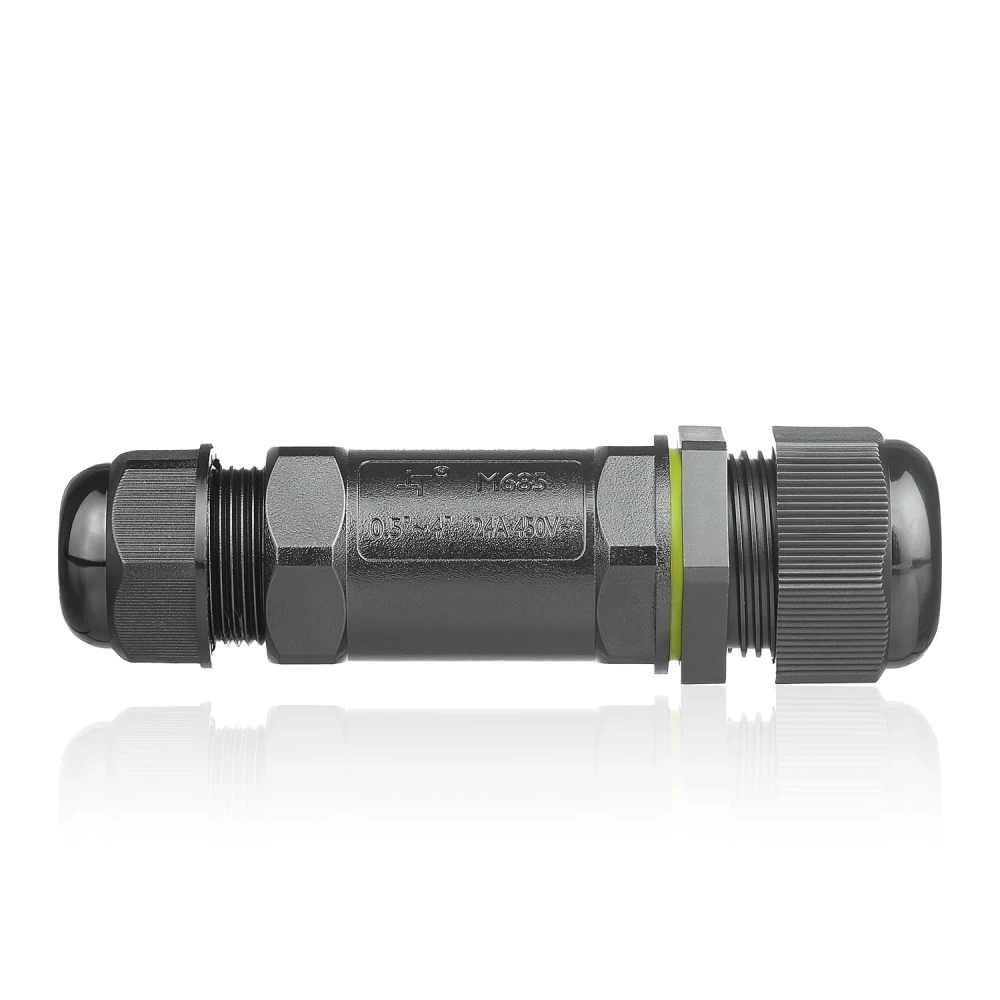

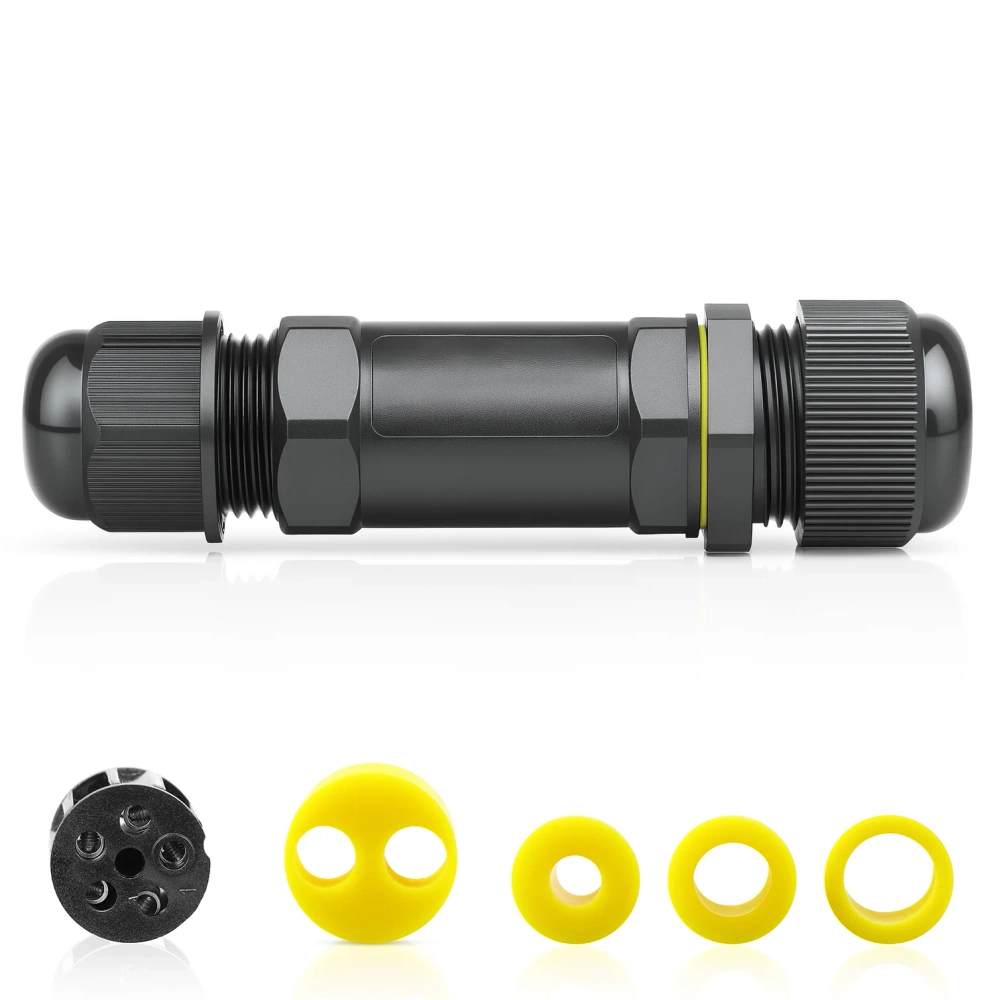

Waterproof cable junction box IP68 | 5-pin screw connector 450 V 32 A for cables 4–14 mm / outputs 4–8 mm | M685-1in2out
- - Waterproof and dustproof for reliable outdoor and underground use
- - Quick installation without special tools or soldering
- - Durable housing resists UV, impacts, fire, and chemicals
- - Compatible with various cable diameters
- - Ideal for lighting,
Sealed Cable Joint – Professional Installation Connector for Electrical Connections
screw terminal 5 pin • 0.5 mm² - 4 mm² • 32 A • 450 V • IP68 • Ø 4-8 mm or Ø 8-12 mm or Ø 10-14 mm
IP68 sealed cable joint is a reliable and versatile solution for safely connecting, branching, and extending electrical wires in demanding conditions requiring high-level sealing.
Designed for use in both above-ground and underground installations, as well as in high-humidity environments. It ensures durable and stable connections even in extreme weather conditions.
The connector is suitable for:
- industrial installations,
- power systems,
- garden installations,
- outdoor LED lighting systems,
- water pumps,
- gate automation,
- CCTV systems,
- signaling,
- marine industry.
- IP68 protection rating ensures complete waterproof and dustproof performance, even during prolonged submersion.
- Compatible with cables of various diameters.
- Housing made of PA66 polyamide and polycarbonate, resistant to UV, impact, fire, and chemicals.
- Wide operating temperature range – from -40°C to +105°C (up to +120°C temporarily).
- Suitable for voltages up to 450 V AC and currents up to 32 A.
- Built-in silicone seals and glands offer maximum tightness and protection against corrosion and moisture condensation.

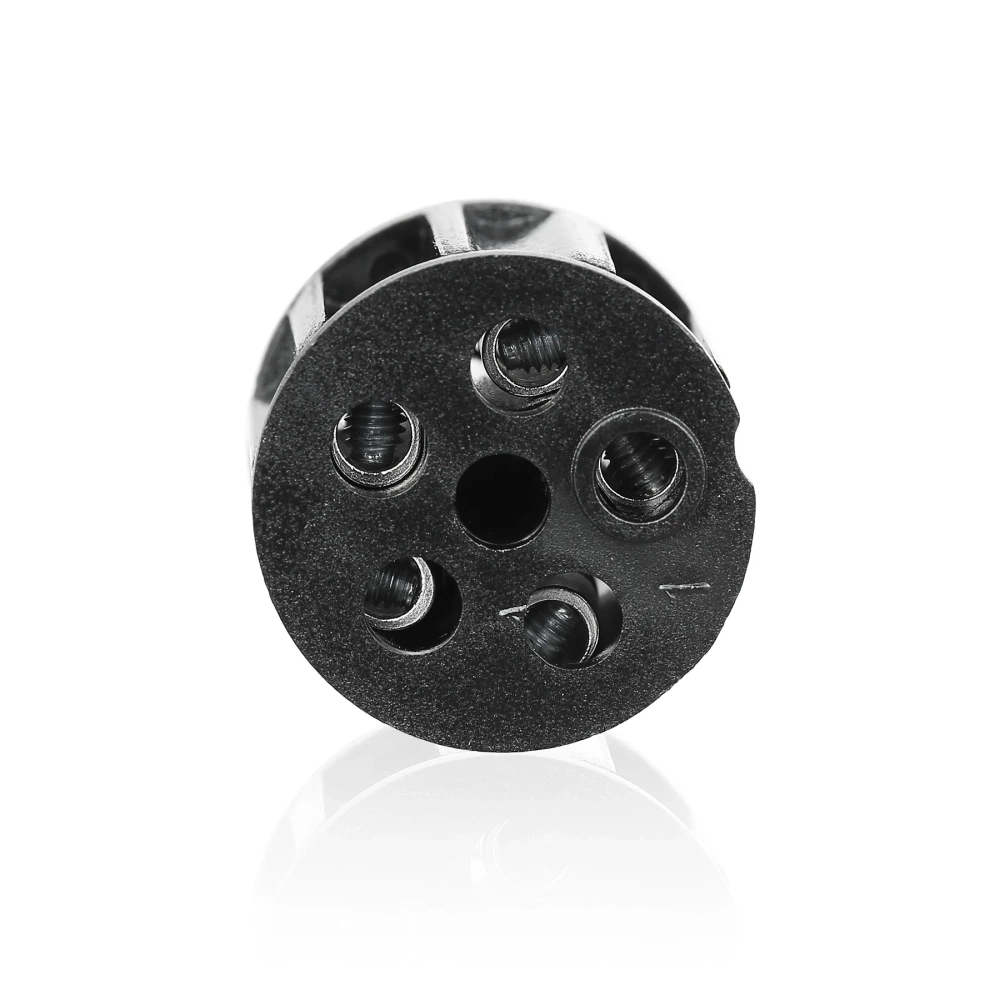

- Screw terminal connection – no soldering required.
- The design allows for quick installation and removal without special tools.
Applications
The joint is intended for connecting wires in installations such as:
- garden, façade, and street lighting,
- pumps, fountains, pools, and ponds,
- automation and monitoring systems,
- industrial machines and controllers,
- above-ground and underground connections in construction and power engineering.
Specification
- Model: M685-1in2out
- Protection rating: IP68
- Temperature range: T105 -40°C ~ +105°C
- Rated voltage: up to 450 V AC
- Rated current: up to 32 A
- Material: PA66 / PC, UV and fire resistant
- Connection type: screw terminal

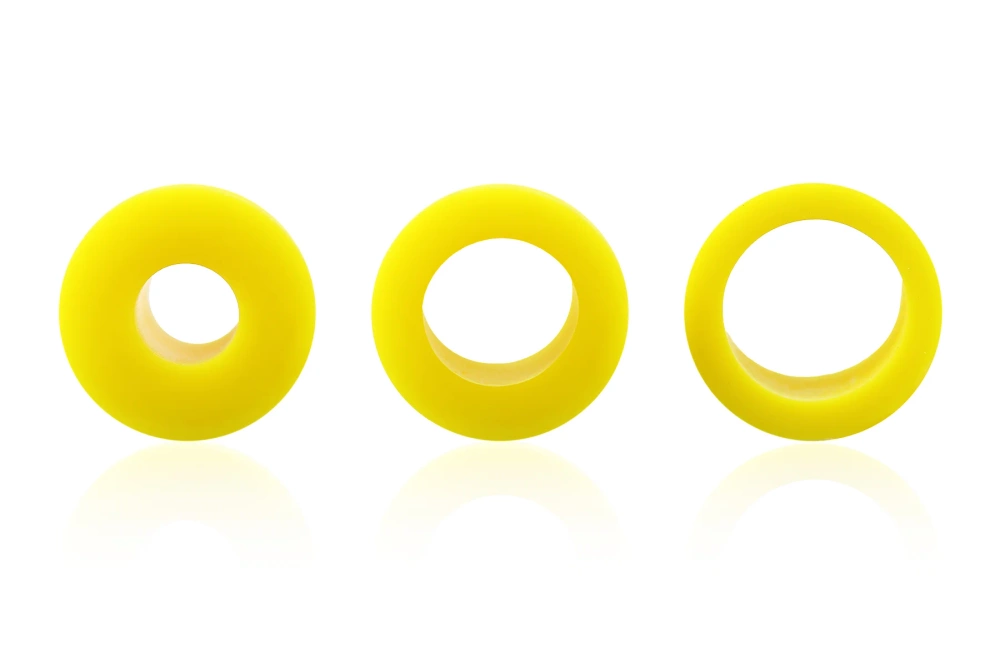

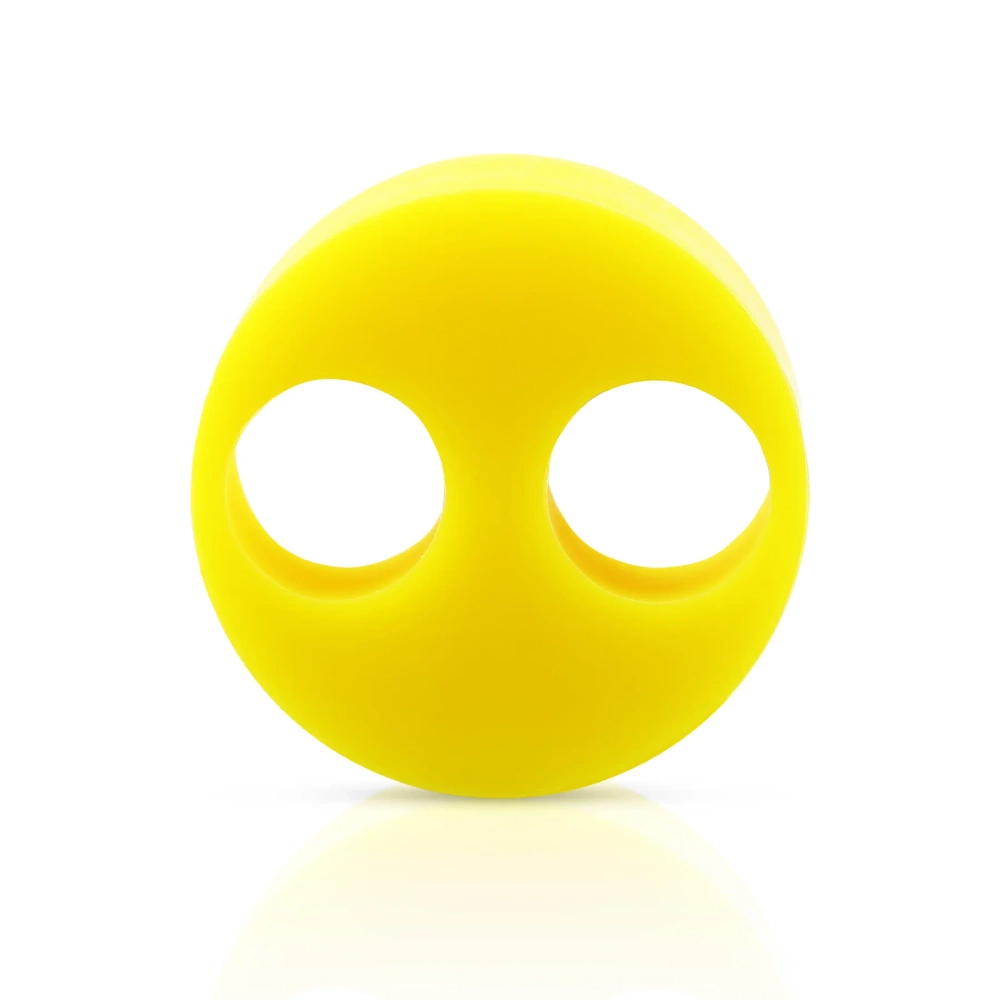

- Cable diameter range: input: 4 - 8 mm, 8 - 12 mm, or 10 - 14 mm; output: 2x 4 - 8 mm
- Housing color: black / yellow seals
- Dimensions: 11.7 x 3.7 cm
- Certificates: ENEC, CE, CB, UKCA, NSW, ETL, ROHS
