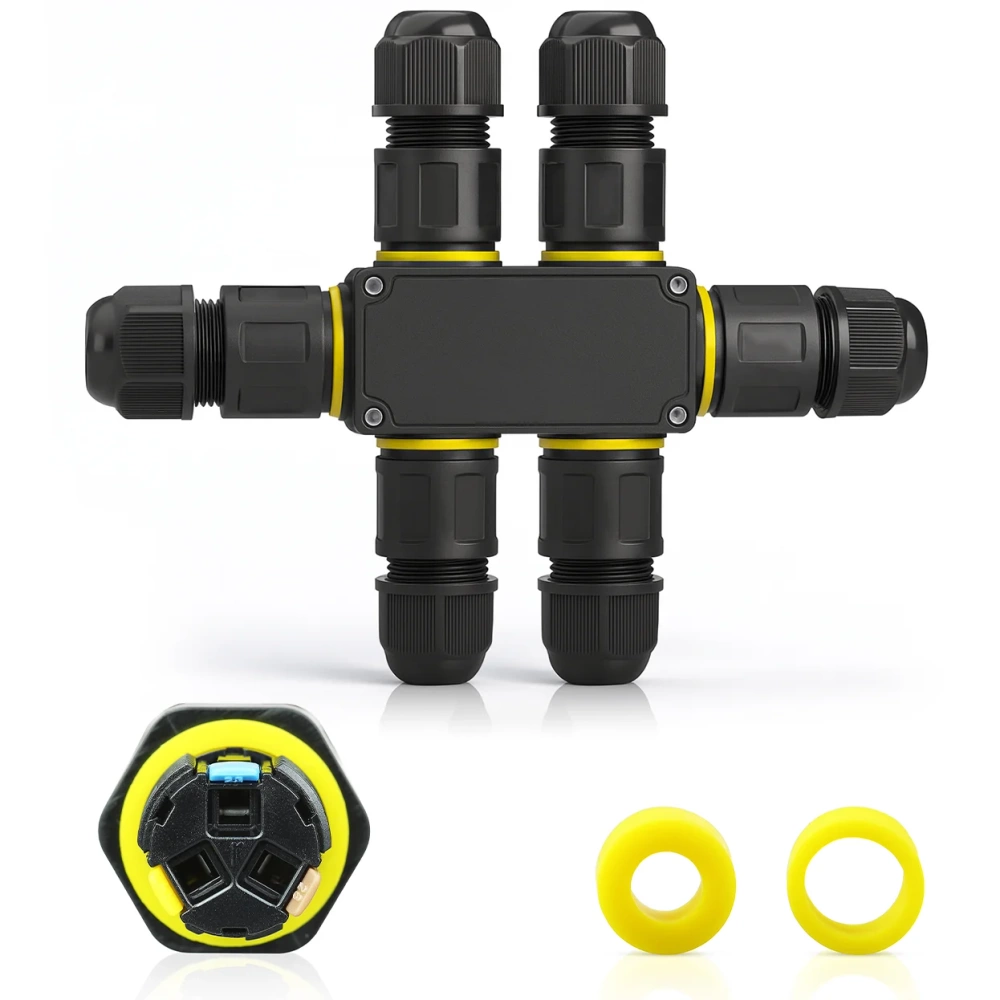

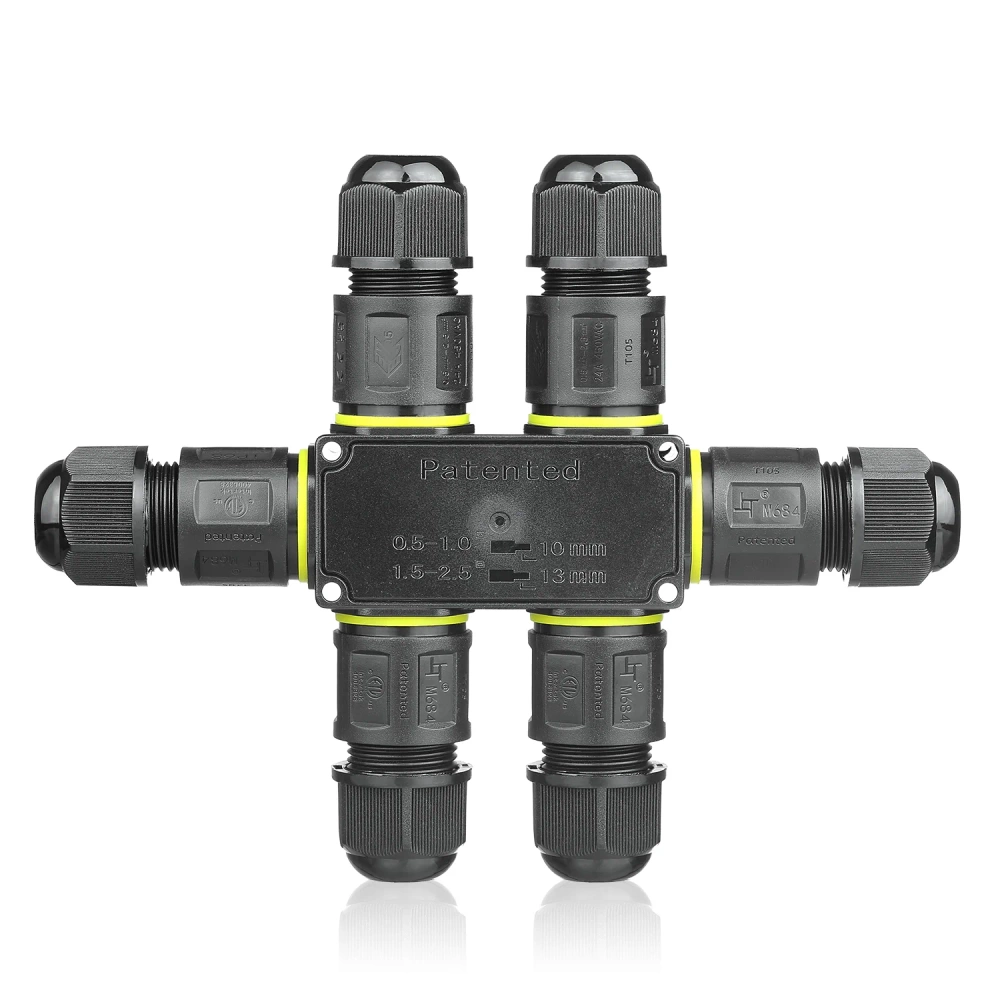

Waterproof cable junction box IP68 | 3-pin self-locking connector 450 V 24 A for 4–11 mm cables | M684-S
- - Fully waterproof and dustproof for harsh environments
- - Quick tool-free connection, no soldering required
- - Durable, UV and impact resistant housing
- - Protects against corrosion and condensation
- - Suitable for outdoor, underground, and industria
self-locking connector 3 pin • 0.5 mm² - 2.5 mm² • 24 A • 450 V • IP68 • Ø 4-8 mm or Ø 6-11 mm
Hermetic cable joint IP68 is a reliable and versatile solution for safely connecting, branching, and extending electrical wires in environments that require high tightness.
Designed for use both above and below ground, as well as in areas with increased humidity. Ensures durability and stable connection even in extreme weather conditions.
The connector is suitable for use in:
- industrial installations,
- power systems,
- garden installations,
- outdoor LED lighting systems,
- water pumps,
- gate automation,
- CCTV systems,
- signal systems,
- marine industry.
- IP68 protection rating guarantees full water and dust resistance, even during prolonged immersion.
- Compatible with cables of various diameters.
- Housing made of PA66 polyamide and polycarbonate, resistant to UV, impact, fire, and chemicals.
- Wide operating temperature range – from -40°C to +105°C (up to +120°C for short periods).
- Suitable for use with voltages up to 450 V AC and currents up to 24 A.

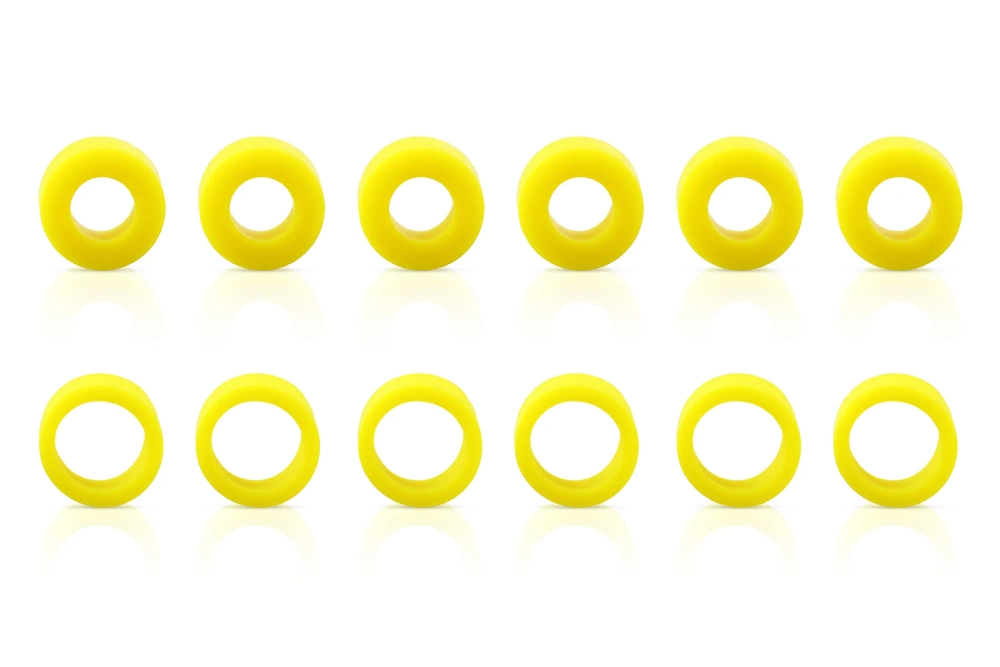

- Integrated silicone seals and glands provide maximum tightness and protection against corrosion and moisture condensation.
- Self-locking connection – no soldering required.

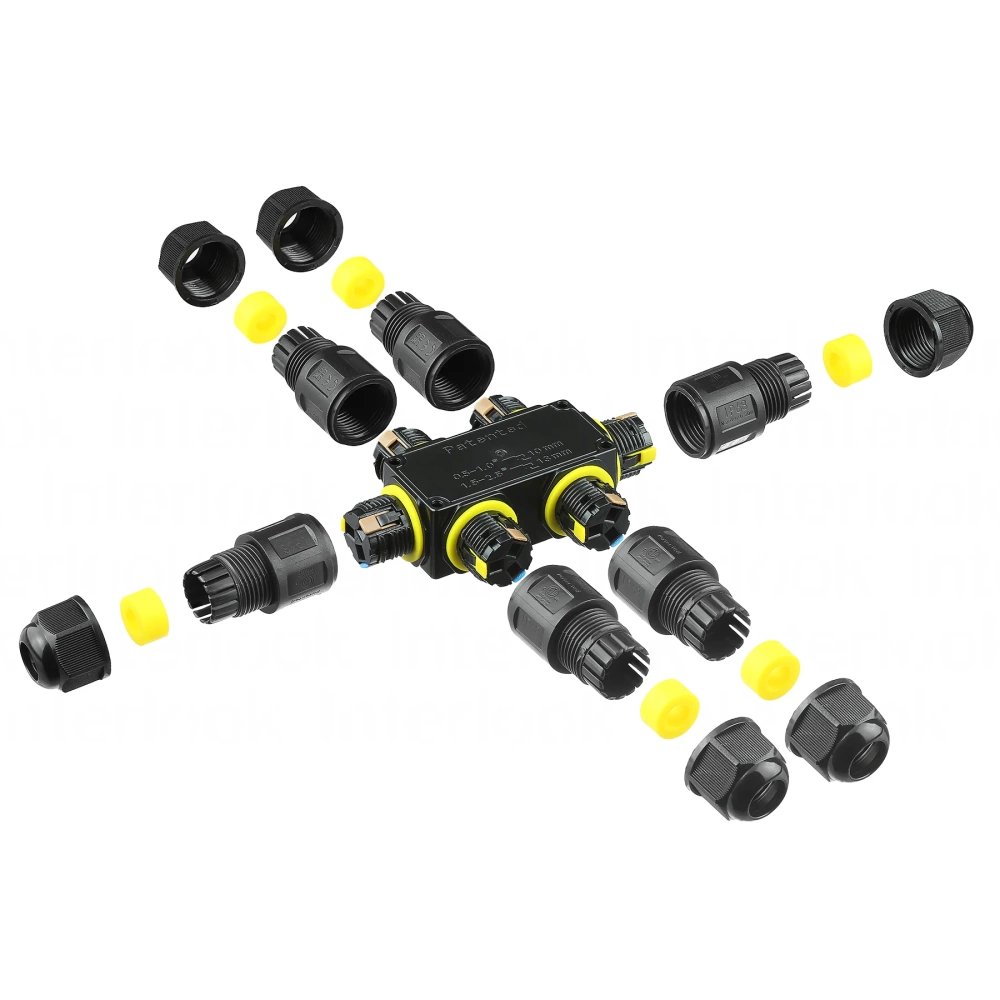

- Design allows for quick installation and removal without special tools.
Application
The joint is intended for connecting wires in:
- garden, facade, and street lighting,
- pumps, fountains, pools, and ponds,
- automation and monitoring systems,
- industrial machines and controllers,
- above-ground and underground connections in construction and power systems.
Specification
- Model: M684-S
- Protection rating: IP68
- Temperature range: T105 -40°C ~ +105°C
- Rated voltage: up to 450 V AC
- Rated current: up to 24 A
- Material: PA66 / PC, UV and fire resistant
- Connection type: self-locking
- Cable diameter range: 4 - 8 mm or 6 - 11 mm
- Housing color: black / yellow seals
- Dimensions: 16 x 13 x 2.6 cm
- Certificates: ENEC, CE, CB, UKCA, NSW, ETL, ROHS
