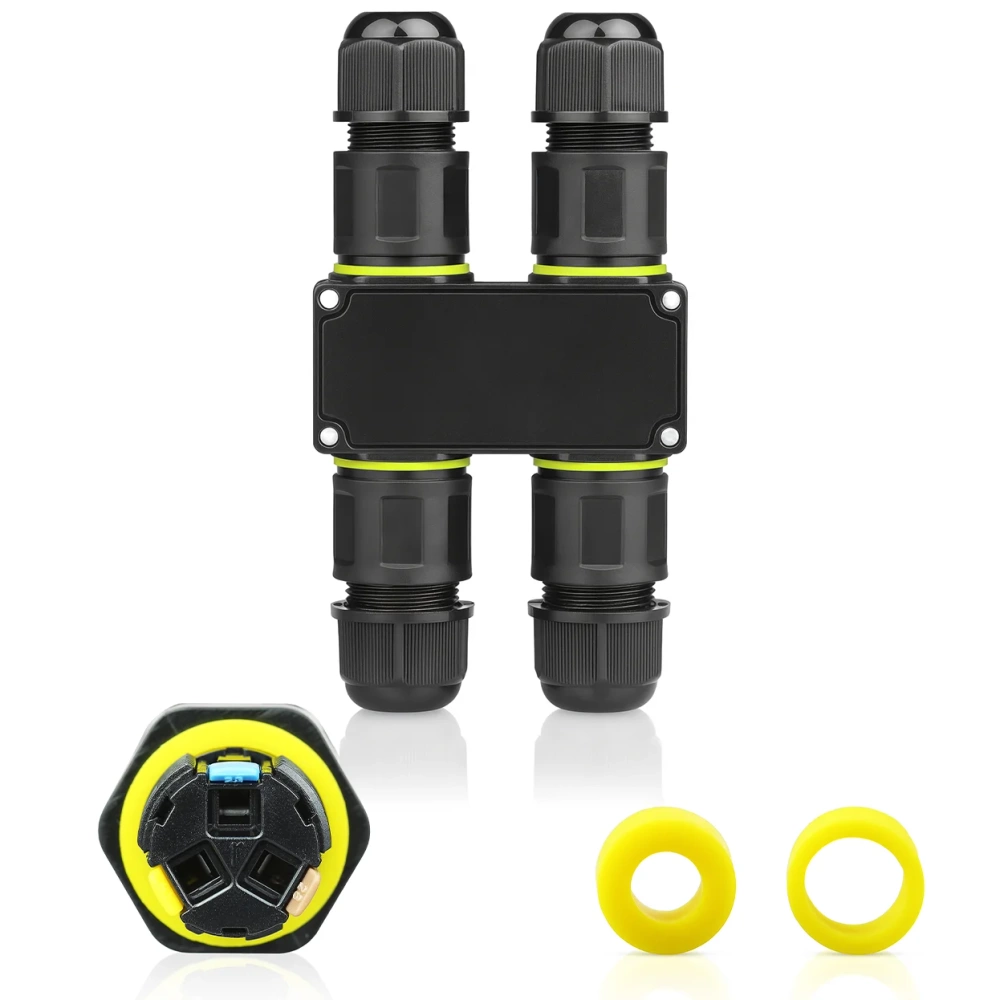

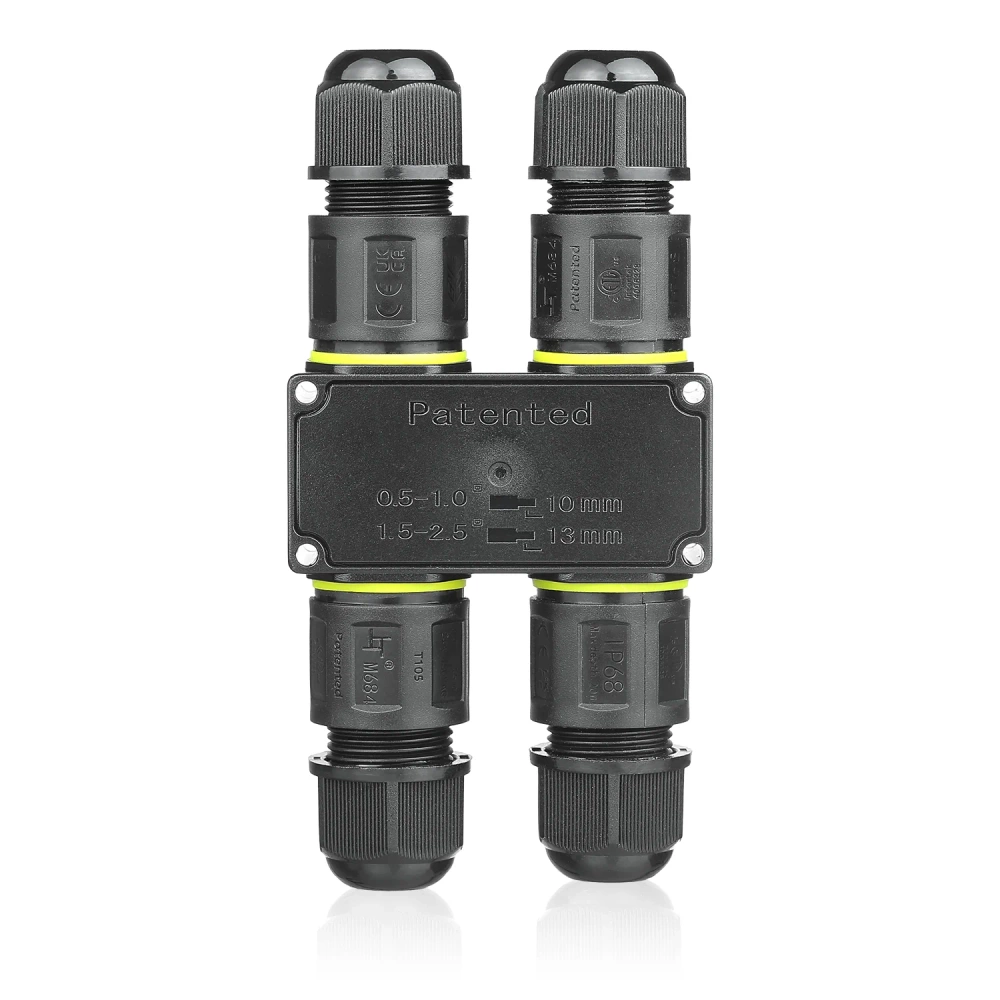

Waterproof Cable Junction Box IP68 | 3-pin, 450 V, 24 A, for 4–11 mm cables, self-locking connector | M684-H
- - Fully waterproof and dustproof for harsh environments
- - Quick, tool-free connection with self-locking design
- - Durable, UV and impact resistant housing
- - Suitable for garden, lighting, automation, CCTV
- - Reliable performance in wet or undergroun
H Shape • 3-Pin Self-Clamping Connector • 0.5 mm² - 2.5 mm² • 24 A • 450 V • IP68 • Ø 4-8 mm or Ø 6-11 mm
Hermetic Cable Joint IP68 is a reliable and versatile solution for safe connecting, branching, and extending electrical wires in environments where high sealing is required.
Designed for use in both above-ground and underground installations, as well as in high-humidity environments. It ensures durable and stable connections even in extreme weather conditions.
This connector is suitable for:
- industrial installations,
- power systems,
- garden installations,
- outdoor LED lighting systems,
- water pumps,
- gate automation,
- CCTV systems,
- signaling,
- marine industry.
- IP68 protection rating guarantees complete water and dust resistance, even during prolonged immersion.
- Compatible with cables of various diameters.
- Enclosure made of PA66 polyamide and polycarbonate, resistant to UV, impact, fire, and chemicals.
- Wide operating temperature range – from -40°C to +105°C (temporarily up to +120°C).
- Operates at up to 450 V AC and 24 A.

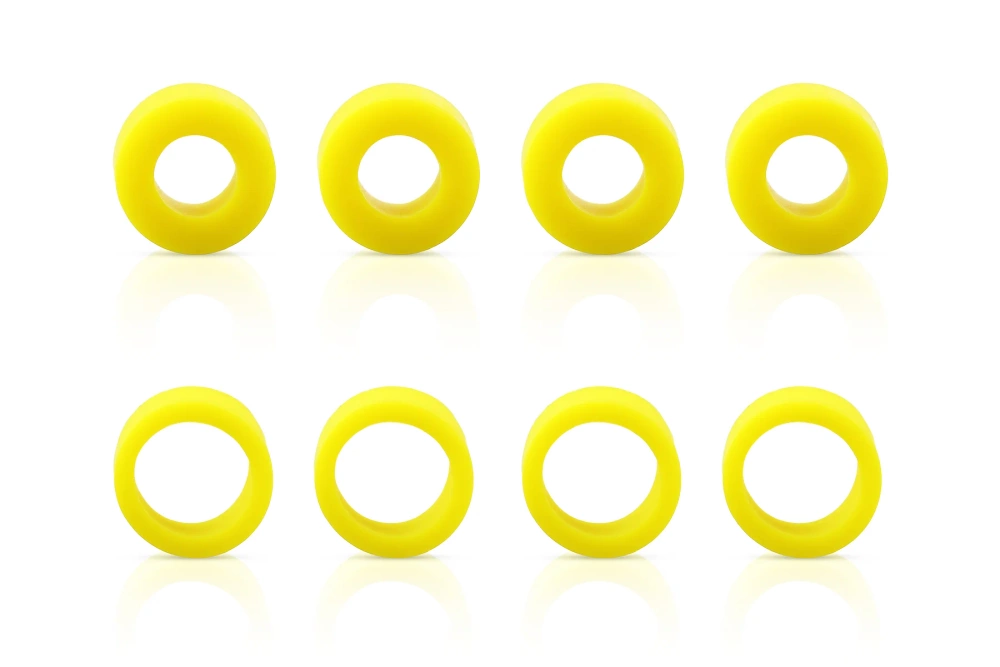

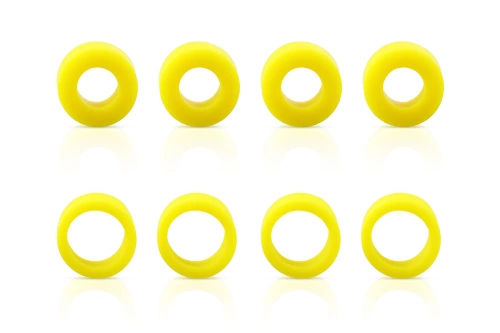

- Built-in silicone seals and glands provide maximum tightness and protection against corrosion and moisture condensation.

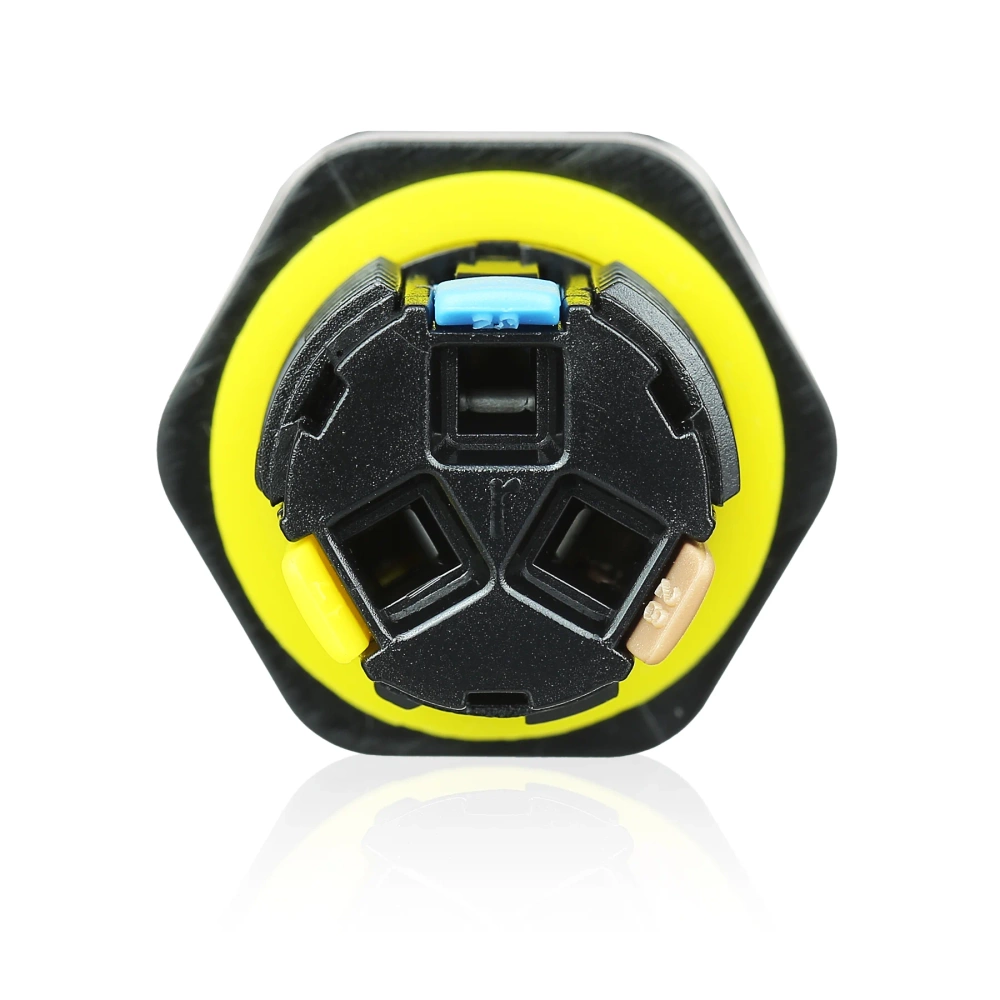

- Self-clamping connection – no soldering required.

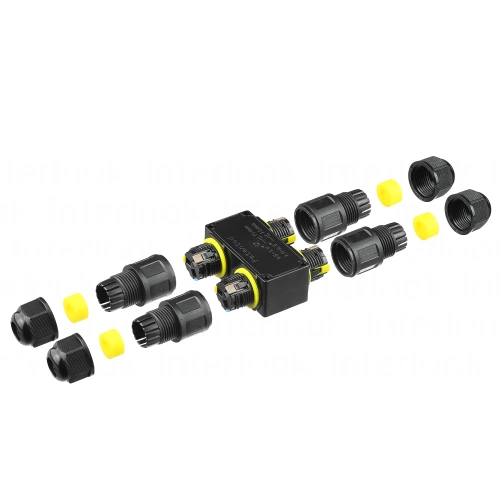

- Design allows for quick installation and removal without special tools.
Application
This joint is intended for connecting wires in installations such as:
- garden, facade, and street lighting,
- pumps, fountains, pools, and ponds,
- automation and monitoring systems,
- industrial machines and controllers,
- above-ground and underground connections in construction and power networks.
Specification
- Model: M684-H
- Protection rating: IP68
- Temperature range: T105 -40°C ~ +105°C
- Rated voltage: up to 450 V AC
- Rated current: up to 24 A
- Material: PA66 / PC, UV and fire resistant
- Connection type: self-clamping
- Cable diameter range: 4 - 8 mm or 6 - 11 mm
- Enclosure color: black / yellow seals
- Dimensions: 12.7 x 6.5 x 2.6 cm
- Certificates: ENEC, CE, CB, UKCA, NSW, ETL, ROHS
