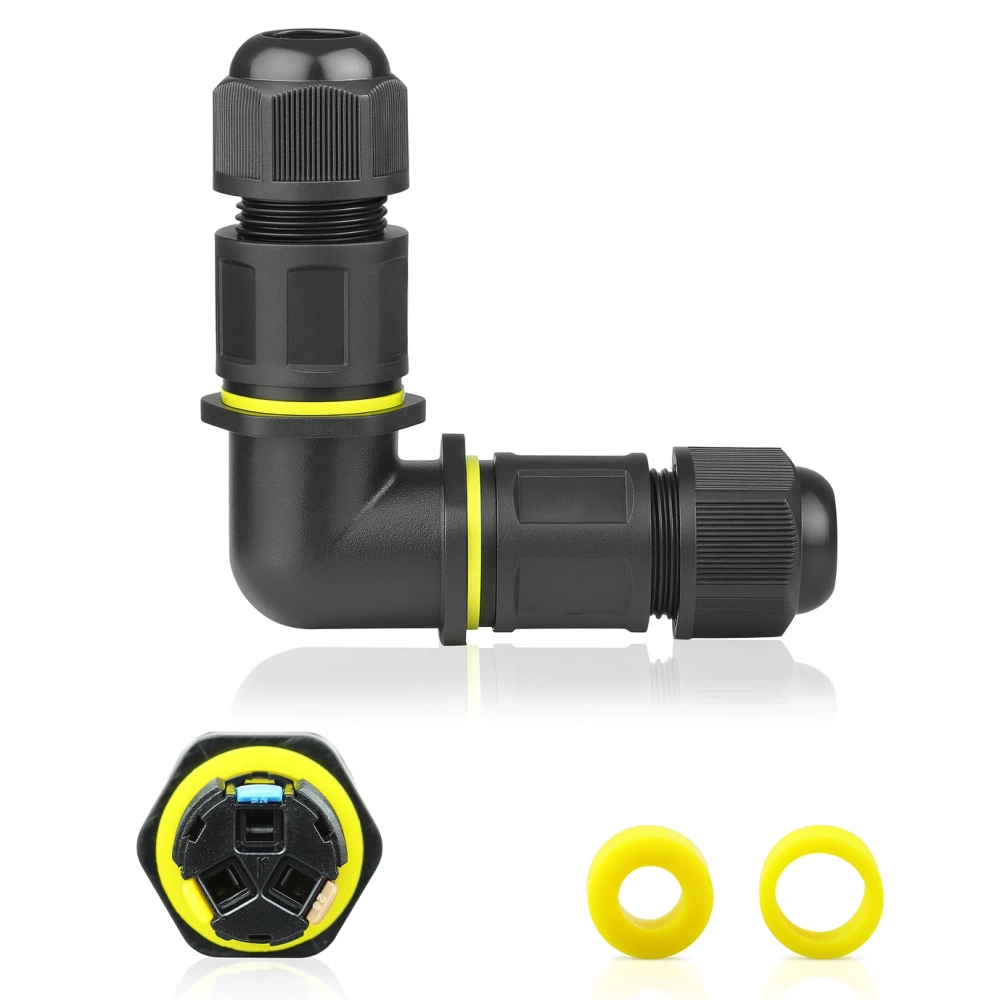

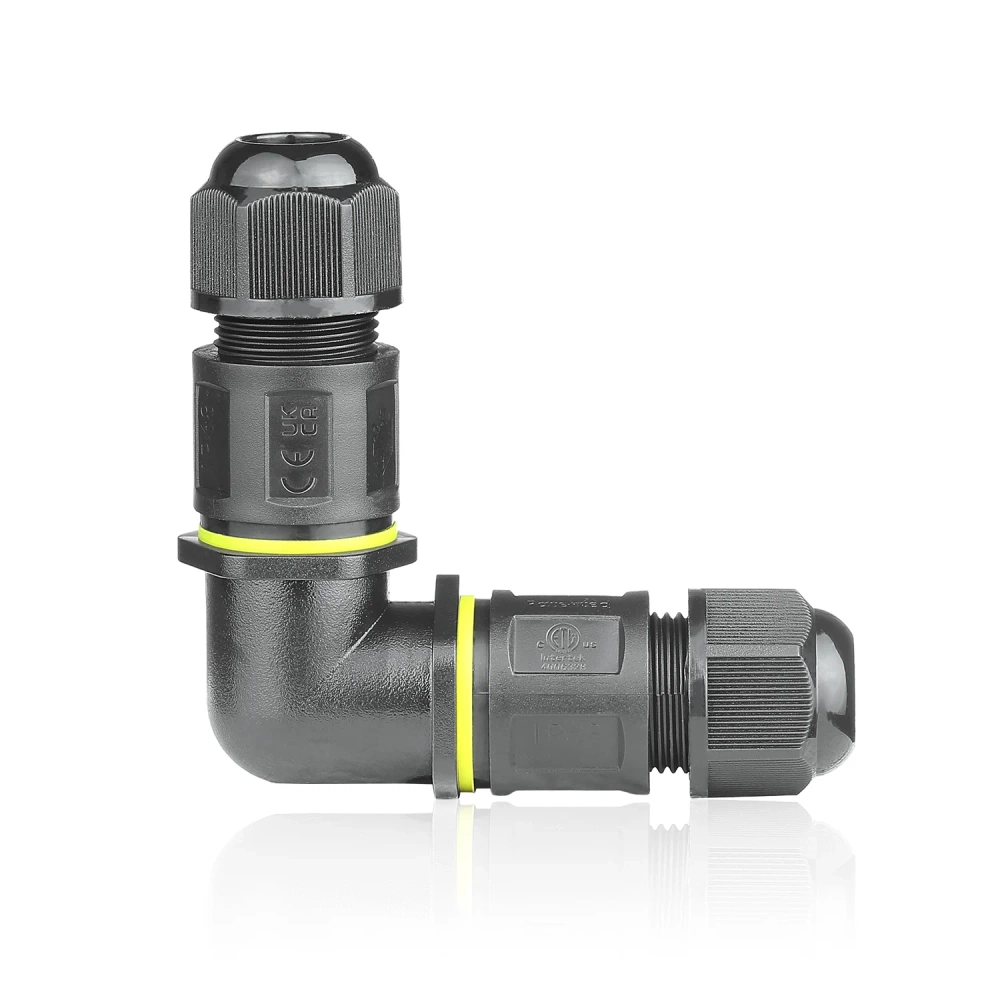

Waterproof cable junction box IP68 | self-locking connector L 3-pin 450 V 24 A for 4–11 mm cables | M684-L

L Shape • 3-pin push-in connector • 0.5 mm² - 2.5 mm² • 24 A • 450 V • IP68 • Ø 4-8 mm or Ø 6-11 mm

IP68 hermetic cable joint is a reliable and versatile solution for safely connecting, branching and extending electrical wires in environments requiring high levels of sealing.

Designed for use in both above-ground and underground installations, as well as in areas with increased humidity. It ensures durability and stable connections even in extreme weather conditions.

This connector is used in:

• industrial installations,
• power systems,
• garden applications,
• outdoor LED lighting systems,
• water pumps,
• gate automation,
• CCTV systems,
• signaling,
• marine industry.

• IP68 protection rating ensures complete water and dust resistance, even during prolonged submersion.
• Compatible with cables of various diameters.
• Housing made of PA66 polyamide and polycarbonate, resistant to UV, impact, fire, and chemicals.
• Wide operating temperature range – from -40°C to +105°C (up to +120°C for short periods).
• Suitable for use with voltages up to 450 V AC and currents up to 24 A.

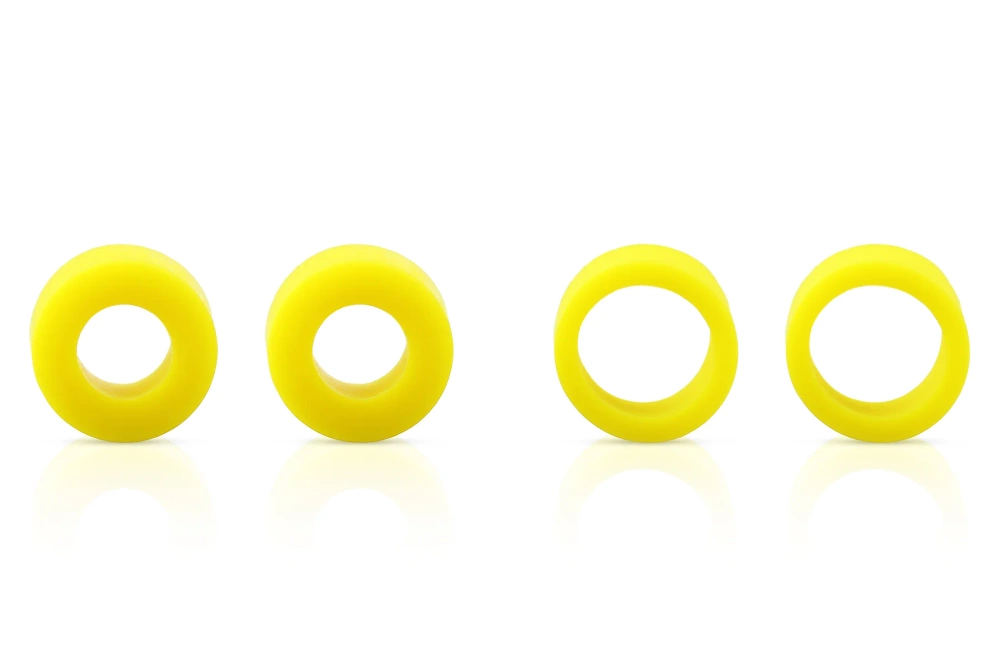

• Built-in silicone seals and glands provide maximum tightness and protect against corrosion and moisture condensation.

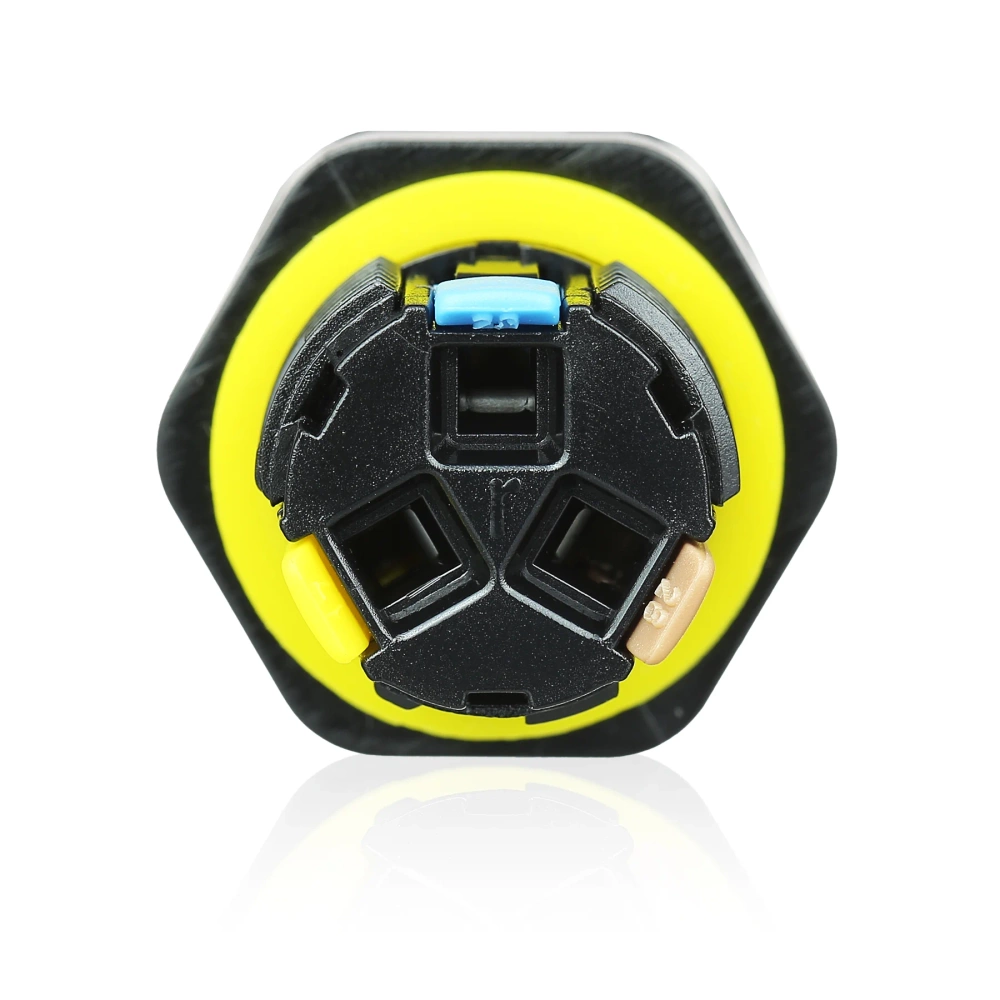

• Push-in connection – no soldering required.

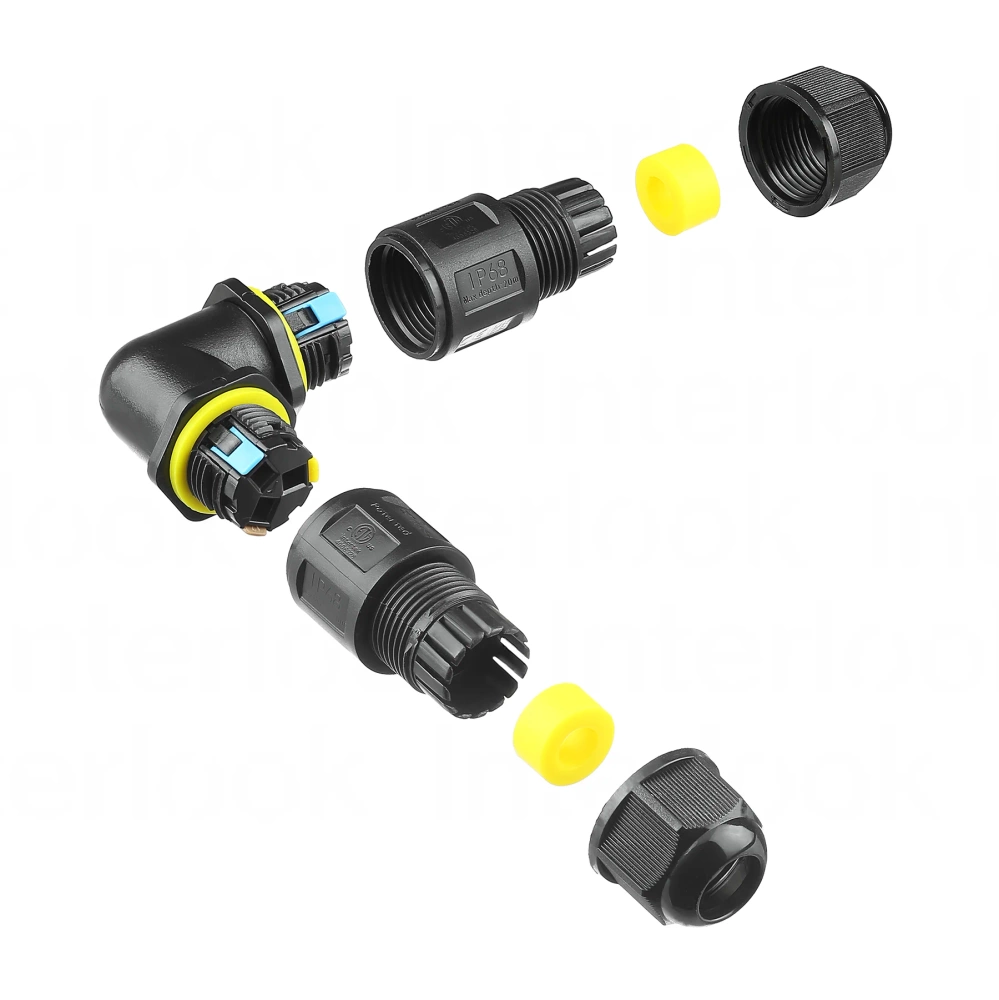

• Design allows for quick assembly and disassembly without specialized tools.

Application

The joint is intended for connecting wires in installations such as:

• garden, facade, and street lighting,
• pumps, fountains, pools, and ponds,
• automation and monitoring systems,
• industrial machines and controllers,
• above-ground and underground connections in construction and power engineering.

Specification

• Model: M684-L
• Protection rating: IP68
• Temperature range: T105 -40°C ~ +105°C
• Rated voltage: up to 450 V AC
• Rated current: up to 24 A
• Material: PA66 / PC, UV and fire resistant
• Connection type: push-in
• Cable diameter range: 4 - 8 mm or 6 - 11 mm
• Housing color: black / yellow seals
• Dimensions: 8 x 8 x 2.9 cm
• Certificates: ENEC, CE, CB, UKCA, NSW, ETL, ROHS
