Waterproof cable junction box IP68 | 3-pin screw connector 450 V 17.5 A for 3–9 mm cables | M682-B
- - Waterproof and dustproof for extreme outdoor conditions
- - Fast, tool-free connection and disconnection
- - UV-resistant, impact-resistant, durable housing
- - Compatible with various cable diameters
screw terminal connector 3 pin • 0.5 mm² - 1.5 mm² • 17.5 A • 450 V • IP68 • Ø 3-6.5 mm or Ø 5-9 mm

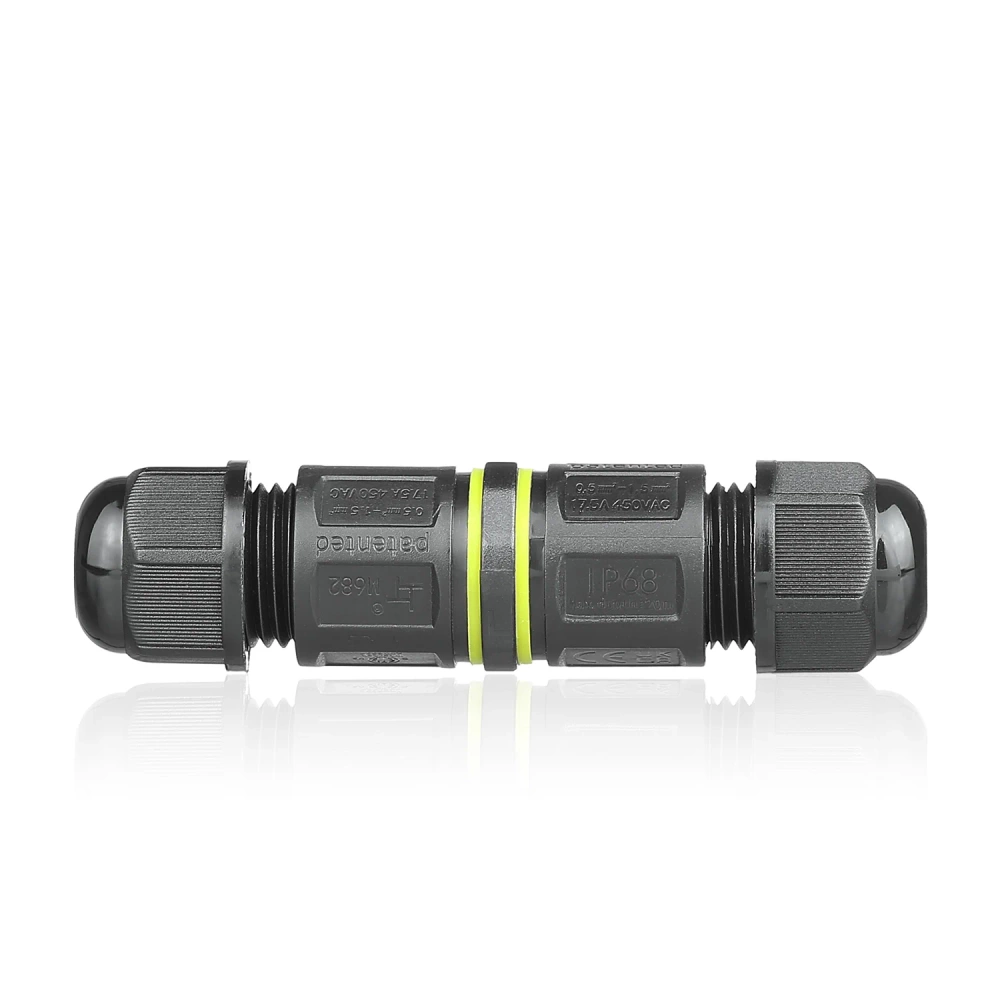

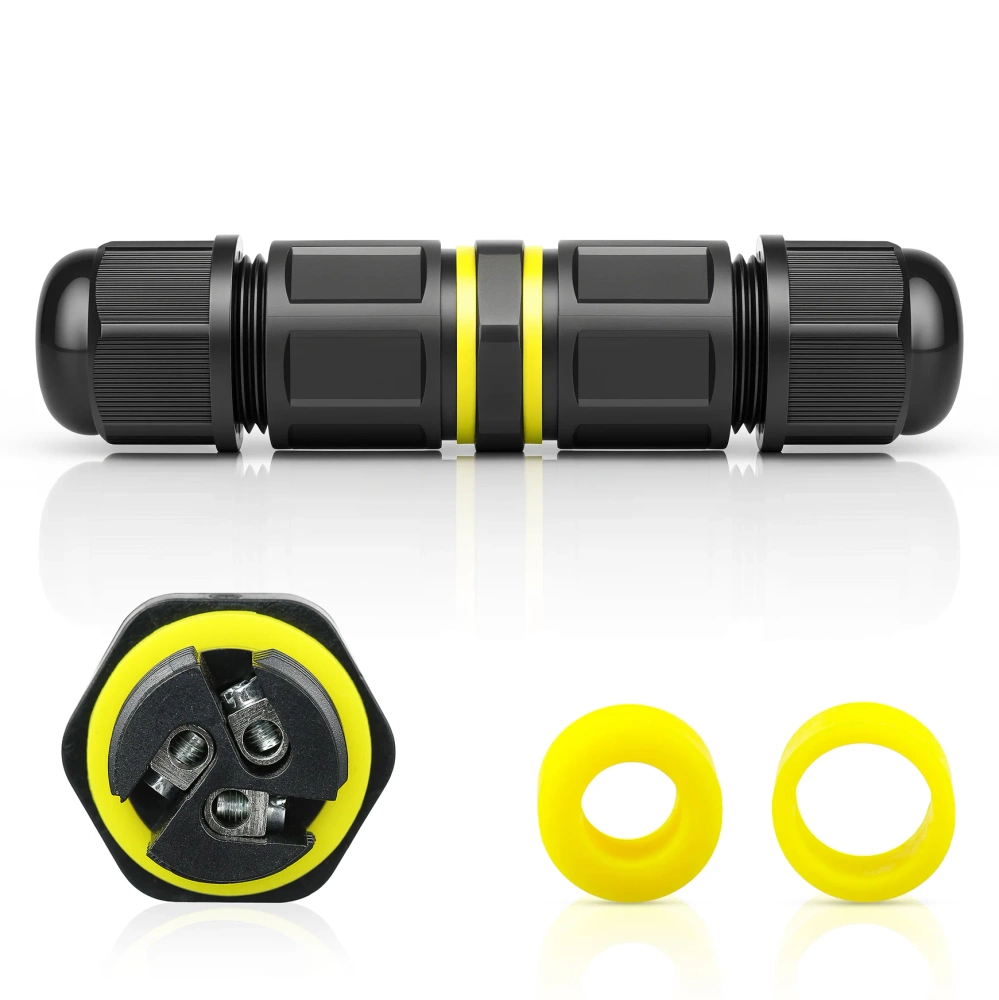

Hermetic cable joint IP68 is a reliable and versatile solution for safely connecting, branching, and extending electrical wires in demanding environments where high sealing is required.
Designed for use in both above-ground and underground installations, as well as in high-humidity environments. It ensures durability and stable connections even in extreme weather conditions.
The connector is suitable for use in:
- industrial installations,
- power systems,
- garden installations,
- outdoor LED lighting systems,
- water pumps,
- gate automation,
- CCTV systems,
- signaling,
- marine industry.
- IP68 protection rating ensures complete water and dust resistance, even with prolonged submersion.
- Compatible with cables of various diameters.
- Housing made from polyamide PA66 and polycarbonate, resistant to UV, impact, fire, and chemicals.
- Wide operating temperature range – from -40°C to +105°C (up to +120°C for short periods).
- Can operate at voltages up to 450 V AC and currents up to 17.5 A.

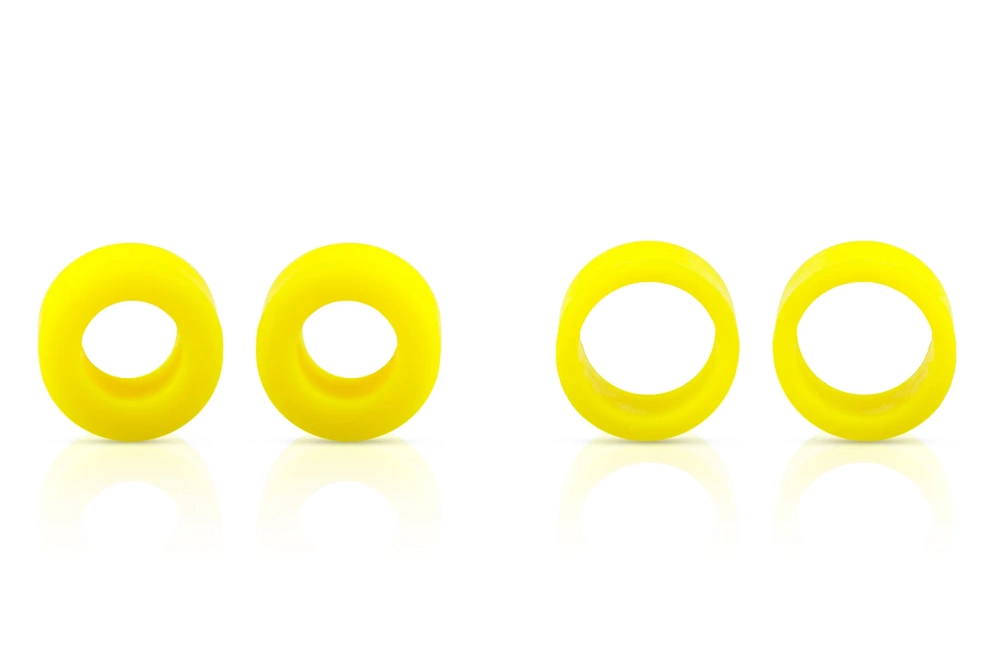

- Built-in silicone seals and glands provide maximum sealing and protection against corrosion and moisture condensation.

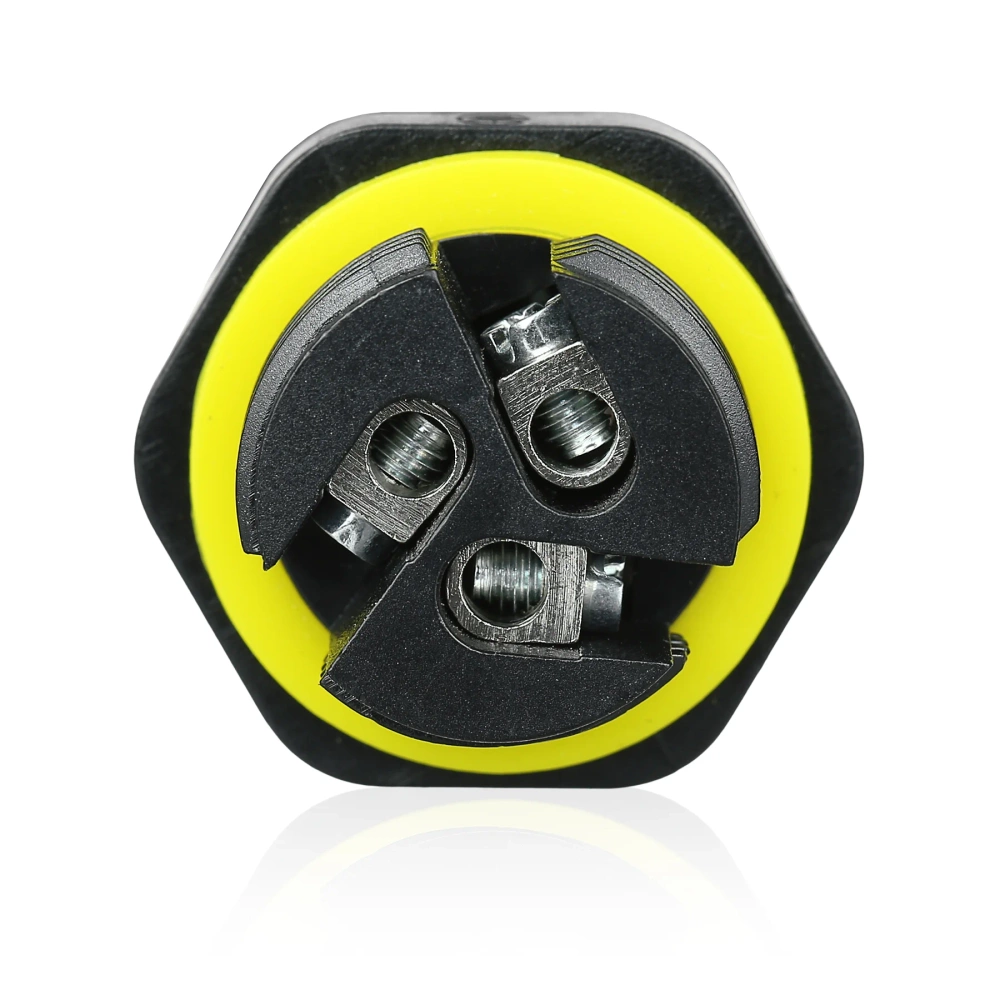

- Screw connection – no soldering required.
- Design allows for quick assembly and disassembly without the need for specialized tools.
Application
The joint is designed for connecting wires in:
- garden, facade, and street lighting,
- pumps, fountains, pools, and garden ponds,
- automation and monitoring systems,
- industrial machines and controllers,
- above-ground and underground connections in construction and power engineering.
Specification
- Model: M682-B
- Protection rating: IP68
- Temperature range: T105 -40°C ~ +105°C
- Rated voltage: up to 450 V AC
- Rated current: up to 17.5 A
- Material: PA66 / PC, UV and fire resistant
- Connection type: screw
- Cable diameter range: 3 - 6.5 mm or 5 - 9 mm
- Housing color: black / yellow seals
- Dimensions: 8 x 2.1 cm
- Certificates: ENEC, CE, CB, UKCA, NSW, ETL, ROHS
