License plate frame with reversing camera and parking sensors - comprehensive support for maneuvers

Increase parking safety and comfort with the innovative license plate frame with a built-in reversing camera and two parking sensors.

This comprehensive solution eliminates blind spots and warns about obstacles, providing full control over reversing maneuvers. With high image quality, LED lighting and waterproof construction, the frame is a reliable partner in all conditions.

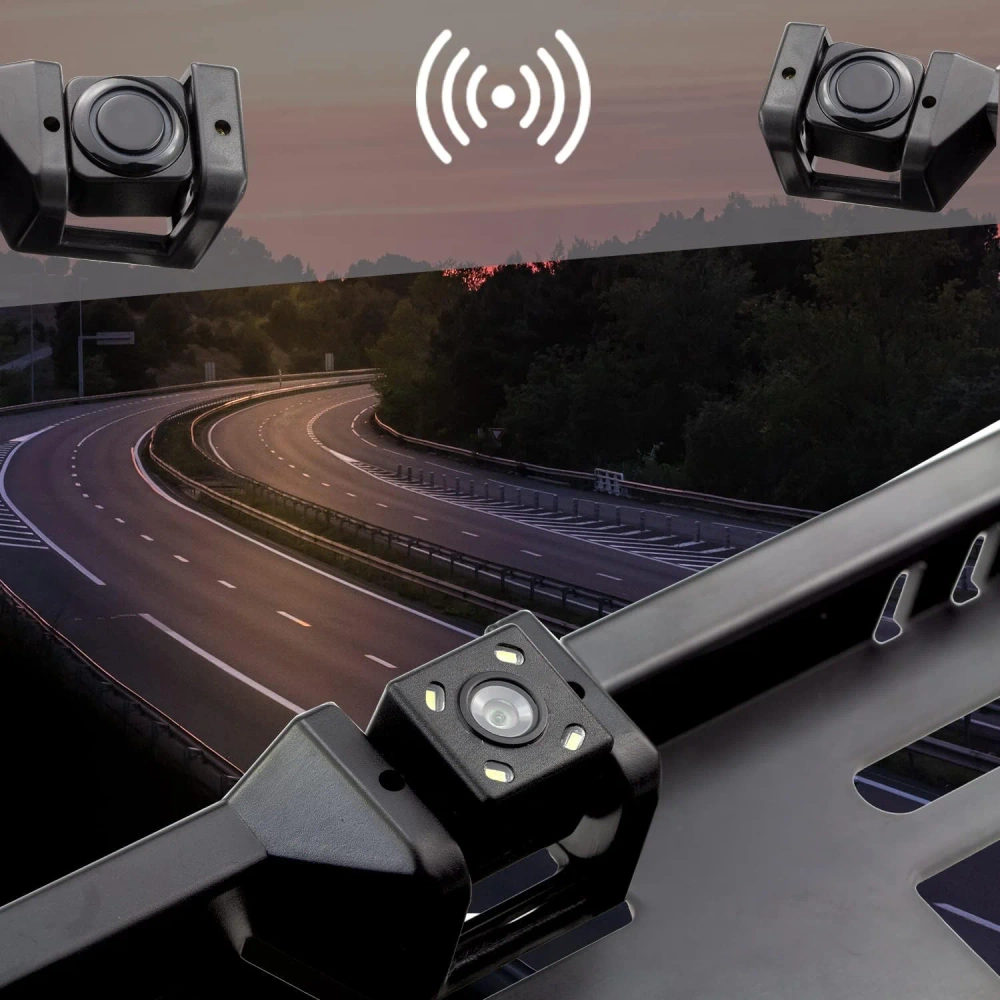

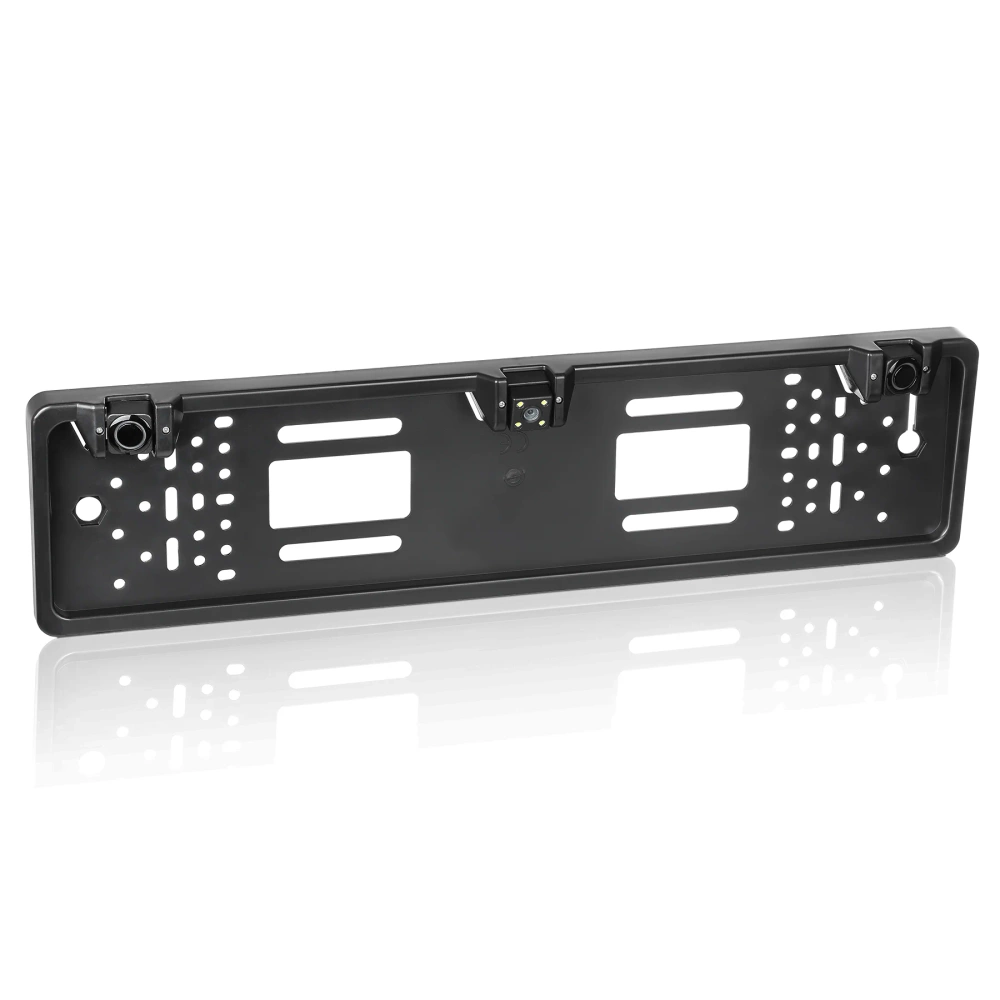

• Integrated 3-in-1 kit : reversing camera, European license plate frame and 2 parking sensors, offering comprehensive support when manoeuvring.

• High quality camera with adjustable tilt angle (up/down) and wide viewing angle, providing a panoramic image.

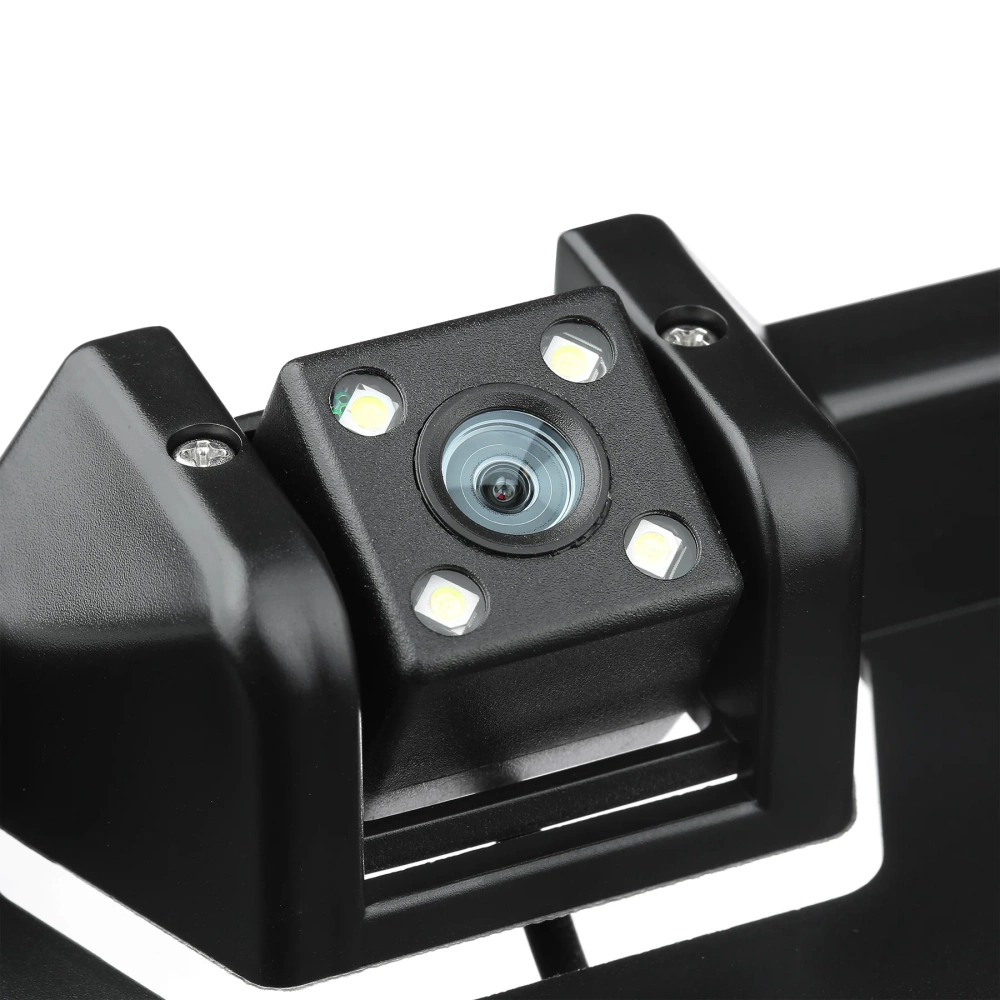

• Camera equipped with 4 illuminating LED diodes , guaranteeing a clear image at night and in low light conditions.

• Radar system with sensors with a detection range of 0.3 to 2.5 meters, warning with sound (buzzer) about the distance from obstacles.

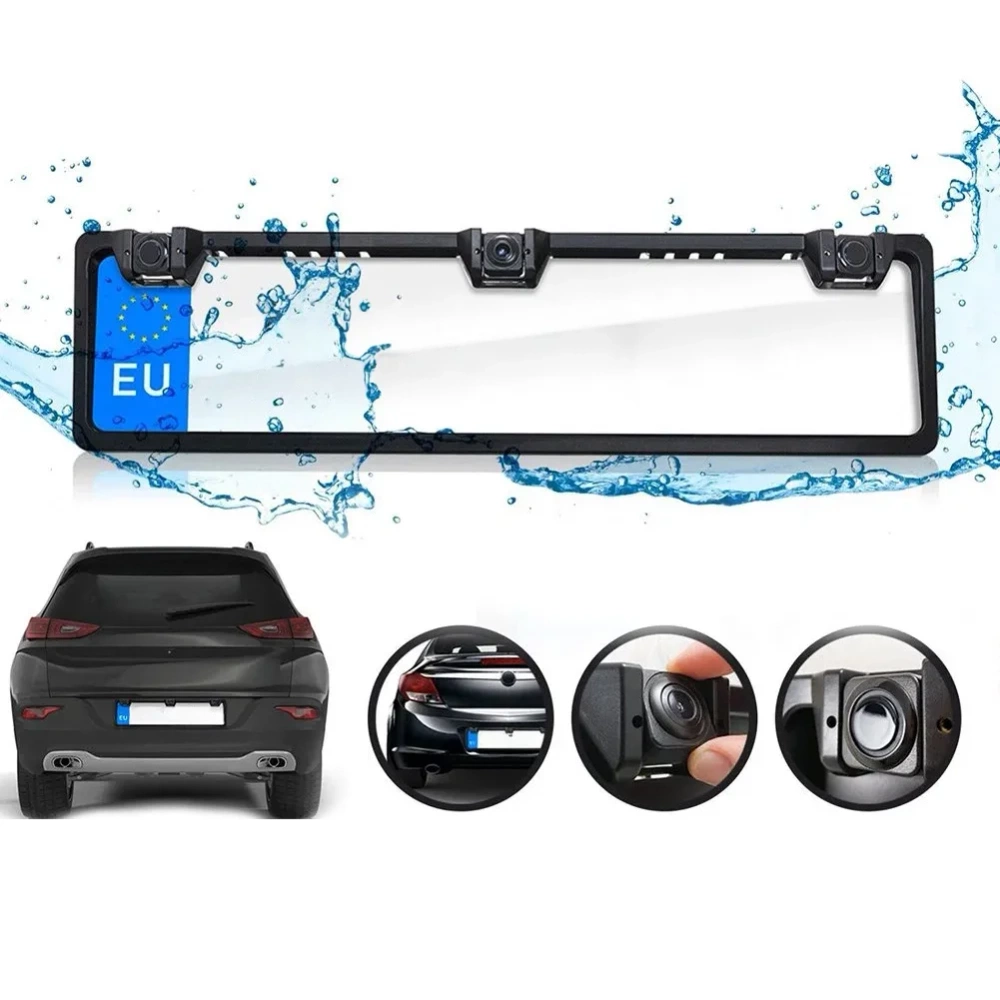

• Water resistance and dustproof IP67 (for the camera and sensors) and IPX4 (for the entire frame) ensures reliable operation in all weather conditions.

• Compatibility with most European license plates (dimensions 545 mm x 139 mm) and with various car displays with RCA connection.

• Made of durable material ABS, the frame is resistant to damage, shocks and changing temperatures.

• Automatic switching to the rear view camera view when reverse gear is engaged.

Precise image and expanded field of view

The rear view camera frame provides exceptional image clarity, which is essential for safe reversing. The camera is equipped with an advanced video processing chip that guarantees stable operation and improved image and color reproduction on the screen.

You get a sharp, detailed view of the area behind your vehicle. The wide viewing angle eliminates blind spots, allowing you to see oncoming vehicles, pedestrians and other obstacles, significantly reducing the risk of collisions and making it easier to maneuver in tight spaces.

Advanced security features and universal compatibility

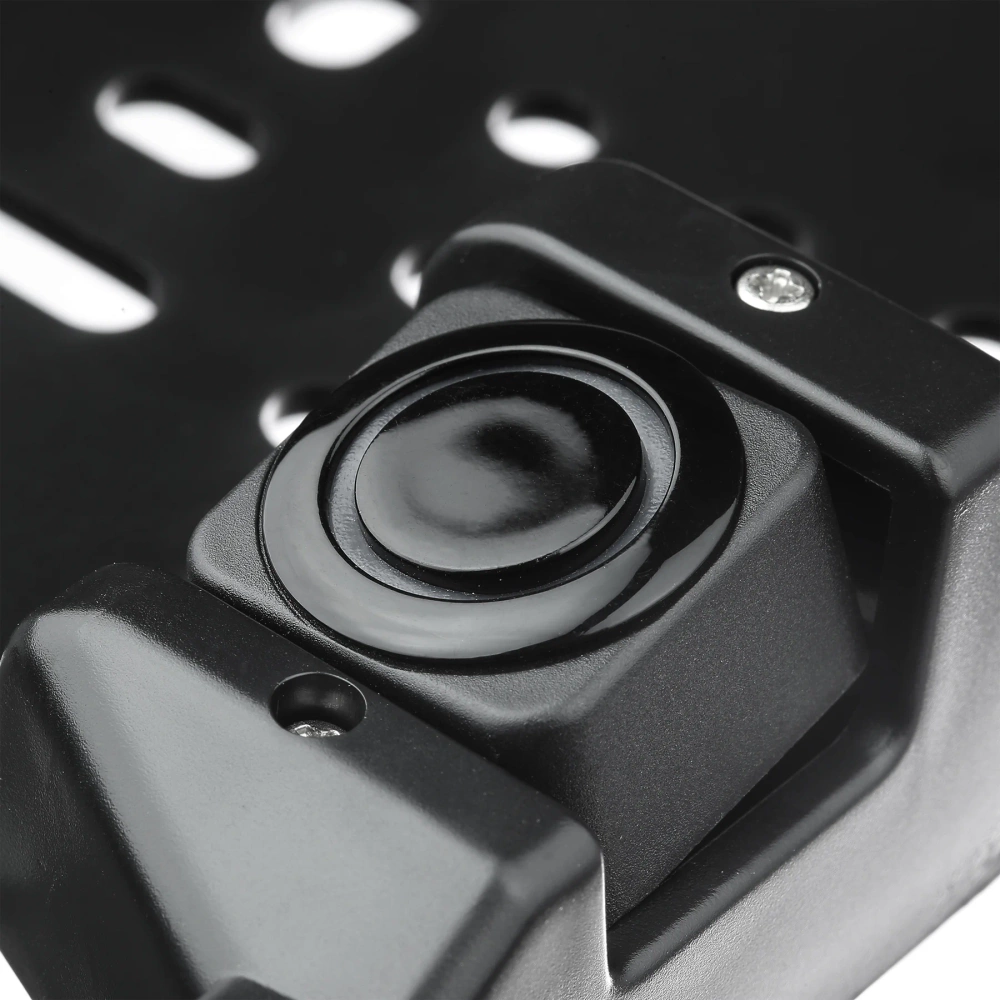

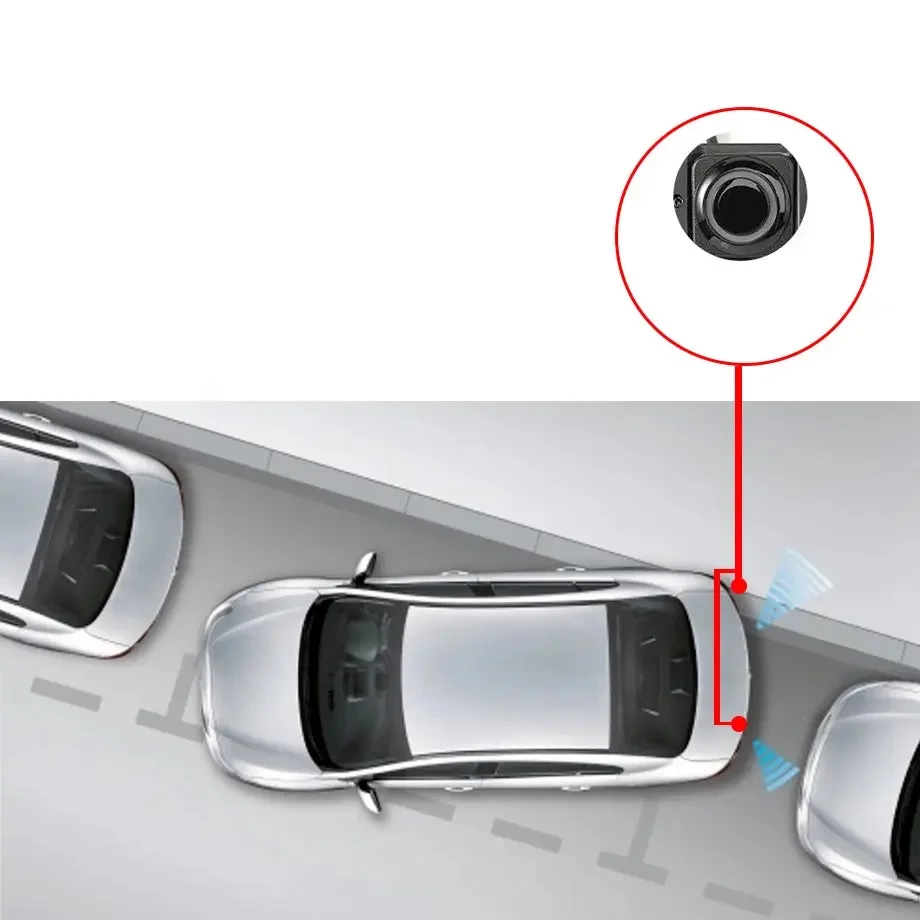

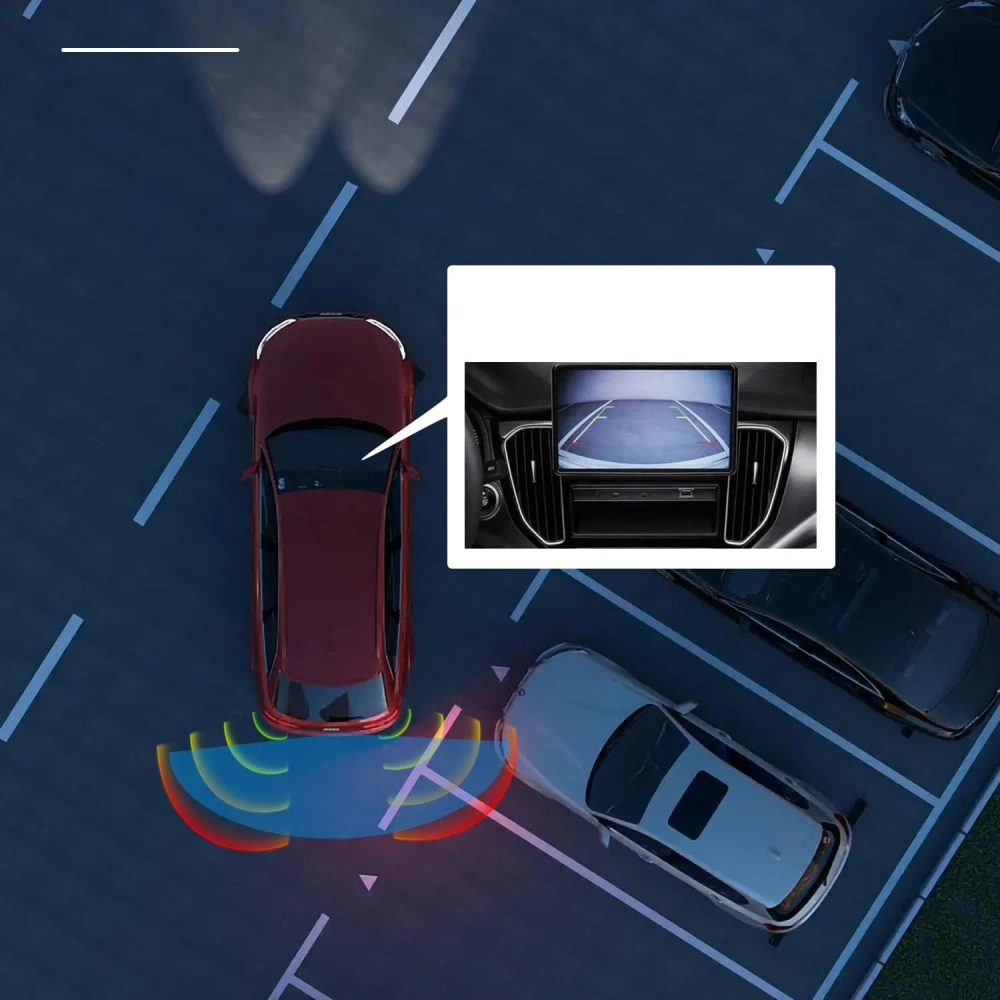

The system is equipped with parking sensors located on the left and right side of the frame, which detect obstacles within a range of 0.3 to 2.5 meters. When approaching an obstacle, the system emits an audible alarm using a buzzer.

The camera also has a night vision function, supported by 4 LEDs, which ensures excellent visibility at night and in low light conditions.

The product is compatible with a wide range of car displays equipped with RCA connectors and DVD players, ensuring flexible use in various car models, including trucks, buses and vans.

Application

The frame is the perfect solution for every driver who wants to increase safety and comfort when maneuvering their vehicle.

It is perfect for everyday city driving, making it easier to park in tight spaces and exit crowded parking lots. It is an indispensable tool for drivers of larger vehicles such as SUVs, vans or delivery vans, where rear visibility is often limited. This system is also very useful in low light conditions, at night or during difficult weather conditions such as rain or fog, thanks to the night vision function and waterproofing.

It's an investment in safety and peace of mind on every journey.

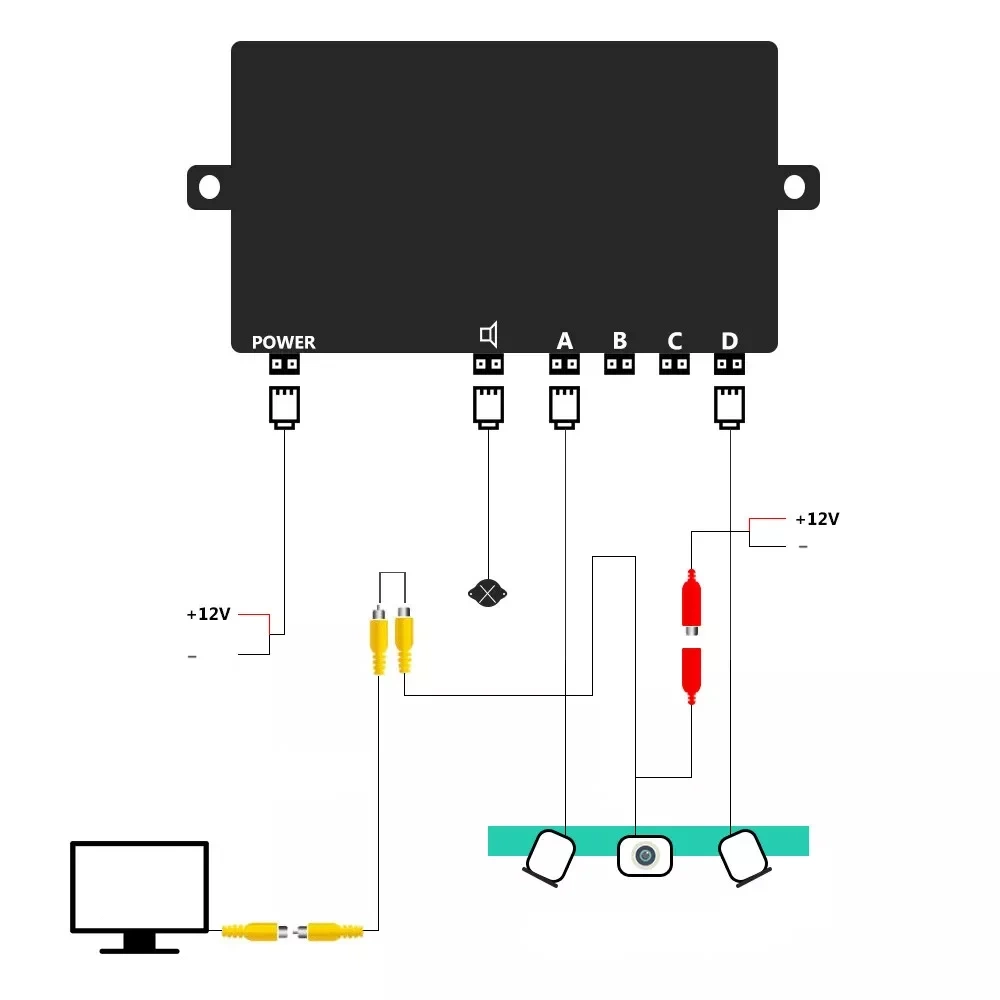

Assembly instructions

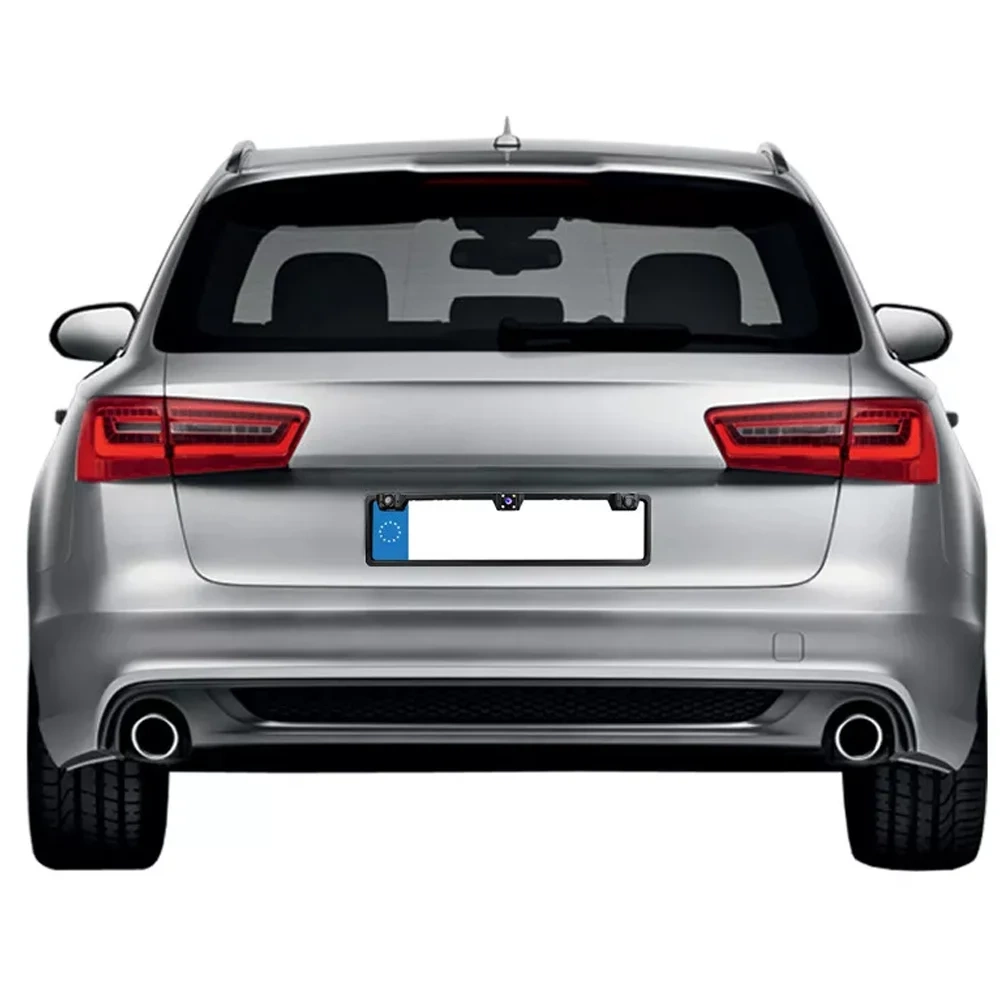

1. Frame assembly: Attach the license plate frame to the standard plate using the existing holes. Make sure the frame is securely attached.
2. Camera connection: Connect the camera's video cable to the appropriate video input on your car radio, monitor, or rearview mirror display (make sure your display has an RCA connector).
3. Camera power connection: Connect the red power cable of the camera to the positive of the reversing light and the black one to the vehicle ground. The camera will be activated automatically when you engage reverse gear.

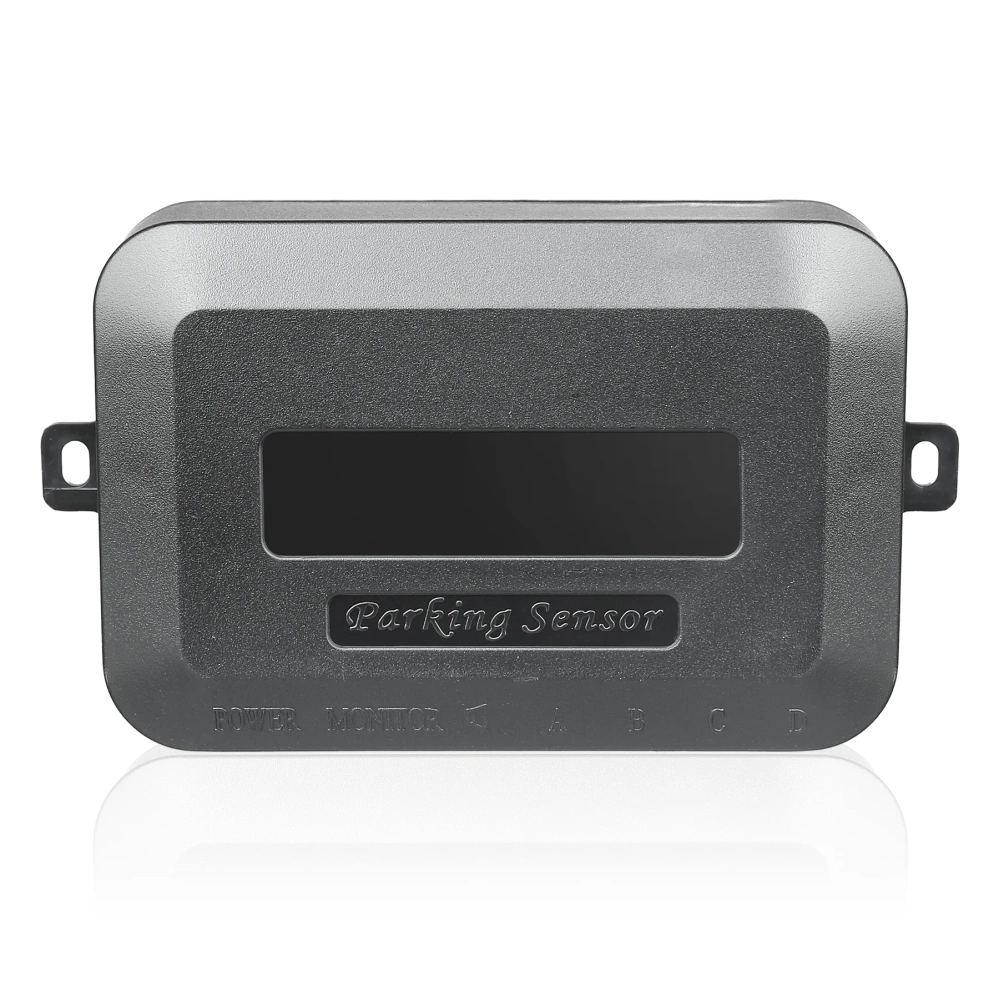

4. Connecting sensors: Connect the sensor wires to the parking radar central unit (host). Connect the central unit to a power supply (usually to the reversing light).

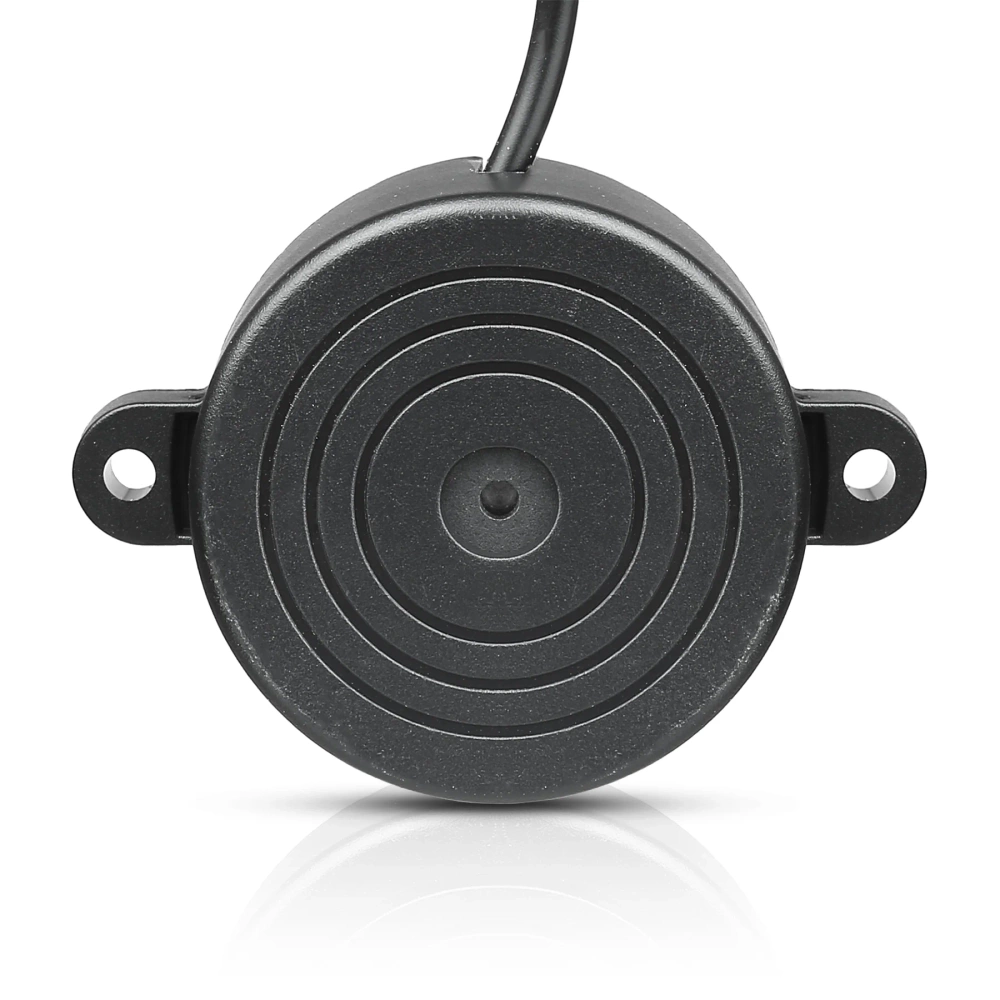

5. Connecting the buzzer: Connect the buzzer to the radar central unit.
6. Testing: Once the installation is complete, start the engine and put it in reverse to check that the camera and sensors are working properly. Make sure the image is clear and the audible and visual alarms are working properly.

Specification

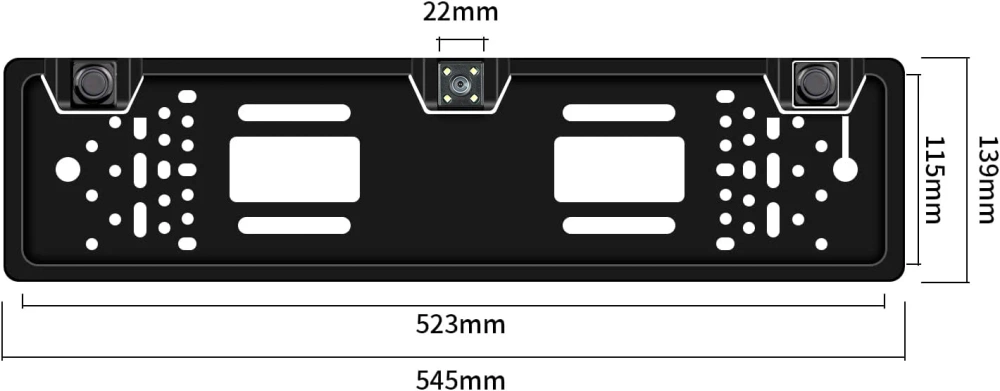

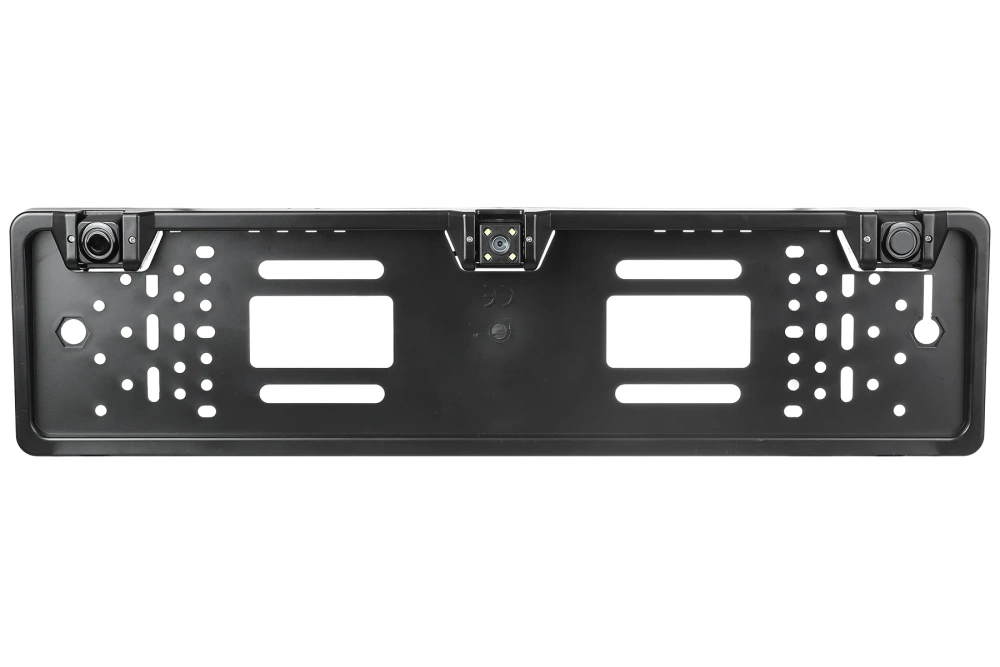

• Frame dimensions: 545mm x 139mm (fits most European license plates)
• Camera viewing angle: wide angle
• Camera LEDs: 4
• Sensor detection range: 0.3 - 2.5 m
• Sensor alarm type: Sound
• Alarm volume level: 65dB
• Waterproof: IP67 (camera and sensors), IPX4 (entire)
• Material: ABS (frame), plastic
• Power supply: DC9-15V
• Power consumption: Maximum 1.5W
• Operating temperature: From -20°C to +70°C
• Compatibility: Displays with RCA connection, DVD, various types of vehicles (cars, trucks, buses, vans)

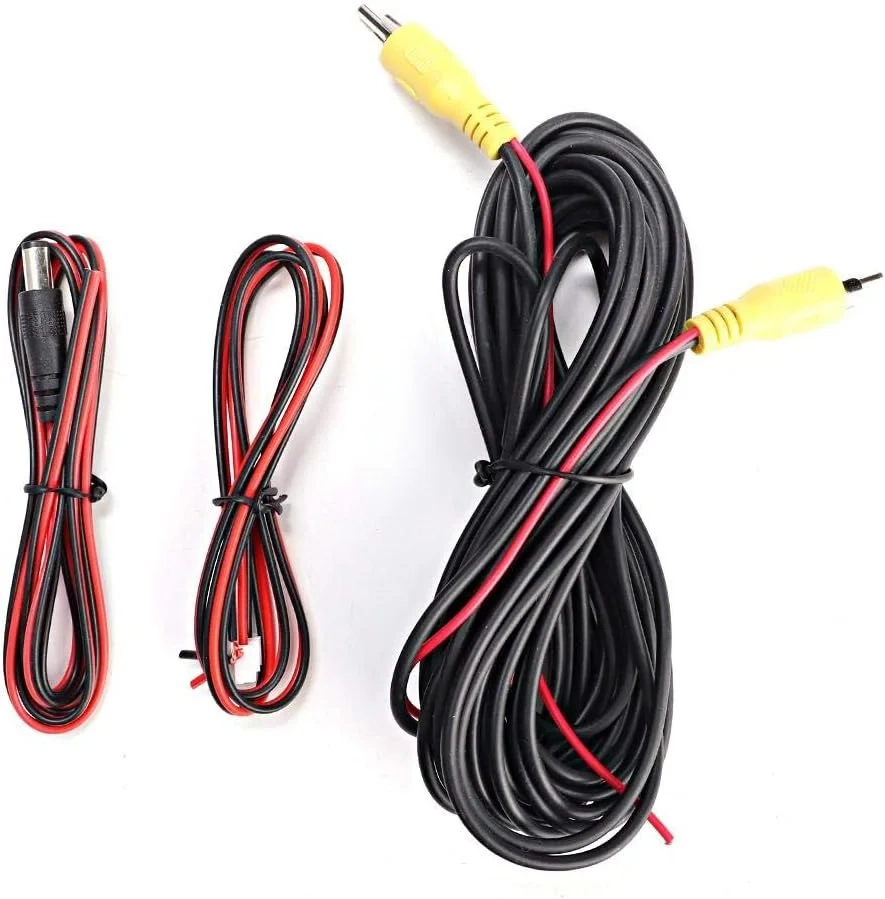

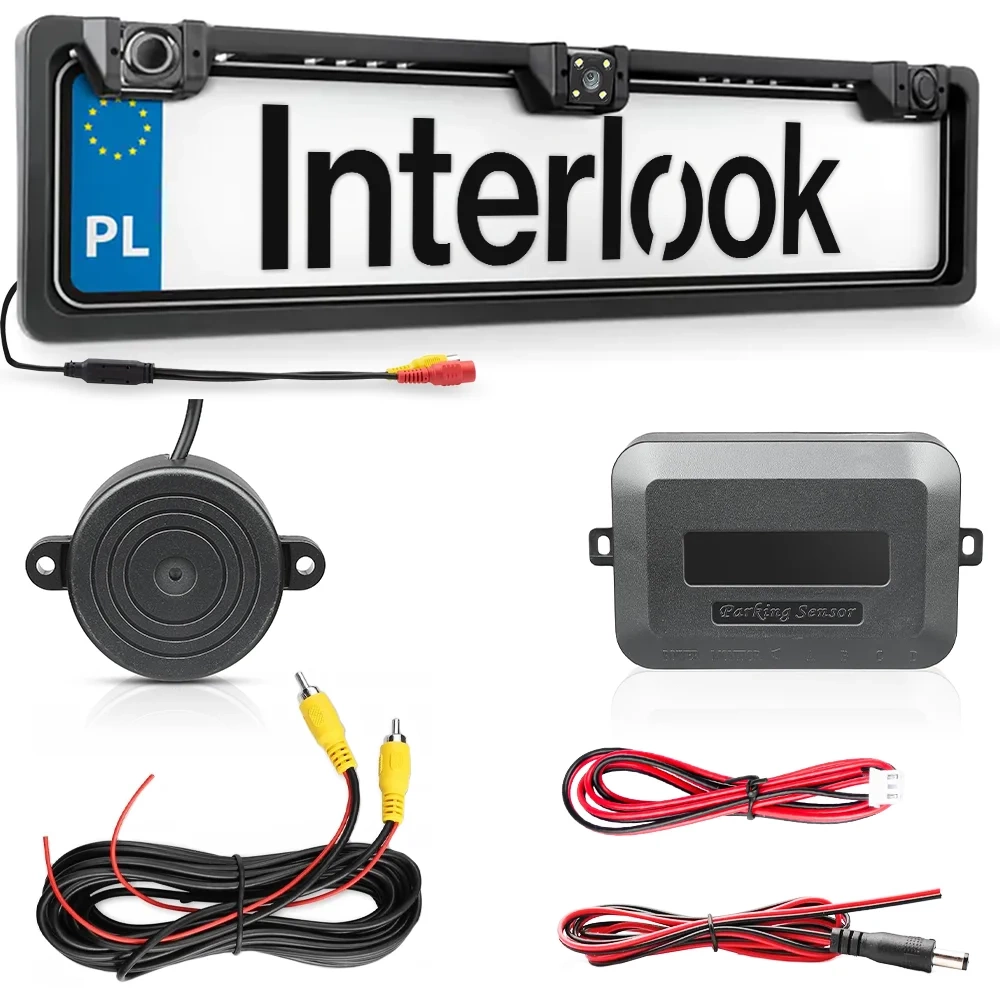

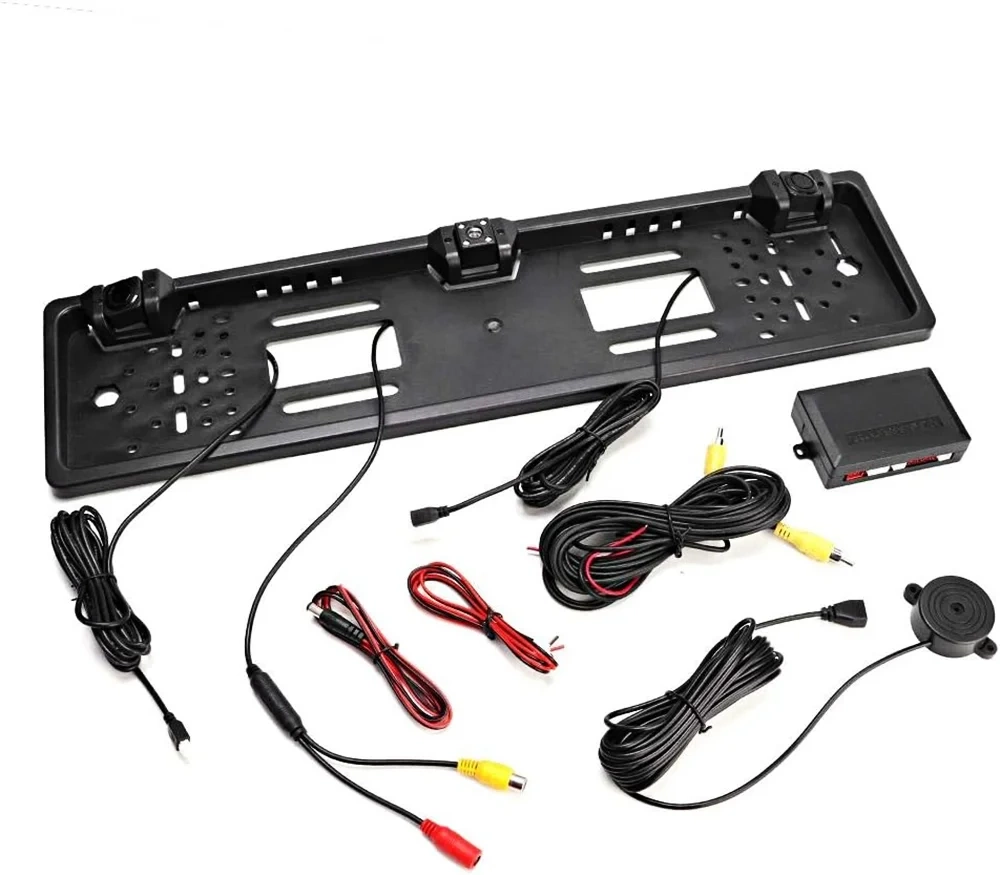

• Set components: License plate frame with camera and 2 sensors, control unit, buzzer, camera power cable, radar power cable, wiring

By choosing our license plate frame with reversing camera and parking sensors, you are investing in a comprehensive solution that will significantly increase the level of safety and comfort during every manoeuvre.

The combination of a wide-angle camera with excellent night vision and precise parking sensors takes the stress out of parking in tight spaces and significantly reduces the risk of collisions.

The durable, waterproof design ensures reliability in all conditions, while ease of installation makes it the perfect upgrade for any vehicle.
