Reversing camera with LED and IR diodes

• automatic activation of the camera when reverse gear is engaged
• camera angle adjustment
• the ability to connect to any screen or monitor using a VIDEO RCA cable

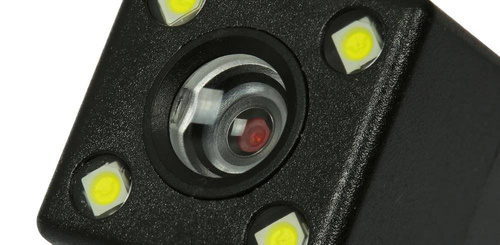

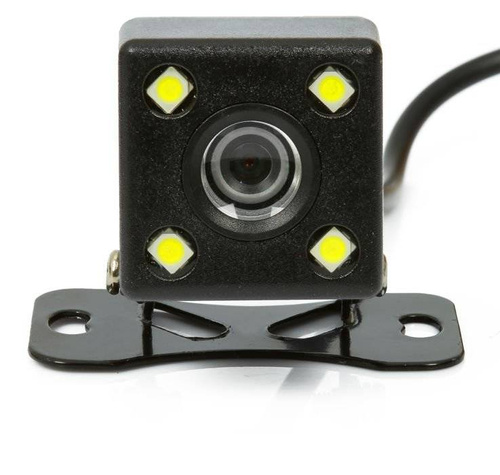

The camera is equipped with 4 LED Night Vision diodes ensuring good visibility at night.

• The camera is automatically activated when reverse gear is engaged.
• Suitable for any monitor with RCA video input.

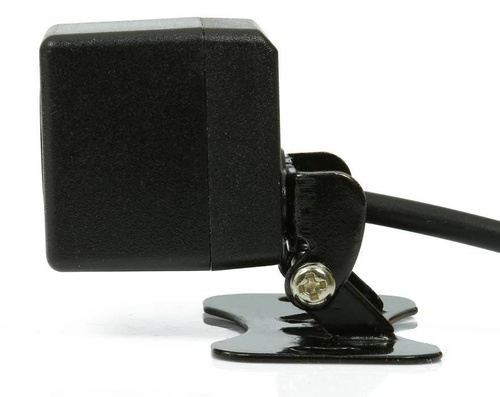

• The camera rotates vertically. The lens is made in the Anti-Fog technology
• The camera image has intuitive guidelines for easy parking
• The camera is waterproof and shockproof - IP68

Specification:

• Camera parameters: 45 degrees vertical adjustment, 170 degree viewing angle
• Camera facilities: Guide lines, 4 NIGHT VISION LEDs, lens made in Anti-FOG technology
• Resolution: 648x488
• Image sensor: 1/4 "Color CMOS
• Working temperature: -40 to + 70 ℃
• Dimensions (without handle): 23 mm x 23 mm
• Power 8-15V
• Waterproof: IP68
• Current consumption: max 150 mA
• Power cable length: 1m
• Monitor cable length: 6m
• Black colour

The kit includes:

• HD Night Vision Camera
• RCA cable (6 meters) and power cable
• Box

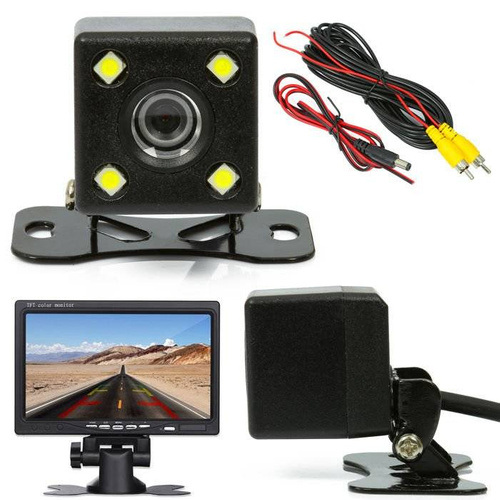

There is no display in the set. The photo is intended to show how the guides work.
