EX 50 W EXPLOSION-PROOF LED LIGHTING FITTING

The EX luminaire is intended for use in zones 1 and 21, where there is a risk of explosion of gases, vapors and mists of flammable liquids with air, as well as flammable dust and fibers.

✅ Housing made of cast aluminum

✅ Polycarbonate lampshade

✅ IP65 tightness class

✅ Integrated LEDs with a power of 50 W

✅ Impact and scratch resistant

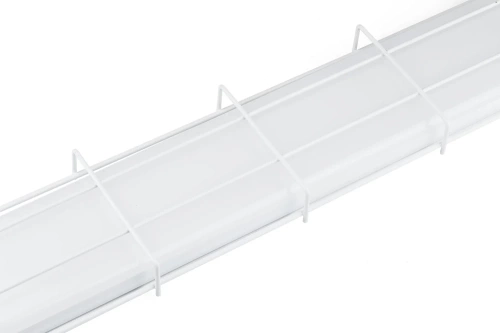

✅ Steel mesh protecting against mechanical impacts

Explosion-proof lighting plays a key role wherever explosive dust, liquids or gases are produced, transported or processed.

Ex zone lamps enable safe evacuation of the crew in the event of an explosion hazard .

Advantages:

• solid construction
• easy and quick installation
• very high resistance of the lamp to industrial corrosive environments
• high luminous efficiency thanks to high power of diodes
• long service life
• resistance to UV radiation
• very high tightness
• metal net

Explosion-proof lamps for Ex zones are an important element of ensuring safety in places where there is a risk of explosion, enabling the lighting of these spaces without the risk of causing a fire or explosion.

The fixture has been designed and manufactured in such a way as to prevent sparks and explosions of gases, dust and vapors. Meets safety requirements.

The lamp has exceptional mechanical strength and thermal resistance . It is made of highly explosion-proof materials. The dust- and moisture-resistant explosion-proof luminaire is designed to operate even in extremely difficult conditions.

In the event of an explosion, a lamp with an explosion-proof fixture is designed to maintain its shape and functionality, so replacing such explosion-proof lighting will not be necessary .

The explosion-proof floodlight is perfect for, among others: In:

➡️ Difficult work environments with high dust, moisture and risk of explosion of gases, vapors and flammable mists.

➡️ Industrial plants, in which there are technological lines of various industries, including chemical, petroleum, petrochemical, gas, spirit, energy, wood, paper and gas distribution.

➡️ Processing plants loose mining, construction and food materials.

➡️ Rooms where there is a risk of water splashes, such as baths, boiler rooms, hydroelectric stations, garages and warehouses in open and closed areas.

➡️ flow sights, bioreactors, mixers, pipelines, insides of pressure vessels and other closed containers in potentially explosive environments.

Specification:

• Power: 5 0 W
• Power of the LED light beam: 5500 lumens
• Light source: SMD 5630 LEDs
• Light distribution type: diffused light
• Light incidence angle: 120 degrees.
• Color: Diamond White
• Housing type: encapsulated
• Protection level: IP65 - waterproof, protection against dust, sand and dirt
• Service life: up to 50,000 hours
• Power supply: 220V - 240V @ 50-60Hz
• Operating range: from -40 degrees C to +70 degrees C
• Weight: 800 g
• Dimensions: 122 x 10 x 4 (without mounting elements) cm
