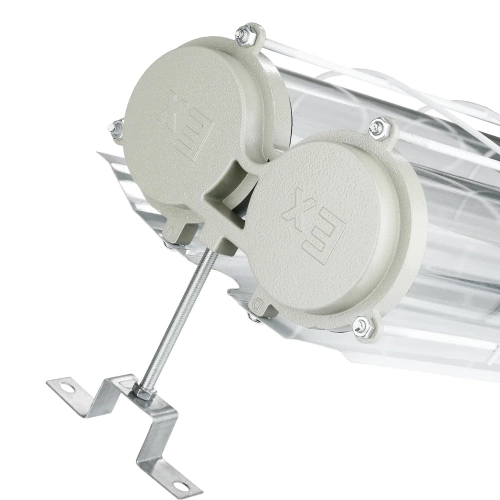

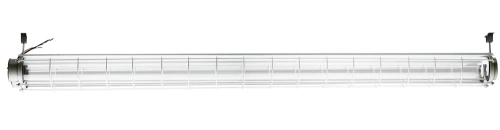

EXPLOSION-PROTECTIVE, PROTECTIVE FLUSH LUMINAIRES - DOUBLE

The EX luminaire is intended for use in zones 1 and 21, where there is a risk of explosion of gases, vapors and mists of flammable liquids with air, as well as flammable dust and fibers.

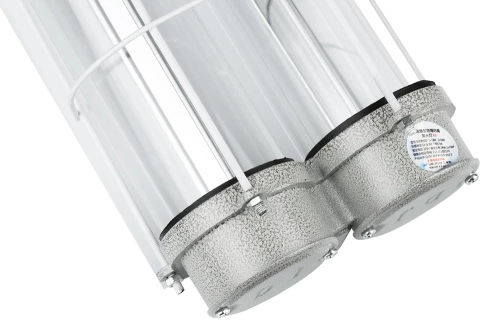

Housing made of cast aluminum

Tempered glass lampshade

IP65 tightness class

Fits LED fluorescent lamps with a G13 120 cm mounting

Impact and scratch resistant

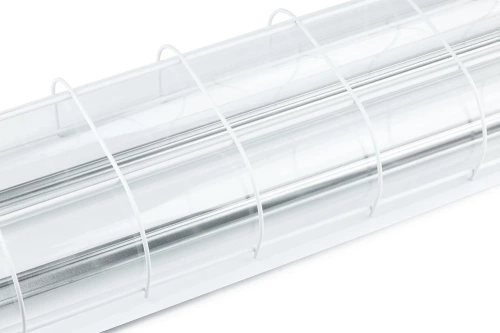

Steel mesh protecting against mechanical impacts

Additional reflector

Explosion-proof lighting plays a key role wherever explosive dust, liquids or gases are produced, transported or processed.

Ex zone lamps enable safe evacuation of the crew in the event of an explosion hazard .

Advantages:

• solid construction
• easy and quick installation
• very high resistance of the lamp to industrial corrosive environments
• high luminous efficiency thanks to the high light transmittance of the lampshade
• long service life
• resistance to UV radiation
• very high tightness
• metal net

The luminaire has been designed and manufactured in such a way as to prevent sparks and explosions of gases, dust and vapors. Meets safety requirements.

The lamp has exceptional mechanical strength and thermal resistance . It is made of highly explosion-proof materials. The dust- and moisture-resistant explosion-proof luminaire is designed to operate even in extremely difficult conditions.

In the event of an explosion, a lamp with an explosion-proof fixture is designed to maintain its shape and functionality, so replacing such explosion-proof lighting will not be necessary .

The explosion-proof fluorescent lamp fixture is perfect for, among others: In:

Difficult working environments with high dust, moisture, and risk of explosion of gases, vapors and flammable mists.

Industrial plants with technological lines for various industries, including chemical, petroleum, petrochemical, gas, spirit, energy, wood, paper and gas distribution.

Plants processing loose mining, construction and food materials.

Rooms where there is a risk of water splashes, such as baths, boiler rooms, hydroelectric stations, garages and warehouses in open and closed areas.

Flow screens, bioreactors, mixers, pipelines, inside pressure vessels and other closed containers in potentially explosive environments.

Explosion-proof lamps for Ex zones are an important element of ensuring safety in places where there is a risk of explosion, enabling the lighting of these spaces without the risk of causing a fire or explosion.

Specification:

• Double T8 G13 fluorescent lamp fixture 120 cm
• For LED fluorescent lamps - closed circuit, no starter installation possible
• Light distribution type: diffused light
• Light incidence angle: 180 degrees
• Housing type: aluminum , hermetized
• Protection level: IP65 - waterproof, protection against dust, sand and dirt
• Power supply: 220V - 240V @ 50-60Hz
• Operating range: from -40 degrees C to +70 degrees C
• Libra: 2430 g
• Dimensions: 124 x 14.5 x 8 (without mounting elements) cm
