GSM-200W-GOLD | EX floodlight | LED lamp for places at risk of gas explosion | Explosion-proof halogen
- Explosion-proof EX 200 floodlight. Aluminum, tempered glass, adjustable handle - solidity and easy installation, ideal for difficult industrial conditions. Resistance to impact, dust, moisture and UV radiation guarantees a long lamp life.

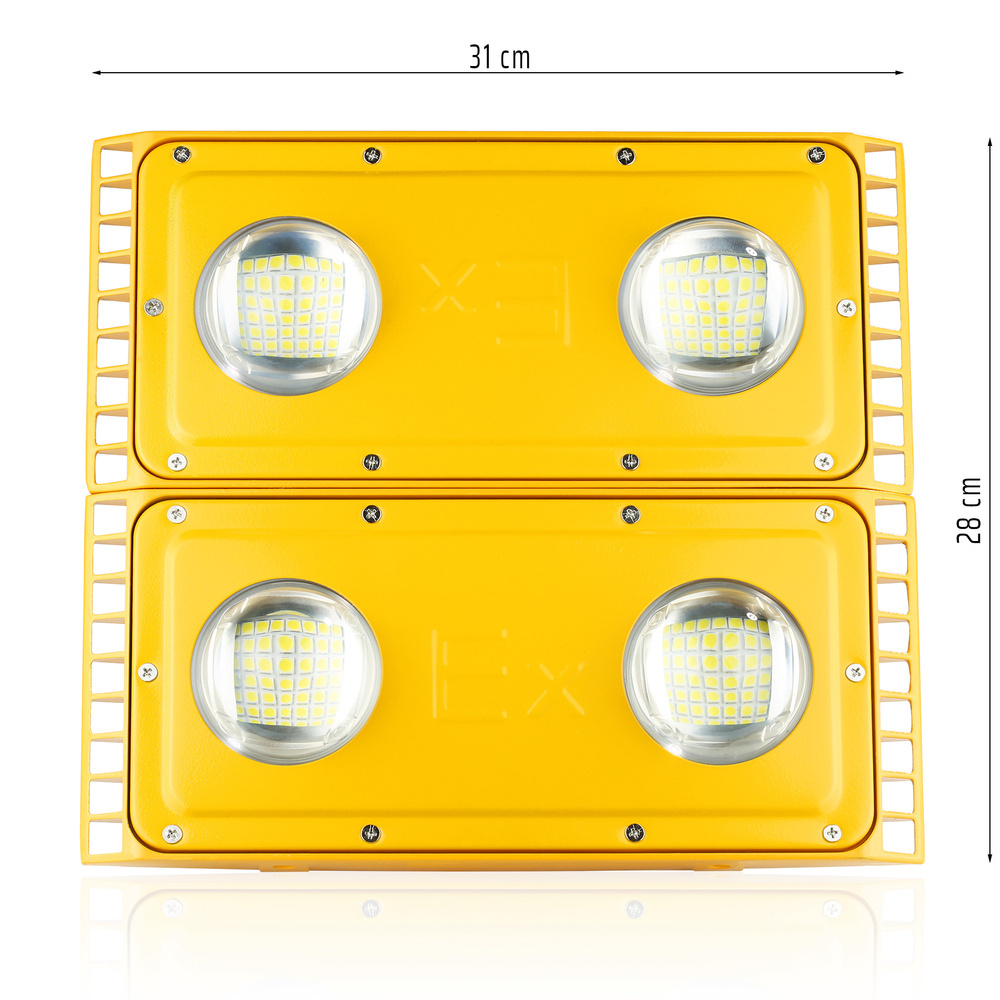

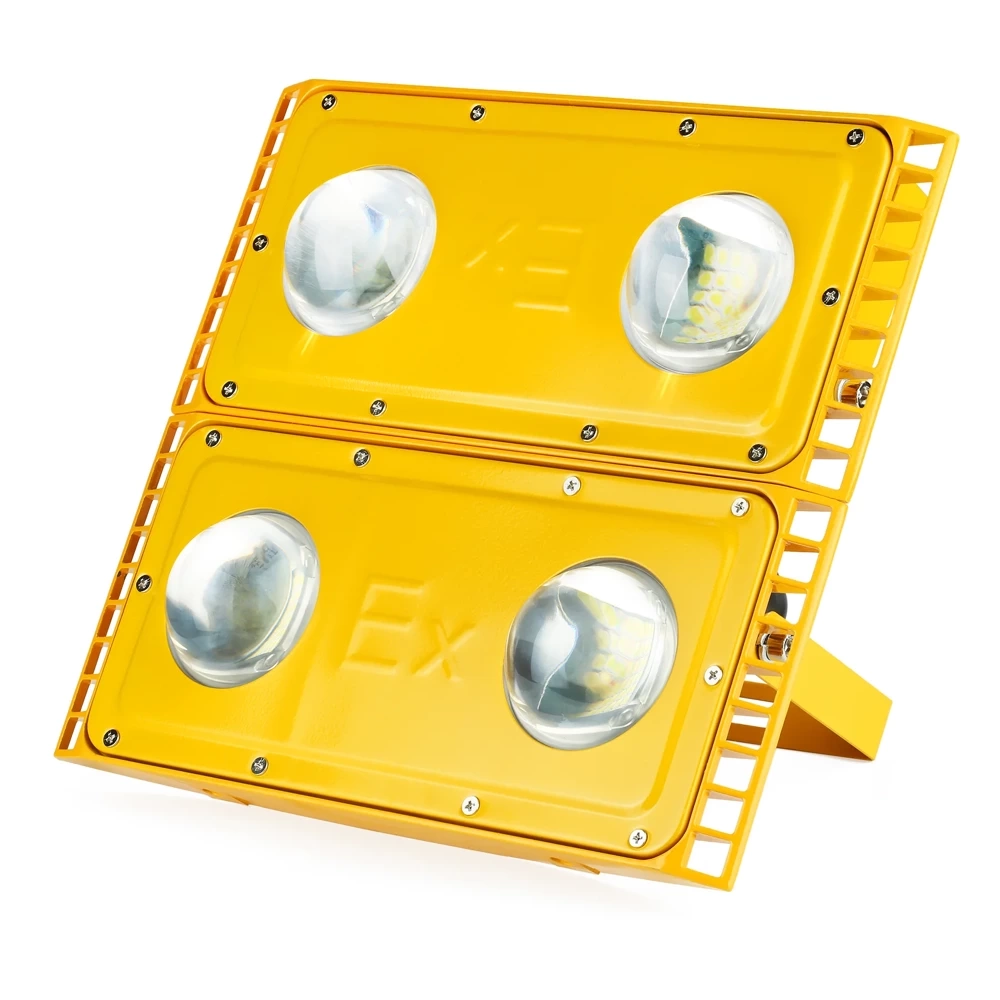

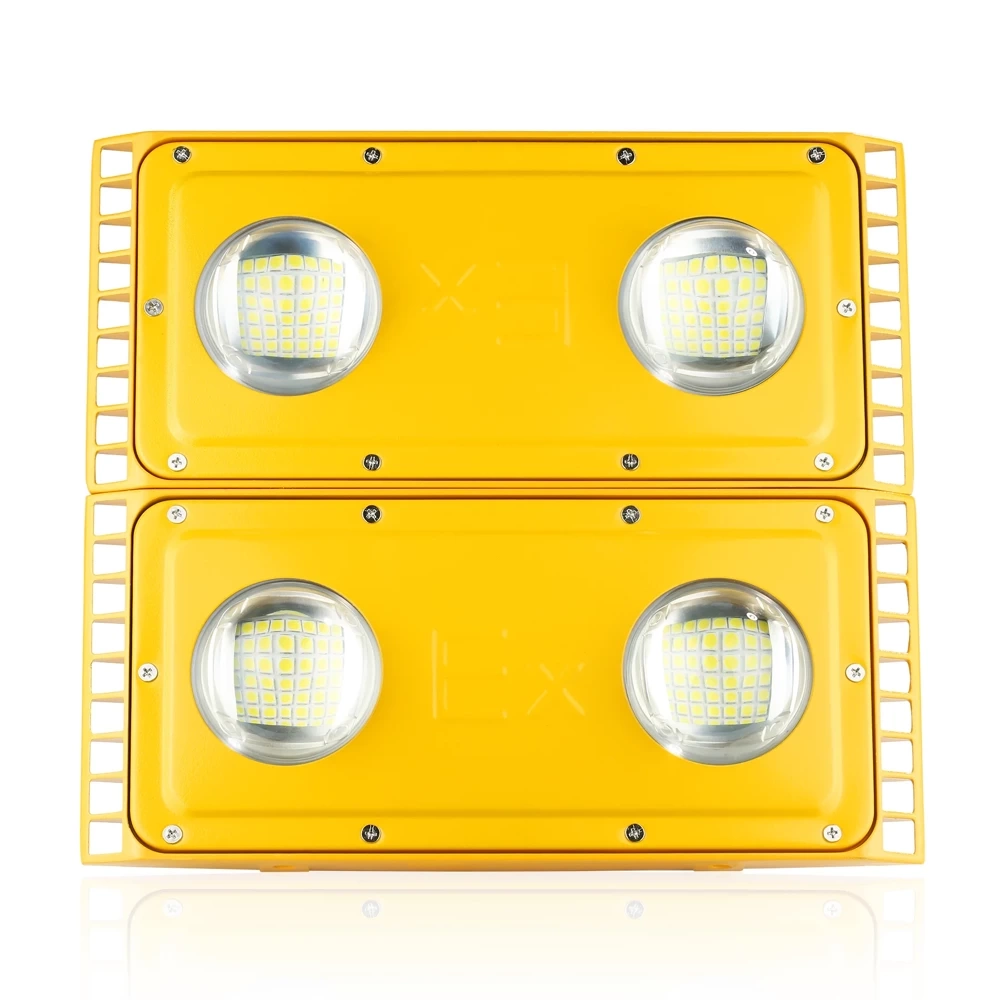

EX 200 W EXPLOSION-PROOF LED FLOODLIGHT
The EX floodlight is a lamp intended for use in zones 1 and 21, where there is a risk of explosion of gases, vapors and mists of flammable liquids with air, as well as flammable dust and fibers.
Housing made of aluminum
Lenses with tempered glass
Tightness class IP65
Impact resistant and scratches

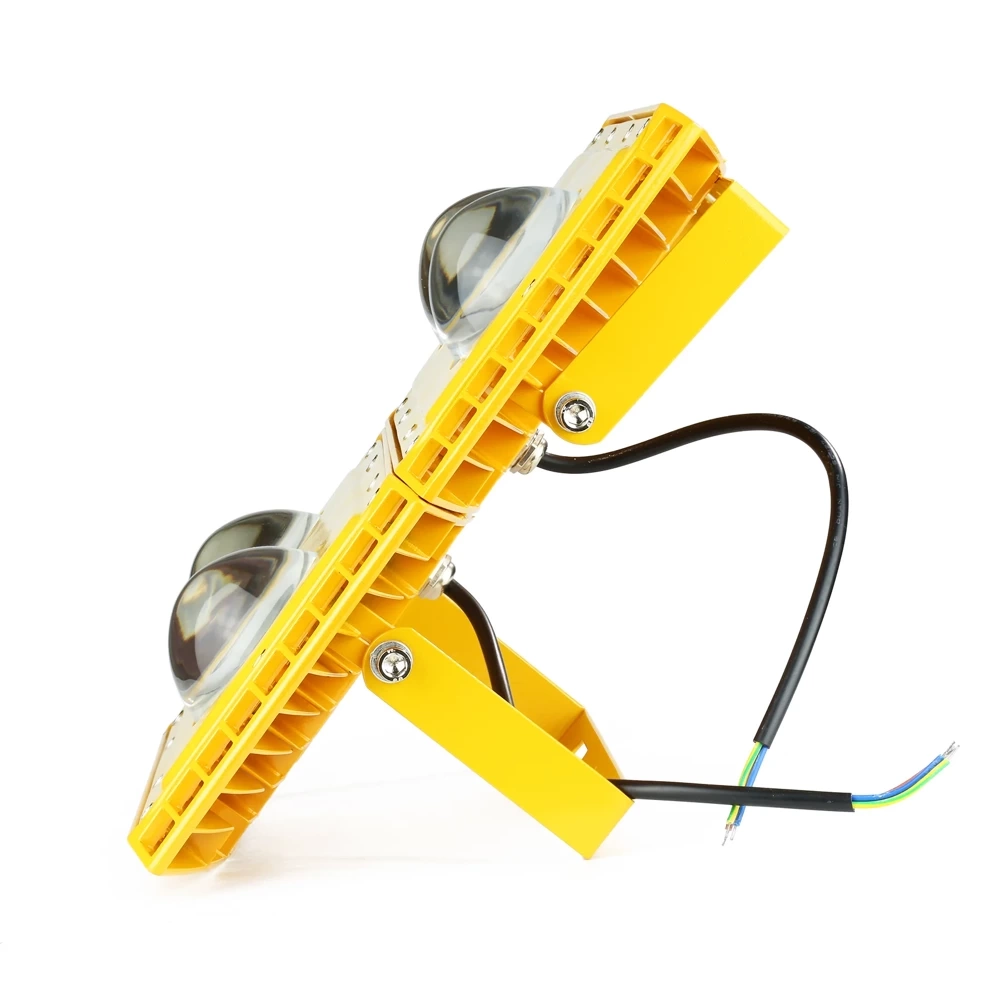

Adjustable handle
Explosion-proof lighting plays a key role wherever explosive dust, liquids or gases are produced, transported or processed.
Ex zone lamps enable safe evacuation of the crew in the event of an explosion hazard .
Advantages:
- solid construction
- easy and quick installation
- very high resistance of the lamp to industrial corrosive environments
- high luminous efficiency
- long service life
- resistance to UV radiation
- very high tightness

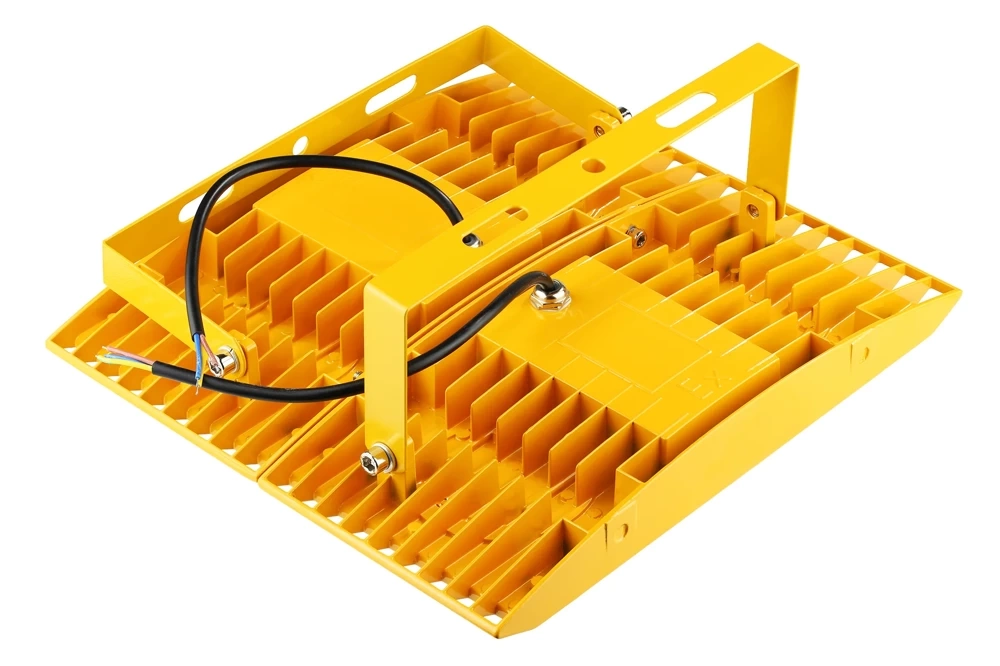

- large heat dissipation surface
The floodlight has been designed and manufactured in such a way that: prevent sparks and explosive gases, dust, vapors Meets safety requirements.
The lamp has a unique feature mechanical strength and thermal resistance . It is made of highly explosion-proof materials. Dust and moisture-proof, explosion-proof fixture is designed to operate even in extremely difficult conditions.
In the event of an explosion, a lamp with an explosion-proof housing is designed to retain its shape and functionality, thus exchange like this explosion-proof lighting will not be necessary .
The explosion-proof floodlight is perfect for, among others: In:
Challenging work environments with high dust, moisture and risk of explosion of gases, vapors and flammable mists.
Industrial factories, in which there are technological lines of various industries, including chemical, petroleum, petrochemical, gas, spirits, energy, wood, paper and gas distribution.
Processing plants loose mining, construction and food materials.
Rooms where there is a risk of water splashes, such as baths, boiler rooms, hydroelectric stations, garages and warehouses in open and closed areas.
flow sights, bioreactors, mixers, pipelines, insides of pressure vessels and other closed containers in potentially explosive environments.
Explosion-proof lamps for Ex zones are an important element of ensuring safety in places where there is a risk of explosion, enabling the lighting of these spaces without the risk of causing a fire or explosion.
Specification:
- Power: 20 0 W
- LED light beam power: 20,000 lumens

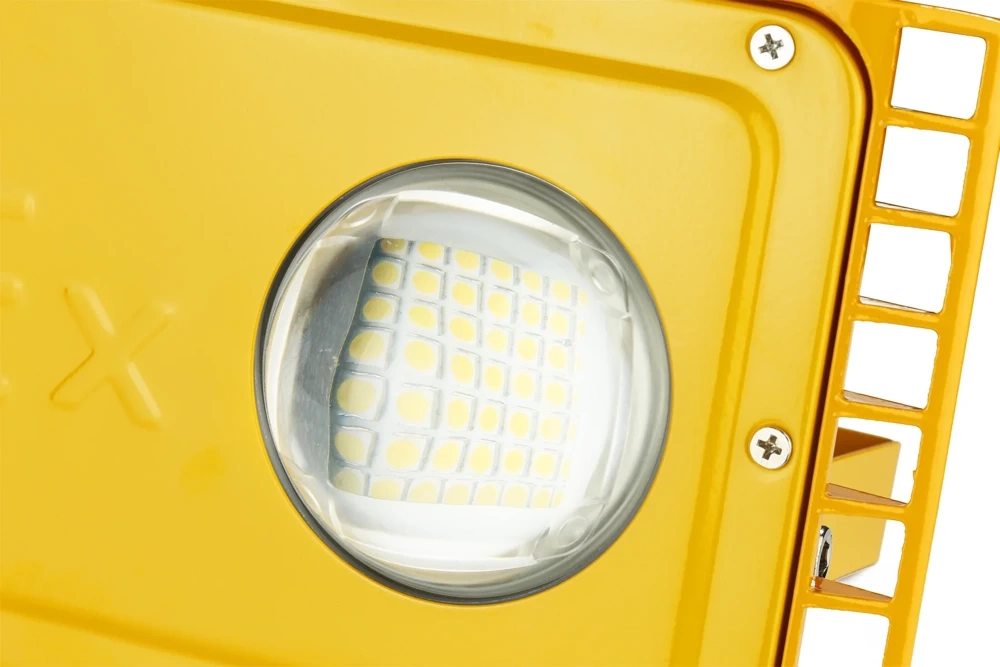

- Light source: 196 3030SMD LEDs
- Light distribution type: diffused light
- Light incidence angle: 120 degrees.
- Color: Diamond White - cold white
- Housing type: aluminum , hermetized
- Protection level: IP65 - waterproof, protection against dust, sand and dust
- Service life: up to 50,000 hours
- Power supply: 220V - 240V @ 50-60Hz
- Operating range: from -40 degrees C to +70 degrees C
- Weight: 2530 g
