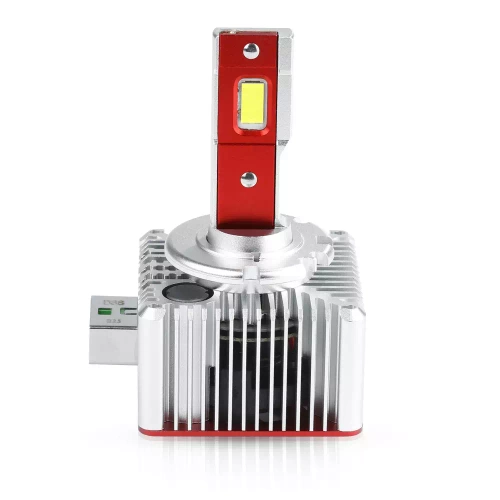

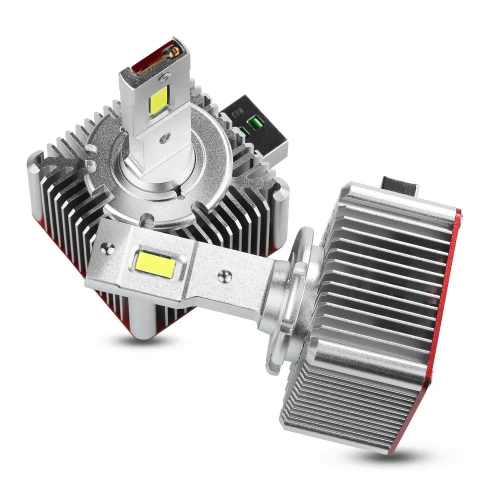

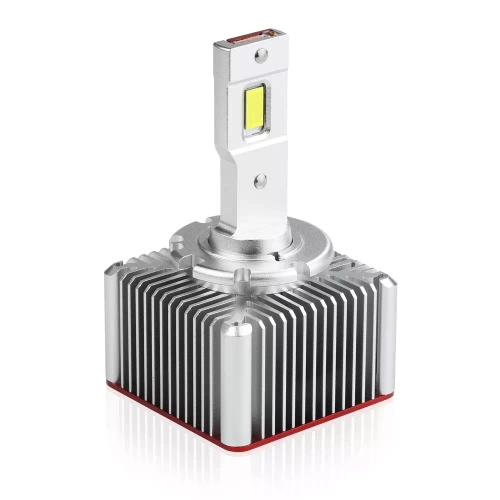

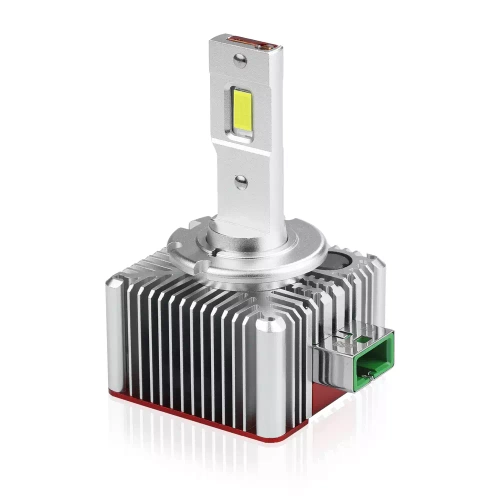

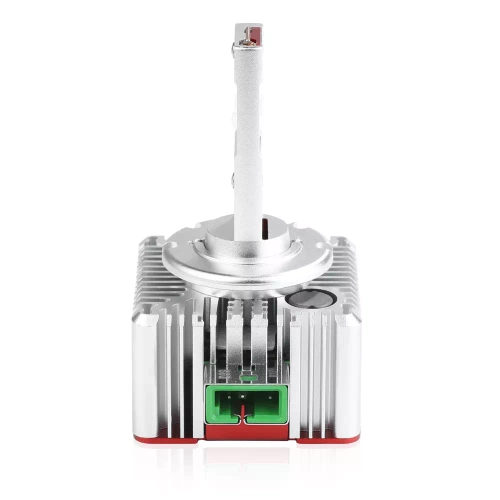

M30-D3 | A set of D3S CSP LED bulbs | Xenon bulb retrofits | 32000lm 6000K
- - 1:1 compatibility with factory bulbs
- - +380% more light than traditional xenon bulbs
- - Excellent visibility and modern appearance of the vehicle
M30 D3S CSP LED bulbs | 32,000lm | 6000K
Compact design and 1:1 compatibility with factory filaments make it M30 retrofits, are the easiest type solution Plug&Play for retrofitting xenon car headlights. Thanks super strong and the most modern bulb LEDs provide up to +380% more light. The color temperature of 6000K guarantees excellent visibility and a stylish and modern look vehicle. With cutting-edge technology and smart design, bulbs are the perfect solution, To see more and further and notice obstacles faster.
Construction made of aviation aluminum 6063 and the highest quality LEDs provide very long and trouble-free life bulbs, allowing you to forget about xenon bulbs burning out every now and then.

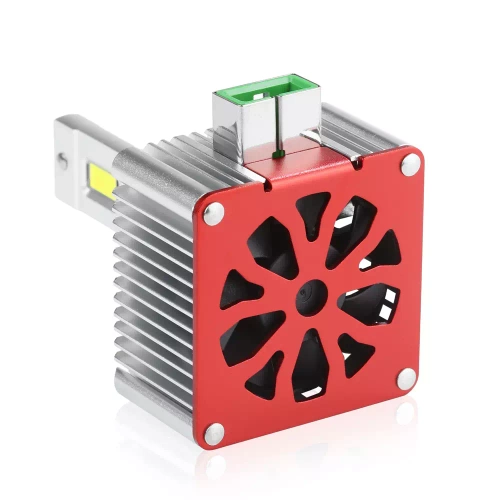

Used in light bulbs active cooling and copper pads under the diodes allow the highest heat dissipation efficiency. Thanks to a quiet and efficient fan operating at a rotational speed of up to 9000 revolutions per minute and a large heat sink area, powerful CSP diodes have a longer lifespan.
CSP diodes they are characterized by the complete use of the surface of the diode for lighting. They have no rims, white epoxy substrate or lenses. Thanks to this, they are 100% miniaturization of the light source . The size and location of the CSP LEDs used in the M30 retrofits are identical to the light point of xenon bulbs. In addition, thanks to the technologies used, the bulbs allow you to achieve excellent cut-off on the chiaroscuro line and very good optics.
Characteristic:
- Plug & Play - fit 1:1 in place of xenon bulbs
- Immediate start
- Resistant to frequent switching on and off
- Perfect, diamond white with a temperature of 6000 K
- Excellent luminous flux
- Optimized light distribution
- A focused beam of light
- Thermally enhanced active cooling for longer LED life
- High durability and performance
- Top quality materials
- Lower energy consumption compared to xenon bulbs
- Stylish and modern look of the headlights
M30 D3S LED bulbs have a LED chip on both sides, consisting of 15 composite diodes, at the same height as the light point in xenon bulbs, thanks to which they provide optimal geometry lights, perfect line cut chiaroscuro and 360° light distribution.
Technical Specifications:
- Model: Set of M30 LED D3S CSP LED bulbs
- Number of LED bulbs: 2
- Number of diodes: 2x 15 LED CSP chip
- Light intensity: 32000lm
- Total lighting power: 2x 35W
- Tightness class: IP68
- Supply voltage: 400V - 25kV
- Light color: snow white 6000K
- Bulb replacement: D3S
- CE, RoHS certification
The bulbs have built-in CAN-BUS filters, thanks to which they do not cause errors on the on-board computer (despite this, some modern cars with very sensitive sensors may cause the error of a burnt bulb to be displayed).
