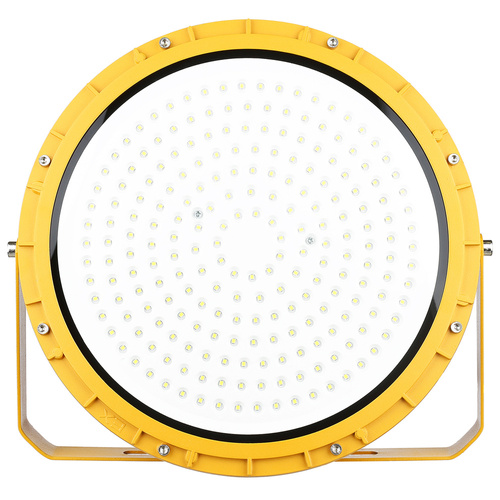

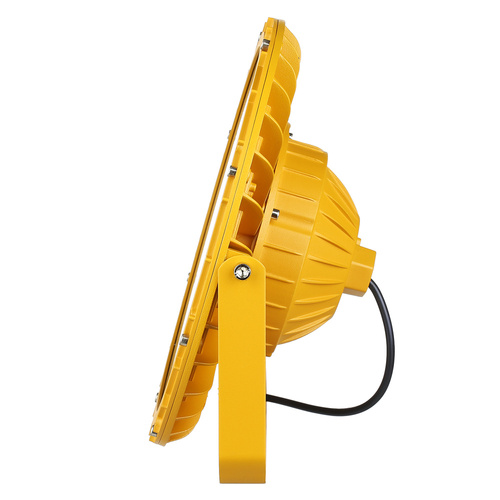

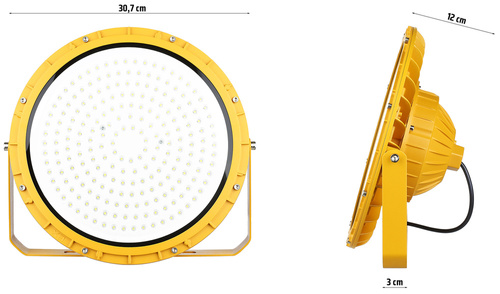

EX 200 W EX-PROOF LED FLOODLIGHT

The EX floodlight is a lamp designed to work in zone 1, 21, where there is a risk of explosion of gases, vapors and mists of flammable liquids with air, as well as dust and combustible fibres.

• Housing made of aluminum
• lampshade with tempered glass
• Tightness class IP65
• Impact resistant and scratches

Explosion-proof lighting plays a key role wherever explosive dusts, liquids or gases are produced, transported or processed.

Lamps for the Ex zone enable safe evacuation of the crew in the event of an explosion hazard .

Advantages:

• solid construction
• easy and quick assembly
• very high lamp resistance to industrial corrosive environment
• high luminous efficiency
• long service life
• resistance to UV radiation
• very high tightness

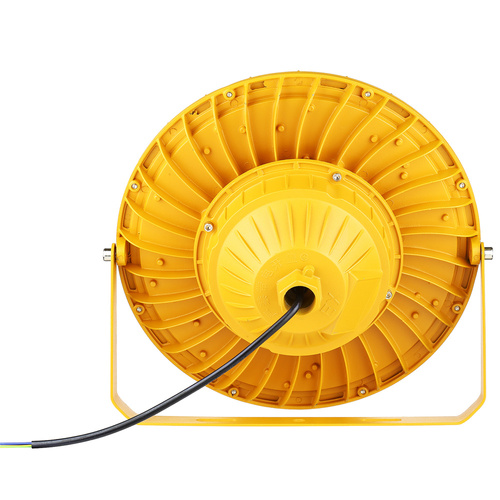

• large heat dissipation surface

The floodlight has been designed and manufactured in such a way that prevent sparks and explosion gases, dusts, vapours. Meets safety requirements.

The lamp has a unique mechanical strength and thermal resistance . It is made of materials characterized by high explosion resistance. Dust and moisture resistant explosion-proof luminaire is designed to operate even in extremely difficult conditions.

In the event of an explosion, the lamp with an explosion-proof fitting is designed to maintain its shape and functionality, which is why exchange such explosion-proof lighting will not be necessary .

Explosion-proof floodlight is perfect for e.g. In:

• Tough working environments with high dustiness, moisture, the risk of explosion of gases, vapors and flammable mists.
• Industrial factories, with workstation technological lines of various industries, including chemical, oil, petrochemical, gas, spirits, energy, wood, paper and gas distribution.
• Processing plants bulk mining, construction and food materials.
• Rooms where there is a risk of splashing water, such as baths, boiler rooms, hydro-centres, garages and warehouses in open and closed areas.
• Flow Visors, bioreactors, mixers, pipelines, interiors of pressure vessels and other closed containers in potentially explosive environments.

Explosion-proof lamps for the Ex zone they are an important element of ensuring safety in places where there is a risk of explosion, enabling the lighting of these spaces without the risk of causing a fire or explosion.

Specification:

• Power: 200W _
• LED beam power: 20000 lumens

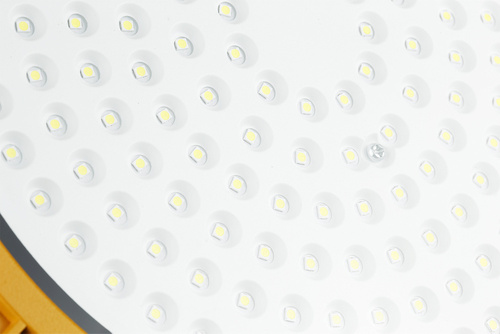

• Light source: 480 LEDs 2835 Epistar High Lux
• Light distribution type: diffused light
• Lighting angle: 120 degrees
• Colour: Diamond White - cold white
• Housing type: aluminum , hermetic
• Protection level: IP65 - water resistance, protection against dust, sand and dust
• Service life: up to 50,000 hours
• Power supply: 220V - 240V @ 50-60Hz
• Operating range: from -40 degrees C to +70 degrees C
• Weight : 2755g
