Track lighting kit
A complete set including:

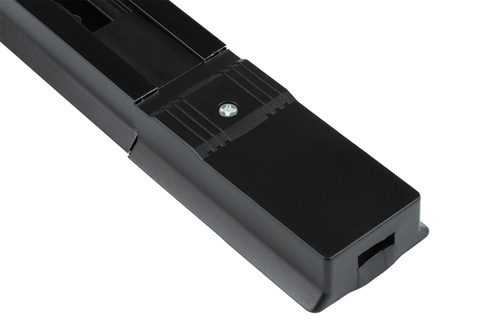

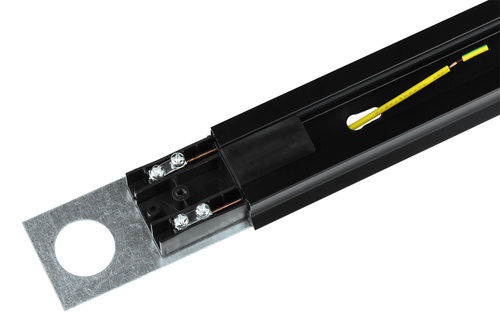

- 1 m long busbar with an end cap and a connection element
- 3x Luminaire / reflector with GU10 base
- Mounting pins
The set is sold without bulbs.
Rail lighting allows you to power many lamps with one line, and the assembly itself is very simple, fast and intuitive.
It is a modern and practical solution that will meet the expectations of even the most demanding customers. It works well not only as lighting in the home, office or restaurant . Very often it is the main lighting in a bedroom, living room, living room or corridor - perfectly replacing all other light sources. It is mounted as additional interior lighting, which is to help create the right atmosphere by illuminating, for example, pictures or tables, or to facilitate work (e.g. in the kitchen). Such lighting is also used in stores, where spotlights display the goods more effectively and efficiently.

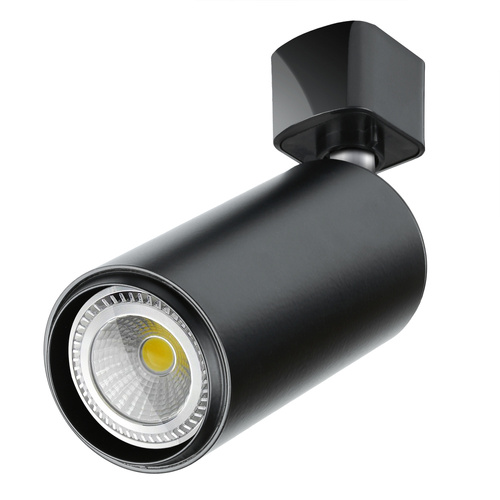

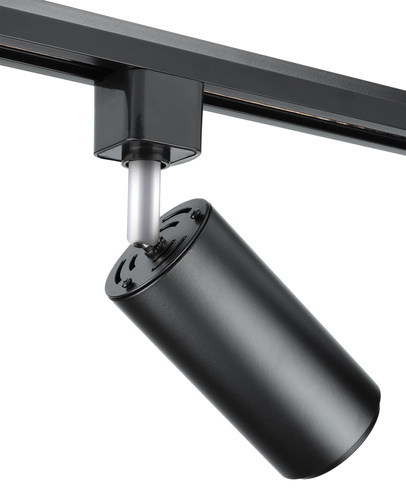

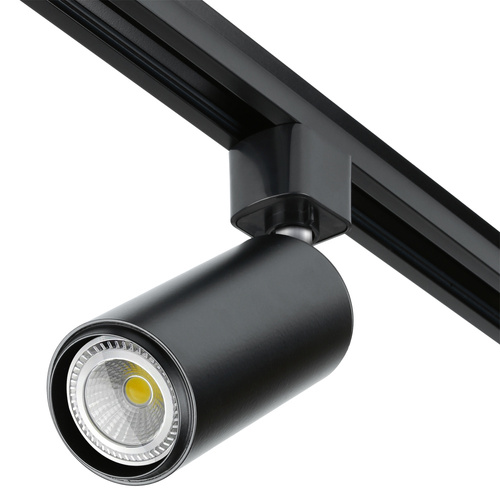

Track reflector
- the standard GU10 base makes it easy to choose the right light source
- the possibility of replacing the light source
- simple assembly and connection to the track

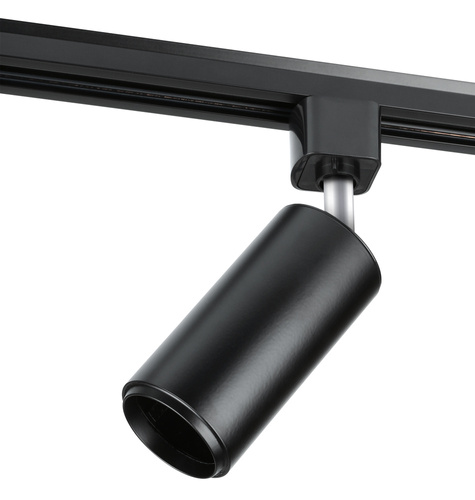

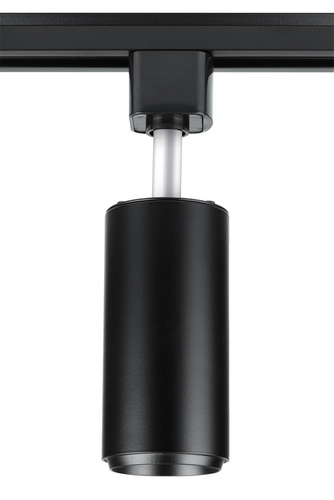

Spotlight of SPOT type designed for installation in single-phase track systems. Thanks to the free adjustment in two planes, we can adjust the angle of incidence of light to our preferences:
- Rotation in the range of 0 - 330 °
- Tilt from 0 - 90 °
The lamp housing has a modern look and is made entirely of powder coated aluminum. This guarantees durability. The rear part of the reflector housing has vents, thanks to which the bulb does not overheat , which significantly affects its life.
The lamp can be attached anywhere on the rail. The assembly is very intuitive. It is enough to turn the reflector by 90 ° so that the metal plates connect with the copper wires in the rail.
Specification:
- Cap: GU10
- Maximum power: 35 W
- Number of phases : 1
- Power supply: 220-240V AC 50 / 60Hz
- Adjustment: 0 - 330 ° rotation, 0 - 90 ° tilt
- Housing color: matte black

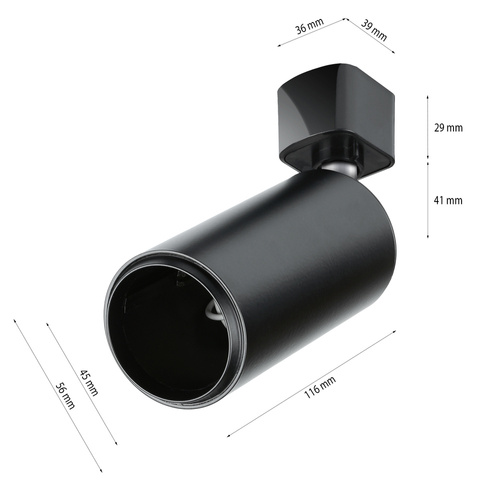

- Dimensions: 56 x 195 mm
- Material: aluminum, plastic, copper

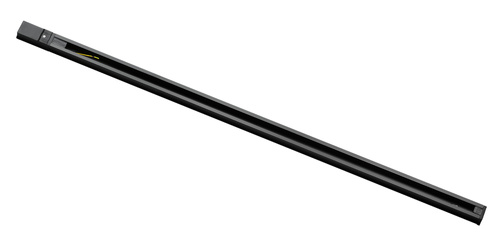

Single-phase lighting rail 1 meter
It allows you to create your own individual rail lighting project . By combining it with spotlights, we get an effective ceiling lamp.
Easy to install , made of aluminum , it is distinguished by durability, universal use and elegant appearance.

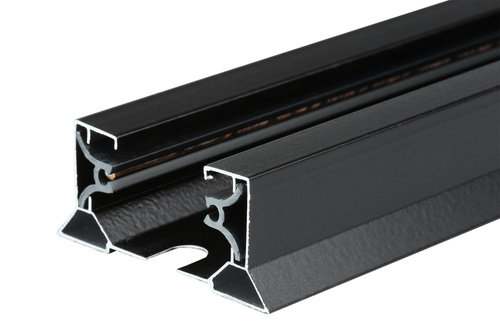

The main function of the rail is to transfer power to all reflectors installed in it. This is possible thanks to the copper wires inside the profile placed in insulating plastic guides. This allows you to move, as well as add and remove more lamps.
The rail is single-phase, which means all lamps will light up simultaneously.
The rail can be freely cut , creating shorter sections if necessary.
With the help of special connectors, we can also extend it and expand the entire track lighting system. Straight and angled connectors are available.
Specification:
- Number of phases : 1
- Power supply: 220-240V AC 50 / 60Hz
- Color: matte black
- Dimensions: 977 x 38 x 17 mm
- Material: aluminum, plastic, copper
- Surface mounting
- The set includes mounting pins
