TR02 | Digital tread depth gauge with LCD display | LR44

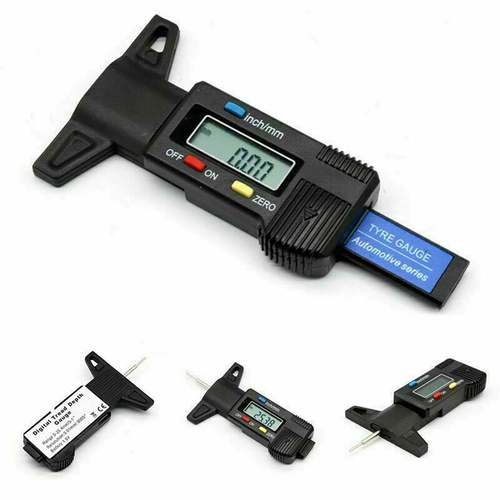

Digital tire tread depth gauge with LCD display

Indispensable in every car workshop, vulcanization, as well as in a home garage.

Indispensable when assessing / measuring the wear of tires, discs or brake pads.

The solid structure and high quality of workmanship give a sense of confidence while taking the measurement, and the use and readable LCD screen makes it easy to read.

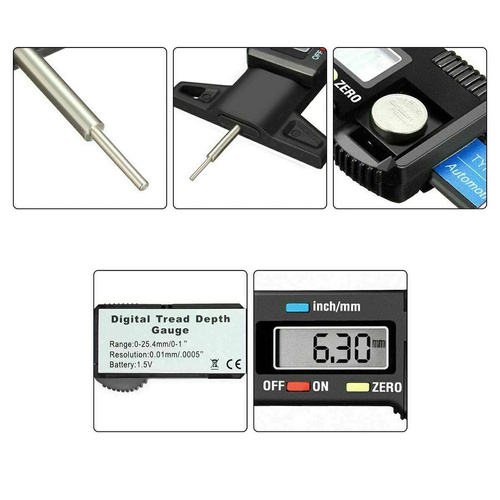

The meter is equipped with 3 operating buttons:

• mm / inch - allows you to change the measurement unit. It is possible to measure in millimeters or inches
• ON / OFF - to switch the device on and off
• ZERO - to zero the meter before the measurement

The meter has an automatic shutdown option to save energy.

It is powered by a 1.5V LR44 battery. Included is a battery that is already installed in the device.

Workshop toolkit with a wide range of applications

Thanks to the digital meter, we can measure in the range of 0 - 25.4 mm / 0 - 1 in:

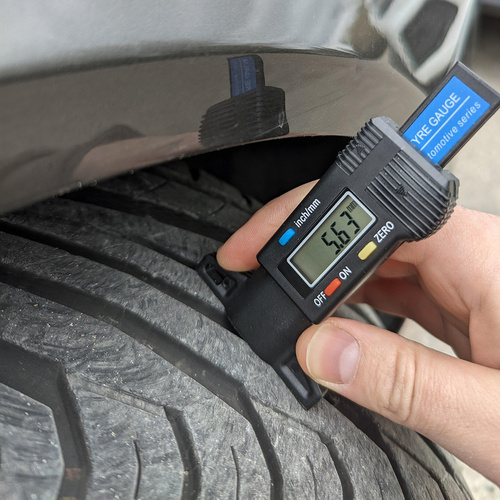

• tire tread height
• the thickness of the brake discs
• the thickness of the brake linings

with an accuracy of 0.01 mm / 0.0005 in.

Take care of safety

Pursuant to the ordinance of the Minister of Infrastructure of 2003 on the technical conditions of vehicles and the scope of their equipment, the lowest permissible tread height is 1.6 mm for passenger cars and 3 mm for buses.

The tread depth has a real impact on the amount of water / snow drained from under the wheels, therefore it is assumed that the minimum tread height for summer tires is 3 mm , and for winter tires 4 mm .

The tread thickness gauge allows you to quickly and accurately check the technical condition of tires, which translates into safety.

Specification

• Measurement range : 0 - 25.4 mm / 0 - 1 in
• Measurement accuracy: +/- 0.01 mm / 0.0005 in
• Measurement units: millimeters or inches
• Material: ABS
• Power supply: 1.5 V LR44 battery (included)
• Weight: 39 g
• Dimensions: 84 x 60 x 13 mm
