TR01 | Tread depth gauge

Simple tire tread depth gauge

Indispensable in every car workshop, vulcanization, as well as in a home garage.

Indispensable when assessing / measuring tire wear.

The simple structure makes the measurement extremely easy to perform. Thanks to the readable scale and the non- slip surface of the measuring cup , the result is accurate and clearly visible .

The dimensions will allow you to always have it with you, the lack of a battery guarantees full readiness in all conditions, and quick and easy operation makes the measurement easy for every person.

The device can be used in the range of 0 - 20 mm with an accuracy of 1 mm.

Take care of safety

Pursuant to the ordinance of the Minister of Infrastructure of 2003 on the technical conditions of vehicles and the scope of their equipment, the lowest permissible tread height is 1.6 mm for passenger cars and 3 mm for buses.

The tread depth has a real impact on the amount of water / snow drained from under the wheels, therefore it is assumed that the minimum tread height for summer tires is 3 mm , and for winter tires 4 mm .

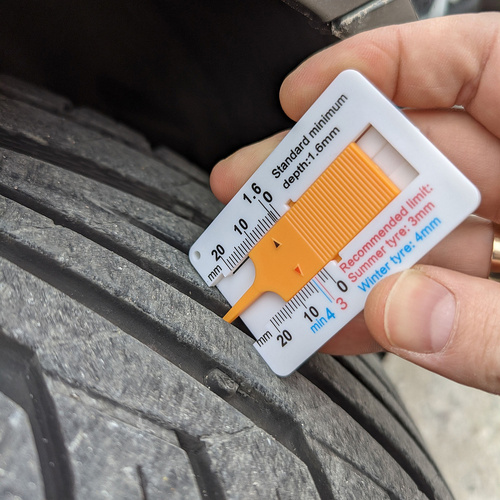

The tread thickness gauge allows you to quickly and easily check the technical condition of tires, which translates into safety.

Specification

• Measurement range : 0 - 20 mm
• Measurement accuracy: +/- 1 mm
• Measurement units: millimeters
• Material: ABS
• Weight: 10 g

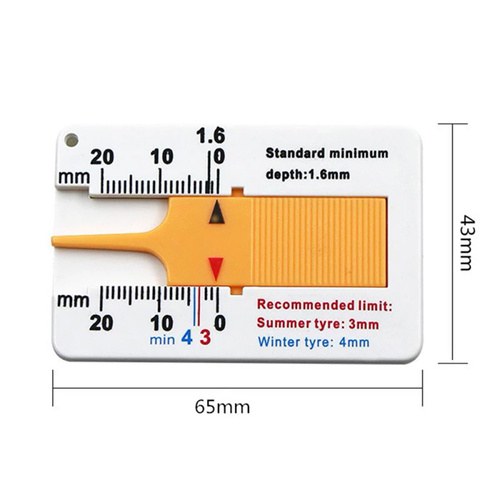

• Dimensions: 65 x 43 x 5 mm
