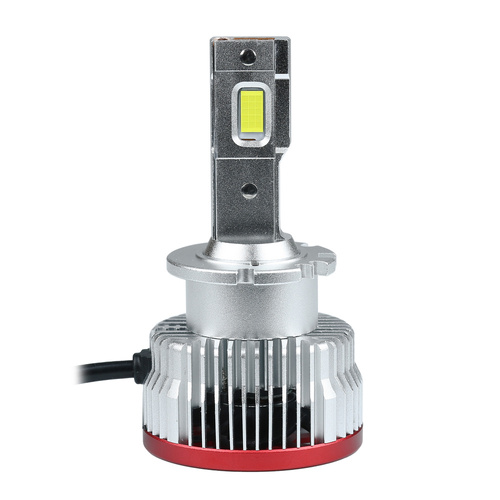

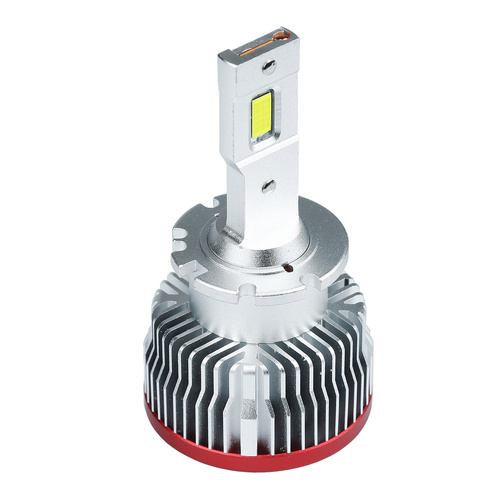

M10-D2S | Set of D2S D2R CSP LED bulbs | Xenon bulb retrofits | 32000lm 6000K

M10 D2S/R CSP LED bulbs | 32,000lm | 6000K

The compact design and 1:1 compatibility with factory bulbs make M10 retrofits the easiest Plug & Play solution for retrofitting xenon car headlights. Thanks to super -powerful and state-of-the -art LEDs, the bulbs provide up to +380% more light. The color temperature of 6000K guarantees excellent visibility and a stylish and modern appearance of the vehicle. Thanks to cutting-edge technology and smart design, the bulbs are the perfect solution to see more and notice obstacles further and faster.

The construction is made of aviation aluminum 6063 and the highest quality LED diodes ensure a very long and trouble-free life of the bulbs.

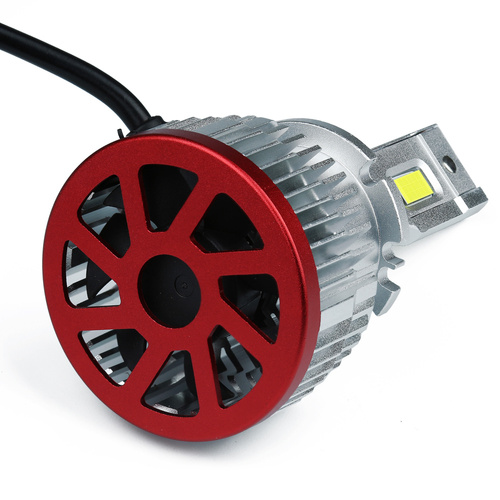

The active cooling used in the bulbs and copper washers allow for the highest efficiency of heat dissipation. Thanks to a quiet and efficient fan operating at a speed of up to 9,000 rpm and a large heat sink area, the powerful CSP diodes have a longer service life.

CSP diodes are characterized by the complete use of the diode surface for lighting. They have no rims, white epoxy substrate or lenses. Thanks to this, they are a 100% miniaturization of the light source . The size and location of the CSP LEDs used in the M10 retrofits are identical to the light point of xenon bulbs. In addition, thanks to the technologies used, the bulbs allow you to achieve a perfect cut-off on the chiaroscuro line and very good optics.

Characteristic:

• Plug & Play - fit 1:1 in place of xenon bulbs
• Immediate start
• Resistant to frequent switching on and off
• Perfect, cool white with a temperature of 6000 K
• Excellent luminous flux
• Optimized light distribution
• A focused beam of light
• Thermally enhanced active cooling for longer LED life
• High durability and performance
• Top quality materials
• Lower energy consumption compared to xenon bulbs
• Stylish and modern look of the headlights

M10 D2S/R LED bulbs have a LED chip consisting of 15 composite diodes on both sides, at the same height as the light point in xenon bulbs, thanks to which they provide optimal lighting geometry , perfect cut-off of chiaroscuro lines and 360° light distribution.

Technical Specifications:

• Model: Set of M10 LED D2S/R CSP LED bulbs
• Number of LED bulbs: 2
• Number of LEDs: 2x 15 LED CSP chip
• Light intensity: 32000lm
• Total lighting power: 2x 35W
• Sealing class: IP65
• Supply voltage: 400V - 25kV
• Light color: snow white 6000K
• Bulb replacement: D2S, D2R
• CE, RoHS certification

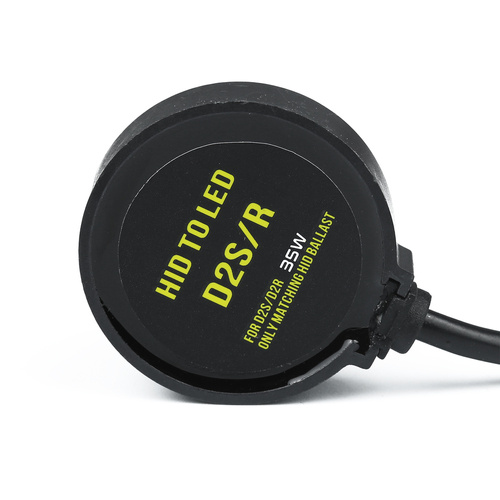

The bulbs have built-in CAN-BUS filters, thanks to which they do not cause errors on the on-board computer (despite this, some modern cars with very sensitive sensors may cause the error of a burnt bulb to be displayed).
