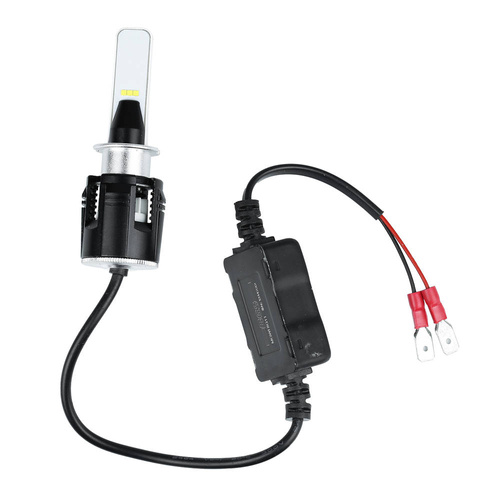

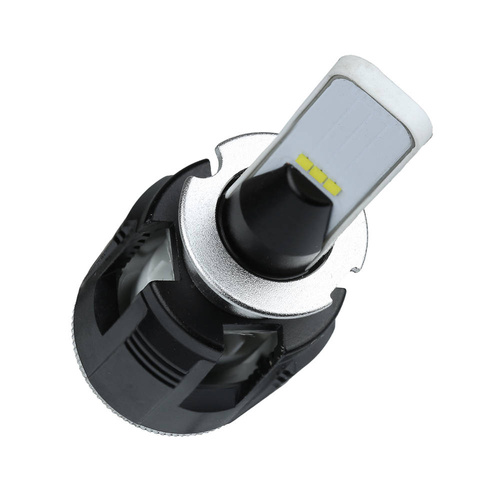

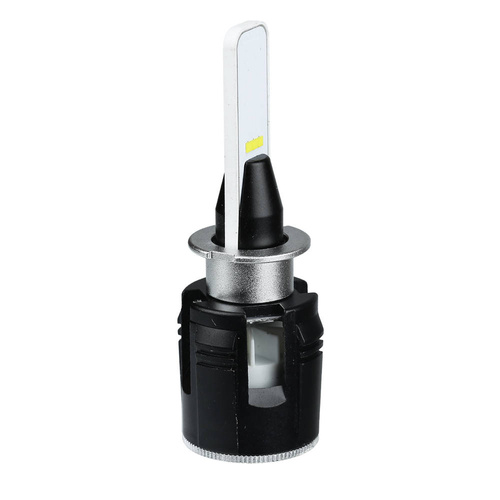

Set of LED bulbs H3 B6 Seoul SZ8
- - High efficiency of Seoul Y19 CSP LED chips
- - Almost perfect light distribution even in a lens-free lamp
- - Bulbs do not blind oncoming drivers
- - 100% of power transferred onto the road ahead of the vehicle
Due to the high efficiency of CSP LEDs, we recommend using bulbs as low beam and/or high beam in lamps:
- reflectors
- lenticular
Minimized diodes and perfect proportions of the dimensions of SLIM LED bulbs ensure almost perfect light distribution even in a lensless lamp! Proper focusing of the light beam is very important because:
- While driving, the bulbs do not blind oncoming drivers
- 100% of the bulb's power is transferred to the road in front of the vehicle, not to the roadside, directly in front of the hood or above the road surface
- There is no need to readjust the low beam and/or high beam bulbs
- We don't have to worry about vehicle inspection
Technical Specifications:
- Model: LED low/high beam lights H3 B5 Slim
- Number of LED bulbs: 2
- Number of LEDs: 6 / bulb
- LED technology: Seoul CSP Y19
- Total power consumption: 60W
- Splash resistance: IP67
- Supply voltage: 12V - 24V
- Light color: snow-white 6000k
- Certificate: CE, RoHS compliant
- Bulb replacement: H1
- Luminance: 9600 lm
The bulbs have built-in CAN-BUS filters, thanks to which NO cause errors on the on-board computer.
The set includes:
- Two H3 B5 SLIM LED bulbs with CSP Seoul Y19 diodes
- Packaging (perfect for a gift)
Quick installation instructions for the H3 LED bulb:
Step 1-2 : Unplug the plate securing the bulb in the H3 socket and remove the old bulb.
Step 3 : Remove the adapter from the H3 LED bulb. We put it in place of the bulb and then fasten the mounting plate.
Step 4 : Insert the bulb into the previously attached adapter. We connect the bulb to the H3 cube. It is best to place the bulb power cable with the H3 connector inside the lamp, between the housing and the reflector. The bulb can be rotated 360° to find the appropriate angle of incidence of light on the illuminated area in front of the vehicle.
Step 5 : Put a cover on the housing to protect the interior of the lamp against moisture.
Despite the small amount of space in the tested lamp (Fiat Punto II), after installing the H3 LED, it was possible to close the cover and at the same time seal the interior of the lamp. Before purchasing, we recommend checking whether the target lamp has enough space between the bulb flange and the cover. In our lamp, the distance between the bulb and the edge of the housing on which the cover is slid is 32 mm.
