Set of LED dipped or main beam lights H3 F6 DOB | Driver-On-Board diodes

Over 55% more light than from regular bulbs!

Due to the very high light efficiency of the set, the bulbs can be used as a replacement for lights:

• passing beam
• road

Advantages of LED DOB technology as the main car lighting:

• Extremely long service life
• Increased light efficiency
• Small bulb dimensions

DOB (Driver On Board) is a technology for directly powering a light module with LEDs, in which the power supply system and the LED light source are located on one board, without using an additional power supply. The growing popularity of this solution is mainly due to the increased durability and better light efficiency. Moreover, the dimensions of the bulb are smaller than other LED bulbs for use in the main car lighting.

Main features of LED DOB technology:

• Compact design
• More efficient cooling
• More effective use of elements responsible for luminous efficiency
• Surge protection
• Thermal protection

As much as 56% more light than standard bulbs!

Technical Specifications:

• Model: LED low beam headlights H3 F6 DOB
• Number of LED bulbs: 2
• Number of LEDs: 2 / bulb
• LED technology: DOB - Driver On Board
• Total power consumption: 50W
• Splash resistance: IP67
• Supply voltage: 12V
• Light color: snow-white 6500k
• Certificate: CE, RoHS compliant
• Bulb replacement: H3

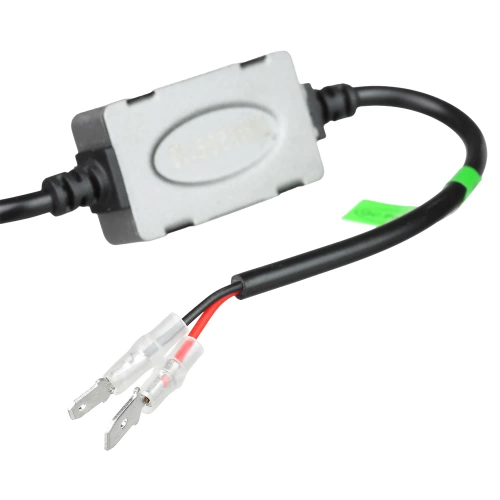

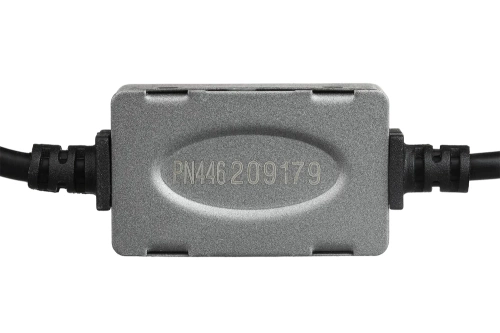

The bulbs have built-in CAN-BUS filters, so they do not cause errors on the on-board computer.

H3 F6 DOB LED bulbs are equipped with a removable collar, which makes it easier to install the bulbs in lamps that are difficult to access. Moreover, thanks to the ability to rotate the adapter 360° relative to the bulb axis, you can fully adjust the angle of incidence of the light coming from the diodes onto the reflector.

Thanks to their small size, F6 DOB LED bulbs are compatible with almost every car lamp.

The use of DOB diodes allowed the total height of the bulb to be reduced to 70 mm , and the radiator itself to 20 mm . Few commercially available bulbs can boast such compact dimensions as LED F6.

Efficiency of H3 F6 DOB LED bulbs:

H3 F6 DOB LED bulbs emit over 55% more light compared to regular bulbs. Comparing efficiency of H3 bulbs used in car headlights, we used the same lens settings , the same 14V voltage and the same reflector lamp (Fiat Punto II, left side, without lens).

The light beam from H3 F6 DOB LED bulbs is characterized by good light cut-off, high luminance and a strong, white light color even in a reflector lamp.

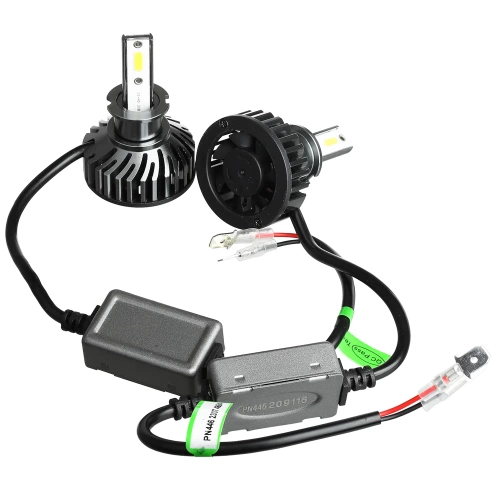

The set includes:

• Two H3 F6 LED bulbs with DOB diodes
• Packaging (perfect for a gift)
