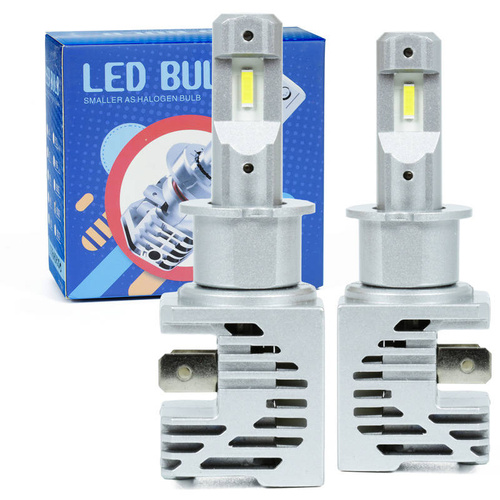

H3 LED bulb set ZES M4 CR | 4726 TrueLM

H3 M4 LED bulb kit | Passive cooling | 4726 TrueLM | 50W | 12V and 24V

The latest generation of LED bulbs as the main lighting in a car

• A replacement for ordinary H3 bulbs
• Perfect for low and high beam lights

Thanks to the use of modern LED CR high-density light bulb LED M4 has exemplary proportions , similar to those in classic tungsten bulbs.

Compact design - bulbs do not require connection of additional modules and wiring

Passive thermal control light bulbs makes. that cooling system incandescent lamps is trouble-free

Note: The specified power of the light beam is the result of measurements in the photometric sphere. More information below.

Incandescent light efficiency discrepancy given by producers and sellers has mobilized us to showcase the efficiency of incandescent lamps at the most fair form , that is comparison of the light power of the LED M4 bulb and tungsten, classical H3 bulbs for dipped beam .

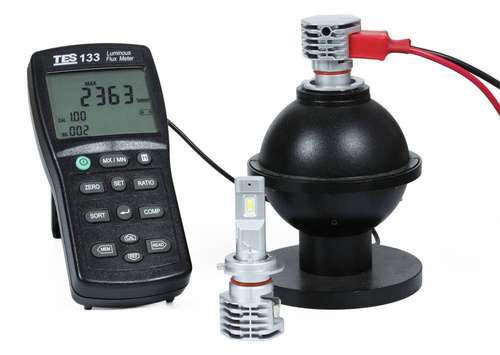

The actual light output of the H3 M4 LED bulb: 2363 lm

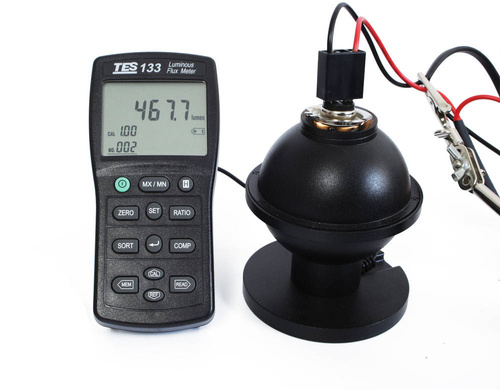

The actual light output of a classic bulb is 467 lm

Summary:

• bulb LED M4 is 400% stronger from the classic bulb to the dipped beam
• bulb LED M4 has 60% lower demand electric

Thanks to the use of modern LED CR high-density LED bulbs M4 exemplary proportions , similar to those in classic tungsten bulbs.

Since regular car headlights are designed to provide good light / shadow cut-off when using tungsten bulbs, the bulb The LED M4 has been constructed in such a way that the light point is placed exactly in the same place as in the case of a classic light bulb.

Technical Specifications:

• Model: Set of 2 H3 M4 bulbs
• Number of LEDs: 6 / bulb
• LED type: ZES Chip
• Beam power: 2353 real lumens / bulb
• Supply voltage: 12V - 24V
• Power consumption: 1.4A @ 13V
• Light power: 25W / bulb, equivalent to a 150W incandescent bulb
• Light color: cold white (6500k)
• Bulb replacement: H3
• CAN-BUS filters: Lack. Installing these LED bulbs in modern cars may cause the error "burnt bulb" to be displayed on the on-board computer. The error can be cleared thanks to the LED H3 CAN-BUS filters. We offer filters at our other auctions.

Plug & Play installation - consists in disconnecting and disconnecting the old bulb from the cube, and inserting and connecting a new H3 LED bulb

The kit includes:

• Set of LED bulbs H3 M4 (2 pcs)
• 2 extra cables for use with custom H3 plugs in the car
• User manual
• Package

Application of H3 bulbs:

• bulbs in the fog lamps
• low beam bulbs (short)
• bulbs in high beam (long)

The H3 M4 bulb is a small bulb model made in LED technology, the dimensions of which are similar to those of ordinary tungsten bulbs.

Hence, the LED H3 M4 bulb, unlike other H3 LED bulbs for low / high beam, can be successfully installed:

1. In the lamp, in which the bulb is mounted via an adapter.
2. In such a way that the lid protecting the inside of the lamp against moisture is fastened in place.
3. Wherever it is not possible to install other LED substitutes.
