H1 C6 COB BridgeLUX ™ 7,600 lm LED bulb kit

LED H1 Chip-On-Board COB BridgeLUX ™ KIT 7,600 lm

A replacement for regular H1 bulbs (low beam, high beam, fog light).

Technical Specifications:

• Bulb Mounting Type: H1
• Light beam power: 7,600 lm
• LED type: Bridgelux Chip-On-Board LED
• Power consumption: 72W
• Supply voltage: 12V
• Certificates: CE, RoHS Compliant
• Service life: up to 50,000 hours
• Light color: Xenon White (snow white ~ 6000k)
• CAN-BUS: However, in cars with advanced electronics, these bulbs may cause a burnt bulb error to appear. We recommend purchasing LED CAN-BUS filters with appropriate holders (available in our store).

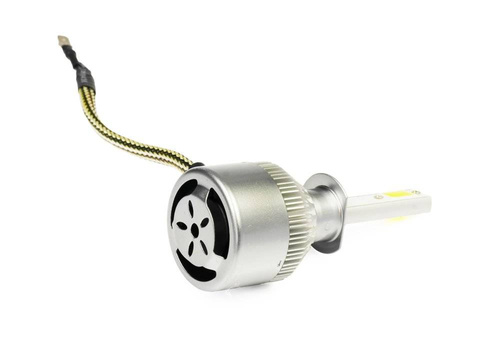

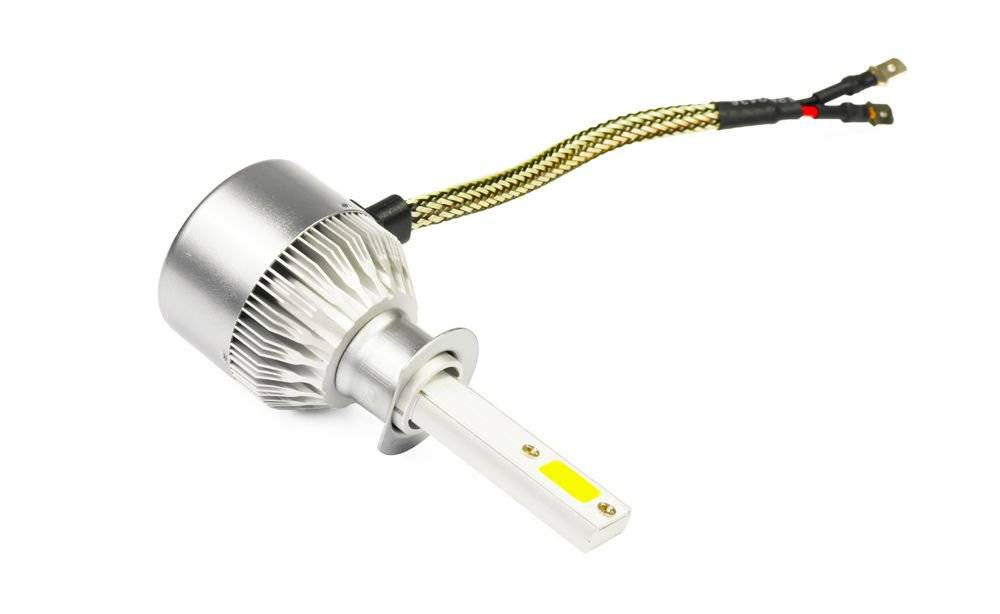

The housing is made of high-quality aluminum that acts as a heat sink. The passive bulb cooling system eliminates the risk of failure of the bulb cooling module, thus ensuring its long life.

Bulbs dimensions:

• Height from attachment to the top of the bulb: 43 mm
• Overall height: 85 mm
• Bulb top width: 12mm / 7mm
• Heatsink diameter: 35 mm

COB LED bulbs have a total power of 72 WAT. One 36-watt light bulb is the equivalent of an ordinary 130 Watt light bulb

Thanks to their small size, the bulbs fit into almost any car lamp!

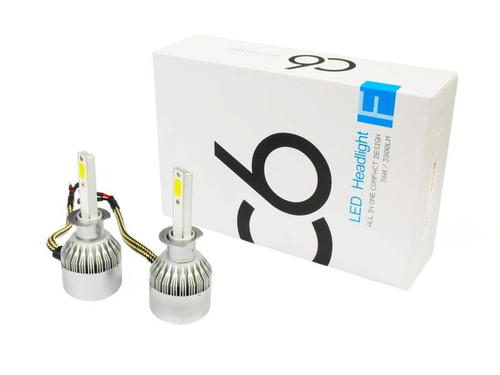

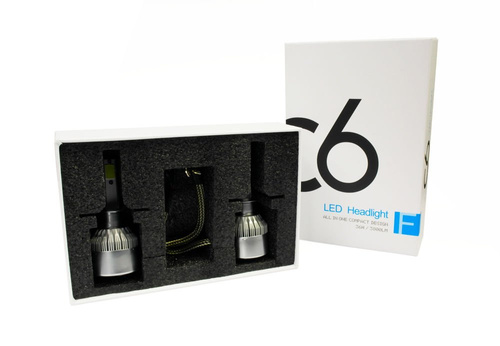

The kit includes:

• Two H1 LED COB bulbs, each 36W / 3800 lm
• Complete wiring
• Illustrated assembly instructions
