H7 X3 LED low beam or high beam kit | LEDs TYPE ASSEMBLY

Due to the high efficiency of ZES LEDs, we recommend the use of bulbs as dipped beam and / or high beam in lamps:

• reflectors
• lenticular

Technical Specifications:

• Model: Dipped beam LED H7 50W ZES 6000lm
• Number of LED bulbs: 2
• Number of LEDs: 6 / bulb
• LED technology: ZES
• Total current consumption: 50W
• Splash Resistant: IP67
• Supply voltage: 12V - 24V
• Light color: snow white 6500k, yellow 3000k, cool white / blue 8000k

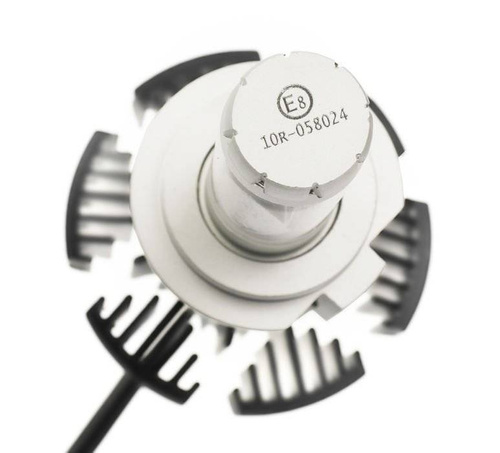

• Approval: E8 10R
• Lamp replacement: H7, H7R, H7M

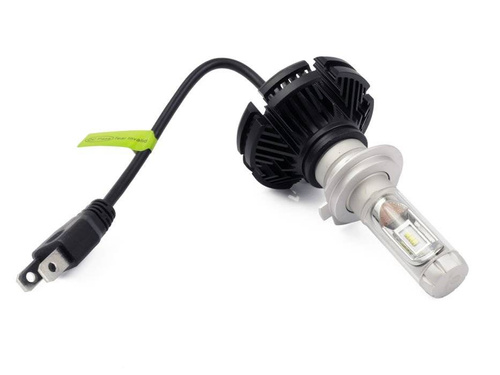

Bulb dimensions:

• Height from attachment to the top of the bulb: 43 mm
• Overall height: 85 mm
• Bulb top diameter: 14 mm

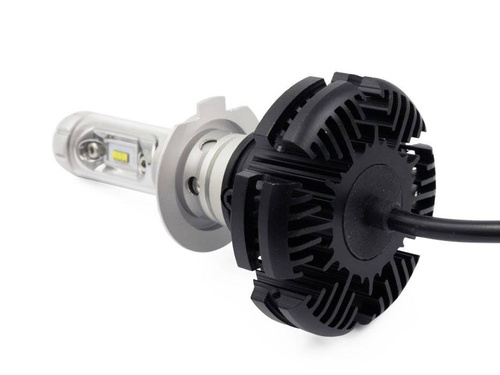

• Heatsink diameter: 35 mm

The bulbs have built-in CAN-BUS filters, so they should not cause errors on the on-board computer. It happens, however, that in cars with extensive electronics, despite the built-in filters, the error appears after installing LED bulbs. For the proper operation of the bulbs, the installation of additional external LED filters with H7 bulb holders will be required. We recommend purchasing a kit with LED filters.

The set includes filters that, when applied to the glass surrounding the LEDs, will change the color of the light coming from the LED bulbs.

The efficiency of LED bulbs H7 X3 ZES

H7 X3 ZES LED bulbs emit more than 130% more light compared to ordinary bulbs. When comparing the efficiency of H7 bulbs used in car headlights, we used the same lens settings , same voltage 14V and the same reflector lamp (Fiat Punto II, left side, without lens).

The beam of light from LED X3 ZES bulbs is characterized by an almost exemplary light cut-off, high luminance and a strong, white color of light even in a reflector lamp.

Due to the very high luminous efficiency of the set, the bulbs can be used as a replacement for low beam and / or high beam. The offered set of H7 ZES LED bulbs significantly improves the visibility of objects in front of the car and the visibility of the car by other road users.

When comparing the efficiency of H7 bulbs used in car headlights, we used the same lens settings , the same voltage 14V, and one reflector (Fiat Punto II, left side, without lens).

The beam of light from LED X3 ZES bulbs is characterized by a visible cut-off, high luminance and a strong, white color of light.

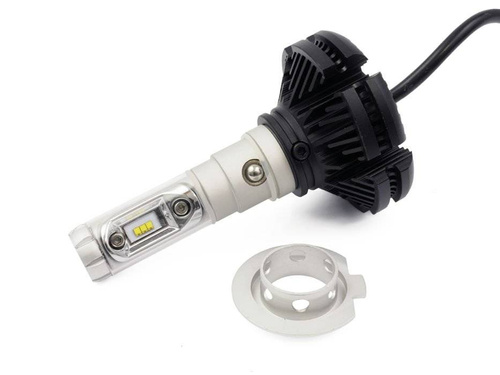

H7 LED ZES bulbs are equipped with a ball mechanism that locks the bulb collar in a given position, as a result of which you can fully adjust the angle of incidence of light emitted by the diodes against the reflector. In addition, a removable collar facilitates assembly light bulbs in lamps that are difficult to access.

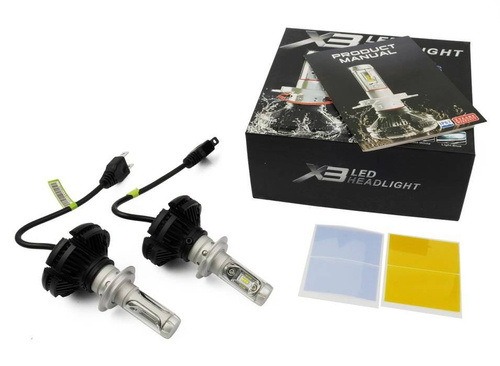

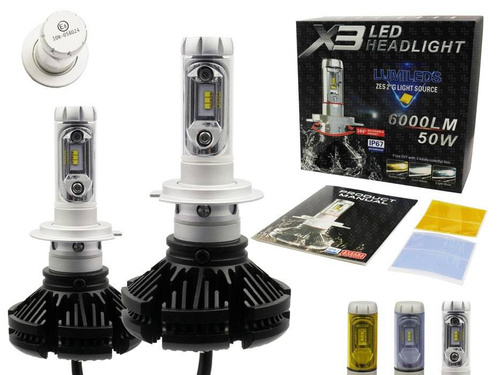

The kit includes:

• Two H7 LED ZES 6000lm bulbs
• Manual - assembly and operating instructions
• 4 filters to change the color of the light
• Packaging (perfect for a gift)
• Warranty: 12 months
• Receipt or VAT invoice (on request)

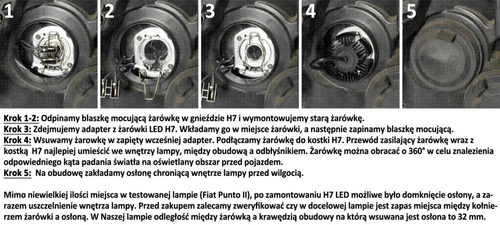

H7 X3 Bulb Quick Installation Guide:

Step 1-2 : Detach the plate holding the bulb in the H7 socket and remove the old bulb.

Step 3 : Remove the adapter from the H7 LED bulb. We put it in the place of the bulb, and then fasten the mounting plate.

Step 4 : Insert the bulb into the previously fastened adapter. We connect the bulb to the H7 cube. The light bulb power cord with the H7 cube is best placed inside the lamp, between the housing and the reflector. The bulb can be rotated 360 ° in order to find the appropriate angle of incidence of light on the illuminated area in front of the vehicle.

Step 5 : Put a cover on the housing to protect the inside of the lamp against moisture.

Despite the small amount of space in the tested lamp (Fiat Punto II), after installing the H7 LED, it was possible to close the cover and seal the inside of the lamp. Before buying, we recommend that you check whether the target lamp has a spare space between the bulb's collar and the cover. In our lamp, the distance between the bulb and the edge of the housing on which the cover is inserted is 32 mm.
