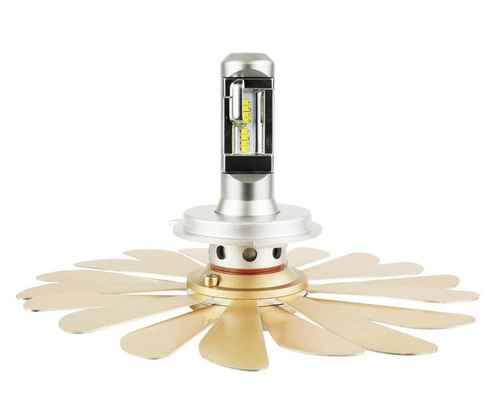

Set of high or low beam LED H4 100W | innovative system of flexible straps for heat dissipation | second generation ZES diodes | CAN-BUS | 12,000 lm

Due to the very high luminous efficiency of the LED H4 ZES 12000 lm set, we recommend using it as:

• bulbs for dipped beam (short) and main beam (high beam)

Technical Specifications:

• Model: High and low beam LED H4 ZES 100W 12000 lm
• Number of LED bulbs: 2
• Number of LEDs: 8 / bulb
• LED diodes: Luxeon ZES 2nd gen
• Total current consumption: 100W
• Supply voltage: 12V - 24V
• Light color: snow white 6000k
• Bulb replacement: H4, HS1, two-filament

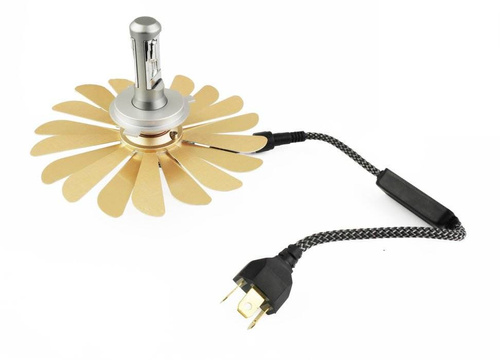

The bulbs have built-in CAN-BUS filters, so they should not cause errors on the on-board computer.

The elimination of a fixed, large heat sink in favor of flexible, thermally conductive strips allowed to reduce the height of the bulb from the flange (mounting) to the cable to the 30 mm

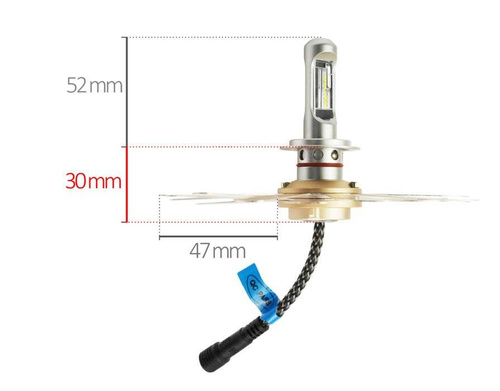

Other bulb dimensions:

• Height from attachment to the top of the bulb: 52 mm
• Overall height: 82 mm
• Bulb top diameter: 15.7 mm
• Straps length: 47 mm

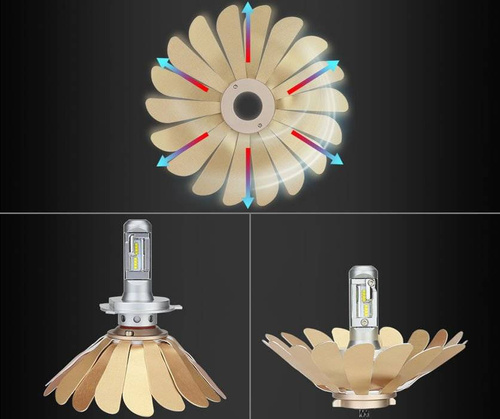

Innovative cooling system for H4 ZES 12,000 lm LED bulbs:

Cooling systems Many H4 replacement models available on the market use a heat sink located behind the bulb flange, the size of which often prevents the sealing cover from being closed on the car lamp housing, and at the same time disqualifies the installation of LED bulbs in a car lamp.

Our innovative cooling system is based on the use of flexible strips made of the highest quality flexible aluminum, which can be freely formed inside the car lamp housing.

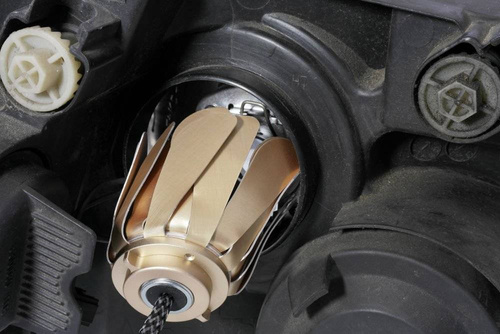

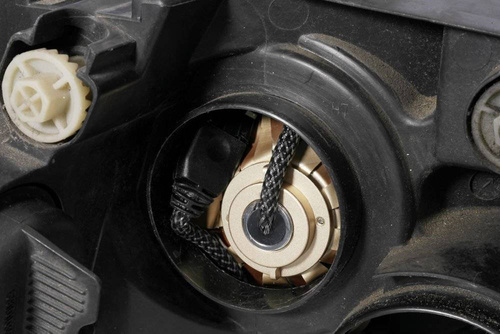

The straps can be successfully placed around the outside of the reflector or car lens, or bent in the opposite direction to the bulb mounting, if there is enough space in the lamp housing.

LED bulbs H4 ZES 12,000 lm are equipped with a ball mechanism that locks the bulb collar in place, making it fully operational adjust the angle of incidence of light emitted by the diodes against the reflector. In addition, a removable collar facilitates assembly light bulbs in lamps that are difficult to access.

One bulb LED H4 ZES 50W is equipped 8 LEDs ZES . When driving with low beam (low beam), the road is illuminated by 4 LEDs located closer to the top of the bulb. Thanks to the use of a light shield, the beam of light from these LEDs will be directed only to the upper sectors of the reflector, which will result in the focus of the light beam on the road, below the level of the bulbs.

The other 4 LEDs are responsible for the main lighting of the vehicle when driving on high beam (high beam). In this case, the light beam is not limited by covers, and both the upper and lower sectors of the reflector will be used to illuminate the area in front of the vehicle.

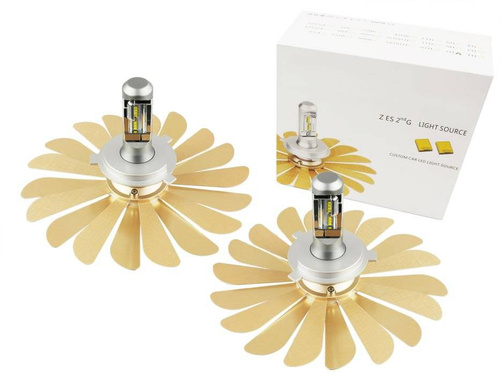

The kit includes:

• Two bulbs LED H4 ZES , 50W / 6000lm each
• Cooling strips with rings
• Two CAN-BUS filters
• Manual - assembly and operating instructions
• Packaging (perfect for a gift)
• Warranty: 12 months
• Receipt or VAT invoice (on request)
