Set of high or low beam LED H7 100W | innovative system of flexible straps for heat dissipation | second generation ZES diodes | CAN-BUS | 12,000 lm

Due to the very high efficiency of the LED H7 ZES 12000 lm set, we recommend using it as:

• dipped beam (low beam) bulbs
• bulbs for high beam (high beam)
• fog lamp bulbs

Technical Specifications:

• Model: LED H7 ZES low beam 100W 12,000 lm
• Number of LED bulbs: 2
• Number of LEDs: 8 / bulb
• LED diodes: LumiLED ZES 2nd gen
• Total current consumption: 100W
• Supply voltage: 12V - 24V
• Light color: snow white 6000k
• Lamp replacement: H7, H7R, H7M

The bulbs have built-in CAN-BUS filters, so they should not cause errors on the on-board computer.

The elimination of a fixed, large heat sink in favor of flexible, thermally conductive strips allowed to reduce the height of the bulb from the flange (mounting) to the cable to the 30 mm

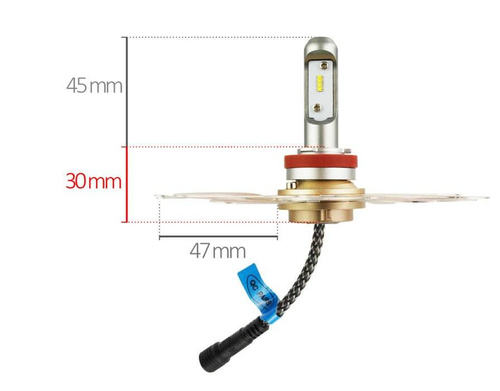

Other bulb dimensions:

• Height from attachment to the top of the bulb: 45 mm
• Overall height: 75 mm
• Bulb top diameter: 14 mm
• Straps length: 47 mm

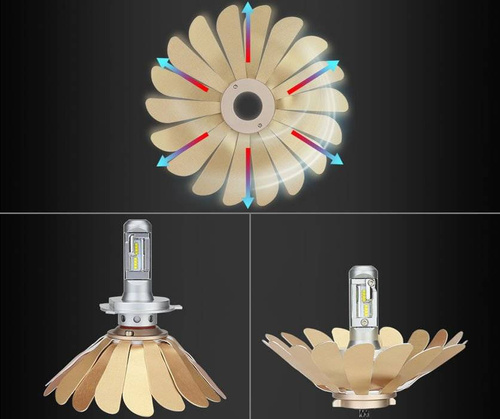

Innovative cooling system for LED H7 ZES 12,000 lm bulbs:

Cooling systems Many H7 replacement models available on the market use a heat sink located behind the bulb flange, the size of which often prevents the sealing cover from being closed on the car lamp housing, and at the same time disqualifies the installation of LED bulbs in a car lamp.

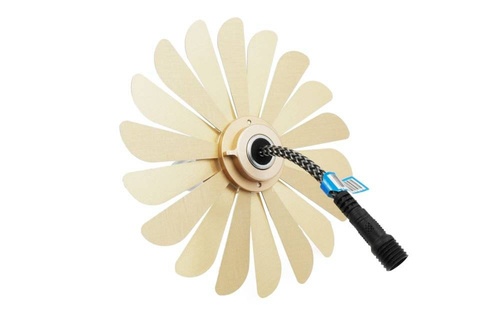

Our innovative cooling system is based on the use of flexible strips made of the highest quality flexible aluminum, which can be freely formed inside the car lamp housing.

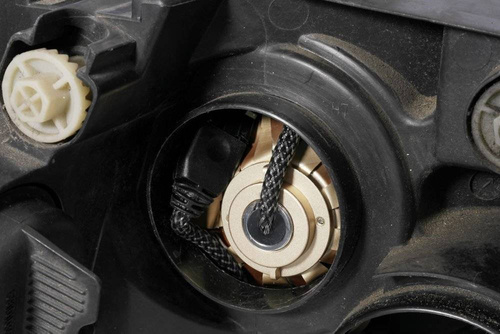

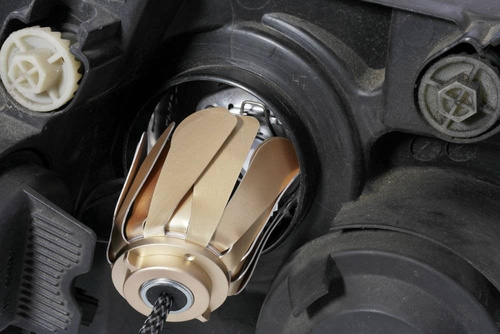

The straps can be successfully placed around the outside of the reflector or car lens, or bent in the opposite direction to the bulb mounting, if there is enough space in the lamp housing.

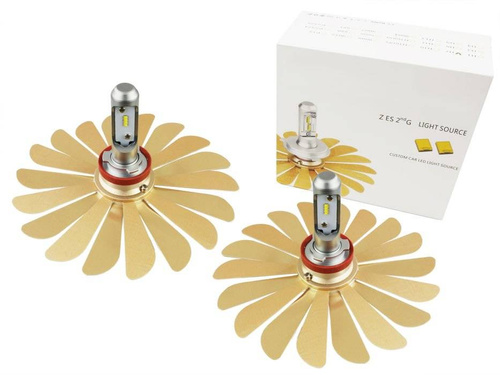

The kit includes:

• Two bulbs LED H7 ZES , 50W / 6000lm each
• Cooling strips with rings
• Two CAN-BUS filters
• Manual - assembly and operating instructions
• Packaging (perfect for a gift)
• Warranty: 12 months
• Receipt or VAT invoice (on request)
